Huawei OptiX OSN 9800 TNG1N401 1*100 Gbit/s Line Service Processing Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNG1N401 overview

Huawei OptiX OSN 9800 TNG1N401 1 x 100 Gbit/s Line Service Processing Board.

As an OTN line board, the N401 board converts 80 ODU0, 40 ODU1, 10 ODU2, 10 ODU2e, 2 ODU3, 1 ODU4, or 80 ODUflex signals into one OTU4 signal carried over an ITU-T G.694.1 compliant DWDM wavelength, and vice versa. Each port on the board supports a mix of ODU0, ODU1, ODU2/ODU2e, ODU3, and ODUflex signals. The N401 board uses coherent detection technology and is targeted for coherent communications.

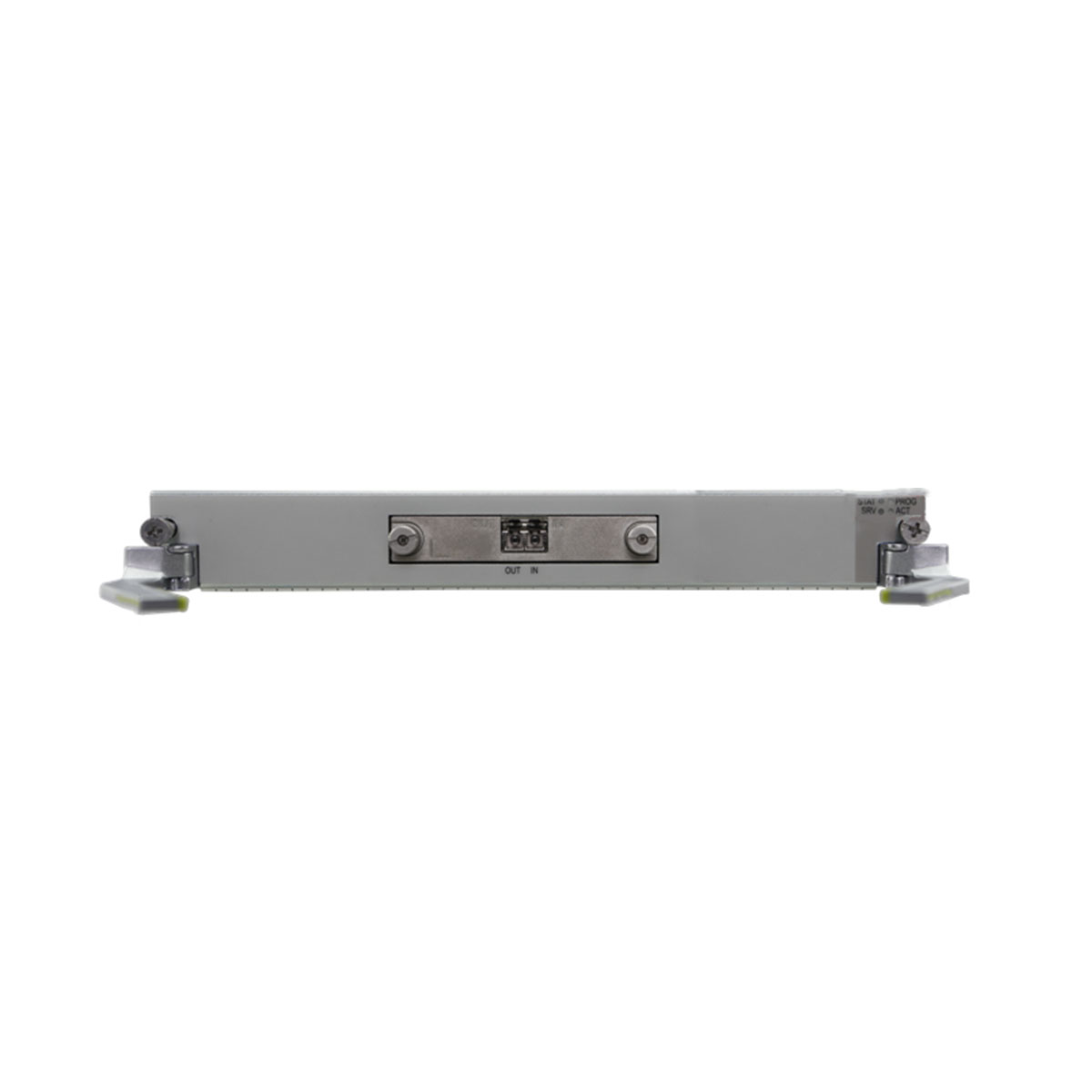

Appearance of the TNG1N401

Valid slots

Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 M05	1	IU1, IU2, IU3, IU4, IU5	IU1, IU2, IU3, IU4, IU5
OptiX OSN 9800 M12	1	IU1 to IU13	IU1 to IU13
OptiX OSN 9800 M24	1	IU1 to IU24	IU1 to IU24

Item	TNG1N401
Backplane capacity	The total backplane bandwidth is 100 Gbit/s.
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding	T51/T61/T5U/T62/T65/T69HP/T65HP/T50/T51HP/T52/T53/T63/T52HP/T53HP/T63HP/T61HP/F51/A51/A62: SDFEC2 Gray-light modules: FEC
Line modulation format	NRZ 100G QPSK 100G QPSK wDCM
OTN overhead protocol	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead	WDM-side OTU4 layer: supports SM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection	Supported NOTE: Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP	Supported
Tributary SNCP	Supported NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection.
Electrical-layer ASON	Supported
Optical-layer ASON	Supported NOTE: In versions earlier than V100R007C00SPC500, ASON is not supported in high SOP mode. In V100R007C00SPC500 and later versions, only ASON without optical parameters is supported in high SOP mode.
Physical clock	Supported
IEEE 1588v2	Not supported
Outband DCN	Supports communication over ESCs.
Test frame	Not supported
PRBS	Supports the PRBS function on the WDM side.
Delay measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODUk cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODUk channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODUk channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Channel loopback	ODUk (k=0, 1, 2, 3, flex) channel loopbacks
Port loopback	Supports WDM Side Loopback
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults. Supports the monitoring of the laser bias current. Supports the laser temperature monitoring. Supports the optical power monitoring. Supports the monitoring of OTN alarms and performance events.

Mechanical Specifications

Board	Item	Unit	Value
TNG1N401	Dimensions (H x W x D)	mm	237.10×30.50×220.00
	Dimensions (H x W x D)	in.	9.34×1.20×8.67
	Weight	kg	1.7
	Weight	lb.	3.75
	Typical Power Consumption (Regeneration mode)	W	85
	Typical Power Consumption (Line mode, and use the LR4 module)	W	66
	Typical Power Consumption (Line mode, and use the other module)	W	87
	Maximum Power Consumption (Regeneration mode)	W	94
	Maximum Power Consumption (Line mode, and use the LR4 module)	W	73
	Maximum Power Consumption (Line mode, and use the other module)	W	96

Item	TNG1N401
Backplane capacity	The total backplane bandwidth is 100 Gbit/s.
WDM specification	Supports the DWDM specifications.
Tunable wavelength	Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding	T51/T61/T5U/T62/T65/T69HP/T65HP/T50/T51HP/T52/T53/T63/T52HP/T53HP/T63HP/T61HP/F51/A51/A62: SDFEC2 Gray-light modules: FEC
Line modulation format	NRZ 100G QPSK 100G QPSK wDCM
OTN overhead protocol	Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead	WDM-side OTU4 layer: supports SM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection	Supported NOTE: Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP	Supported
Tributary SNCP	Supported NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection.
Electrical-layer ASON	Supported
Optical-layer ASON	Supported NOTE: In versions earlier than V100R007C00SPC500, ASON is not supported in high SOP mode. In V100R007C00SPC500 and later versions, only ASON without optical parameters is supported in high SOP mode.
Physical clock	Supported
IEEE 1588v2	Not supported
Outband DCN	Supports communication over ESCs.
Test frame	Not supported
PRBS	Supports the PRBS function on the WDM side.
Delay measurement	The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODUk cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODUk channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODUk channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Channel loopback	ODUk (k=0, 1, 2, 3, flex) channel loopbacks
Port loopback	Supports WDM Side Loopback
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults. Supports the monitoring of the laser bias current. Supports the laser temperature monitoring. Supports the optical power monitoring. Supports the monitoring of OTN alarms and performance events.

Mechanical Specifications

Board	Item	Unit	Value
TNG1N401	Dimensions (H x W x D)	mm	237.10×30.50×220.00
	Dimensions (H x W x D)	in.	9.34×1.20×8.67
	Weight	kg	1.7
	Weight	lb.	3.75
	Typical Power Consumption (Regeneration mode)	W	85
	Typical Power Consumption (Line mode, and use the LR4 module)	W	66
	Typical Power Consumption (Line mode, and use the other module)	W	87
	Maximum Power Consumption (Regeneration mode)	W	94
	Maximum Power Consumption (Line mode, and use the LR4 module)	W	73
	Maximum Power Consumption (Line mode, and use the other module)	W	96

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
