Description

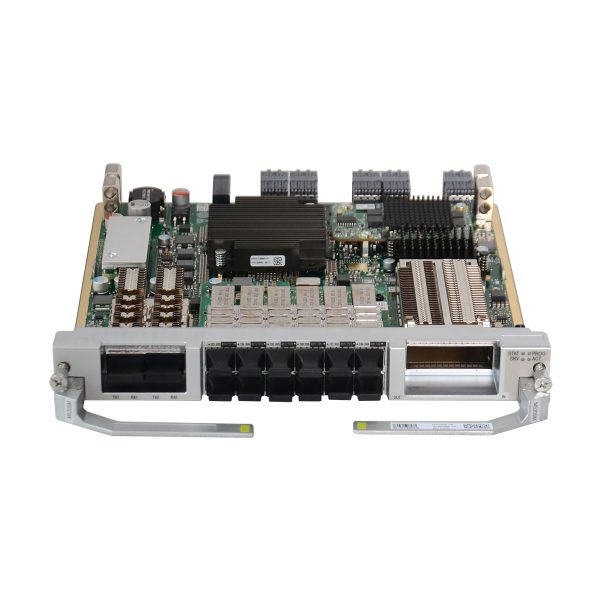

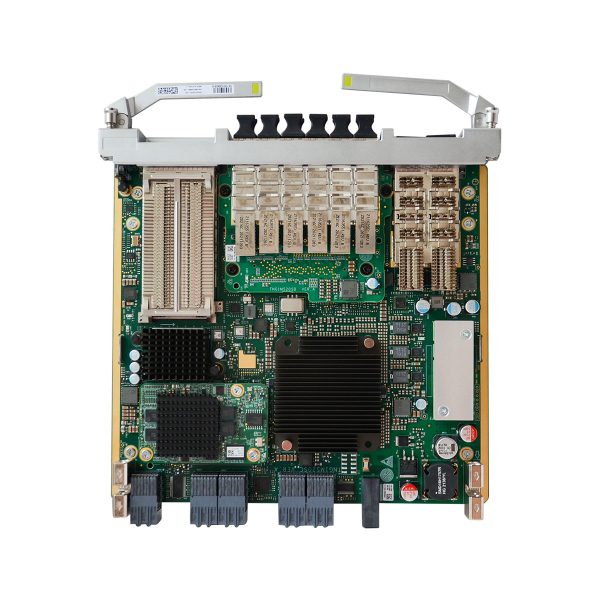

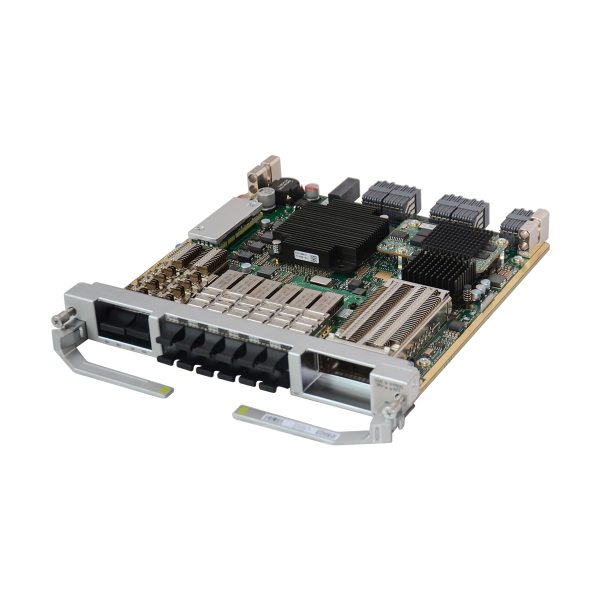

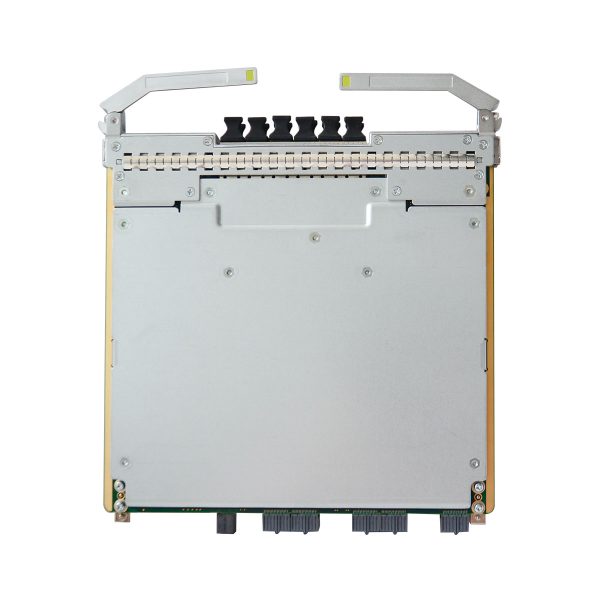

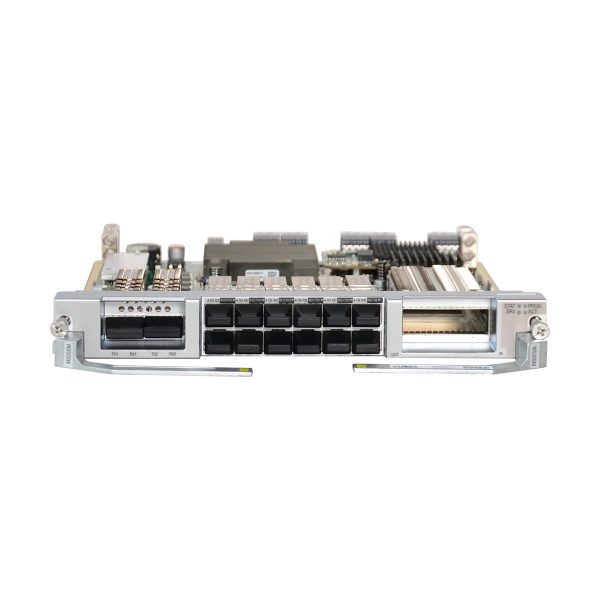

TNG1M520SM Overview

Board	Description	Board Name (Silkscreen Name)
TNG1M520SM	20 x 10GE or 2 x 100GE Service Multiplexing into 1 x 200G/100G Programmable Wavelength Conversion Board	M520SM

TNG1M520SM Mapping Relationship

Board	Matching Equipment	Matching System Control Board – Cross-Connect Board	Initial Version of the Matching System Control and Cross-Connect Board	Service Capacity
TNG1M520SM01	9800 M05	TME1CTU TME2CTU	V100R019C10SPC600	OTN: 200Gbit/s
	9800 M05	TME3CTU	V100R020C10SPC300	OTN: 200Gbit/s
	9800 M12	TMF1SCC TMF2SCC	V100R019C10SPC600	OTN: 200Gbit/s
	9800 M12	TME3CTU	V100R020C10SPC300	OTN: 200Gbit/s
	9800 M24	TNG1CXP (1:1 mode) TNG1CXP-TNG3CXCS01 (1:3 mode) TNG1CXP-TNG3CXCS02 (1:3 mode) TNG3CXP (1:1 mode) TNG3CXP-TNG3CXCS02 (1:3 mode)	V100R019C10SPC600	OTN/OSU: 200Gbit/s
	9800 M24	TNG4CXP (1:1 mode) TNG4CXP-TNG3CXCS02 (1:3 mode)	V100R021C00SPC200	OTN/OSU: 200Gbit/s

Mapping relationship of the TNG1M520SM06 board

Board	Matching Equipment	Matching System Control Board – Cross-Connect Board	Initial Version of the Matching System Control and Cross-Connect Board	Compatible Version	Service Capacity
TNG1M520SM06	9800 M05	TME1CTU TME2CTU	V100R020C10SPC200	V100R019C10SPC600 and later versions	OTN: 200Gbit/s
	9800 M05	TME3CTU	V100R020C10SPC300	–	OTN: 200Gbit/s
	9800 M12	TMF1SCC TMF2SCC	V100R020C10SPC200	V100R019C10SPC600 and later versions	OTN: 200Gbit/s
	9800 M12	TME3CTU	V100R020C10SPC300	–	OTN: 200Gbit/s
	9800 M24	TNG1CXP (1:1 mode) TNG1CXP-TNG3CXCS01 (1:3 mode) TNG1CXP-TNG3CXCS02 (1:3 mode) TNG3CXP (1:1 mode) TNG3CXP-TNG3CXCS02 (1:3 mode)	V100R020C10SPC200	V100R019C10SPC600 and later versions	OTN/OSU: 200Gbit/s
	9800 M24	TNG4CXP (1:1 mode) TNG4CXP-TNG3CXCS02 (1:3 mode)	V100R021C00SPC200	–	OTN/OSU: 200Gbit/s

RTU

Name	Description	Remarks
LNSDRTUC01	Line Port Enable RTU for 200G CFP Port	By default, the WDM-sideport cannot be used on the board. Right to use (RTU) allows the usage of the WDM-side port.
LNSDRTUC02	Line Capacity RTU for 200G CFP Port(Per 100G)	By default, the capacity of each WDM-side CFP port on the board is 100G. One RTU item is required for every 100G capacity increase.
LNSDQSFPP01	Line Port Enable RTU for 100G QSFP Port	When ports are used as line ports , by default, no line port can be used on the board. One RTU item is required for every 100G QSFP28 port.
LNSDRTUQ05	Client Port Enable RTU for 25G Port	By default, no client-side port can be used on the board. One RTU item is required for every client-side 25G port.
LNSDRTUC08	Client Port Enable RTU for 10G Port	By default, no client-side port can be used on the board. One RTU item is required for every client-side 10G or lower-rate port.
LNSDRTUQ01	Client Port Enable RTU for 100G QSFP Port	By default, no client-side port can be used on the board. One RTU item is required for every client-side 100G QSFP28 port.
LNSDRTUQ02	Client Port Enable RTU for 40G/50G QSFP Port	By default, no client-side port can be used on the board. One RTU item is required for every client-side 40G/50G QSFP port.

TNG1M520SM substitution relationship

Original Board	Substitute Board	Substitute Type	Restriction
TNG1M520SM01	TNG1M520SM06	Complete substitution	The TNG1M520SM06 board can completely substitute for the TNG1M520SM01 board, without any requirement for version upgrade or logical board creation.
TNG1M520S	TNG1M520SM	Version substitution	During board substitution using the version replacement function, the NE where the original board resides does not need to be upgraded. The substitute board can be created as the logical board of the original board on the NMS and replace the original board. The substitute board has only the functions of the original board. During board substitution using the version replacement function, because the original board and substitute board support the same optical modules, the optical modules of the original board can still be used. When a TNG1M520SM board replaces a TNG1M520S board, the TNG1M520SM01 board does not support intra-board 1+1 protection bidirectional switching. When a TNG1M520S board has been configured with bidirectional switching and a TNG1M520SM01 board is used for replacement, the HARD_NONSUPPORT alarm is reported during the replacement, and only the unidirectional switching capability is ensured.
TNG1M520SM	TNG1M520S	Version substitution	During board substitution using the version replacement function, the NE where the original board resides does not need to be upgraded. The substitute board can be created as the logical board of the original board on the NMS and replace the original board. The substitute board has only the functions of the original board. During board substitution using the version replacement function, because the original board and substitute board support the same optical modules, the optical modules of the original board can still be used. The M520S board can substitute for the M520SM board using the version replacement function only in M12 and M05 subracks.
TNG1M520SM06	TNG1M520SM01	Complete substitution	The TNG1M520SM06 and TNG1M520SM01 boards can completely substitute for each other, without any requirement for version upgrade or logical board creation. When a TNG1M520SM board replaces a TNG1M520S board, the TNG1M520SM01 board does not support intra-board 1+1 protection bidirectional switching. When a TNG1M520S board has been configured with bidirectional switching and a TNG1M520SM01 board is used for replacement, the HARD_NONSUPPORT alarm is reported during the replacement, and only the unidirectional switching capability is ensured.

Function and Feature	Description
Basic function	The board can convert client-side services into OTU signals,the client-side service supports hybrid transmission of different services, for details about the service types, number of channels, and mapping paths supported by different ports, see Applications.
Client-side service type	SDH/SONET service: STM-1/OC-3: SDH/SONET service at a rate of 155.52 Mbit/s STM-4/OC-12: SDH/SONET service at a rate of 622.08 Mbit/s STM-16/OC-48: SDH/SONET service at a rate of 2488.32 Mbit/s STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s Ethernet service: FE: Ethernet service at a rate of 125 Mbit/s. Supports FE optical signals. GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals. 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s 25GE: Ethernet service at a rate of 25.78 Gbit/s 40GE: Ethernet service at a rate of 41.25 Gbit/s 50GE: Ethernet service at a rate of 51.56 Gbit/s 100GE: Ethernet service at a rate of 103.125 Gbit/s OTN service: OTU1: OTN service at a rate of 2.67 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s OTU4: OTN service at a rate of 111.81 Gbit/s SAN service: FC100: SAN service at a rate of 1.06 Gbit/s FC200: SAN service at a rate of 2.12 Gbit/s FC400: SAN service at a rate of 4.25 Gbit/s FC800: SAN service at a rate of 8.5 Gbit/s FC1200: SAN service at a rate of 10.51 Gbit/s FC1600: SAN service at a rate of 14.025 Gbit/s FC1600-Trunk-2: SAN service at a rate of 2 * 14.025 Gbit/s FC1600-Trunk-4: SAN service at a rate of 4 * 14.025 Gbit/s FC3200: SAN service at a rate of 28.05 Gbit/s FICON: SAN service at a rate of 1.06 Gbit/s FICON Express: SAN service at a rate of 2.12 Gbit/s FICON 4G: SAN service at a rate of 4.25 Gbit/s FICON 8G: SAN service at a rate of 8.5 Gbit/s FICON 10G: SAN service at a rate of 10.51 Gbit/s ESCON: SAN service at a rate of 200 Mbit/s FDDI: SAN service at a rate of 125 Mbit/s Video service: SDI: Serial digital interface at a rate of 270 Mbit/s HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s 3G-SDI: Video service at a rate of 2.97 Gbit/s 3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s DVB-ASI: Video service at a rate of 270 Mbit/s
Service mapping mode	GE service: Supports GFP-T/(TTT+GMP) mapping. 10GE LAN service: Supports GFP-F/BMP/(IMP+BMP) mapping. 40GE service: Supports (TTT+GMP) mapping. 25GE/50GE service: Supports BMP/GFP-F mapping. 100GE service: Supports GMP/GFP-F mapping. NOTE: The Bit Transparent Mapping(11.1G IMP+BMP) mode can be used for service interconnection with the Bit Transparent Mapping(11.1G) mode.
WDM specification	Supports the DWDM specifications.
Tunable wavelength	M520SM supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding	Client side: Supports FEC coding when the client-side service type is OTU4. Client side: Supports RS_FEC coding when the client-side service type is 25GE/50GE/100GE/FC3200. WDM side: Supports SDFEC/SDFEC2/SDFEC-M coding.
Line modulation format	100G QPSK 100G QPSK wDCM 200G 16QAM 200G 16QAM-H 200G e16QAM 200G QPSK 200G m16QAM NOTE: Only the TNG1M520SM06 supports 200G QPSK.
Typical channel spacing	200G e16QAM: 50GHz Flex/62.5GHz Flex/75GHz Flex 200G QPSK: 75GHz Others modulation format: 50GHz Fix.
OTN overhead	ODU0/ODUflex/ODUC2 layer: supports PM and TCM overhead processing. ODU1/ODU2 layer: Supports PM and TCM overhead processing. Supports Non-intrusive monitoring of PM and TCM overheads and SM overhead processing are supported when OTN services are configured. ODU3 layer: supports PM and TCM overhead processing when 40GE services are received on the client side. ODU4 layer: Supports PM and TCM overhead processing when 100GE services are received on the client side. Supports PM and TCM overhead processing when OTU4 services are received on the client side. This board supports non-intrusive monitoring of PM and TCM overheads. Supports SM overhead processing at the OTU4 layer on the client side. OTUC2/OTU4 layer: supports SM overhead processing on the WDM side.
LPT	Supports the LPT function when the client-side service is FE/GE/10GE LAN. NOTE: The port equipped with an electrical module does not support LPT.
Intra-board 1+1 protection	Supported NOTE: Supports intra-board 1+1 protection when working with optical protection boards. Only the TNG1M520SM06 supports bidirectional switching when this board works with the TNG2DCP board.
Client 1+1 protection	Supported NOTE: When a MPO module is used on the client side, the M520SM board does not support client 1+1 protection. When 100GE, 50GE, 40GE, 25GE, 10GE and GE services with a LC module are received on the client side, client 1+1 protection supports bidirectional switching.
ODUk SNCP	Not supported
Tributary SNCP	Supported NOTE: Supports intra-board tributary SNCP protection.
Optical-layer ASON	Supported NOTE: Optical-layer ASON is not supported when the TX1/RX1 port works in line mode.
L1 service encryption	Supports setting the encryption function by port. NOTE: When working in ODU1 convergence mode or the OTU4 service is accessed, the board does not support encryption. The client-side ports do not support broadcast cross-connection and encryption function at the same time. After the encryption function is configured, the WDM-side rate of the board cannot be switched, but the modulation formats of the same rate can be switched.
ALS	Supports the ALS function on the client side when client services are non-OTN services. NOTE: The port equipped with an electrical module does not support ALS.
LLDP	Supports the LLDP function when the client-side service is ethernet. NOTE: The LLDP function is not supported when the client-side service is GE. When the service mapping mode is MAC transparent mapping, the LLDP mode of the port is the Receive mode by default. In this case, LLDP packets are not transparently transmitted.
Physical clock	Supports synchronous Ethernet transparent transmission instead of synchronous Ethernet processing when receiving 100GE(Bit Transparent Mapping)/50GE (BMP)/40GE (TTT+GMP)/25GE (BMP)/10GE LAN(Bit Transparent Mapping(11.1G))/GE (TTT+GMP) services on the client side. Supports synchronous Ethernet processing instead of synchronous Ethernet transparent transmission when receiving 100GE(MAC transparent mapping)/50GE (GFP-F)/25GE (GFP-F)/10GE LAN(MAC transparent mapping(10.7G))/GE (GFP-T) services on the client side. NOTE: Synchronous Ethernet transparent transmission is not supported when 10GE LAN (IMP+BMP) services are received.
IEEE 1588v2	Supported NOTE: Supported only when the client-side service type is 100GE(GFP-F)/50GE(GFP-F)/25GE(GFP-F)/10GE LAN(GFP-F)/GE(GFP-T).
ITU-T G.8275.1	Supported NOTE: Supported only when the client-side service type is 100GE(MAC Transparent Mapping ODU4)/50GE(MAC Transparent Mapping(GFP-F))/25GE(MAC Transparent Mapping(GFP-F))/10GE LAN(MAC Transparent Mapping(10.7G))/GE(GFP-T).
ITU-T G.8273.2	Supported
High-precision clock synchronization	Supported NOTE: The high-precision clock synchronization function can be implemented only after the corresponding license is obtained. The board must work with the subrack and system control board that support high-precision clock to support the high-precision clock synchronization function. For details, see Clock Synchronization Feature Guide. When the TX1/RX1 and TX2/RX2 ports receive 4 x 10GE services, only the first 10GE channel of the 4 x 10GE supports IEEE 1588, ITU-T G.8275.1 and physical-layer clocks. Supported only when the client-side service type is 100GE(GFP-F)/50GE(GFP-F)/25GE(GFP-F)/10GE LAN(GFP-F)/GE(GFP-T).
Outband DCN	Supports ESC communication.
Test frame	Supported when the client-side service type is 100GE/50GE(GFP-F)/40GE/25GE(GFP-F)/10GE LAN(MAC transparent mapping(10.7G))/GE (GFP-T). NOTE: Supports this function only in ODU1 convergence mode when receiving FE services on the client side.
PRBS	Supports the PRBS function on the WDM side. The PRBS function in the client-side optical port direction is supported only when the service type is STM-1, OC–3, STM-4, OC-12, STM-16, OC-48, OTU1, STM-64, OC-192, OTU2, OTU2e or OTU4. PRBS signals can be sent from the client-side optical port to the system side. NOTE: The client-side PRBS function is not supported when the board accesses 4 x 10GE signals.
Latency measurement	Supports PM and TCM latency measurement for upstream higher-order ODU channels. Supports PM and TCM latency measurement for upstream lower-order ODU channels when non-OTN services are received on the client side. Supports TCM latency measurement for downstream lower-order ODU channels when OTN services are received on the client side. NOTE: In a mapping path, the maximum granularity ODUk channel is the higher-order ODU channel, and other ODUk channels are lower-order ODUk channels.
Channel loopback	When a client-side port accesses 4 x 10GE signals, channel loopback is supported.
Port loopback	Supports the client-side inloop and outloop. Supports the client-side ODUk inloop and outloop. Supports the WDM-side inloop and outloop. NOTE: Client-side loopback is not supported when the port accesses 4 x 10GE LAN signals. When the line-side rate is 100 Gbit/s and 100GE/OTU4 services are received on the client side, the board does not support WDM-side port loopback. When no cross-connection is configured on a client-side port, inloops cannot be configured on the client-side port. When the board receives FC1600-Trunk-2 services, A maximum of four FC1600-Trunk-2 services are supported, and each service needs to use a combination of two client-side ports, which are ports TX5/RX5 to TX6/RX6, ports TX7/RX7 to TX8/RX8, ports TX11/RX11 to TX12/RX12 or ports TX13/RX13 to TX14/RX14. Ports TX5/RX5, TX7/RX7, TX11/RX11 and TX13/RX13 support client-side inloops and outloops. Ports TX6/RX6, TX8/RX8, TX12/RX12 and TX14/RX14 support only outloops. An outloop cannot be configured for the first port and other ports in the same group concurrently. When the board receives FC1600-Trunk-4 services, A maximum of two FC1600-Trunk-4 services are supported, and each service needs to use a combination of four client-side ports, which are ports TX5/RX5 to TX8/RX8 or ports TX11/RX11 to TX14/RX14. Ports TX5/RX5 and TX11/RX11 support client-side inloops and outloops. Ports TX6/RX6 to TX8/RX8 and TX12/RX12 to TX14/RX14 support only outloops. An outloop cannot be configured for the first port and other ports in the same group concurrently.
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures. Supports the monitoring of OTN alarms and performance events. Supports the remote monitoring (RMON) of Ethernet services. Supports the monitoring of the bias current of the laser. Supports the monitoring of the temperature of the laser. Supports the monitoring of the optical power.

Functions and Features of the TNG1M520SM Board (Multi-function Mode)

Only supported when the 9800 M24 is used.

Function and Feature	Description
Client-side service type	SDH/SONET service: STM-1/OC-3: SDH/SONET service at a rate of 155.52 Mbit/s STM-4/OC-12: SDH/SONET service at a rate of 622.08 Mbit/s STM-16/OC-48: SDH/SONET service at a rate of 2488.32 Mbit/s STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s Ethernet service: FE: Ethernet service at a rate of 125 Mbit/s. Supports FE optical signals. GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals. 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s 25GE: Ethernet service at a rate of 25.78 Gbit/s 40GE: Ethernet service at a rate of 41.25 Gbit/s 50GE: Ethernet service at a rate of 51.56 Gbit/s 100GE: Ethernet service at a rate of 103.125 Gbit/s OTN service: OTU1: OTN service at a rate of 2.67 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s OTU4: OTN service at a rate of 111.81 Gbit/s SAN service: FC100: SAN service at a rate of 1.06 Gbit/s FC200: SAN service at a rate of 2.12 Gbit/s FC400: SAN service at a rate of 4.25 Gbit/s FC800: SAN service at a rate of 8.5 Gbit/s FC1200: SAN service at a rate of 10.51 Gbit/s FC1600: SAN service at a rate of 14.025 Gbit/s FC3200: SAN service at a rate of 28.05 Gbit/s FICON: SAN service at a rate of 1.06 Gbit/s FICON Express: SAN service at a rate of 2.12 Gbit/s FICON 4G: SAN service at a rate of 4.25 Gbit/s FICON 8G: SAN service at a rate of 8.5 Gbit/s FICON 10G: SAN service at a rate of 10.51 Gbit/s ESCON: SAN service at a rate of 200 Mbit/s FDDI: SAN service at a rate of 125 Mbit/s Video service: SDI: Serial digital interface at a rate of 270 Mbit/s HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s 3G-SDI: Video service at a rate of 2.97 Gbit/s 3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s DVB-ASI: Video service at a rate of 270 Mbit/s
Service mapping mode	GE service: Supports GFP-T/(TTT+GMP) mapping. 10GE LAN service: Supports GFP-F/BMP/(IMP+BMP) mapping. 40GE service: Supports (TTT+GMP) mapping. 25GE/50GE service: Supports BMP/GFP-F mapping. 100GE service: Supports GMP/GFP-F mapping. NOTE: The Bit Transparent Mapping(11.1G IMP+BMP) mode can be used for service interconnection with the Bit Transparent Mapping(11.1G) mode.
WDM specification	Supports the DWDM specifications.
Tunable wavelength	M520SM supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding	Client side: Supports FEC coding when the client-side service type is OTU4. Client side: Supports RS_FEC coding when the client-side service type is 25GE/50GE/100GE/FC3200. WDM side: Supports SDFEC/SDFEC2/SDFEC-M coding.
Line modulation format	NRZ 100G QPSK 100G QPSK wDCM 200G 16QAM 200G 16QAM-H 200G e16QAM 200G QPSK 200G m16QAM NOTE: Only the TNG1M520SM06 supports 200G QPSK.
Typical channel spacing	200G e16QAM: 50GHz Flex/62.5GHz Flex/75GHz Flex 200G QPSK: 75GHz Others modulation format: 50GHz Fix.
OTN overhead	ODU0/ODUflex/ODUC2 layer: supports PM and TCM overhead processing. ODU1/ODU2 layer: Supports PM and TCM overhead processing. Supports Non-intrusive monitoring of PM and TCM overheads and SM overhead processing are supported when OTN services are configured. ODU3 layer: supports PM and TCM overhead processing when 40GE services are received on the client side. ODU4 layer: Supports PM and TCM overhead processing when 100GE services are received on the client side. Supports PM and TCM overhead processing when OTU4 services are received on the client side. This board supports non-intrusive monitoring of PM and TCM overheads. Supports SM overhead processing at the OTU4 layer on the client side. OSUflex layer: PM overhead processing. OTUC2/OTU4 layer: supports SM overhead processing on the WDM side.
OSU	Supported NOTE: The OSU function requires a license.
LPT	Supports the LPT function when the client-side service is FE/GE/10GE LAN. NOTE: The port equipped with an electrical module does not support LPT.
Intra-board 1+1 protection	Supported NOTE: Supports intra-board 1+1 protection when working with optical protection boards.
Client 1+1 protection	Supported NOTE: When a MPO module is used on the client side, the M520SM board does not support client 1+1 protection. When 100GE, 50GE, 40GE, 25GE, 10GE and GE services with a LC module are received on the client side, client 1+1 protection supports bidirectional switching.
ODUk SNCP	Supported NOTE: The ODUk SNCP protection group cannot be configured on different channels of the line-side port of the board. ODUk SNCP and tributary SNCP cannot be configured for the same service at the same time. when cross-connections are created between the port and the line side of this board and between the port and the line side of other boards, the port does not support the SNCP protection and port inloop loopback at the same time. ODUk SNCP protection and encryption function cannot be configured on a port at the same time.
OSUflex SNCP	Supported NOTE: The OSUflex SNCP protection group cannot be configured on different channels of the line-side port of the board. OSUflex SNCP and tributary SNCP cannot be configured for the same service at the same time. When cross-connections are created between the port and the line side of this board and between the port and the line side of other boards, the port does not support the SNCP protection and port inloop loopback at the same time. OSUflex SNCP protection and encryption function cannot be configured on a port at the same time. In line mode, the board supports a maximum of 512 OSUflex SNCP protection groups.
Tributary SNCP	Supported NOTE: ODUk SNCP and tributary SNCP cannot be configured for the same service at the same time. When cross-connections are created between the port and the line side of this board and between the port and the line side of other boards, the port does not support the SNCP protection and port inloop loopback at the same time.
Optical-layer ASON	Supported NOTE: Optical-layer ASON is not supported when the TX1/RX1 port works in line mode.
Electrical-layer ASON	Supported NOTE: This function is supported only when the board works in tributary or line mode.
L1 service encryption	Supports setting the encryption function by port. NOTE: When working in ODU1 convergence mode or the OTU4 service is accessed, the board does not support encryption. The client-side ports do not support broadcast cross-connection and encryption function at the same time. After the encryption function is configured, the WDM-side rate of the board cannot be switched, but the modulation formats of the same rate can be switched.
ALS	Supports the ALS function on the client side when client services are non-OTN services. NOTE: The port equipped with an electrical module does not support ALS.
LLDP	When the client-side service type is ethernet service, the board supports the LLDP function. NOTE: The LLDP function is not supported when the client-side service is GE. When the service mapping mode is MAC transparent mapping, the LLDP mode of the port is the Receive mode by default. In this case, LLDP packets are not transparently transmitted.
Physical clock	Supports synchronous Ethernet transparent transmission instead of synchronous Ethernet processing when receiving 100GE(Bit Transparent Mapping)/50GE (BMP)/40GE (TTT+GMP)/25GE (BMP)/10GE LAN(Bit Transparent Mapping(11.1G))/GE (TTT+GMP) services on the client side. Supports synchronous Ethernet processing instead of synchronous Ethernet transparent transmission when receiving 100GE(MAC transparent mapping)/50GE (GFP-F)/25GE (GFP-F)/10GE LAN(MAC transparent mapping(10.7G))/GE (GFP-T) services on the client side. NOTE: Synchronous Ethernet transparent transmission is not supported when 10GE LAN (IMP+BMP) services are received.
IEEE 1588v2	Supported NOTE: Supported only when the client-side service type is 100GE(GFP-F)/50GE(GFP-F)/25GE(GFP-F)/10GE LAN(GFP-F)/GE(GFP-T).
ITU-T G.8275.1	Supported NOTE: Supported only when the client-side service type is 100GE(MAC Transparent Mapping ODU4)/50GE(MAC Transparent Mapping(GFP-F))/25GE(MAC Transparent Mapping(GFP-F))/10GE LAN(MAC Transparent Mapping(10.7G))/GE(GFP-T).
ITU-T G.8273.2	Supported
High-precision clock synchronization	Supported NOTE: The high-precision clock synchronization function can be implemented only after the corresponding license is obtained. The board must work with the subrack and system control board that support high-precision clock to support the high-precision clock synchronization function.For details, see Clock Synchronization Feature Guide. When the TX1/RX1 and TX2/RX2 ports receive 4 x 10GE services, only the first 10GE channel of the 4 x 10GE supports IEEE 1588, ITU-T G.8275.1 and physical-layer clocks. Supported only when the client-side service type is 100GE(GFP-F)/50GE(GFP-F)/25GE(GFP-F)/10GE LAN(GFP-F)/GE(GFP-T).
Outband DCN	Supports communication over ESCs.
Test frame	Supported when the client-side service type is 100GE/50GE(GFP-F)/40GE/25GE(GFP-F)/10GE LAN(MAC transparent mapping(10.7G))/GE (GFP-T). NOTE: Supports this function only in ODU1 convergence mode when receiving FE services on the client side.
PRBS	Supports the PRBS test function in the optical port direction and backplane direction when OTU4 services are received on the tributary side. Supports the PRBS test function in the backplane direction when other services are received on the tributary side. Supports the PRBS test function on the line side.
Latency measurement	Supports PM and TCM latency measurement for upstream higher-order ODU channels. Supports PM and TCM latency measurement for upstream lower-order ODU channels when non-OTN services are received on the client side. Supports TCM latency measurement for downstream lower-order ODU channels when OTN services are received on the client side. NOTE: In a mapping path, the maximum granularity ODUk channel is the higher-order ODU channel, and other ODUk channels are lower-order ODUk channels.
Channel loopback	100G line: supports ODU0/ODU1/ODU2/ODU3/ODUflex/OSUflex channel inloop and outloop. 200G line: supports ODU0/ODU1/ODU2/ODU3/ODU4/ODUflex/OSUflex channel inloop and outloop. NOTE: The board does not support the channel loopback and ODUk loopback at the same time. When a client-side port accesses 4 x 10GE signals, only channel loopback is supported. When cross-connections are set up between the client-side port and the line side of the board only, channel loopback is not supported.
Port loopback	Supports inloops and outloops on the WDM side. Supports inloops and outloops on the client side. Supports ODUk inloops and ODUk outloops on the client side. NOTE: when cross-connections are created between the port and the line side of this board and between the port and the line side of other boards, the port does not support the SNCP protection and port inloop loopback at the same time. Client-side loopback is not supported when the port accesses 4 x 10GE LAN signals. When the board functions as an OTU board, the line-side rate is 100 Gbit/s, and the client-side accesses 100GE/OTU4 services, WDM-side loopback is not supported. When no cross-connection is configured on a client-side port, inloops cannot be configured on the client-side port.
Alarm and performance event monitoring	Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures. Supports the monitoring of OTN alarms and performance events. Supports the remote monitoring (RMON) of Ethernet services. Supports the monitoring of the bias current of the laser. Supports the monitoring of the temperature of the laser. Supports the monitoring of the optical power.

Functions and Features of the TNG1M520SM Board (Regeneration)

Function and Feature	Description
Basic function	Electrically regenerates optical signals at an electrical REG station.
Regeneration rate	OTU4 OTUC2
WDM specification	Supports the DWDM specifications.
Tunable wavelength	M520SM supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding	SDFEC2, SDFEC, SDFEC-M
Line modulation format	100G QPSK 100G QPSK wDCM 200G 16QAM 200G 16QAM-H 200G e16QAM 200G QPSK 200G m16QAM NOTE: Only the TNG1M520SM06 supports 200G QPSK.
OTN overhead	200G regeneration: ODUC2 layer: supports PM and TCM overhead processing. OTUC2 layer: supports SM overhead processing. 100G regeneration: ODU4 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. OTU4 layer: supports SM overhead processing.
Optical-layer ASON	Supported
ALS	Supported
Outband DCN	Supports ESC communication.
Alarm and performance event monitoring	Monitors OTN alarms and performance events. Monitors parameters such as the bias current, temperature, and optical power of the laser. Supports CD and PMD performance monitoring.
