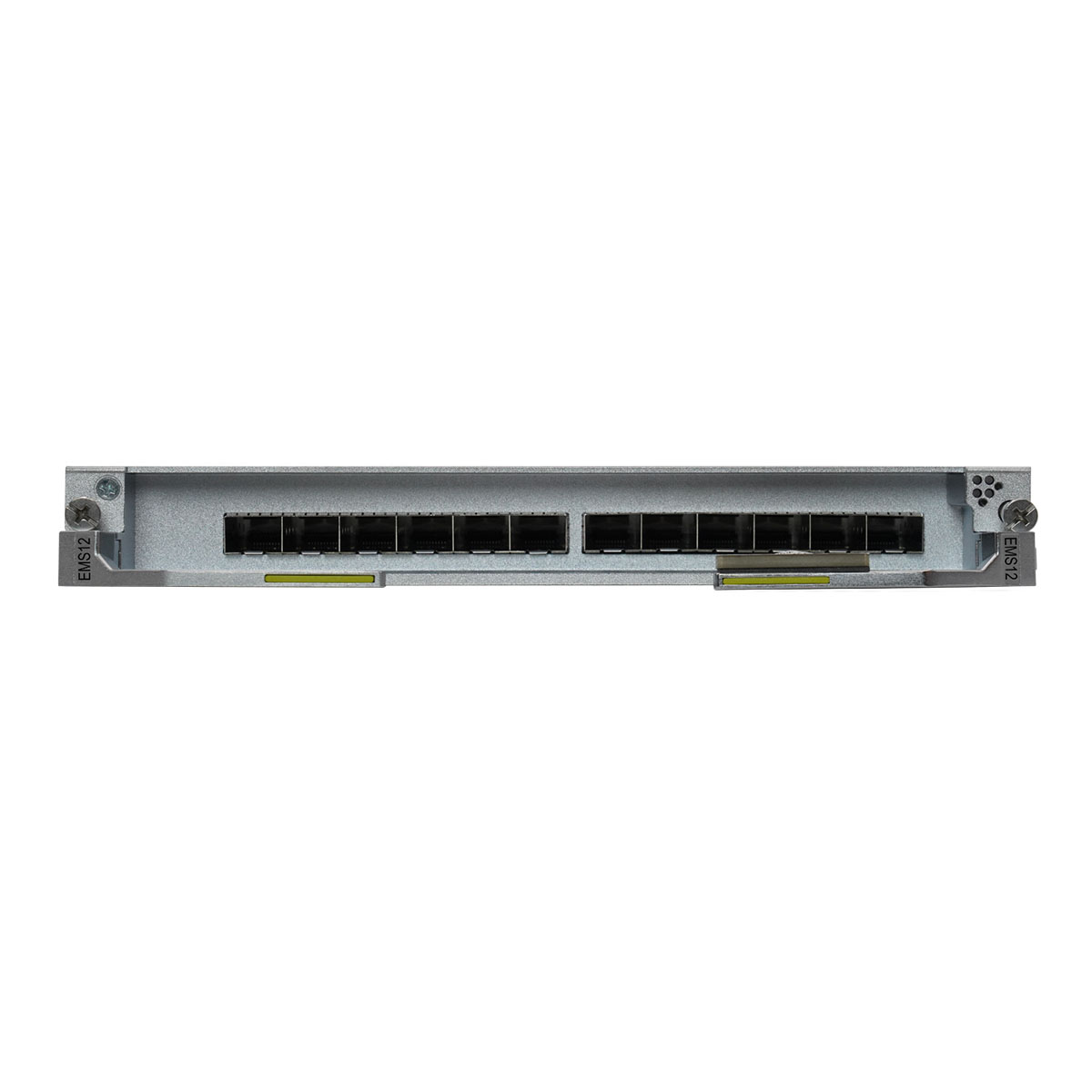

TNG1EMS12 is 12-port Ethernet Service Processing Board, apply to OSN 9800 M24.

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNG1EMS12 is 12-port Ethernet Service Processing Board, apply to OSN 9800 M24.

Function	Description
Ethernet service	EPL/ EVPL/ EPLAN/ EVPLAN
QoS	Supported
Test frame	Supported
Bound bandwidth	VC12: 1008 VC3 : 384 VC4: 128
SDH ASON	Supported
VCTRUNK	96

Mapping relationship of the TNG1EMS12 board

Board	Matching Device	Matching System Control Board – Cross-Connect Board	Initial Version of the Matching System Control and Cross-Connect Board
TNG1EMS12	9800 M24	TNG1CXP (1:1 mode) TNG1CXP-TNG3CXCS01 (1:3 mode) TNG1CXP-TNG3CXCS02 (1:3 mode) TNG3CXP (1:1 mode) TNG3CXP-TNG3CXCS02 (1:3 mode) TNG4CXP (1:1 mode) TNG4CXP-TNG3CXCS02 (1:3 mode)	V100R021C10SPC300

NOTE: If the board is installed in an M series subrack using the TNG3CXP/TNG4CXP board, it must work with a lower-order cross-connect board to support VC-12 and VC-3.

Valid slots

Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 M24	1	IU1 to IU24	IU1 to IU24

Item	TNG1EMS1201
Basic function	Provides 12 Ethernet ports. Transmits/Receives Ethernet services, encapsulates and maps the Ethernet services into SDH signals, and forwards the SDH signals to the SDH plane for transmission.
Bound bandwidth	128 x VC-4, 384 x VC-3, 1008 x VC-12. NOTE: The first 1 to 16 VC-4s can be configured as VC-12s.
Maximum uplink bandwidth	20Gbit/s
Number of services	2000. A maximum of 16,000 MAC addresses can be dynamically learned.
Bound Path Level	VC-12-Xv(X≤63), VC-3-Xv(X≤24) and VC-4-Xv(X≤64).
Encapsulation formats	HDLC LAPS GFP-F
Working mode of interface	GE electrical port: auto-negotiation, 1000M full-duplex, 100M full-duplex, and 10M full-duplex. FE optical port: 100M full-duplex. GE optical port: auto-negotiation, 1000M full-duplex. 10GE optical port: 10GE full-duplex LAN. NOTE: All ports on the TNG1EMS12 board support FE optical ports, GE optical ports and GE electrical ports. If a port is configured as an FE optical port, a 100M optical module must be installed. Only TX1/RX1 to TX4/RX4 ports support 10GE LAN. The FE electrical signals are accessed through the GE electrical port in 100M full-duplex mode.
Overhead processing	Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041 and ITU-T G.709. Supports the setting and query of the J1, J2, C2 and V5 bytes.
Traffic monitoring	Supports port-based and VCTRUNK-based traffic monitoring.
QinQ	Supported
Ethernet data frame format	IEEE 802.3, Ethernet II, IEEE 802.1Q, IEEE 802.1p
Maximum frame length for a port	Supports the setting of the frame length to a value ranging from 1518 bytes to 9600 bytes. Supports a jumbo frame with a maximum length of 9600 bytes.
EPL service	Supports PORT-based transparent transmission. Supports the query and deletion of EPL services.
EVPL service	Supports PORT-shared EVPL services. Supports a maximum of 2000 link services. Supports the query and deletion of EVPL services. Supports VCTRUNK-shared EVPL services. The services are isolated by VLAN tags. The services are isolated by QinQ tags.
EPLAN service	Supports the EPLAN services that are based on the IEEE 802.1d MAC bridge. Supports a maximum of 16 VBs. The maximum number of logical ports for each VB is 108. Blacklist, static MAC address, and dynamic MAC address sharing 16K. Supports the blacklist that can contain 512 records and also the static MAC address table that can contain 512 records. A maximum of 16K dynamic MAC addresses are supported. Supports the self-learning of the source MAC address. The aging time of the MAC address can be set and queried. Supports the configuration of static MAC routes. Supports the query of dynamic MAC addresses. NOTE: TNG1EMS12 boards support SVL bridge learning modes. Ensure that all bridges on a board apply the same learning mode.
EVPLAN service	Supports the EVPLAN services that are based on the IEEE 802.1q virtual bridge and IEEE 802.1ad provider bridge. Supports data isolation based on VB+VLAN. Supports a maximum of 16 VBs. The maximum number of logical ports for each VB is 108. Supports the setting of a maximum of 4095 VLAN filtering tables. NOTE: TNG1EMS12 boards support SVL and IVL bridge learning modes. Ensure that all bridges on a board apply the same learning mode.
VLAN technology	Supports a total number of 4095 VLANs, which comply with IEEE 802.1q/p/ad.
MPLS technology	Not supported
VCTRUNK specifications	96 Configuration principles are as follows: A VCTRUNK can be bound to a maximum of 64 VC4s, 24 VC3s or 63 VC12s. Different areas of VC4/VC3 cannot be bound to STM-64. VC4 is divided into two areas: [VC4-1 ~ VC4-64], [VC4-65 ~ VC4-128]. VC-4s in two areas cannot be bound to the same VCTRUNK. VC3 is divided into two areas: [VC3-1 ~ VC3-192], [VC3-193 ~ VC3-384]. VC-3s in two areas cannot be bound to the same VCTRUNK.
Traffic classification	Supports traffic classification based on PORT, PORT+VLAN, PORT+SVLAN, and PORT+VLAN+PRI.
Traffic policing	Support the CAR. NOTE: A maximum of 512 CAR IDs are supported. A maximum of 60 CAR parameter groups are supported.
Traffic shaping	Supports queue shaping on ports.
Congestion avoidance	Supports random early detection (RED).
Congestion management	CoS, supporting SP and WRR scheduling algorithms. NOTE: The default queue scheduling mode of ports is SP.
Class of service (CoS)	Supports CoS types including simple, VLAN priority, DSCP, and IP TOS. NOTE: IPTOS and DSCP profiles are mutually exclusive.
LPT	Supported NOTE: Supports P2P LPT and P2MP LPT in compliance with Huawei proprietary protocol. Supports the setting of the point-to-multipoint strict or non-strict mode.
SDH SNCP	Supported NOTE: Functions as a service sink board.
SDH ASON	Supported
LAG	Supports intra-board LAG. A maximum of 12 LAGs are supported. Supports the load sharing mode and non-load sharing mode. Supports manual link aggregation and static link aggregation. Complies with IEEE 802.3ad and IEEE 802.1ax.
DLAG	Supports 24 DLAGs. Inter-subrack configuration is not supported. Supports static DLAGs. Supports the non-load sharing mode. Complies with IEEE 802.3ad and IEEE 802.1ax.
LCAS	Dynamically increases or decreases the bandwidth and protects the bandwidth in compliance with ITU-T G.7042.
BPS	Supported NOTE: Inter-subrack protection is not supported. A maximum of 16 protection groups on the NE level are supported.
PPS	Supported NOTE: Inter-subrack protection is not supported. A maximum of 192 protection groups on the NE level are supported.
STP/RSTP	Supports the RSTP, which complies with IEEE 802.1w.
MSTP	Not supported
IGMP Snooping	Supports protocol enabling in compliance with IGMPv1 and IGMPv2.
LLDP	Supported
Ethernet service OAM	Supports Ethernet service OAM that complies with IEEE 802.1ag
Ethernet port OAM	Supports Ethernet service OAM that complies with IEEE 802.3ah
RMON	Supported NOTE: Supports RMON of the Ethernet performance of Ethernet ports and VCTRUNKs.
Port flow control	Supports auto-negotiation and non-auto-negotiation flow control.
Port mirroring	Supported NOTE: Supports ingress/egress port mirroring. Egress port mirroring and ingress port mirroring are mutually exclusive.
Physical clock	Supported NOTE: SFP electrical modules do not support physical clock.
IEEE 1588v2	Not supported
Test frame	Supports test frames in GFP bearer mode.
MAC layer loopback	Supports MAC inloops and outloops.
PHY layer loopback	Supports PHY inloops and outloops.
2M ASON	Supported
Response to ping	Not supported
Quantity	1000

Mechanical Specifications

Board	Item	Unit	Value
TNG1EMS12	Dimensions (H x W x D)	mm	237.10×30.50×220.00
	Dimensions (H x W x D)	in.	9.34×1.20×8.67
	Weight	kg	1.42
	Weight	lb.	3.13
	Typical Power Consumption	W	86
	Maximum Power Consumption	W	95

Item	TNG1EMS1201
Basic function	Provides 12 Ethernet ports. Transmits/Receives Ethernet services, encapsulates and maps the Ethernet services into SDH signals, and forwards the SDH signals to the SDH plane for transmission.
Bound bandwidth	128 x VC-4, 384 x VC-3, 1008 x VC-12. NOTE: The first 1 to 16 VC-4s can be configured as VC-12s.
Maximum uplink bandwidth	20Gbit/s
Number of services	2000. A maximum of 16,000 MAC addresses can be dynamically learned.
Bound Path Level	VC-12-Xv(X≤63), VC-3-Xv(X≤24) and VC-4-Xv(X≤64).
Encapsulation formats	HDLC LAPS GFP-F
Working mode of interface	GE electrical port: auto-negotiation, 1000M full-duplex, 100M full-duplex, and 10M full-duplex. FE optical port: 100M full-duplex. GE optical port: auto-negotiation, 1000M full-duplex. 10GE optical port: 10GE full-duplex LAN. NOTE: All ports on the TNG1EMS12 board support FE optical ports, GE optical ports and GE electrical ports. If a port is configured as an FE optical port, a 100M optical module must be installed. Only TX1/RX1 to TX4/RX4 ports support 10GE LAN. The FE electrical signals are accessed through the GE electrical port in 100M full-duplex mode.
Overhead processing	Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041 and ITU-T G.709. Supports the setting and query of the J1, J2, C2 and V5 bytes.
Traffic monitoring	Supports port-based and VCTRUNK-based traffic monitoring.
QinQ	Supported
Ethernet data frame format	IEEE 802.3, Ethernet II, IEEE 802.1Q, IEEE 802.1p
Maximum frame length for a port	Supports the setting of the frame length to a value ranging from 1518 bytes to 9600 bytes. Supports a jumbo frame with a maximum length of 9600 bytes.
EPL service	Supports PORT-based transparent transmission. Supports the query and deletion of EPL services.
EVPL service	Supports PORT-shared EVPL services. Supports a maximum of 2000 link services. Supports the query and deletion of EVPL services. Supports VCTRUNK-shared EVPL services. The services are isolated by VLAN tags. The services are isolated by QinQ tags.
EPLAN service	Supports the EPLAN services that are based on the IEEE 802.1d MAC bridge. Supports a maximum of 16 VBs. The maximum number of logical ports for each VB is 108. Blacklist, static MAC address, and dynamic MAC address sharing 16K. Supports the blacklist that can contain 512 records and also the static MAC address table that can contain 512 records. A maximum of 16K dynamic MAC addresses are supported. Supports the self-learning of the source MAC address. The aging time of the MAC address can be set and queried. Supports the configuration of static MAC routes. Supports the query of dynamic MAC addresses. NOTE: TNG1EMS12 boards support SVL bridge learning modes. Ensure that all bridges on a board apply the same learning mode.
EVPLAN service	Supports the EVPLAN services that are based on the IEEE 802.1q virtual bridge and IEEE 802.1ad provider bridge. Supports data isolation based on VB+VLAN. Supports a maximum of 16 VBs. The maximum number of logical ports for each VB is 108. Supports the setting of a maximum of 4095 VLAN filtering tables. NOTE: TNG1EMS12 boards support SVL and IVL bridge learning modes. Ensure that all bridges on a board apply the same learning mode.
VLAN technology	Supports a total number of 4095 VLANs, which comply with IEEE 802.1q/p/ad.
MPLS technology	Not supported
VCTRUNK specifications	96 Configuration principles are as follows: A VCTRUNK can be bound to a maximum of 64 VC4s, 24 VC3s or 63 VC12s. Different areas of VC4/VC3 cannot be bound to STM-64. VC4 is divided into two areas: [VC4-1 ~ VC4-64], [VC4-65 ~ VC4-128]. VC-4s in two areas cannot be bound to the same VCTRUNK. VC3 is divided into two areas: [VC3-1 ~ VC3-192], [VC3-193 ~ VC3-384]. VC-3s in two areas cannot be bound to the same VCTRUNK.
Traffic classification	Supports traffic classification based on PORT, PORT+VLAN, PORT+SVLAN, and PORT+VLAN+PRI.
Traffic policing	Support the CAR. NOTE: A maximum of 512 CAR IDs are supported. A maximum of 60 CAR parameter groups are supported.
Traffic shaping	Supports queue shaping on ports.
Congestion avoidance	Supports random early detection (RED).
Congestion management	CoS, supporting SP and WRR scheduling algorithms. NOTE: The default queue scheduling mode of ports is SP.
Class of service (CoS)	Supports CoS types including simple, VLAN priority, DSCP, and IP TOS. NOTE: IPTOS and DSCP profiles are mutually exclusive.
LPT	Supported NOTE: Supports P2P LPT and P2MP LPT in compliance with Huawei proprietary protocol. Supports the setting of the point-to-multipoint strict or non-strict mode.
SDH SNCP	Supported NOTE: Functions as a service sink board.
SDH ASON	Supported
LAG	Supports intra-board LAG. A maximum of 12 LAGs are supported. Supports the load sharing mode and non-load sharing mode. Supports manual link aggregation and static link aggregation. Complies with IEEE 802.3ad and IEEE 802.1ax.
DLAG	Supports 24 DLAGs. Inter-subrack configuration is not supported. Supports static DLAGs. Supports the non-load sharing mode. Complies with IEEE 802.3ad and IEEE 802.1ax.
LCAS	Dynamically increases or decreases the bandwidth and protects the bandwidth in compliance with ITU-T G.7042.
BPS	Supported NOTE: Inter-subrack protection is not supported. A maximum of 16 protection groups on the NE level are supported.
PPS	Supported NOTE: Inter-subrack protection is not supported. A maximum of 192 protection groups on the NE level are supported.
STP/RSTP	Supports the RSTP, which complies with IEEE 802.1w.
MSTP	Not supported
IGMP Snooping	Supports protocol enabling in compliance with IGMPv1 and IGMPv2.
LLDP	Supported
Ethernet service OAM	Supports Ethernet service OAM that complies with IEEE 802.1ag
Ethernet port OAM	Supports Ethernet service OAM that complies with IEEE 802.3ah
RMON	Supported NOTE: Supports RMON of the Ethernet performance of Ethernet ports and VCTRUNKs.
Port flow control	Supports auto-negotiation and non-auto-negotiation flow control.
Port mirroring	Supported NOTE: Supports ingress/egress port mirroring. Egress port mirroring and ingress port mirroring are mutually exclusive.
Physical clock	Supported NOTE: SFP electrical modules do not support physical clock.
IEEE 1588v2	Not supported
Test frame	Supports test frames in GFP bearer mode.
MAC layer loopback	Supports MAC inloops and outloops.
PHY layer loopback	Supports PHY inloops and outloops.
2M ASON	Supported
Response to ping	Not supported
Quantity	1000

Mechanical Specifications

Board	Item	Unit	Value
TNG1EMS12	Dimensions (H x W x D)	mm	237.10×30.50×220.00
	Dimensions (H x W x D)	in.	9.34×1.20×8.67
	Weight	kg	1.42
	Weight	lb.	3.13
	Typical Power Consumption	W	86
	Maximum Power Consumption	W	95
