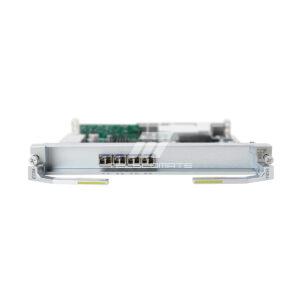

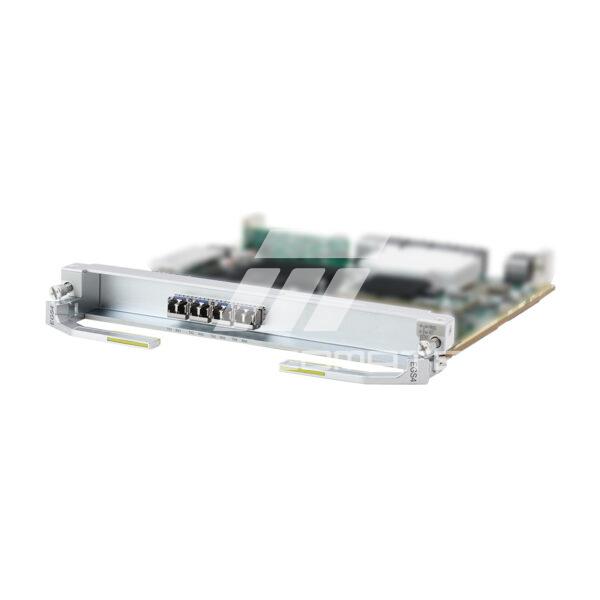

Huawei OptiX OSN 9800 TNG1EGS4 4-port Gigabit Ethernet Switching Processing Board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNG1EGS4 overview

TNG1EGS4 4-port Gigabit Ethernet Switching Processing Board applied to Huawei OptiX OSN 9800 M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG1EGS4 board has only one variant, that is TNG1EGS4S01.

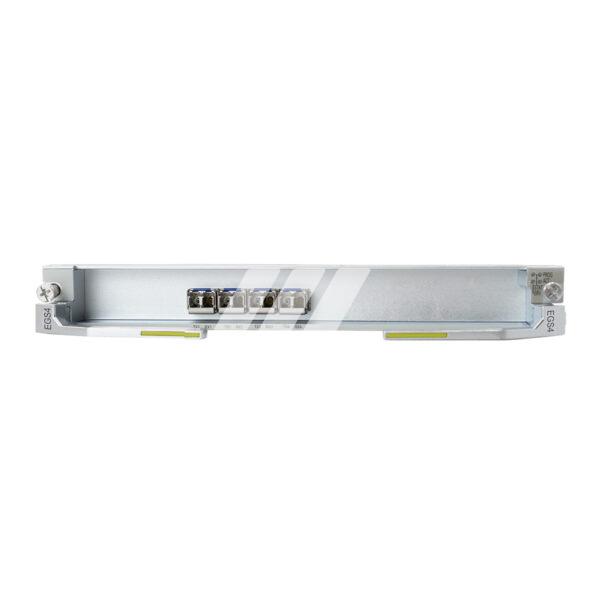

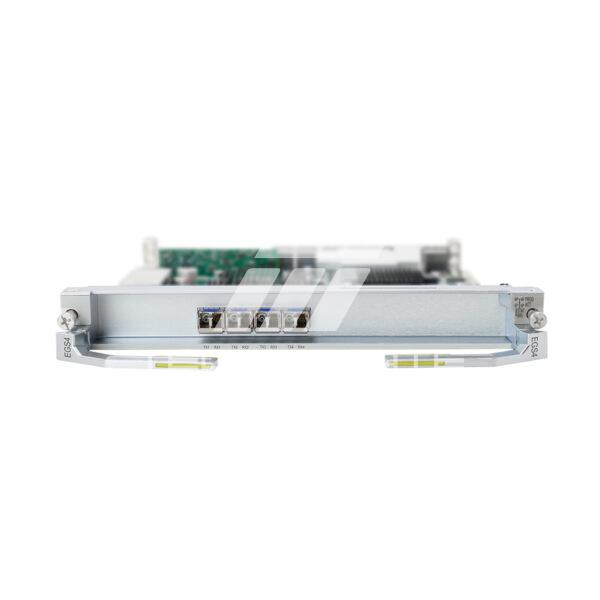

Front panel of the TNG1EGS4 board

Front panel of the TNG1EGS4 board

Valid slots for the TNG1EGS4 board in a M24 subrack

Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 M24	1	IU1 to IU24	IU1 to IU24

Item	TNG1EGS4
Basic function	Transmits/Receives 4 x FE/GE services, encapsulates and maps the Ethernet services into SDH signals, and forwards the SDH signals to the SDH plane for transmission.
Bound bandwidth	16 x VC-4, or 48 x VC-3, or 504 x VC-12 NOTE: The first eight VC-4s can be configured as VC-12s.
Maximum uplink bandwidth	2.5Gbit/s
Number of services	2000 bidirectional services
Bound Path Level	VC-12, VC-3, VC-4, VC-12-Xv (X ≤ 63), VC-3-Xv (X ≤ 24), and VC-4-Xv (X ≤ 8).
Encapsulation formats	HDLC LAPS GFP-F
Port working mode	GE electrical port: 10M Full-Duplex, 100M Full-Duplex, 1000M Full-Duplex, Auto-Negotiation GE optical port: 1000M Full-Duplex, Auto–Negotiation FE optical port: 100M Full-Duplex NOTE: All ports on the TNG1EGS4 board support FE optical ports, GE optical ports and GE electrical ports. If a port is configured as an FE optical port, a 100M optical module must be installed. The FE electrical signals are accessed through the GE electrical port in 100M full-duplex mode.
Overhead processing	Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041 and ITU-T G.709. Supports the setting and query of the J1, J2, C2 and V5 bytes.
Traffic monitoring	Supports port-based and VCTRUNK-based traffic monitoring.
QinQ	Supported
Ethernet data frame format	IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p
Maximum frame length for a port	Supports the setting of the frame length to a value ranging from 1518 bytes to 9600 bytes. Supports a jumbo frame with a maximum length of 9600 bytes.
EPL service	Supports PORT-based transparent transmission.
EVPL service	Supports PORT-shared EVPL services. Supports VCTRUNK-shared EVPL services. The services are isolated by VLAN tags. The services are isolated by QinQ tags. For C-VLAN transparently transmitted services of the EVPL type, the VLAN list can be configured, and each VLAN ID occupies one service.
EPLAN service	Supports the EPLAN services that are based on the IEEE 802.1d MAC bridge. Supports a maximum of 16 VBs. The maximum number of logical ports for each VB is 68. Blacklist, static MAC address, and dynamic MAC address sharing 16K. Supports the blacklist that can contain 512 records and also the static MAC address table that can contain 512 records. A maximum of 16K dynamic MAC addresses are supported. Supports the self-learning of the source MAC address. The aging time of the MAC address can be set and queried. Supports the configuration of static MAC routes. Supports the query of dynamic MAC addresses. NOTE: TNG1EGS4 boards support SVL bridge learning modes. Ensure that all bridges on a board apply the same learning mode.
EVPLAN service	Supports the EVPLAN services that are based on the IEEE 802.1q virtual bridge and IEEE 802.1ad provider bridge. Supports data isolation based on VB+VLAN. Supports a maximum of 16 VBs. The maximum number of logical ports for each VB is 68. Supports the setting of a maximum of 4095 VLAN filtering tables. NOTE: TNG1EGS4 boards support SVL and IVL bridge learning modes. Ensure that all bridges on a board apply the same learning mode.
VLAN technology	Supports a total number of 4095 VLANs, which comply with IEEE 802.1q/p/ad.
MPLS technology	Not supported
VCTRUNK specifications	64 Configuration principle: A VCTRUNK can be bound to a maximum of 8 VC4s, 24 VC3s or 63 VC12s.
Traffic classification	Supports PORT, PORT+VLAN, PORT+SVLAN, PORT+VLAN+PRI, and service flows. NOTE: The service flow supports only the C-VLAN transparently transmitted E-Line services with the VLAN list configured.
Traffic policing	Support the CAR. NOTE: A maximum of 512 CAR IDs are supported. A maximum of 60 CAR parameter groups are supported.
Traffic shaping	Supports queue shaping on ports.
Congestion avoidance	Supports random early detection (RED).
Congestion management	CoS, supporting SP and WRR scheduling algorithms.
Class of service (CoS)	Supports CoS types including simple, VLAN priority, DSCP, and IP TOS. NOTE: IPTOS and DSCP profiles are mutually exclusive.
LPT	Supported NOTE: Supports P2P LPT and P2MP LPT in compliance with ITU-T G.7041. Supports the setting of the point-to-multipoint strict or non-strict mode.
SDH SNCP	Supported NOTE: Functions as a service sink board.
SDH ASON	Supported
LAG	Supports intra-board LAG. A maximum of 4 LAGs are supported. Supports the load sharing mode and non-load sharing mode. Supports manual link aggregation and static link aggregation. Complies with IEEE 802.3ad and IEEE 802.1ax.
DLAG	Supports 24 DLAGs. Inter-subrack configuration is not supported. Supports static DLAGs. Supports the non-load sharing mode. Complies with IEEE 802.3ad and IEEE 802.1ax.
LCAS	Dynamically increases or decreases the bandwidth and protects the bandwidth in compliance with ITU-T G.7042.
BPS	Not supported
PPS	Not supported
STP/RSTP	Supports the RSTP, which complies with IEEE 802.1w.
MSTP	Not supported
IGMP Snooping	Supports protocol enabling in compliance with IGMPv1 and IGMPv2.
LLDP	Supported
Ethernet service OAM	Supported
Ethernet port OAM	Supported
RMON	Supports RMON of the Ethernet performance of Ethernet ports and VCTRUNKs.
Port mirroring	Supported NOTE: Supports ingress/egress port mirroring. Egress port mirroring and ingress port mirroring are mutually exclusive.
Physical clock	Supported NOTE: SFP electrical modules do not support physical clock.
IEEE 1588v2	Not supported
Test frame	Supports test frames in GFP bearer modes.
MAC layer loopback	Supports MAC inloops and outloops.
PHY layer loopback	Supports PHY inloops and outloops.
2M ASON	Supported
Query/Setting of port status	Supported
Response to ping	Not supported
Quantity	1000
Dimensions (H x W x D)	237.10 × 30.50 × 220.00 (mm) 9.34 × 1.20 × 8.67 (in.)
Weight	1.34 kg 2.95 lb.

Item	TNG1EGS4
Basic function	Transmits/Receives 4 x FE/GE services, encapsulates and maps the Ethernet services into SDH signals, and forwards the SDH signals to the SDH plane for transmission.
Bound bandwidth	16 x VC-4, or 48 x VC-3, or 504 x VC-12 NOTE: The first eight VC-4s can be configured as VC-12s.
Maximum uplink bandwidth	2.5Gbit/s
Number of services	2000 bidirectional services
Bound Path Level	VC-12, VC-3, VC-4, VC-12-Xv (X ≤ 63), VC-3-Xv (X ≤ 24), and VC-4-Xv (X ≤ 8).
Encapsulation formats	HDLC LAPS GFP-F
Port working mode	GE electrical port: 10M Full-Duplex, 100M Full-Duplex, 1000M Full-Duplex, Auto-Negotiation GE optical port: 1000M Full-Duplex, Auto–Negotiation FE optical port: 100M Full-Duplex NOTE: All ports on the TNG1EGS4 board support FE optical ports, GE optical ports and GE electrical ports. If a port is configured as an FE optical port, a 100M optical module must be installed. The FE electrical signals are accessed through the GE electrical port in 100M full-duplex mode.
Overhead processing	Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041 and ITU-T G.709. Supports the setting and query of the J1, J2, C2 and V5 bytes.
Traffic monitoring	Supports port-based and VCTRUNK-based traffic monitoring.
QinQ	Supported
Ethernet data frame format	IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p
Maximum frame length for a port	Supports the setting of the frame length to a value ranging from 1518 bytes to 9600 bytes. Supports a jumbo frame with a maximum length of 9600 bytes.
EPL service	Supports PORT-based transparent transmission.
EVPL service	Supports PORT-shared EVPL services. Supports VCTRUNK-shared EVPL services. The services are isolated by VLAN tags. The services are isolated by QinQ tags. For C-VLAN transparently transmitted services of the EVPL type, the VLAN list can be configured, and each VLAN ID occupies one service.
EPLAN service	Supports the EPLAN services that are based on the IEEE 802.1d MAC bridge. Supports a maximum of 16 VBs. The maximum number of logical ports for each VB is 68. Blacklist, static MAC address, and dynamic MAC address sharing 16K. Supports the blacklist that can contain 512 records and also the static MAC address table that can contain 512 records. A maximum of 16K dynamic MAC addresses are supported. Supports the self-learning of the source MAC address. The aging time of the MAC address can be set and queried. Supports the configuration of static MAC routes. Supports the query of dynamic MAC addresses. NOTE: TNG1EGS4 boards support SVL bridge learning modes. Ensure that all bridges on a board apply the same learning mode.
EVPLAN service	Supports the EVPLAN services that are based on the IEEE 802.1q virtual bridge and IEEE 802.1ad provider bridge. Supports data isolation based on VB+VLAN. Supports a maximum of 16 VBs. The maximum number of logical ports for each VB is 68. Supports the setting of a maximum of 4095 VLAN filtering tables. NOTE: TNG1EGS4 boards support SVL and IVL bridge learning modes. Ensure that all bridges on a board apply the same learning mode.
VLAN technology	Supports a total number of 4095 VLANs, which comply with IEEE 802.1q/p/ad.
MPLS technology	Not supported
VCTRUNK specifications	64 Configuration principle: A VCTRUNK can be bound to a maximum of 8 VC4s, 24 VC3s or 63 VC12s.
Traffic classification	Supports PORT, PORT+VLAN, PORT+SVLAN, PORT+VLAN+PRI, and service flows. NOTE: The service flow supports only the C-VLAN transparently transmitted E-Line services with the VLAN list configured.
Traffic policing	Support the CAR. NOTE: A maximum of 512 CAR IDs are supported. A maximum of 60 CAR parameter groups are supported.
Traffic shaping	Supports queue shaping on ports.
Congestion avoidance	Supports random early detection (RED).
Congestion management	CoS, supporting SP and WRR scheduling algorithms.
Class of service (CoS)	Supports CoS types including simple, VLAN priority, DSCP, and IP TOS. NOTE: IPTOS and DSCP profiles are mutually exclusive.
LPT	Supported NOTE: Supports P2P LPT and P2MP LPT in compliance with ITU-T G.7041. Supports the setting of the point-to-multipoint strict or non-strict mode.
SDH SNCP	Supported NOTE: Functions as a service sink board.
SDH ASON	Supported
LAG	Supports intra-board LAG. A maximum of 4 LAGs are supported. Supports the load sharing mode and non-load sharing mode. Supports manual link aggregation and static link aggregation. Complies with IEEE 802.3ad and IEEE 802.1ax.
DLAG	Supports 24 DLAGs. Inter-subrack configuration is not supported. Supports static DLAGs. Supports the non-load sharing mode. Complies with IEEE 802.3ad and IEEE 802.1ax.
LCAS	Dynamically increases or decreases the bandwidth and protects the bandwidth in compliance with ITU-T G.7042.
BPS	Not supported
PPS	Not supported
STP/RSTP	Supports the RSTP, which complies with IEEE 802.1w.
MSTP	Not supported
IGMP Snooping	Supports protocol enabling in compliance with IGMPv1 and IGMPv2.
LLDP	Supported
Ethernet service OAM	Supported
Ethernet port OAM	Supported
RMON	Supports RMON of the Ethernet performance of Ethernet ports and VCTRUNKs.
Port mirroring	Supported NOTE: Supports ingress/egress port mirroring. Egress port mirroring and ingress port mirroring are mutually exclusive.
Physical clock	Supported NOTE: SFP electrical modules do not support physical clock.
IEEE 1588v2	Not supported
Test frame	Supports test frames in GFP bearer modes.
MAC layer loopback	Supports MAC inloops and outloops.
PHY layer loopback	Supports PHY inloops and outloops.
2M ASON	Supported
Query/Setting of port status	Supported
Response to ping	Not supported
Quantity	1000
Dimensions (H x W x D)	237.10 × 30.50 × 220.00 (mm) 9.34 × 1.20 × 8.67 (in.)
Weight	1.34 kg 2.95 lb.
