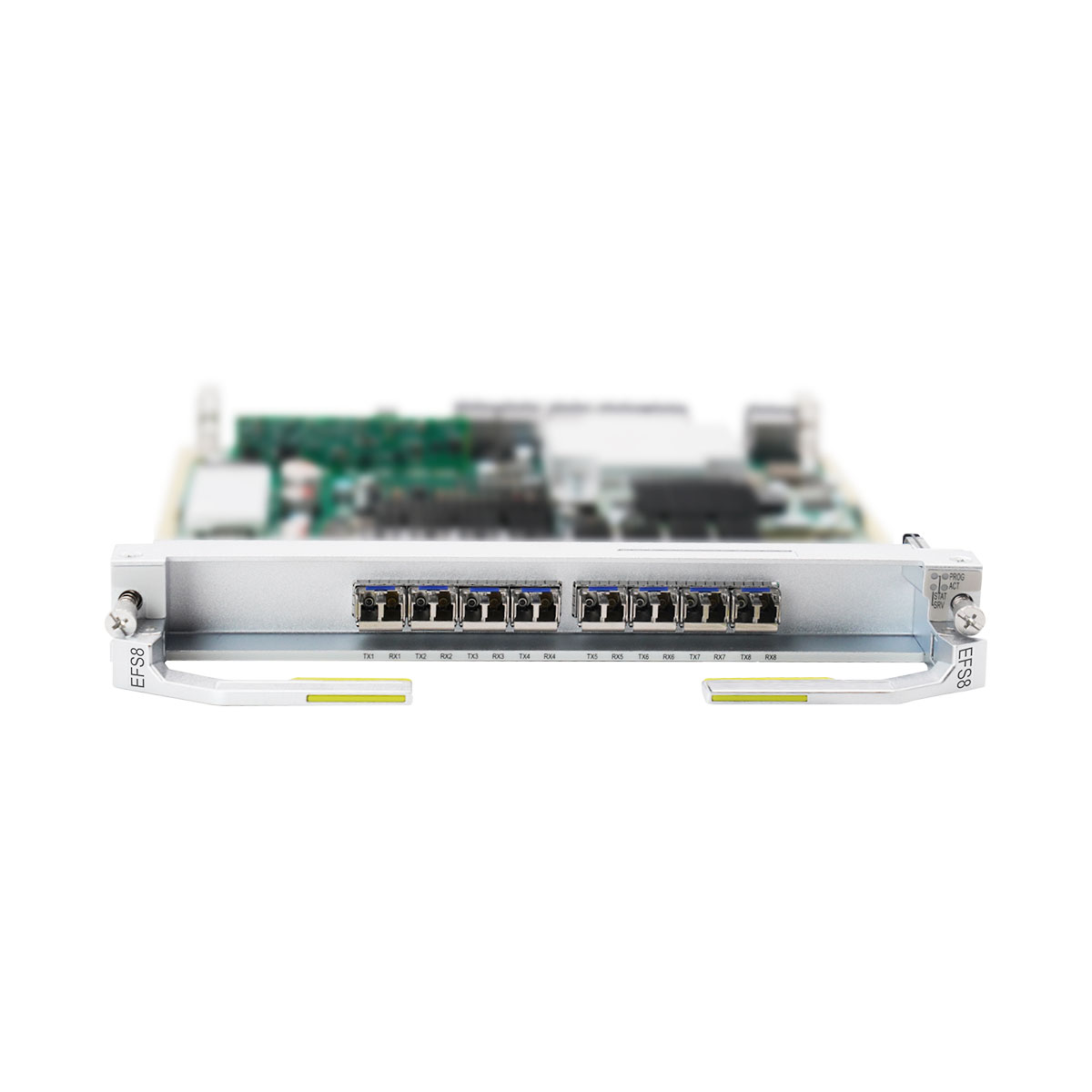

TNG1EFS8-6
TNG1EFS8-1
TNG1EFS8-2
TNG1EFS8-3
Categories:,

TNG1EFS8

0 Reviews Write a review
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

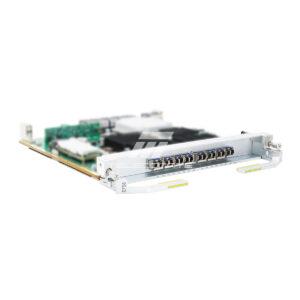

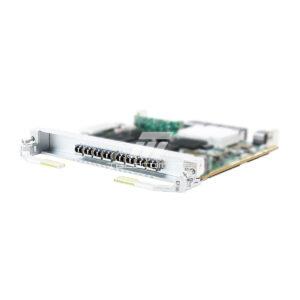

Huawei OptiX OSN 9800 TNG1EFS8 8-port switching Ethernet processing board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNG1EFS8 overview



TNG1EFS8 8-port switching Ethernet processing board applied to Huawei OptiX OSN 9800 M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG1EFS8 board has only one variant, that is, TNG1EFS8S01.

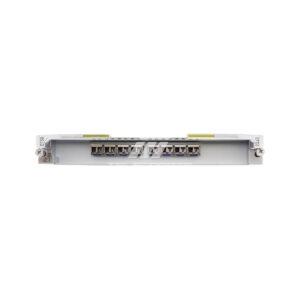

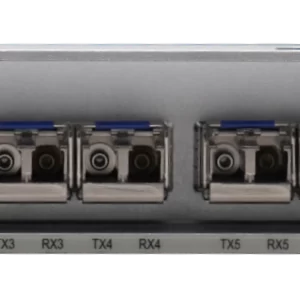

Front panel of the TNG1EFS8 board

TNG1EFS8

Front panel of the TNG1EFS8 board



Valid slots for the TNG1EFS8 board in a  M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 1 IU1 to IU24 IU1 to IU24
Item TNG1EFS8
Basic function Transmits/Receives 8 x FE services, encapsulates and maps the Ethernet services into SDH signals, and forwards the SDH signals to the SDH plane for transmission.
Bound bandwidth 24 x VC-3, or 504 x VC-12
NOTE:
The first eight VC-4s can be configured as VC-12s.
Maximum uplink bandwidth 1.25Gbit/s
Number of services 2000 bidirectional services
Bound Path Level VC-12, VC-3, VC-12-Xv (X ≤ 63), and VC-3-Xv (X ≤ 12).
Encapsulation formats
  • HDLC
  • LAPS
  • GFP-F
Port working mode
  • FE electrical port: 10M Full-Duplex, 100M Full-Duplex, Auto-Negotiation
  • FE optical port: 100M Full-Duplex
Overhead processing
  • Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041 and ITU-T G.709.
  • Supports the setting and query of the J1, J2, C2 and V5 bytes.
Traffic monitoring Supports port-based and VCTRUNK-based traffic monitoring.
QinQ Supported
Ethernet data frame format IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p
Maximum frame length for a port
  • Supports the setting of the frame length to a value ranging from 1518 bytes to 9600 bytes.
  • Supports a jumbo frame with a maximum length of 9600 bytes.
EPL service Supports PORT-based transparent transmission.
EVPL service
  • Supports PORT-shared EVPL services.
  • Supports VCTRUNK-shared EVPL services.
    • The services are isolated by VLAN tags.
    • The services are isolated by QinQ tags.
  • For C-VLAN transparently transmitted services of the EVPL type, the VLAN list can be configured, and each VLAN ID occupies one service.
EPLAN service
  • Supports the EPLAN services that are based on the IEEE 802.1d MAC bridge.
  • Supports a maximum of 16 VBs. The maximum number of logical ports for each VB is 32.
  • Blacklist, static MAC address, and dynamic MAC address sharing 16K.
    • Supports the blacklist that can contain 512 records and also the static MAC address table that can contain 512 records.
    • A maximum of 16K dynamic MAC addresses are supported.
  • Supports the self-learning of the source MAC address. The aging time of the MAC address can be set and queried.
  • Supports the configuration of static MAC routes.
  • Supports the query of dynamic MAC addresses.
NOTE:
TNG1EGS4 boards support SVL bridge learning modes. Ensure that all bridges on a board apply the same learning mode.
EVPLAN service
  • Supports the EVPLAN services that are based on the IEEE 802.1q virtual bridge and IEEE 802.1ad provider bridge.
  • Supports data isolation based on VB+VLAN.
  • Supports a maximum of 16 VBs. The maximum number of logical ports for each VB is 32.
  • Supports the setting of a maximum of 4095 VLAN filtering tables.
NOTE:
TNG1EGS4 boards support SVL and IVL bridge learning modes. Ensure that all bridges on a board apply the same learning mode.
VLAN technology Supports a total number of 4095 VLANs, which comply with IEEE 802.1q/p/ad.
MPLS technology Not supported
VCTRUNK specifications 24 Configuration principle: A VCTRUNK can be bound to a maximum of 12 VC3s or 63 VC12s.
Traffic classification Supports PORT, PORT+VLAN, PORT+SVLAN, PORT+VLAN+PRI, and service flows.
NOTE:
The service flow supports only the C-VLAN transparently transmitted E-Line services with the VLAN list configured.
Traffic policing Support the CAR.
NOTE:
A maximum of 512 CAR IDs are supported. A maximum of 60 CAR parameter groups are supported.
Traffic shaping Supports queue shaping on ports.
Congestion avoidance Supports random early detection (RED).
Congestion management CoS, supporting SP and WRR scheduling algorithms.
Class of service (CoS) Supports CoS types including simple, VLAN priority, DSCP, and IP TOS.
NOTE:
IPTOS and DSCP profiles are mutually exclusive.
LPT Supported
NOTE:
  • Supports P2P LPT and P2MP LPT in compliance with ITU-T G.7041.
  • Supports the setting of the point-to-multipoint strict or non-strict mode.
SDH SNCP Supported
NOTE:
Functions as a service sink board.
SDH ASON Supported
LAG
  • Supports intra-board LAG. A maximum of 8 LAGs are supported.
  • Supports the load sharing mode and non-load sharing mode.
  • Supports manual link aggregation and static link aggregation.
  • Complies with IEEE 802.3ad and IEEE 802.1ax.
DLAG
  • Supports 24 DLAGs. Inter-subrack configuration is not supported.
  • Supports static DLAGs.
  • Supports the non-load sharing mode.
  • Complies with IEEE 802.3ad and IEEE 802.1ax.
LCAS Dynamically increases or decreases the bandwidth and protects the bandwidth in compliance with ITU-T G.7042.
BPS Not supported
PPS Not supported
STP/RSTP Supports the RSTP, which complies with IEEE 802.1w.
MSTP Not supported
IGMP Snooping Supports protocol enabling in compliance with IGMPv1 and IGMPv2.
LLDP Supported
Ethernet service OAM Supported
Ethernet port OAM Supported
RMON Supports RMON of the Ethernet performance of Ethernet ports and VCTRUNKs.
Port mirroring Supported
NOTE:
Supports ingress/egress port mirroring. Egress port mirroring and ingress port mirroring are mutually exclusive.
Physical clock Supported
NOTE:
Electrical modules do not support physical clock.
IEEE 1588v2 Not supported
Test frame Supports test frames in GFP bearer modes.
MAC layer loopback Supports MAC inloops and outloops.
PHY layer loopback Supports PHY inloops and outloops.
2M ASON Supported
Query/Setting of port status Supported
Response to ping Not supported
Quantity 1000
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 1.37 kg
  • 3.02 lb.
