TNF5TQX

TNF5TQX is a 4*port 10G tributary service processing board, apply to Huawei OSN 1800V. As a type of tributary board, the TQX board converts between four channels of optical signals at a rate in the range of 8 Gbit/s to 10 Gbit/s and four ODU2/ODU2e/ODUflex electrical signals through cross-connections.

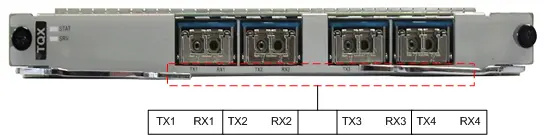

Front panel of the TQX board

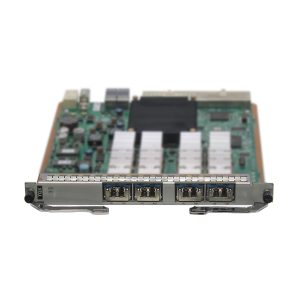

TNF5TQX 4-port 10G tributary service processing board

Apply to Huawei OSN 1800V

Supports client 1+1 protection when non-OTN services are received

Supports ODUk SNCP (k = 2 or flex)

Supports Tributary SNCP

Supports the LPT

Supports communication over ESCs
