TNF5HSNQ2

0 Reviews Write a review

PNAAF06583

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

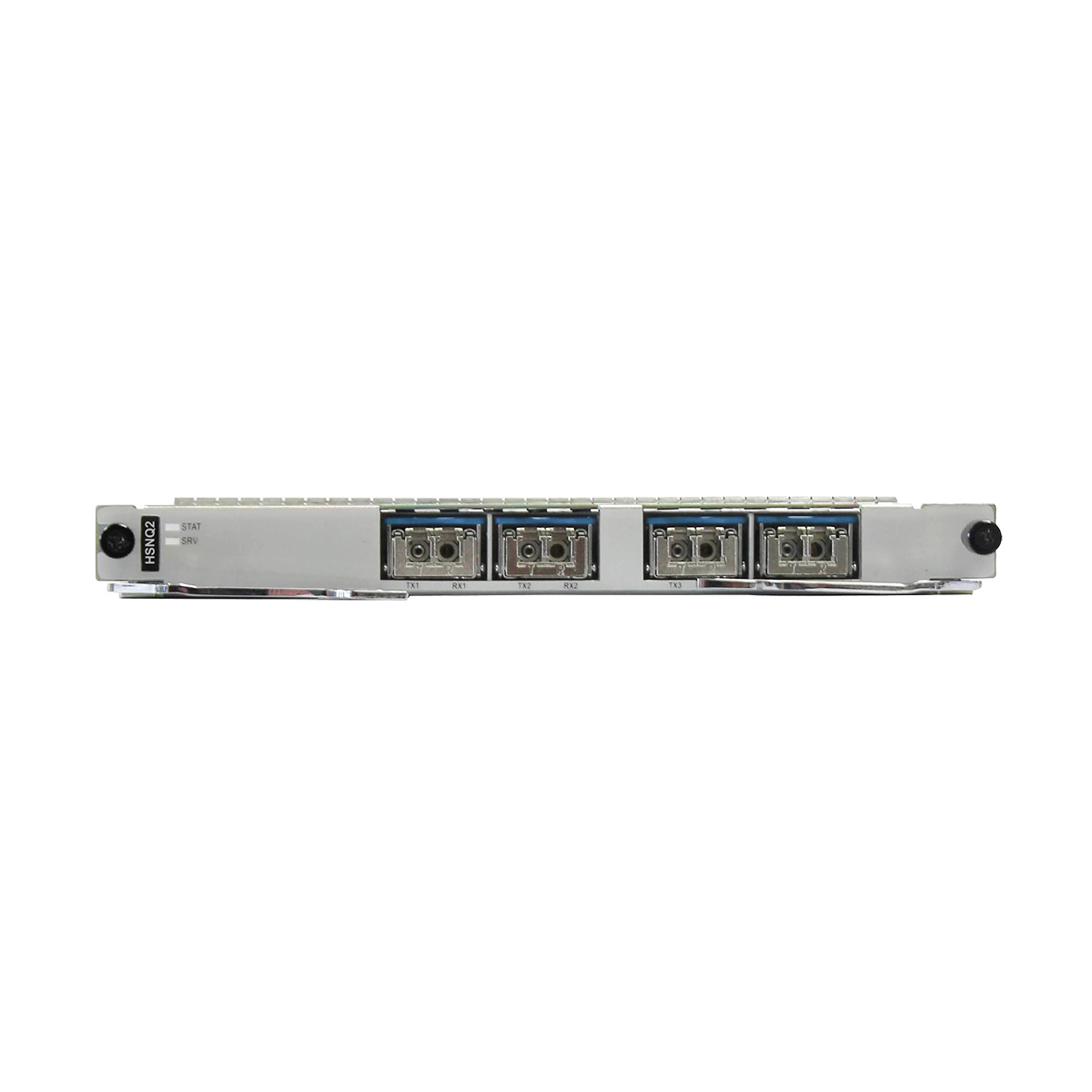

Huawei OSN1800V TNF5HSNQ2 4*10G universal line service processing board, AAF06583

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TNF5HSNQ2 overview

TNF5HSNQ2 4*10G universal line service processing board applied to Huawei OSN 1800V.

The HSNQ2 board is a universal line board and supports hybrid transmission of ODU0, ODU1, ODU2, ODU2e, ODUflex, VC-12, VC-3, and VC4 with the total bandwidth not exceeding 40 Gbit/s (the total bandwidth of SDH services does not exceed 20 Gbit/s). The HSNQ2 board processes and converts the received service signals into four OTU2/OTU2e signals, which are carried over four ITU-T G.694.1-compliant DWDM wavelengths.

HSNQ2 boards support hybrid transmission of optical transport network (OTN) and SDH, and functions such as OTN ports, and SDH overhead processing. One HSNQ2 board supports hybrid transmission of ODU0, ODU1, ODUflex, ODU2, ODU2e, STM-16, and STM-64 with a maximum bandwidth of 40 Gbit/s (ODU is the abbreviated form of optical channel data unit).

Item	TNF5HSNQ2
Basic functions	OTN signals	32 x ODU0/16 x ODU1/4 x ODU2/32 x ODUflex<->4 x OTU2 (OTU is the abbreviated form of optical channel transport unit.) 4 x ODU2e<->4 x OTU2e (Only for pure OTN signals) 32 x ODU0<->16 x ODU1<->4 x ODU2<->4 x OTU2
	SDH signals	8 x STM-16<->8 x ODU1<->2 x ODU2<->2 x OTU2 2 x STM-64<->2 x ODU2<->2 x OTU2
	Clock synchronization	OTN services: Supported (ODU0/ODU1/ODUflex) SDH services: SDH clock synchronization is supported when SDH virtual ports are configured.
OTN functions supported by HSNQ2 boards
Basic functions	Cross-connect functionality	Implements service grooming when working with cross-connect boards. 32 x ODU0/16 x ODU1/32 x ODUflex/4 x ODU2/4 x ODU2e
Basic functions	Wavelength division multiplexing (WDM) specifications	Supports ITU-T G.694.1-compliant dense wavelength division multiplexing (DWDM) specifications.
Port specifications	Tunable wavelengths	Supports optical tunable transponders. HUNQ2 boards equipped with optical tunable transponders can tune optical signals output on the WDM side within the range of 80 wavelengths in C-band with the channel spacing of 50 GHz.
Protection schemes	Intra-Board 1+1 Protection	Supported
	ODUk SNCP	Supported (k = 0, 1, 2, or flex)
	Tributary SNCP	Supported
Maintenance features	Loopbacks	Supports inloops and outloops at WDM-side ports. Supports inloops and outloops on ODU0, ODU1, and ODUflex channels.
	Pseudo random binary sequence (PRBS) test function	Supports the PRBS test function on WDM and system sides.
	Test frames	Not supported
	Delay measurement (DM)	TNF5HSNQ2: Not supported TNF6HSNQ2: Supported
	Alarms and performance events monitoring	Monitors parameters such as the bias current, operating temperature, and optical power of a laser. Monitors OTN alarms and performance events. Monitors bit interleaved parity 8 (BIP8) bytes (Bursty mode) to help locate line failures.
Overtemperature protection	If the working temperature of the board exceeds the configured threshold and services are affected, the board will automatically reset the key chip to prevent damages to the board.
Automatic laser shutdown (ALS)	Not supported
Physical Clocks	Supported (ODU0/ODU1/ODUflex)
OTN Overheads	Adopts the ITU-T G.709-compliant frame format and overhead processing. Provides path monitoring (PM) for ODU2, ODUflex, ODU1, and ODU0. Provides section monitoring (SM) for ODU2 and ODU1. Provides tandem connection monitoring (TCM) for ODU2, ODU1, and ODU0.
Outband DCN	Supports ESC communication.
FEC Mode	Supports ITU-T G.709-compliant forward error correction (FEC) encoding. Supports ITU-T G.975.1-compliant advanced forward error correction (AFEC)-2 encoding.
Electrical-layer ASON	Supported
SDH functions supported by HSNQ2 boards
Service processing	Supports VC-12, VC-3, VC-4, VC-4-4c, VC-4-64c, and VC-4-16c services (VC-4-4c, VC-4-64c, and VC-4-16c services are concatenated services).
Overhead processing	Processes section overheads of STM-16/STM-64 signals. Transparently transmits and terminates path overheads. Supports the setting and querying of J0 (to be received), J1, and C2 bytes. Provides transparent DCCs and orderwire byte channels.
Protection schemes	TNF5HSNQ2: SNCP protection: supported Linear MSP: supported Two-fiber bidirectional MS ring protection: supported TNF6HSNQ2: SNCP protection: supported SNCTP protection: supported 1+1 linear MSP: supported 1:N linear MSP: supported Two-fiber bidirectional MS ring protection: not supported
Overtemperature protection	If the working temperature of the board exceeds the configured threshold and services are affected, the board will automatically reset the key chip to prevent damages to the board.
Alarms and performance events monitoring	Monitors B1 and B2 bytes to help locate line failures.
Loopbacks	Supports inloops and outloops on VC-4 paths.
Physical Clocks	Supported
SDH ASON	When working with TNZ5UXCMS, the TNF6HSNQ2 board supports this function.
2M ASON	When working with TNZ5UXCMS, the TNF6HSNQ2 board supports this function.
TNF5HSNQ2 Power Consumption (W)	37-40
Dimensions (W x H x D, unit: mm/in.)	193.8 x 19.8 x 205.9 (7.6 x 0.8 x 8.1)
Weight	0.8 kg (1.76 lb.)

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Item	TNF5HSNQ2
Basic functions	OTN signals	32 x ODU0/16 x ODU1/4 x ODU2/32 x ODUflex<->4 x OTU2 (OTU is the abbreviated form of optical channel transport unit.) 4 x ODU2e<->4 x OTU2e (Only for pure OTN signals) 32 x ODU0<->16 x ODU1<->4 x ODU2<->4 x OTU2
	SDH signals	8 x STM-16<->8 x ODU1<->2 x ODU2<->2 x OTU2 2 x STM-64<->2 x ODU2<->2 x OTU2
	Clock synchronization	OTN services: Supported (ODU0/ODU1/ODUflex) SDH services: SDH clock synchronization is supported when SDH virtual ports are configured.
OTN functions supported by HSNQ2 boards
Basic functions	Cross-connect functionality	Implements service grooming when working with cross-connect boards. 32 x ODU0/16 x ODU1/32 x ODUflex/4 x ODU2/4 x ODU2e
Basic functions	Wavelength division multiplexing (WDM) specifications	Supports ITU-T G.694.1-compliant dense wavelength division multiplexing (DWDM) specifications.
Port specifications	Tunable wavelengths	Supports optical tunable transponders. HUNQ2 boards equipped with optical tunable transponders can tune optical signals output on the WDM side within the range of 80 wavelengths in C-band with the channel spacing of 50 GHz.
Protection schemes	Intra-Board 1+1 Protection	Supported
	ODUk SNCP	Supported (k = 0, 1, 2, or flex)
	Tributary SNCP	Supported
Maintenance features	Loopbacks	Supports inloops and outloops at WDM-side ports. Supports inloops and outloops on ODU0, ODU1, and ODUflex channels.
	Pseudo random binary sequence (PRBS) test function	Supports the PRBS test function on WDM and system sides.
	Test frames	Not supported
	Delay measurement (DM)	TNF5HSNQ2: Not supported TNF6HSNQ2: Supported
	Alarms and performance events monitoring	Monitors parameters such as the bias current, operating temperature, and optical power of a laser. Monitors OTN alarms and performance events. Monitors bit interleaved parity 8 (BIP8) bytes (Bursty mode) to help locate line failures.
Overtemperature protection	If the working temperature of the board exceeds the configured threshold and services are affected, the board will automatically reset the key chip to prevent damages to the board.
Automatic laser shutdown (ALS)	Not supported
Physical Clocks	Supported (ODU0/ODU1/ODUflex)
OTN Overheads	Adopts the ITU-T G.709-compliant frame format and overhead processing. Provides path monitoring (PM) for ODU2, ODUflex, ODU1, and ODU0. Provides section monitoring (SM) for ODU2 and ODU1. Provides tandem connection monitoring (TCM) for ODU2, ODU1, and ODU0.
Outband DCN	Supports ESC communication.
FEC Mode	Supports ITU-T G.709-compliant forward error correction (FEC) encoding. Supports ITU-T G.975.1-compliant advanced forward error correction (AFEC)-2 encoding.
Electrical-layer ASON	Supported
SDH functions supported by HSNQ2 boards
Service processing	Supports VC-12, VC-3, VC-4, VC-4-4c, VC-4-64c, and VC-4-16c services (VC-4-4c, VC-4-64c, and VC-4-16c services are concatenated services).
Overhead processing	Processes section overheads of STM-16/STM-64 signals. Transparently transmits and terminates path overheads. Supports the setting and querying of J0 (to be received), J1, and C2 bytes. Provides transparent DCCs and orderwire byte channels.
Protection schemes	TNF5HSNQ2: SNCP protection: supported Linear MSP: supported Two-fiber bidirectional MS ring protection: supported TNF6HSNQ2: SNCP protection: supported SNCTP protection: supported 1+1 linear MSP: supported 1:N linear MSP: supported Two-fiber bidirectional MS ring protection: not supported
Overtemperature protection	If the working temperature of the board exceeds the configured threshold and services are affected, the board will automatically reset the key chip to prevent damages to the board.
Alarms and performance events monitoring	Monitors B1 and B2 bytes to help locate line failures.
Loopbacks	Supports inloops and outloops on VC-4 paths.
Physical Clocks	Supported
SDH ASON	When working with TNZ5UXCMS, the TNF6HSNQ2 board supports this function.
2M ASON	When working with TNZ5UXCMS, the TNF6HSNQ2 board supports this function.
TNF5HSNQ2 Power Consumption (W)	37-40
Dimensions (W x H x D, unit: mm/in.)	193.8 x 19.8 x 205.9 (7.6 x 0.8 x 8.1)
Weight	0.8 kg (1.76 lb.)
