Huawei OSN1800 TNF1EX4001 Enhanced 40-Channel Multiplexing or Demultiplexing Board, 03031LXD

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

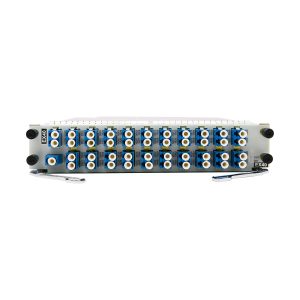

Huawei TNF1EX4001 Enhanced 40-Channel Multiplexing or Demultiplexing Board, apply to Huawei OSN1800 series, PN is 03031LXD

The EX40 board multiplexes and demultiplexes wavelengths. It can be used in the two-fiber bidirectional system and the single-fiber bidirectional system.



Version mapping of the EX40 board

Board

Product Applicable-System Control Board-Initial Board Version Supported by System Control Board

TNF1EX40

1800 I&II Compact-TNF3SCC-V100R006C00

1800 V-TNF5UXCM/TNF5UXCME/TNF5XCH-V100R006C00

1800 V-TNZ5UXCMS-V100R006C10

1800 V-TNZ8XCH-V100R009C00SPC700

1800 V-TNZ5XCS-V100R019C10SPC300

1800 II Enhanced-TNZ1UXCL-V100R007C10

1800 II Enhanced-TNZ2UXCL-V100R008C00SPC600







Item TNF1EX40
Optical Interface Parameter
- Operating frequency range (THz) 192.10 to 196.00
- Adjacent channel spacing (GHz) 100
LINE-MDx Insertion loss (dB) < 6.5
Adjacent channel isolation (dB) > 25
Non-adjacent channel isolation (dB) > 30
- Reflectance(dB) < -40
- Polarization dependence loss (dB) ≤ 0.5
- Temperature characteristics (nm/°C) ≤ 0.002
- Maximum channel insertion loss difference (dB) ≤ 3
Mechanical Specifications
Dimensions(W x H x D, mm) 193.8 x 40.1 x 205.9
Weight(kg) 0.96

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item TNF1EX40
Optical Interface Parameter
- Operating frequency range (THz) 192.10 to 196.00
- Adjacent channel spacing (GHz) 100
LINE-MDx Insertion loss (dB) < 6.5
Adjacent channel isolation (dB) > 25
Non-adjacent channel isolation (dB) > 30
- Reflectance(dB) < -40
- Polarization dependence loss (dB) ≤ 0.5
- Temperature characteristics (nm/°C) ≤ 0.002
- Maximum channel insertion loss difference (dB) ≤ 3
Mechanical Specifications
Dimensions(W x H x D, mm) 193.8 x 40.1 x 205.9
Weight(kg) 0.96
