Huawei OptiX OSN 8800 TN56TOX 8 x 10 Gbit/s tributary service processing board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TN56TOX overview

TN56TOX 8 x 10 Gbit/s tributary service processing board applied to OptiX OSN 8800/6800/3800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.

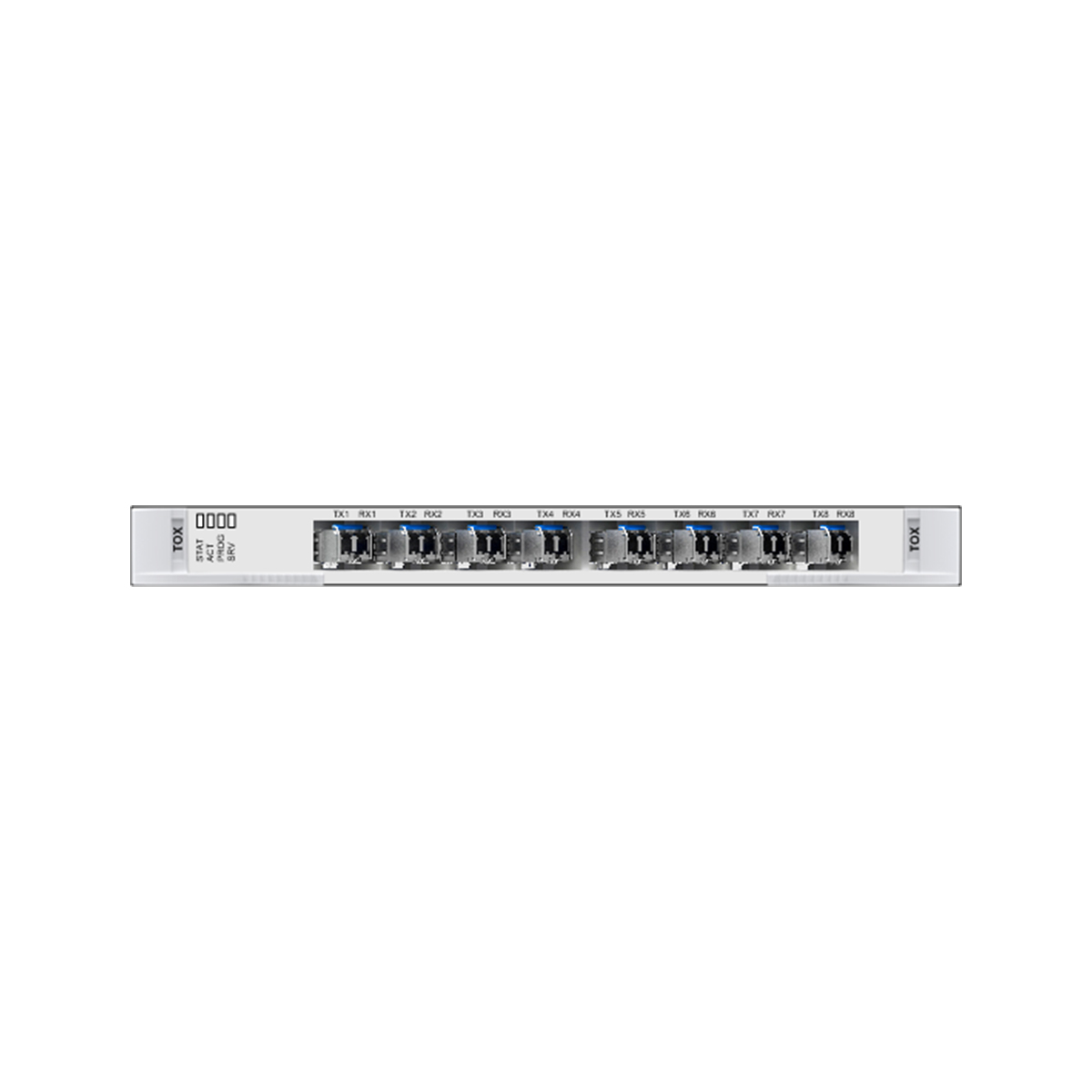

Front panel of the TN56TOX board

Front panel of the TN56TOX board

Valid slots for the board TN56TOX in a OptiX OSN 8800/6800/3800 T64/T32/T16 subrack and chassis

Device	Valid Slot
Enhanced OptiX OSN 8800 T64 subrack	IU1-IU8, IU11-IU42, IU45-IU68
Enhanced OptiX OSN 8800 T32 subrack	IU1-IU8, IU12-IU27, IU29-IU36
General OptiX OSN 8800 T32 subrack	IU1-IU8, IU12-IU27, IU29-IU36
OptiX OSN 8800 T16 subrack	IU1-IU8, IU11-IU18

Item		TN56TOX
Basic function	TOX converts signals as follows: 8 x 10GE LAN/10GE WAN/STM-64/OC-192/OTU2/FC800<->8 x ODU2 8 x 10GE LAN/OTU2e/FC1200<->8 x ODU2e 8 x FC800<->8 x ODUflex
Client-side service type	STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s FC800: SAN service at a rate of 8.5 Gbit/s FC1200: SAN service at a rate of 10.51 Gbit/s NOTE: Only the TN56TOX supports FC800 and FC1200 services.
Cross-connect capabilities	Supports the cross-connection of eight ODU2/ODU2e/ODUflex signals between the TOX and the cross-connect board through the backplane. NOTE: The cross-connection of ODUflex signals is supported only by the TN56TOX board.
OTN function	Supports mapping each channel of 10G signals into the ODU2/ODU2e signals at the ODU2/ODU2e interface of the backplane. Supports overhead processing by referring to the ITU-T G.709. The mapping process is compliant with ITU-T G.709 and G.Sup43. Supports PM function for ODU2. Supports SM and TCM function when the TOX receives OTN services.
ESC function	Supported by the TOX when the client-side service type is OTU2 or OTU2e.
FEC coding	Supports ITU-T G.709-compliant forward error correction (FEC) on the client side, only when the service type is OTU2/OTU2e.
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events. Supports the remote monitoring (RMON) of Ethernet services (10GE LAN).
ALS function	Supports the ALS function on the client side when client services are non-OTN services.
PRBS function	Supports the PRBS function on the client side. NOTE: The PRBS function on the client side is supported only when the client-side service type is STM-64, OC-192, OTU2 or OTU2e.
LPT function	The board supports the LPT function only when the client-side service type is 10GE LAN.
Test frame	Supports the test frame function when the client-side service type is 10GE LAN and the Port mapping is MAC Transparent Mapping (10.7 G).
Latency measurement	The board supports latency measurement. The bidirectional latency at the ODUk layer between two tributary boards supporting the latency measurement function can be measured, and the latency data is displayed on the U2000. NOTE: This function is not supported when the client-side service type is OTU2/OTU2e.
IEEE 1588v2	The TOX board supports the TC, TC+OC, BC, and OC modes when the client-side service type is 10GE LAN and the Port Mapping is MAC Transparent Mapping (10.7 G). NOTE: TN55TOX: Only the RX1/TX1 and RX2/TX2 optical port can process IEEE 1588v2 clock signals. TN56TOX: All the optical ports can process IEEE 1588v2 clock signals.
Physical clock	When the TOX board receives 10GE LAN services and the port mapping is Bit Transparent Mapping (11.1 G) on its client side, the board can support synchronous Ethernet transparent transmission instead of synchronous Ethernet processing. When the TOX board receives 10GE LAN services and the port mapping is MAC Transparent Mapping (10.7 G) on its client side, the board can support synchronous Ethernet processing instead of synchronous Ethernet transparent transmission.
Electrical-layer ASON	Supported
Ethernet service mapping mode	Bit Transparent Mapping(11.1G), MAC Transparent Mapping(10.7G)
Port MTU	The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes. NOTE: when Port Mapping is set to Bit Transparent Mapping(11.1G), Maximum Packet Length is unavailable on the U2000.
Protection scheme	Supports ODUk SNCP. Supports client 1+1 protection. Supports tributary SNCP protection. NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection. NOTE: When the board receives OTN services, SDH/SONET services, and 10GE WAN services the board supports tributary SNCP protection.
Loopback	WDM side		-
	Client side	Inloop	Supported
		Outloop	Supported
Protocols or standards compliance	Protocols or standards for transparent transmission (non-performance monitoring)	IEEE 802.3ae ITU-T G.707 ITU-T G.782 ITU-T G.783 NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI) NCITS FIBRE CHANNEL LINK SERVICES (FC-LS) NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2) NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3) NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3) NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH) GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic
	Protocols or standards for service processing (performance monitoring)	ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1
Dimensions (H x W x D)	264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
Weight	TN56TOX: 1.1 kg (2.43 lb.)

Item		TN56TOX
Basic function	TOX converts signals as follows: 8 x 10GE LAN/10GE WAN/STM-64/OC-192/OTU2/FC800<->8 x ODU2 8 x 10GE LAN/OTU2e/FC1200<->8 x ODU2e 8 x FC800<->8 x ODUflex
Client-side service type	STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s FC800: SAN service at a rate of 8.5 Gbit/s FC1200: SAN service at a rate of 10.51 Gbit/s NOTE: Only the TN56TOX supports FC800 and FC1200 services.
Cross-connect capabilities	Supports the cross-connection of eight ODU2/ODU2e/ODUflex signals between the TOX and the cross-connect board through the backplane. NOTE: The cross-connection of ODUflex signals is supported only by the TN56TOX board.
OTN function	Supports mapping each channel of 10G signals into the ODU2/ODU2e signals at the ODU2/ODU2e interface of the backplane. Supports overhead processing by referring to the ITU-T G.709. The mapping process is compliant with ITU-T G.709 and G.Sup43. Supports PM function for ODU2. Supports SM and TCM function when the TOX receives OTN services.
ESC function	Supported by the TOX when the client-side service type is OTU2 or OTU2e.
FEC coding	Supports ITU-T G.709-compliant forward error correction (FEC) on the client side, only when the service type is OTU2/OTU2e.
Alarm and performance event monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events. Supports the remote monitoring (RMON) of Ethernet services (10GE LAN).
ALS function	Supports the ALS function on the client side when client services are non-OTN services.
PRBS function	Supports the PRBS function on the client side. NOTE: The PRBS function on the client side is supported only when the client-side service type is STM-64, OC-192, OTU2 or OTU2e.
LPT function	The board supports the LPT function only when the client-side service type is 10GE LAN.
Test frame	Supports the test frame function when the client-side service type is 10GE LAN and the Port mapping is MAC Transparent Mapping (10.7 G).
Latency measurement	The board supports latency measurement. The bidirectional latency at the ODUk layer between two tributary boards supporting the latency measurement function can be measured, and the latency data is displayed on the U2000. NOTE: This function is not supported when the client-side service type is OTU2/OTU2e.
IEEE 1588v2	The TOX board supports the TC, TC+OC, BC, and OC modes when the client-side service type is 10GE LAN and the Port Mapping is MAC Transparent Mapping (10.7 G). NOTE: TN55TOX: Only the RX1/TX1 and RX2/TX2 optical port can process IEEE 1588v2 clock signals. TN56TOX: All the optical ports can process IEEE 1588v2 clock signals.
Physical clock	When the TOX board receives 10GE LAN services and the port mapping is Bit Transparent Mapping (11.1 G) on its client side, the board can support synchronous Ethernet transparent transmission instead of synchronous Ethernet processing. When the TOX board receives 10GE LAN services and the port mapping is MAC Transparent Mapping (10.7 G) on its client side, the board can support synchronous Ethernet processing instead of synchronous Ethernet transparent transmission.
Electrical-layer ASON	Supported
Ethernet service mapping mode	Bit Transparent Mapping(11.1G), MAC Transparent Mapping(10.7G)
Port MTU	The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes. NOTE: when Port Mapping is set to Bit Transparent Mapping(11.1G), Maximum Packet Length is unavailable on the U2000.
Protection scheme	Supports ODUk SNCP. Supports client 1+1 protection. Supports tributary SNCP protection. NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection. NOTE: When the board receives OTN services, SDH/SONET services, and 10GE WAN services the board supports tributary SNCP protection.
Loopback	WDM side		-
	Client side	Inloop	Supported
		Outloop	Supported
Protocols or standards compliance	Protocols or standards for transparent transmission (non-performance monitoring)	IEEE 802.3ae ITU-T G.707 ITU-T G.782 ITU-T G.783 NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI) NCITS FIBRE CHANNEL LINK SERVICES (FC-LS) NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2) NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3) NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3) NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH) GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic
	Protocols or standards for service processing (performance monitoring)	ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1
Dimensions (H x W x D)	264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
Weight	TN56TOX: 1.1 kg (2.43 lb.)
