TN55TOX 8x10G 10km

0 Reviews Write a review
PN02310JYW
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

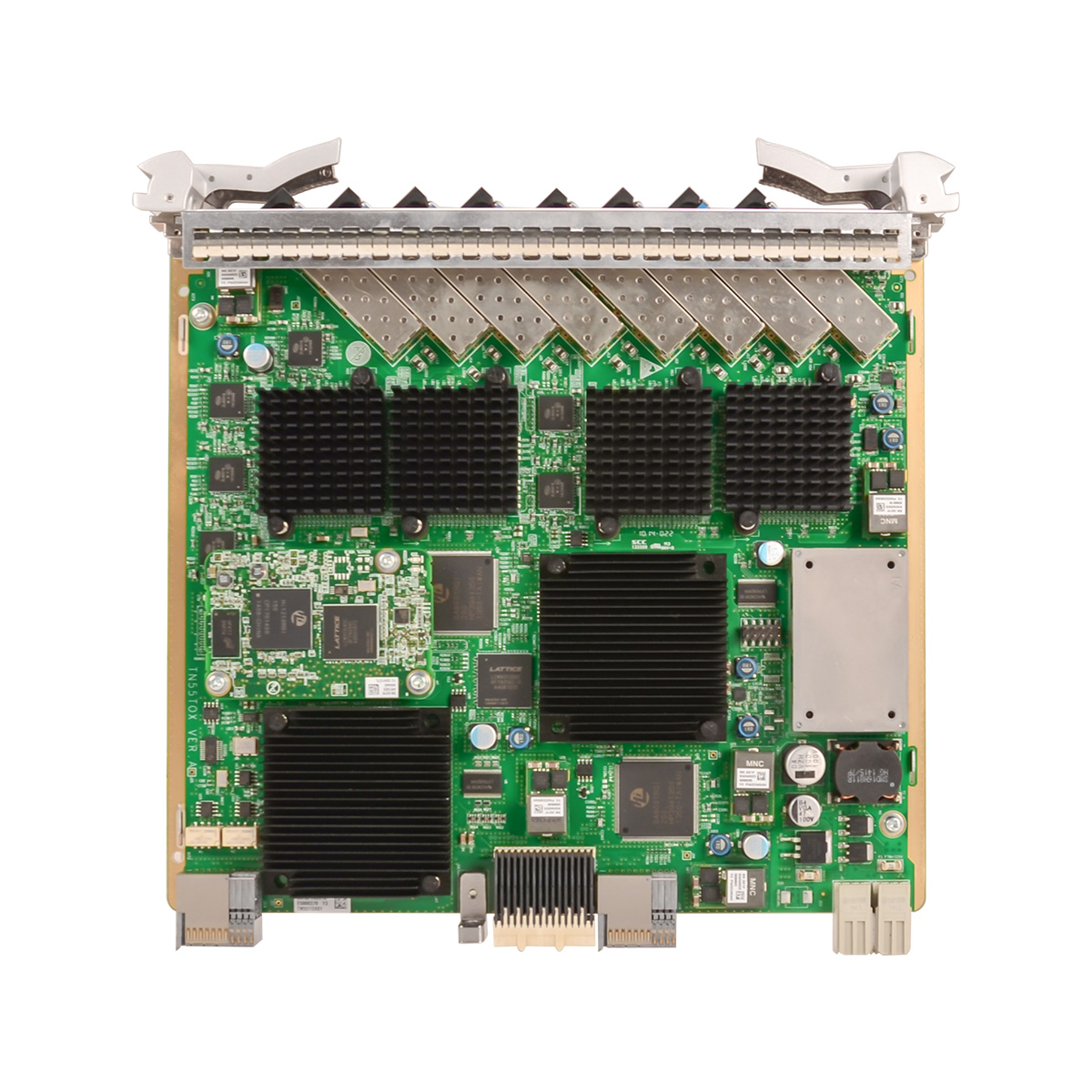

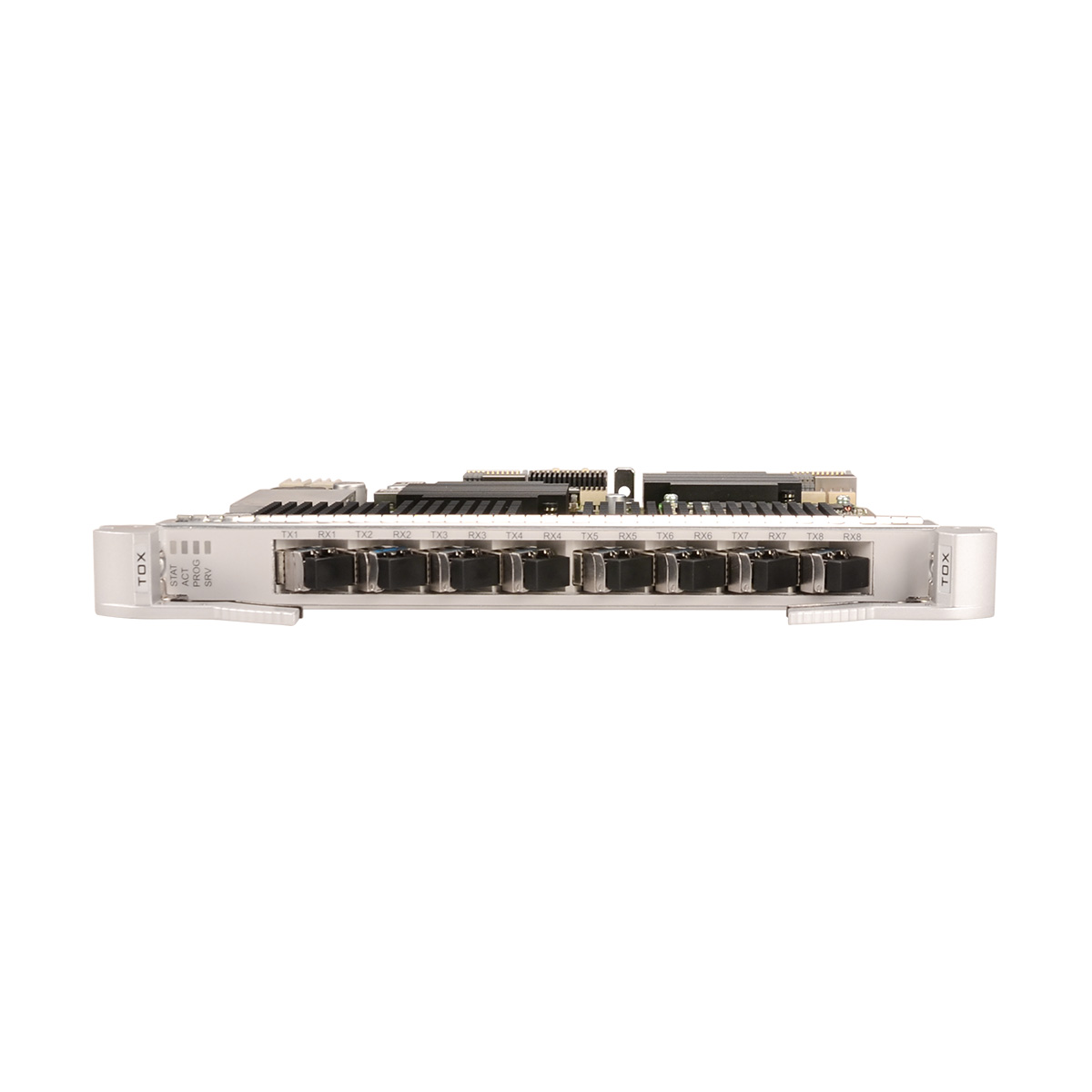

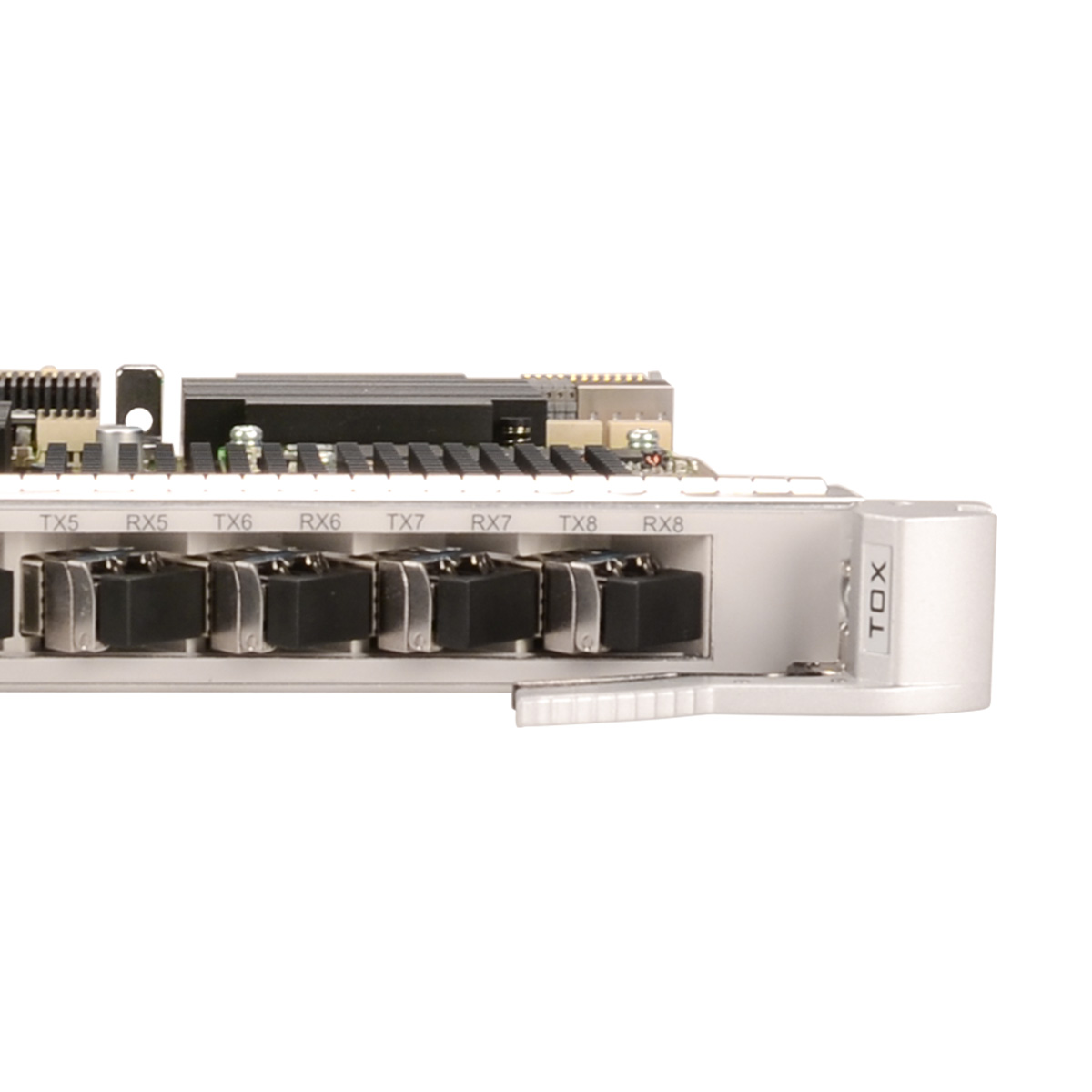

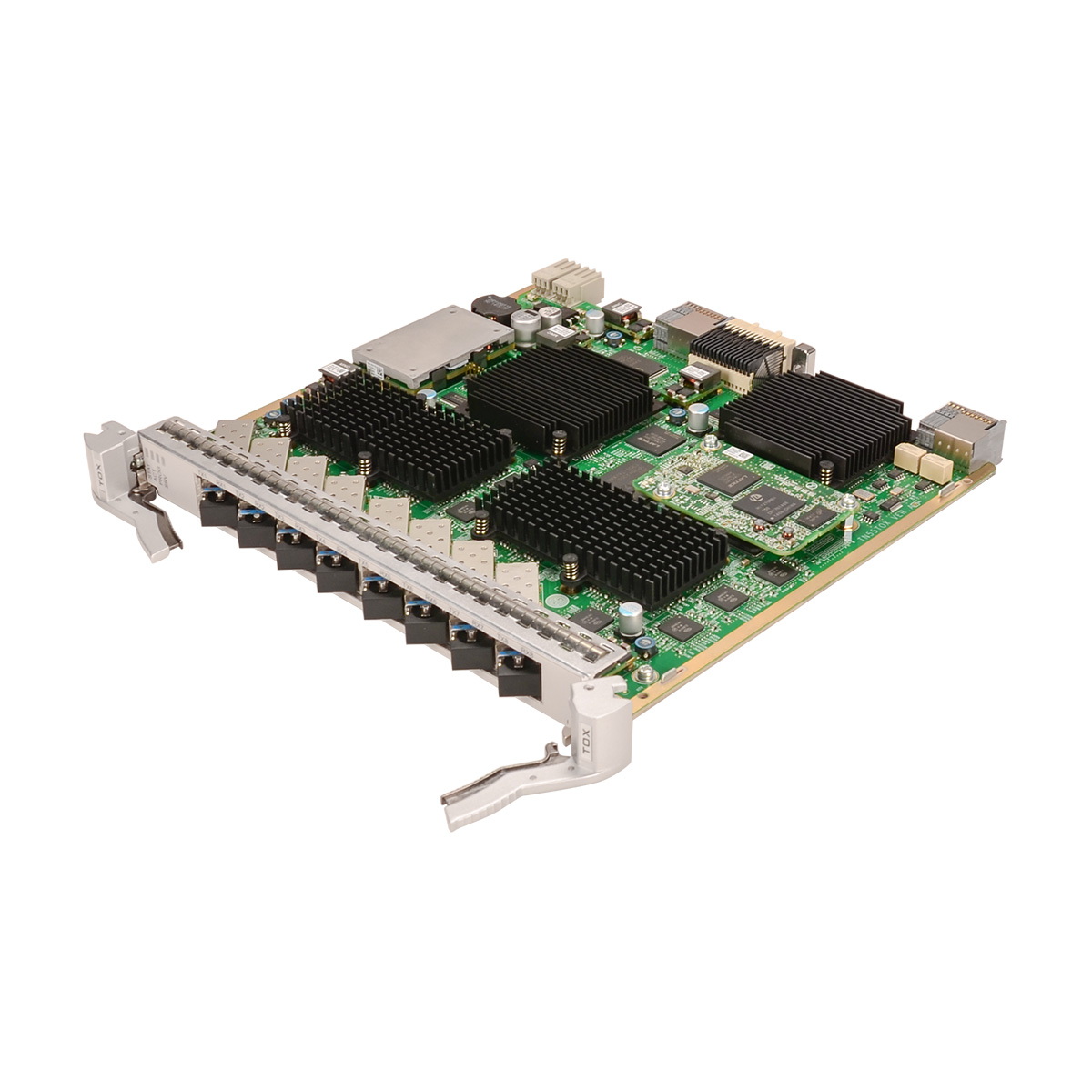

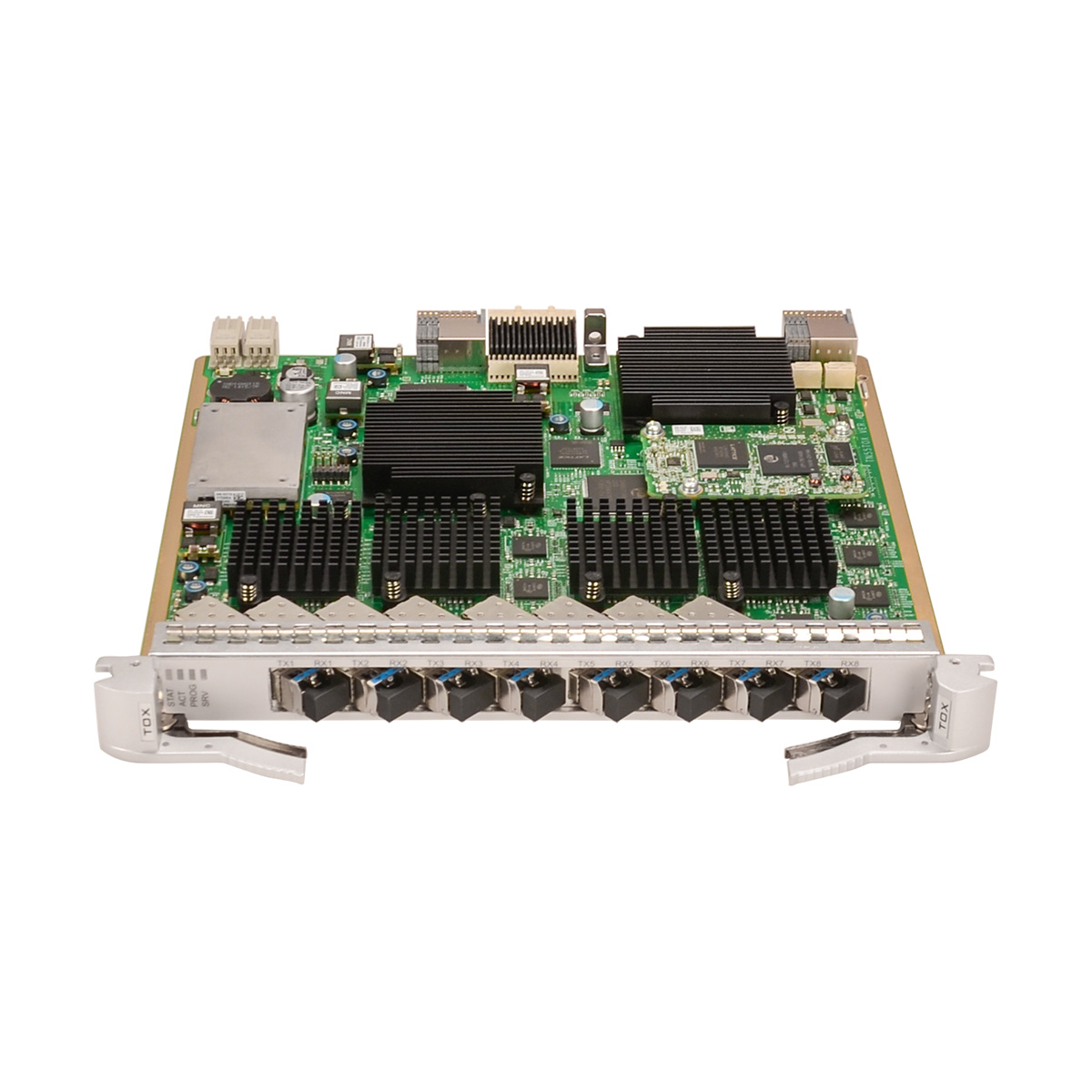

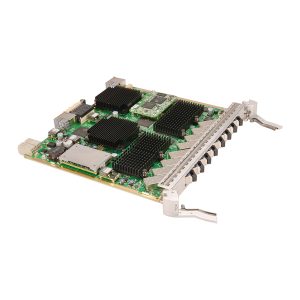

TN55TOX Board With 8 10G 10km SFP+

Description

Huawei OSN8800 8x10G Tributary Service Processing Board With 8PCS 10G-10km-SFP+ Client-Side Pluggable Modules

WDM client-side equipped optical module
Parameter Value
Optical Module Type 10G BASE-LR-10 km-SFP+
Optical interface service rate(Gbit/s) 10.3125
Optical source type SLM
Line code format NRZ
Target transmission distance(km) 10
Transmitter parameter specifications at point S
Operating wavelength range(nm) 1260 to 1355
Maximum mean launched power(dBm) 0.5
Minimum mean launched power(dBm) -8.2
Minimum extinction ratio(dB) 3.5
Output optical power in case of laser shutdown(dBm) ≤-30
Eye pattern mask IEEE802.3z –compliant
Receiver parameter specifications at point R
Receiver type PIN
Operating wavelength range(nm) 1260 to 1355
Receiver sensitivity(dBm) -12.6 (OMA)
Minimum receiver overload(dBm) 0.5
Minimum reflectance(dB) -12
Mechanical Specifications
Dimensions(mm) 25.4(W) x 220(D) x 264.6(H)
Weight(kg) 1.42

Additional information
