Huawei OptiX OSN 8800 struck of TN54THA 16 Any-rate Ports Service Processing Board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TN54THA overview



TN54THA  16 Any-rate Ports Service Processing Board applied to OptiX OSN 8800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.

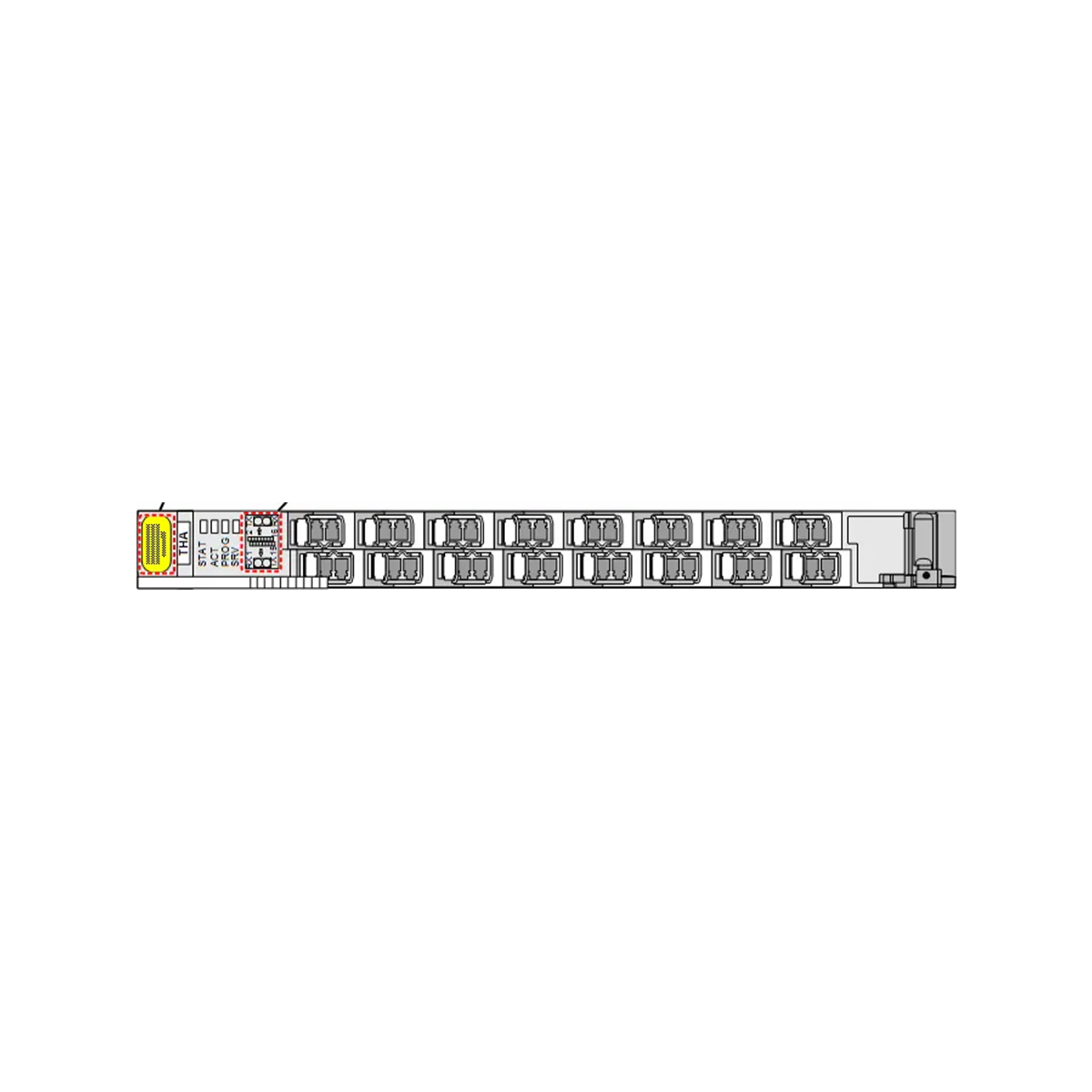

Front panel of the TN54THA board

TN54THA

Front panel of the TN54THA board



Valid slots for the TN54THAboard in a OptiX OSN 8800 Subrack

Product Valid Slots
OptiX OSN 8800 T64 subrack IU2-IU8, IU11-IU17, IU20-IU33, IU36-IU42, IU45-IU51, IU54-IU67
OptiX OSN 8800 T32 subrack IU2-IU8, IU12-IU18, IU21-IU27, IU29-IU35
OptiX OSN 8800 T16 subrack IU2-IU8, IU11-IU17
Item TN54THA
Basic function THA converts signals as follows:
  • 16 x (125 Mbit/s to 1.25 Gbit/s) <-> 16 x ODU0.
  • 16 x (1.49 Gbit/s to 2.67 Gbit/s) <-> 16 x ODU1.
  • 16 x (125Mbit/s to 2.5 Gbit/s)<->2 to 16 x ODU1.
  • 16 x OTU1<->32 x ODU0.
Client-side service type FE: Ethernet service at a rate of 125 Mbit/s GE: Ethernet service at a rate of 1.25 Gbit/s OTU1: OTN service at a rate of 2.67 Gbit/s STM-1/OC-3: SDH/SONET service at a rate of 155.52 Mbit/s STM-4/OC-12: SDH/SONET service at a rate of 622.08 Mbit/s STM-16/OC-48: SDH/SONET service at a rate of 2488.32 Mbit/s FC100: SAN service at a rate of 1.06 Gbit/s FC200: SAN service at a rate of 2.12 Gbit/s FICON: SAN service at a rate of 1.06 Gbit/s FICON Express: SAN service at a rate of 2.12 Gbit/s DVB-ASI: Video service at a rate of 270 Mbit/s ESCON: SAN service at a rate of 200 Mbit/s FDDI: SAN service at a rate of 125 Mbit/s
NOTE:
The THA board supports access of DVB-ASI electrical signals. When the board is used to accept these electrical signals, a digital video O/E converter must be used for O/E or E/O conversion and the optical module of the converter must agree with the board optical module specifications. The digital video O/E converter is a third-party device. Customers can purchase a digital video O/E converter by themselves.
Cross-connect capabilities Cross-connects a maximum of 32 channels of ODU0 signals or 16 channels of ODU1 signals through the backplane bus and cross-connect board.
OTN function
  • The mapping process complies with ITU-T G.7041 and ITU-T G.709. The board supports the frame format and overhead processing by referring to the ITU-T G.709.
  • Supports the PM function for ODU0.
  • Supports PM non-intrusive monitoring for ODU0.
  • Supports TCM and PM functions for ODU1.
  • Supports PM and TCM non-intrusive monitoring for ODU1.
  • Supports the SM, TCM and PM functions for OTU1.
ESC function Supported
PRBS test function Supports the PRBS function on the client side.
NOTE:
The PRBS function on the client side is supported only when the client-side service type is STM-1/OC-3, STM-4/OC-12, STM-16/OC-48, or OTU1
LPT function This function is supported only when the THA board receives FE or GE services on its client side.
FEC coding Supports forward error correction (FEC) on the client side that complies with ITU-T G.709, only when the service type is OTU1.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
Test frame Supported
NOTE:
The board supports the Test frame function only when the Service Type is GE(GFP-T).
Latency measurement If non-OTN services are received on the client side, the board supports latency measurement for upstream PM sections. If OTN services are received on the client side, the board supports latency measurement for downstream TCM sections.
IEEE 1588v2 Supports the TC, TC+OC, BC, and OC modes when the client service is GE multiplexed using the GFP-T procedure (the service type is displayed as GE(GFP-T) on the U2000).
NOTE:
The TX8/RX8 and TX16/RX16 optical ports cannot process IEEE 1588v2 clock signals.
Physical clock When receiving GE(GFP-T) services on the client side, the board can support synchronous Ethernet processing instead of synchronous Ethernet transparent transmission. When receiving GE(TTT-GMP) services on the client side, the board can support synchronous Ethernet transparent transmission instead of synchronous Ethernet processing.
G.8273.2/G.8275.1 Supported.
Electrical-layer ASON Supported.
Protection scheme
  • Supports client 1+1 protection.
  • Supports ODUk SNCP.
  • Supports tributary SNCP protection.
NOTE:
When the board receives OTN services, SDH/SONET services the board supports tributary SNCP protection. ODU0 tributary SNCP protection is supported only in ODU1_ODU0 mode (OTU1->ODU1->ODU0).
Ethernet service mapping mode Supports encapsulation of GE services in GE(TTT-GMP) or GE(GFP-T).
Ethernet port working mode Auto-Negotiation 1000M Full-Duplex
Loopback Channel Loopback Inloop Supported
NOTE:
The ODU0 channel loopback is supported only when port working mode is ODU1_ODU0 mode (OTU1->ODU1->ODU0).
Outloop
Client side Inloop Supported
Outloop Supported


Additional information

Brand

Huawei
Item TN54THA
Basic function THA converts signals as follows:
  • 16 x (125 Mbit/s to 1.25 Gbit/s) <-> 16 x ODU0.
  • 16 x (1.49 Gbit/s to 2.67 Gbit/s) <-> 16 x ODU1.
  • 16 x (125Mbit/s to 2.5 Gbit/s)<->2 to 16 x ODU1.
  • 16 x OTU1<->32 x ODU0.
Client-side service type FE: Ethernet service at a rate of 125 Mbit/s GE: Ethernet service at a rate of 1.25 Gbit/s OTU1: OTN service at a rate of 2.67 Gbit/s STM-1/OC-3: SDH/SONET service at a rate of 155.52 Mbit/s STM-4/OC-12: SDH/SONET service at a rate of 622.08 Mbit/s STM-16/OC-48: SDH/SONET service at a rate of 2488.32 Mbit/s FC100: SAN service at a rate of 1.06 Gbit/s FC200: SAN service at a rate of 2.12 Gbit/s FICON: SAN service at a rate of 1.06 Gbit/s FICON Express: SAN service at a rate of 2.12 Gbit/s DVB-ASI: Video service at a rate of 270 Mbit/s ESCON: SAN service at a rate of 200 Mbit/s FDDI: SAN service at a rate of 125 Mbit/s
NOTE:
The THA board supports access of DVB-ASI electrical signals. When the board is used to accept these electrical signals, a digital video O/E converter must be used for O/E or E/O conversion and the optical module of the converter must agree with the board optical module specifications. The digital video O/E converter is a third-party device. Customers can purchase a digital video O/E converter by themselves.
Cross-connect capabilities Cross-connects a maximum of 32 channels of ODU0 signals or 16 channels of ODU1 signals through the backplane bus and cross-connect board.
OTN function
  • The mapping process complies with ITU-T G.7041 and ITU-T G.709. The board supports the frame format and overhead processing by referring to the ITU-T G.709.
  • Supports the PM function for ODU0.
  • Supports PM non-intrusive monitoring for ODU0.
  • Supports TCM and PM functions for ODU1.
  • Supports PM and TCM non-intrusive monitoring for ODU1.
  • Supports the SM, TCM and PM functions for OTU1.
ESC function Supported
PRBS test function Supports the PRBS function on the client side.
NOTE:
The PRBS function on the client side is supported only when the client-side service type is STM-1/OC-3, STM-4/OC-12, STM-16/OC-48, or OTU1
LPT function This function is supported only when the THA board receives FE or GE services on its client side.
FEC coding Supports forward error correction (FEC) on the client side that complies with ITU-T G.709, only when the service type is OTU1.
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
Test frame Supported
NOTE:
The board supports the Test frame function only when the Service Type is GE(GFP-T).
Latency measurement If non-OTN services are received on the client side, the board supports latency measurement for upstream PM sections. If OTN services are received on the client side, the board supports latency measurement for downstream TCM sections.
IEEE 1588v2 Supports the TC, TC+OC, BC, and OC modes when the client service is GE multiplexed using the GFP-T procedure (the service type is displayed as GE(GFP-T) on the U2000).
NOTE:
The TX8/RX8 and TX16/RX16 optical ports cannot process IEEE 1588v2 clock signals.
Physical clock When receiving GE(GFP-T) services on the client side, the board can support synchronous Ethernet processing instead of synchronous Ethernet transparent transmission. When receiving GE(TTT-GMP) services on the client side, the board can support synchronous Ethernet transparent transmission instead of synchronous Ethernet processing.
G.8273.2/G.8275.1 Supported.
Electrical-layer ASON Supported.
Protection scheme
  • Supports client 1+1 protection.
  • Supports ODUk SNCP.
  • Supports tributary SNCP protection.
NOTE:
When the board receives OTN services, SDH/SONET services the board supports tributary SNCP protection. ODU0 tributary SNCP protection is supported only in ODU1_ODU0 mode (OTU1->ODU1->ODU0).
Ethernet service mapping mode Supports encapsulation of GE services in GE(TTT-GMP) or GE(GFP-T).
Ethernet port working mode Auto-Negotiation 1000M Full-Duplex
Loopback Channel Loopback Inloop Supported
NOTE:
The ODU0 channel loopback is supported only when port working mode is ODU1_ODU0 mode (OTU1->ODU1->ODU0).
Outloop
Client side Inloop Supported
Outloop Supported
