Description

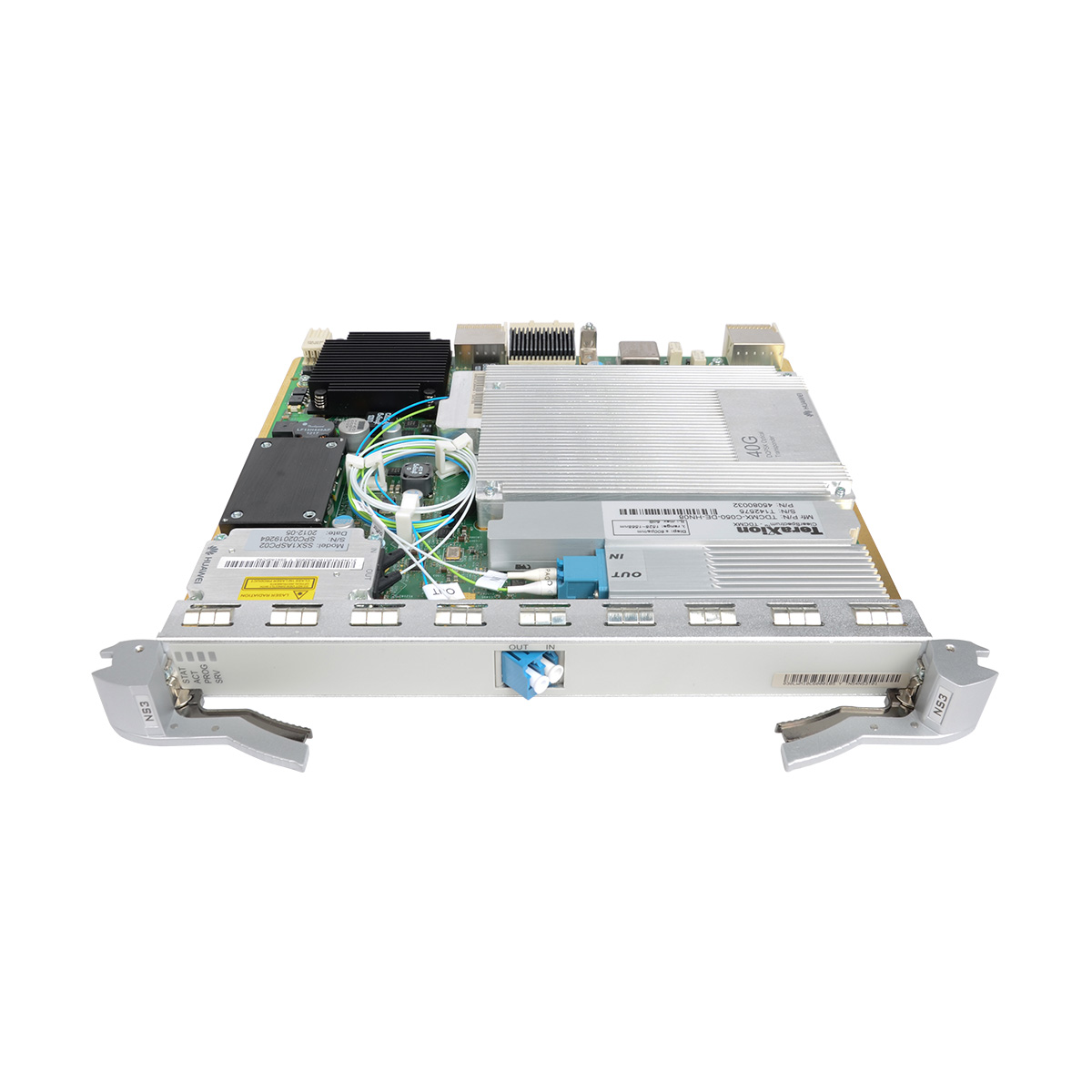

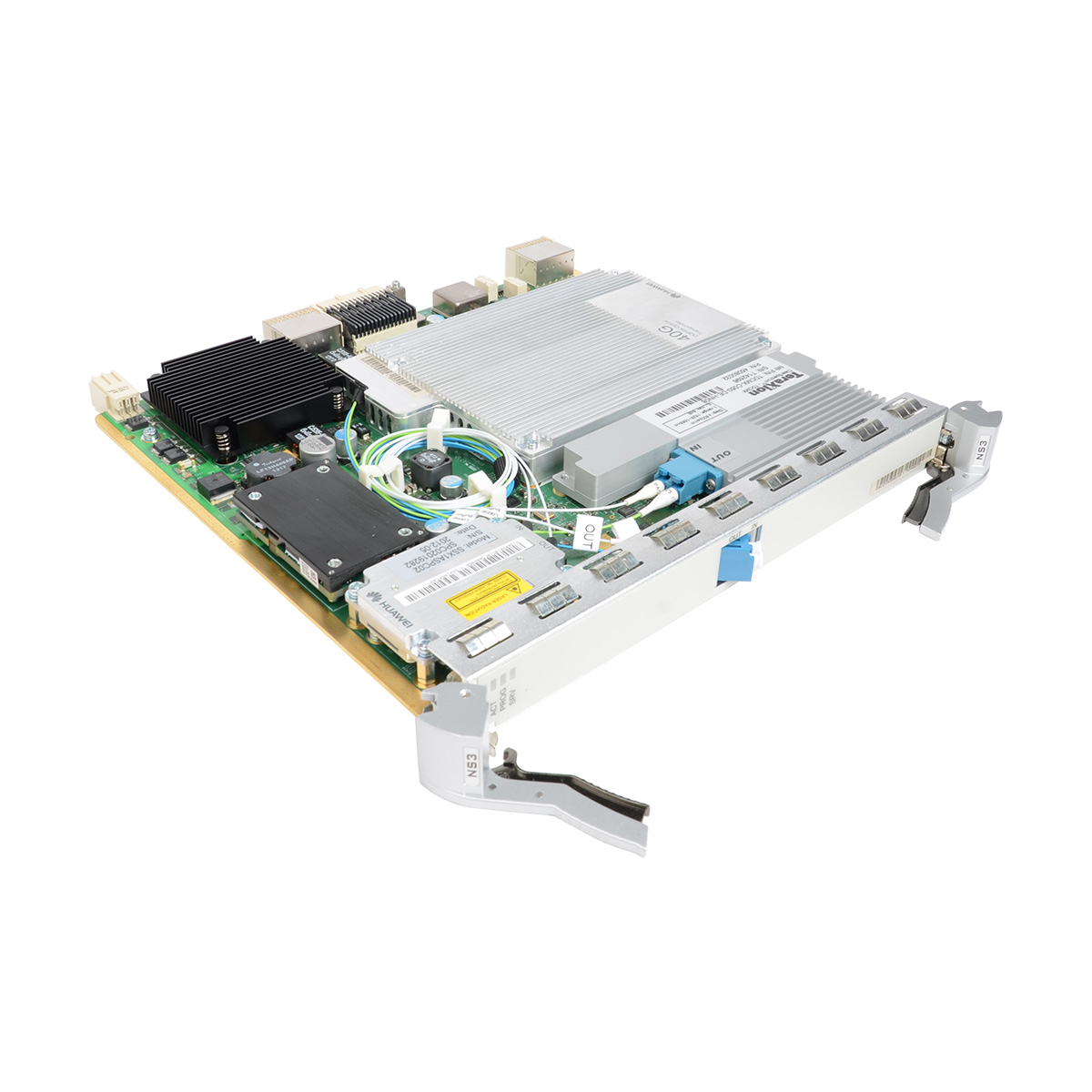

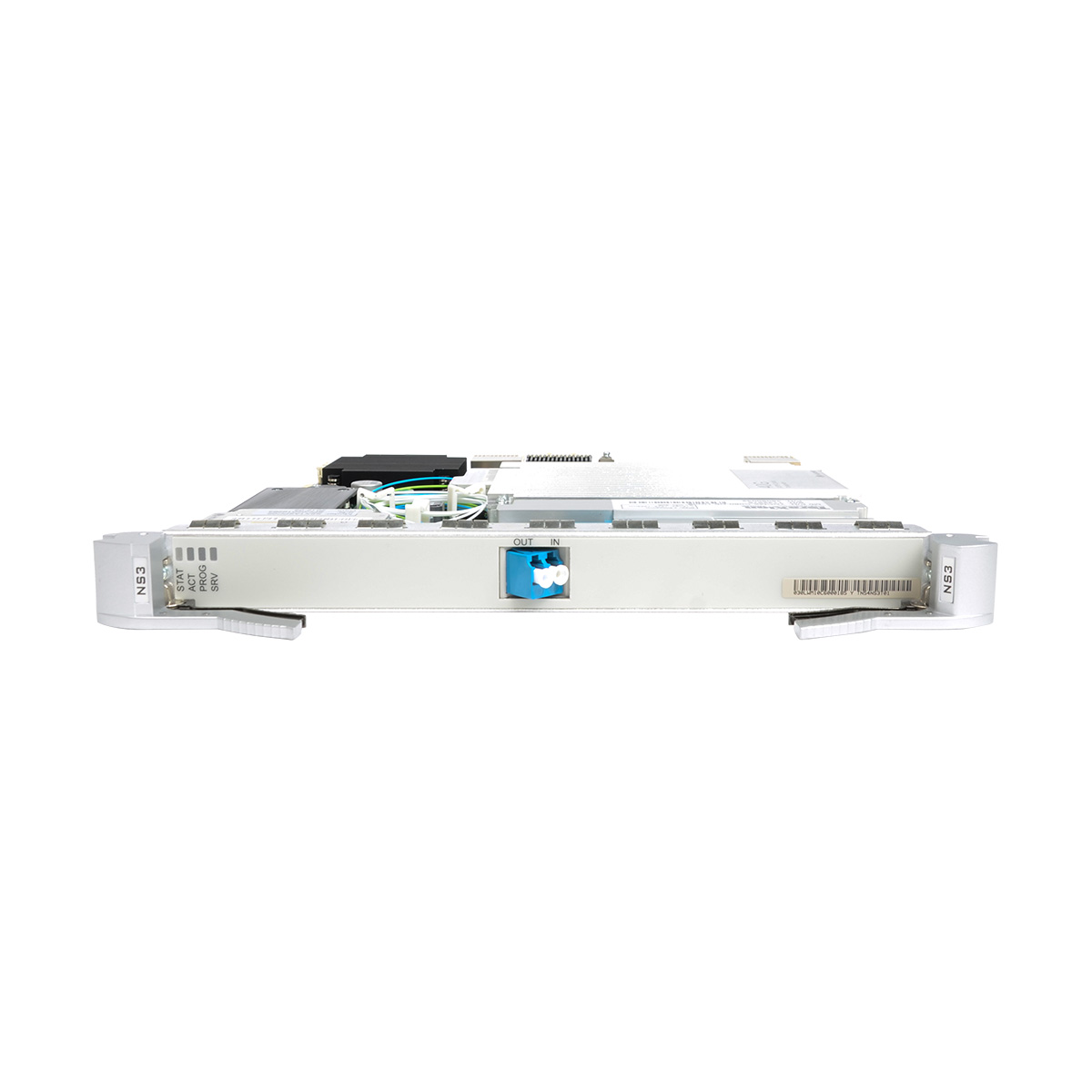

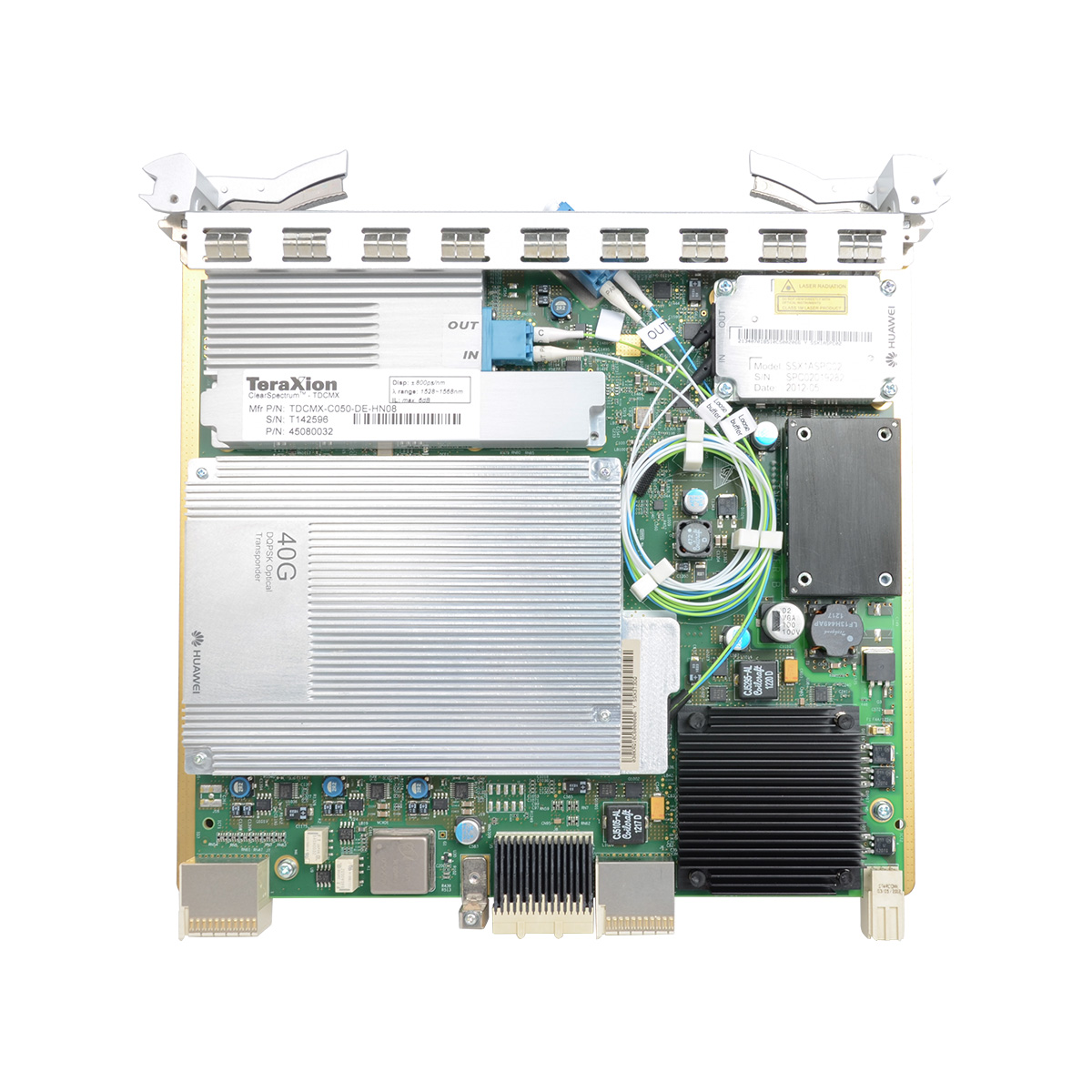

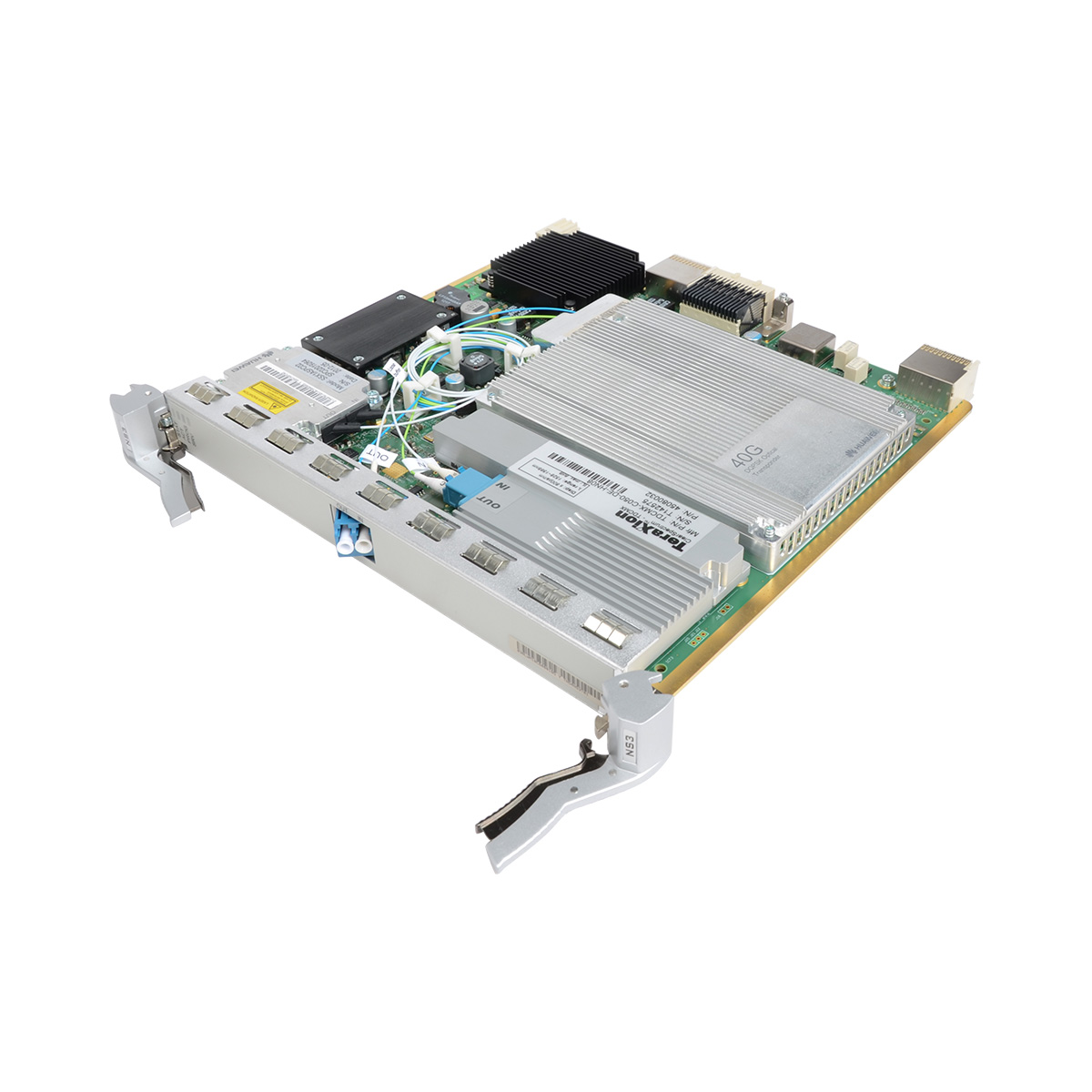

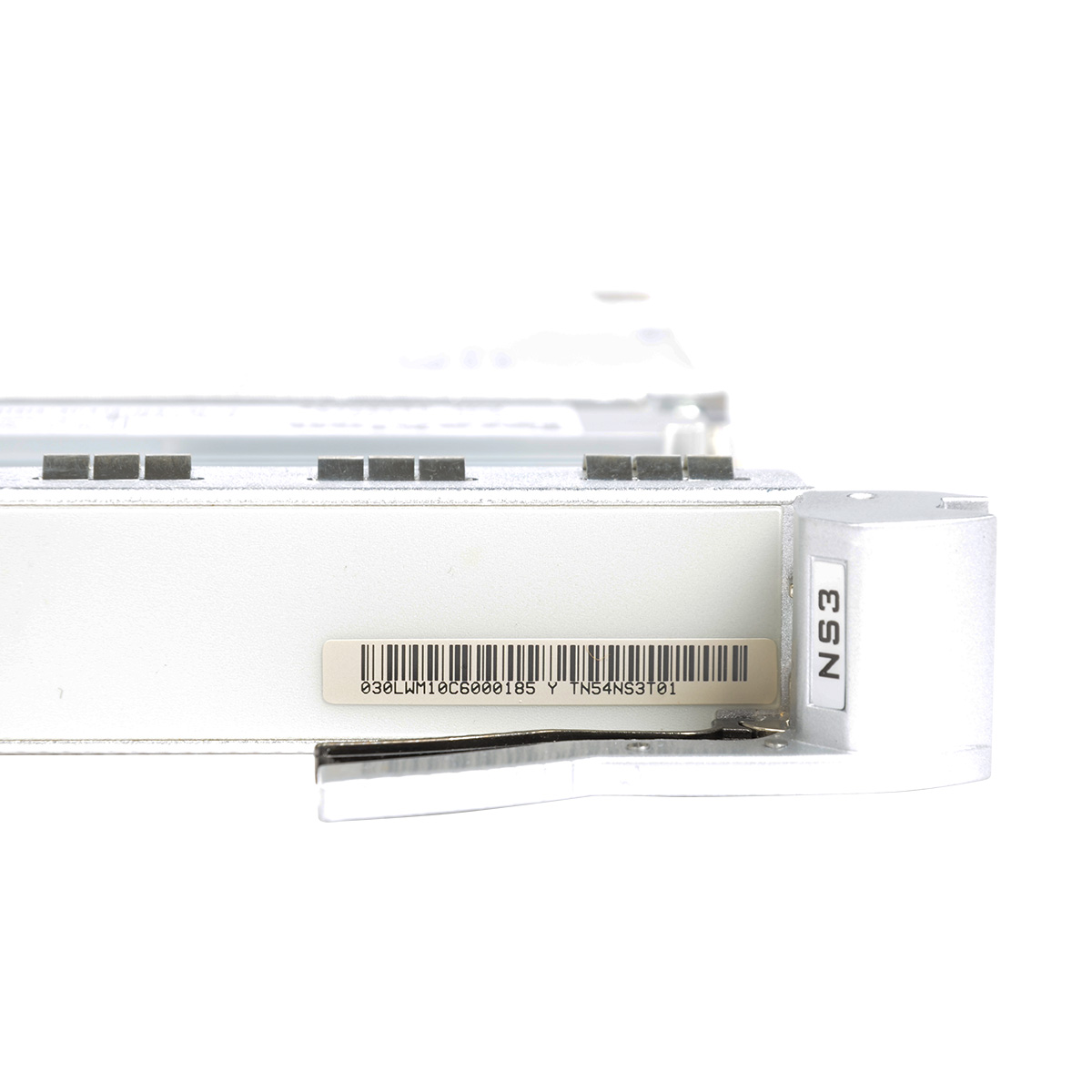

Huawei OSN 6800 OSN8800 40G Line Service Processing Board(800 ps/nm,AFEC,DQPSK,Tunable), 50GHz( Rx1_PIN,Tx1_-5dBm~0dBm,LC)
| Optical Interface Parameter | |
| Parameter | Value |
| Optical Module Type | 800 ps/nm-C Band-Tunable Wavelength-DQPSK-PIN |
| Line code forma | DQPSK |
| Transmitter parameter specifications at point S | |
| Operating frequency range(THz) | 192.10 to 196.05 |
| Maximum mean launched power(dBm) | 0 |
| Minimum mean launched power(dBm) | -5 |
| Minimum extinction ratio(dB) | NA |
| Center frequency deviation(GHz) | ±2.5 |
| Maximum – 20 dB spectra width(nm) | NA |
| Maximum -3 dB spectral width(nm) | 0.3 |
| Dispersion tolerance(ps/nm) | -800 to 800 |
| Receiver parameter specifications at point R | |
| Receiver type | PIN |
| Operating wavelength range(nm) | 1529 to 15610 |
| Receiver sensitivity, EOL(FEC on)(dBm) | -16 |
| Minimum receiver overload(FEC on) | 0 |
| Maximum reflectance(dB) | -27 |
| Mechanical Specifications | |
| Dimensions(mm) | 25.4(W) x 220(D) x 264.6(H) |
| Weight(kg) | 1.8 |
