Description

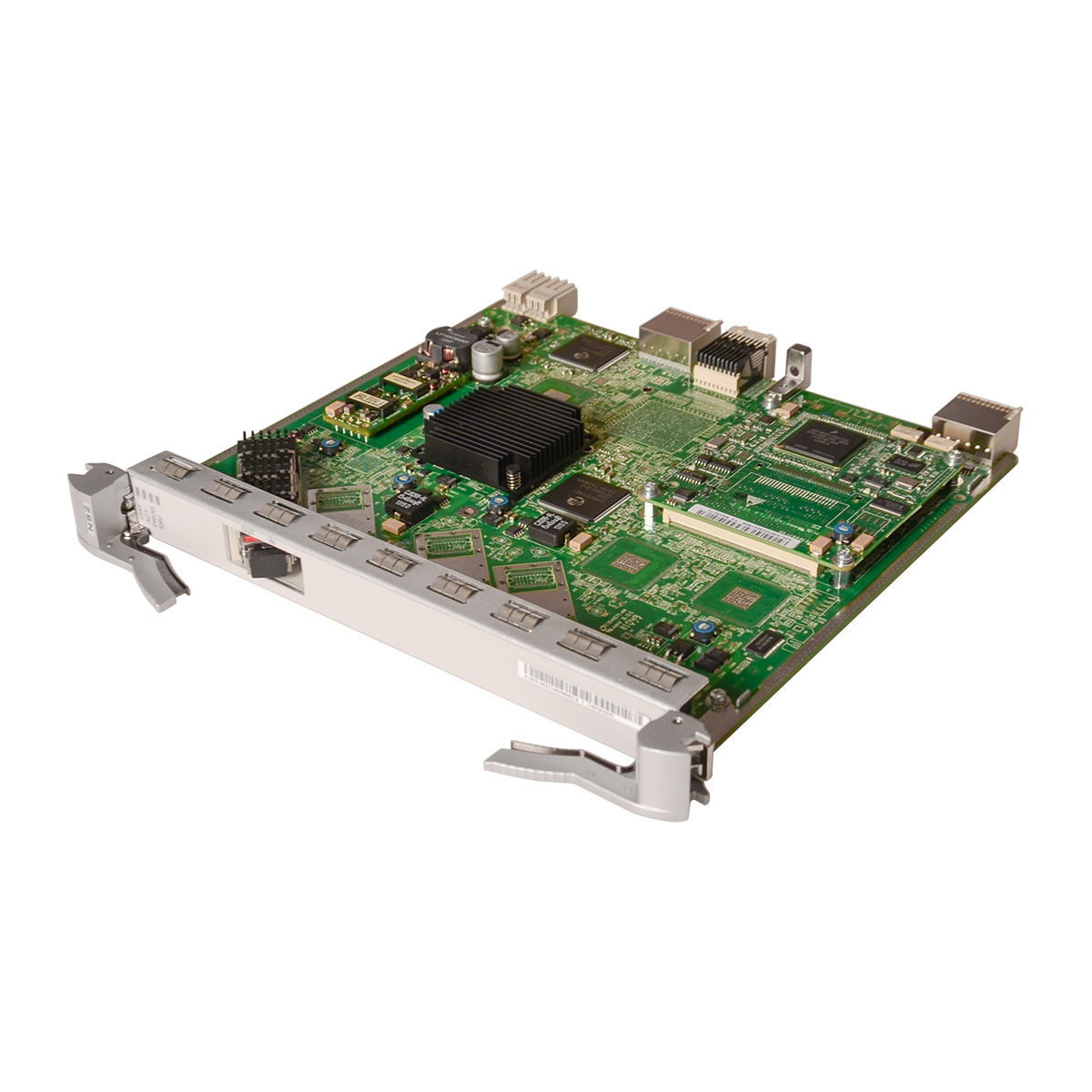

Huawei OSN6800 OSN8800 10G Line Service Processing Board With 800 ps/nm-C Band-Tunable Wavelength-NRZ-PIN-XFP
| WDM-side pluggable optical module specifications (tunable wavelengths) | |
| Optical Module Type | 800 ps/nm-C Band-Tunable Wavelength-NRZ-PIN-XFP |
| Line code format | NRZ |
| Transmitter parameter specifications at point S | |
| Maximum mean launched power(dBm) | 2 |
| Minimum mean launched power(dBm) | -1 |
| Minimum extinction ratio(dB) | 10 |
| Operating frequency range(THz) | 192.10 to 196.05 |
| Center frequency deviation(GHz) | ±5 |
| Maximum -20 dB spectral width(nm) | 0.3 |
| Minimum side mode suppression ratio(dB) | 35 |
| Dispersion tolerance(ps/nm) | 800 |
| Receiver parameter specifications at point R | |
| Receiver type | PIN |
| Operating wavelength range(nm) | 1250 to 1600 |
| Receiver sensitivity, EOL(FEC on)(dBm) | -16 |
| Minimum receiver overload(FEC on)(dBm) | 0 |
| Maximum reflectance | -27 |
| Mechanical Specifications | |
| Dimensions of front panel | 264.6(H) x 25.4(W) x 220(D) |
| Weight(kg) | 1 |
| Power Consumption(W) | Typical Power Consumption:20 Maximum Power Consumptiona:24 |
