Description

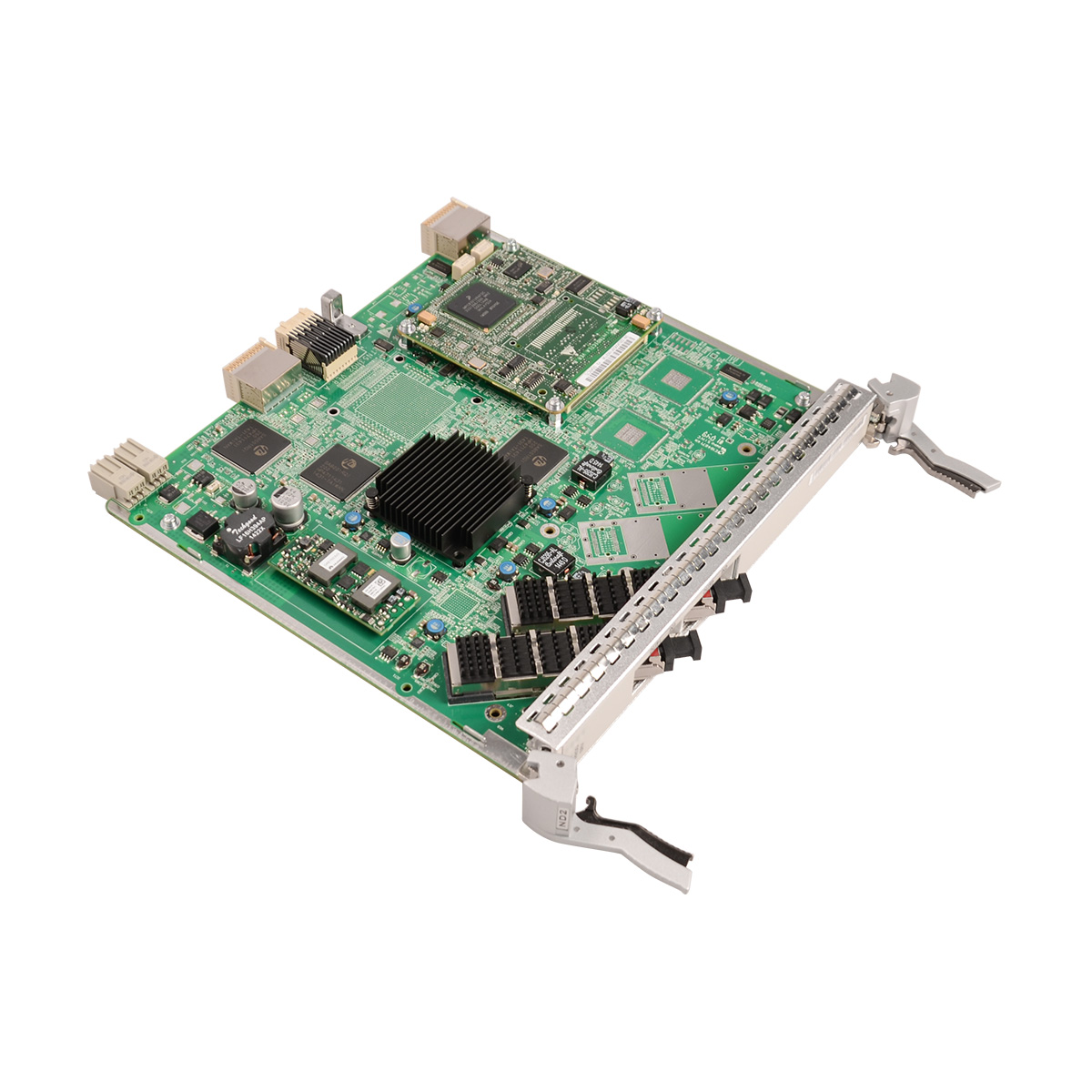

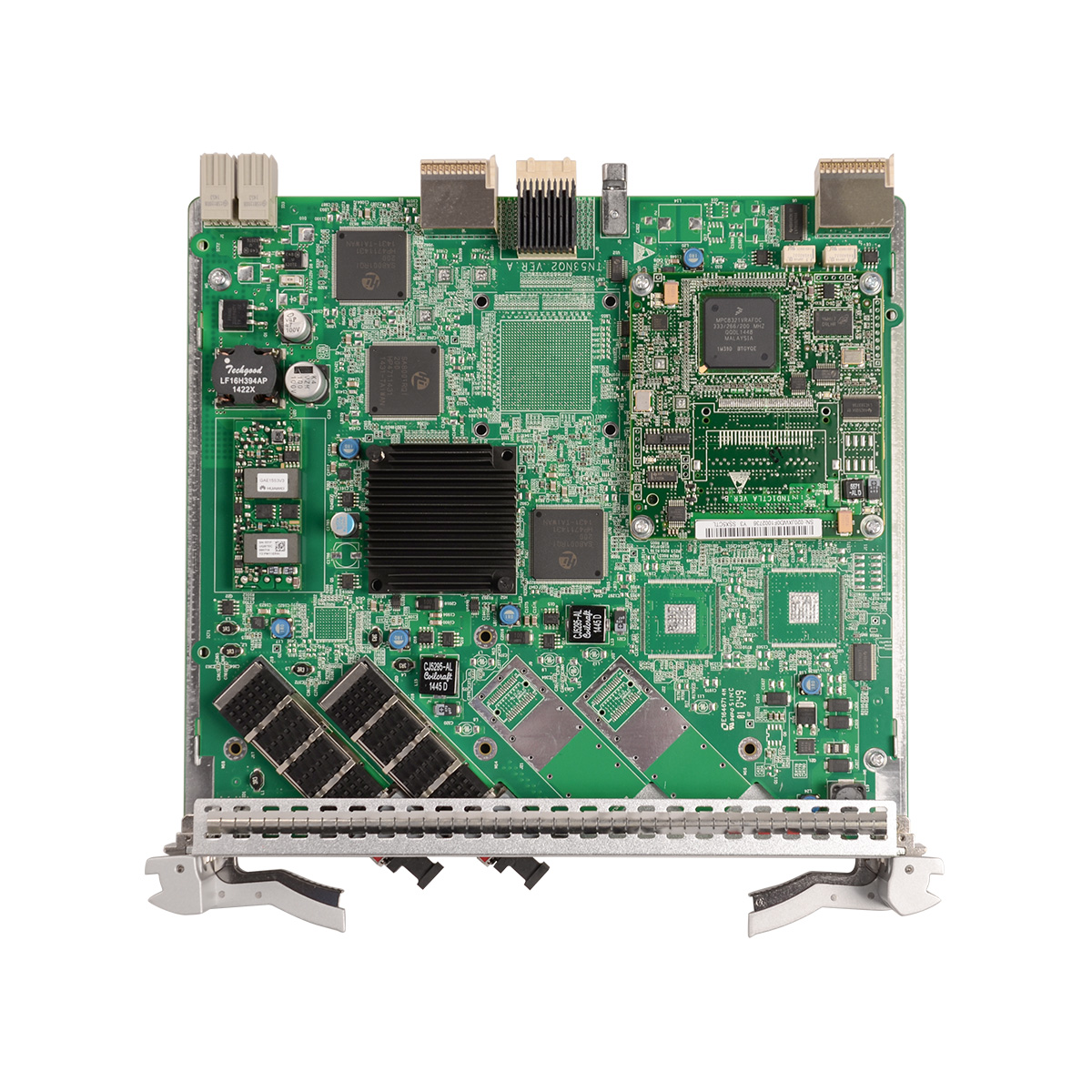

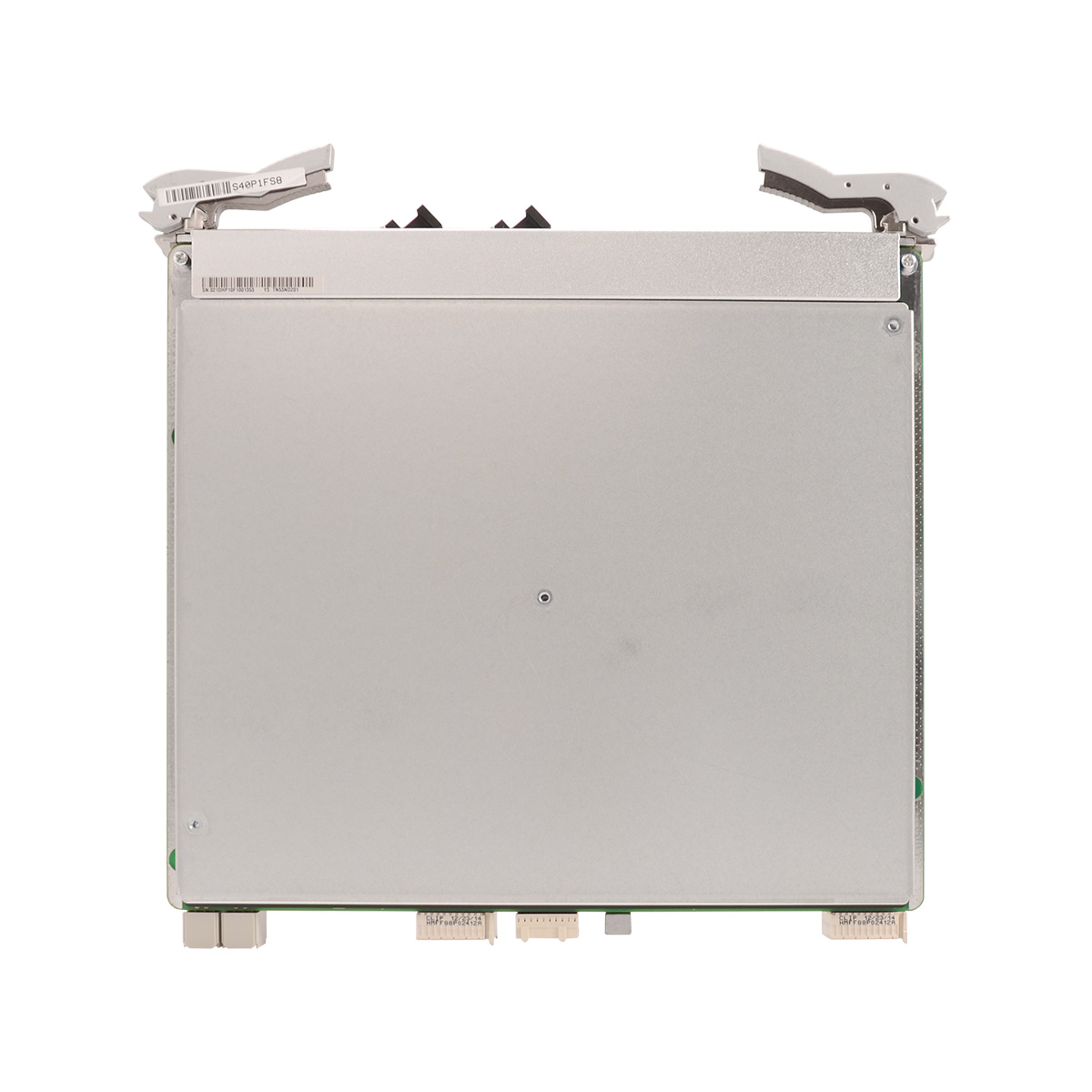

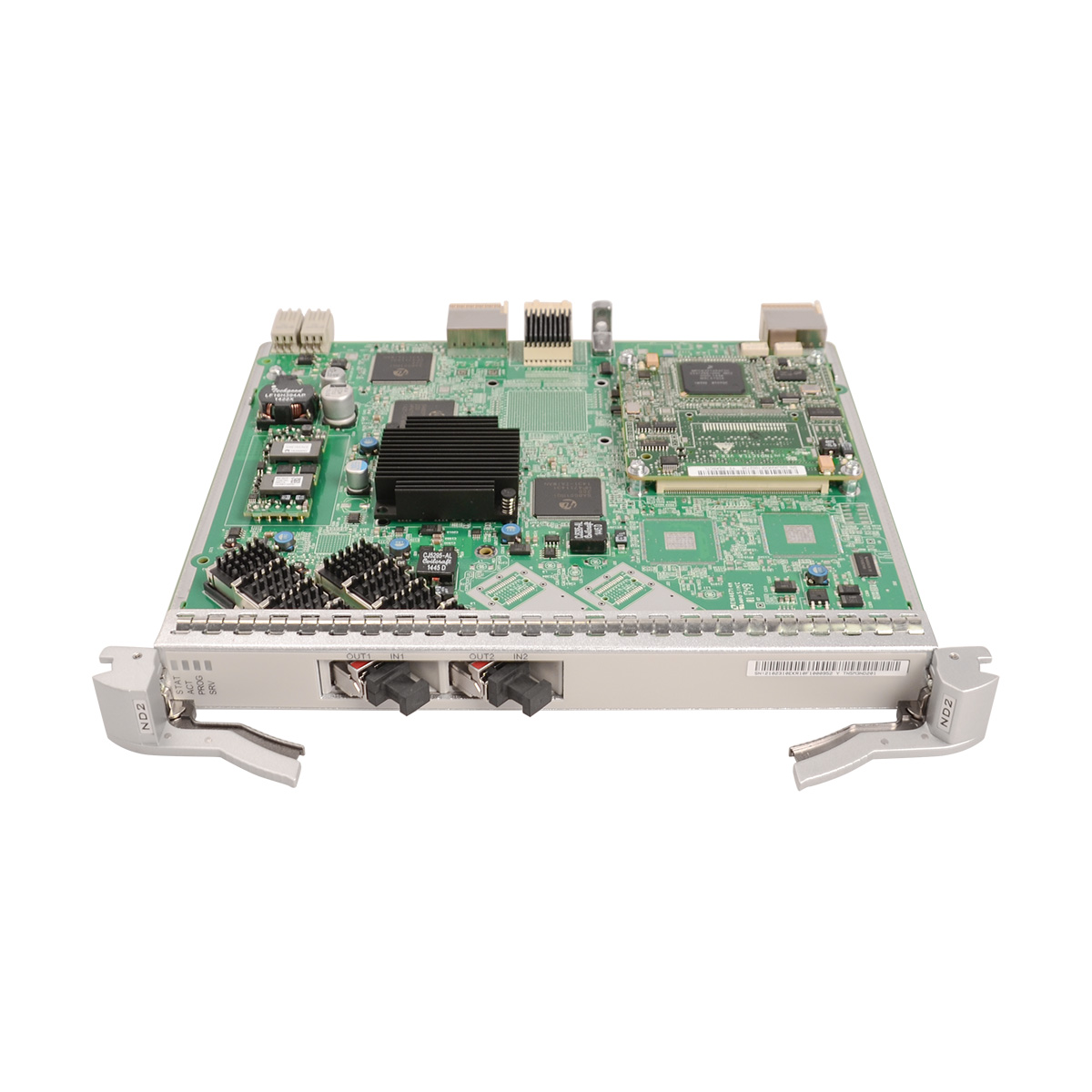

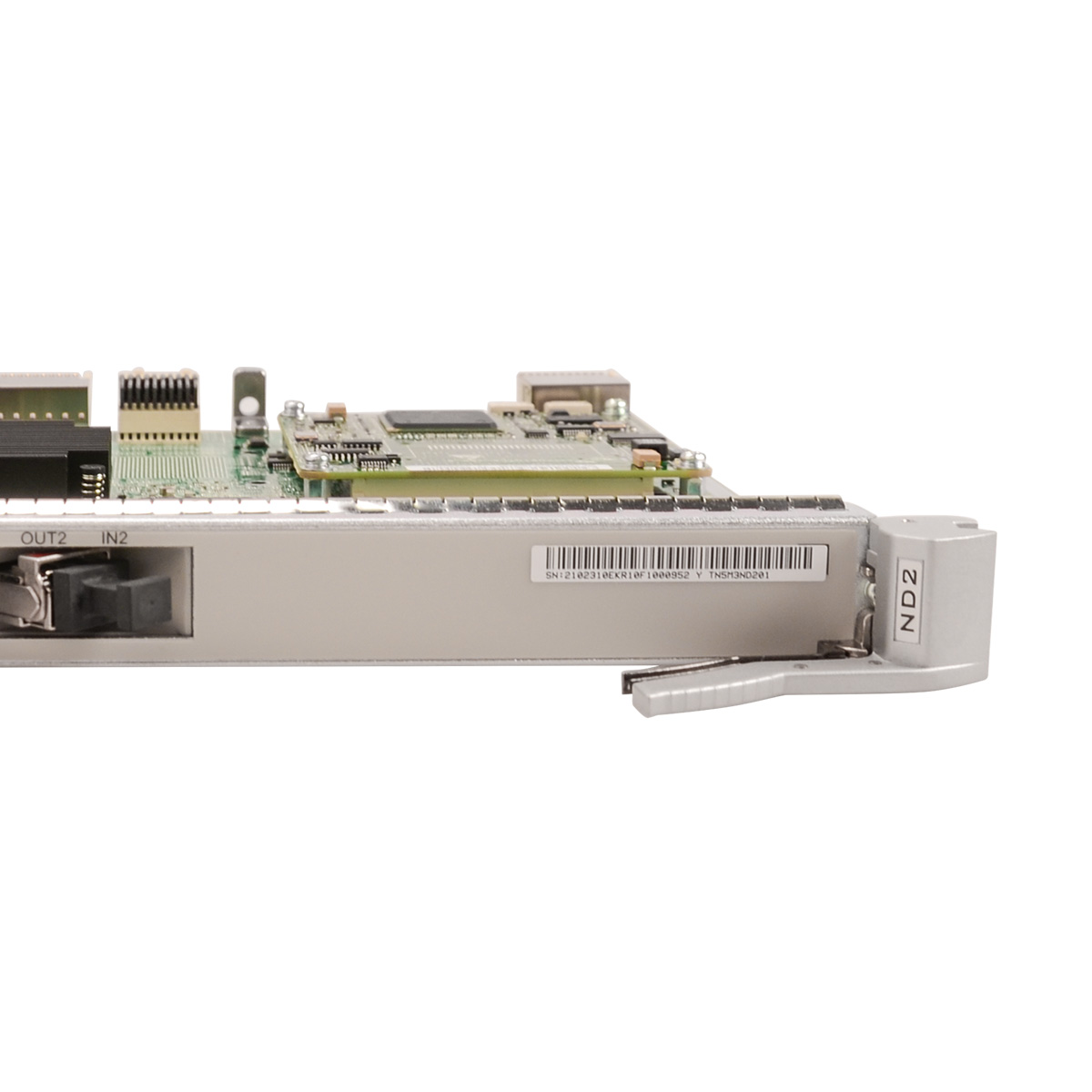

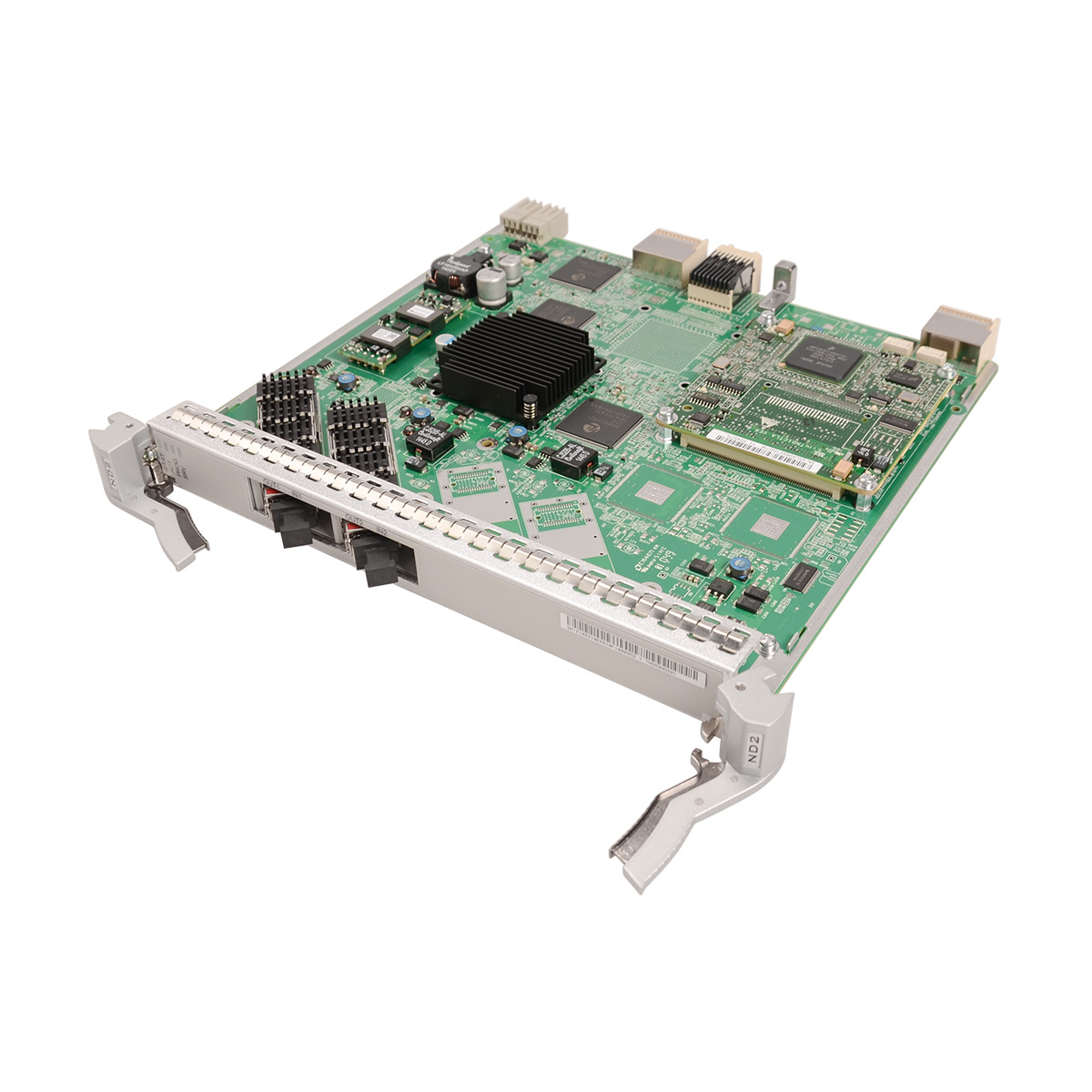

Huawei OSN6800 OSN8800 2-ports 10G Line Service Processing Board With 800 ps/nm-C Band (Odd & Even Wavelengths)-Fixed Wavelength-NRZ-PIN-XFP
| WDM-side pluggable optical module specifications (fixed wavelengths) | |||
| Parameter | Value | ||
| Optical Module Type | 800 ps/nm-C Band (Odd & Even Wavelengths)-Fixed Wavelength-NRZ-PIN-XFP | ||
| Line code format | NRZ | ||
| Transmitter parameter specifications at point S | |||
| Maximum mean launched power(dBm) | 2 | ||
| Minimum mean launched power(dBm) | -3 | ||
| Minimum extinction ratio(dBm) | 9 | ||
| Center frequency(THz) | 192.10 to 196.05 | ||
| Center frequency deviation(GHz) | ±10 | ||
| Eye pattern mask | G.959.1-compliant | ||
| Maximum -20 dB spectral width(nm) | 0.3 | ||
| Minimum side mode suppression ratio(dB) | 35 | ||
| Dispersion tolerance(ps/nm) | 800 | ||
| Receiver parameter specifications at point R | |||
| Receiver type | PIN | ||
| Operating wavelength range(ps/nm) | 1200 to 1650 | ||
| Receiver sensitivity, EOL(FEC on)(dBm) | -16 | ||
| Minimum receiver overload(dBm) | 0 | ||
| Maximum reflectance(dB ) | -27 | ||
| Mechanical Specifications | |||
| Dimensions(mm) | 264.6(H) x 25.4(W) x 220(D) | ||
| Weight(kg) | 1.2 | ||
