Description

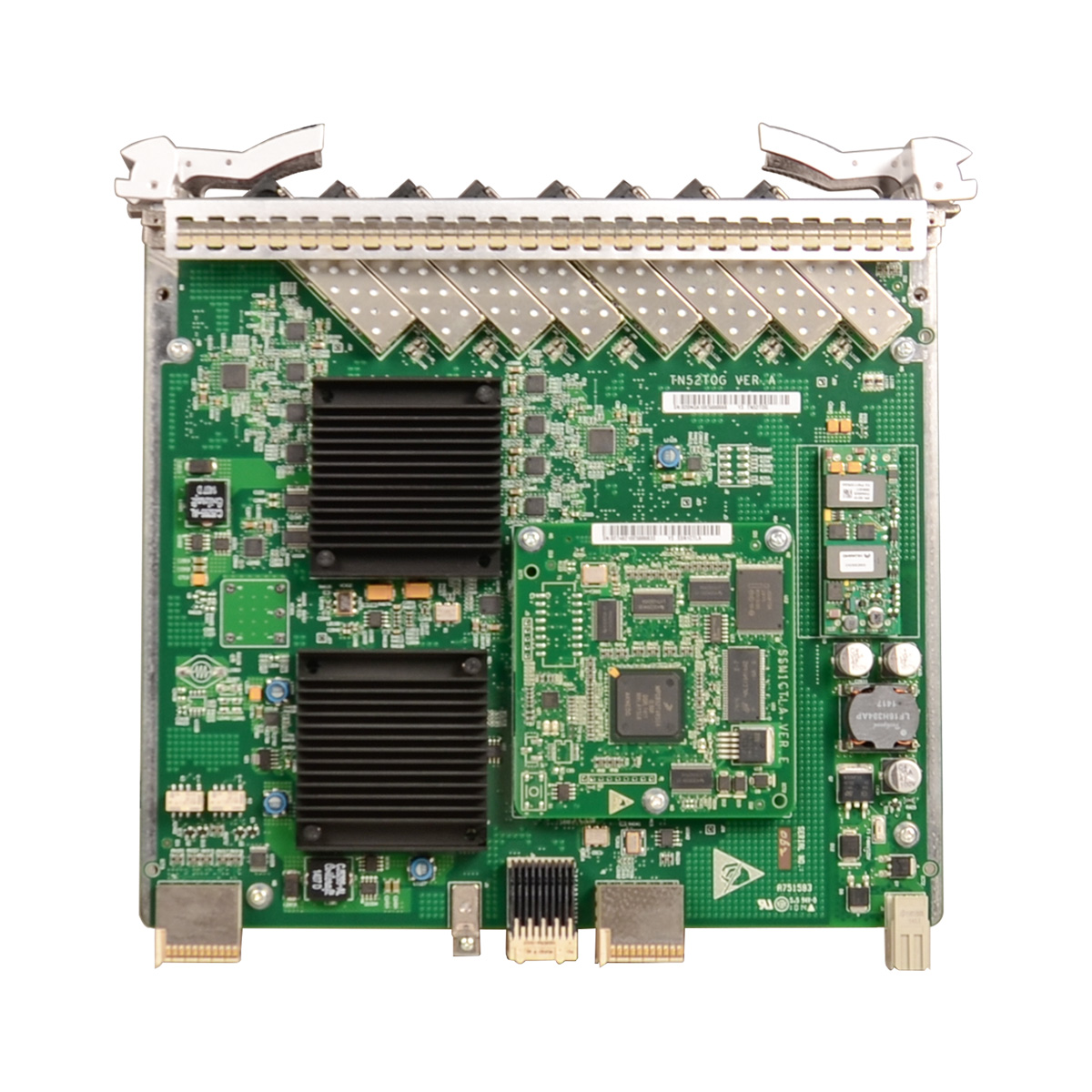

Huawei OSN6800 OSN8800 8xGE Tributary Service Processing Board With 8PCS GE-10km-eSFP Client-Side Pluggable Modules
| WDM client-side equipped optical module | |||||
| Parameter | Value | ||||
| Optical Module Type | 1000 BASE-LX-10 km-eSFP | ||||
| Line code format | NRZ | ||||
| Optical source type | SLM | ||||
| Target transmission distance(km) | 10 | ||||
| Transmitter parameter specifications at point S | |||||
| Operating wavelength range(nm) | 1270 to 1355 | ||||
| Maximum mean launched power(dBm) | -3 | ||||
| Minimum mean launched power(dBm) | -9 | ||||
| Minimum extinction ratio(dB) | 9 | ||||
| Eye pattern mask | IEEE802.3z-compliant | ||||
| Receiver parameter specifications at point R | |||||
| Receiver type | PIN | ||||
| Operating wavelength range(nm) | 1270 to 1355 | ||||
| Receiver sensitivity(dBm) | -20 | ||||
| Minimum receiver overload(dBm) | -3 | ||||
| Mechanical Specifications | |||||
| Dimensions(mm) | 264.6(H) x 25.4(W) x 220(D) | ||||
| Weight(kg) | 0.85 | ||||
