Description
The FIU board multiplexes and demultiplexes signals, and monitors performance of optical signals.
Multiplexes and demultiplexes signals transmitted along the main path and optical supervisory channel.

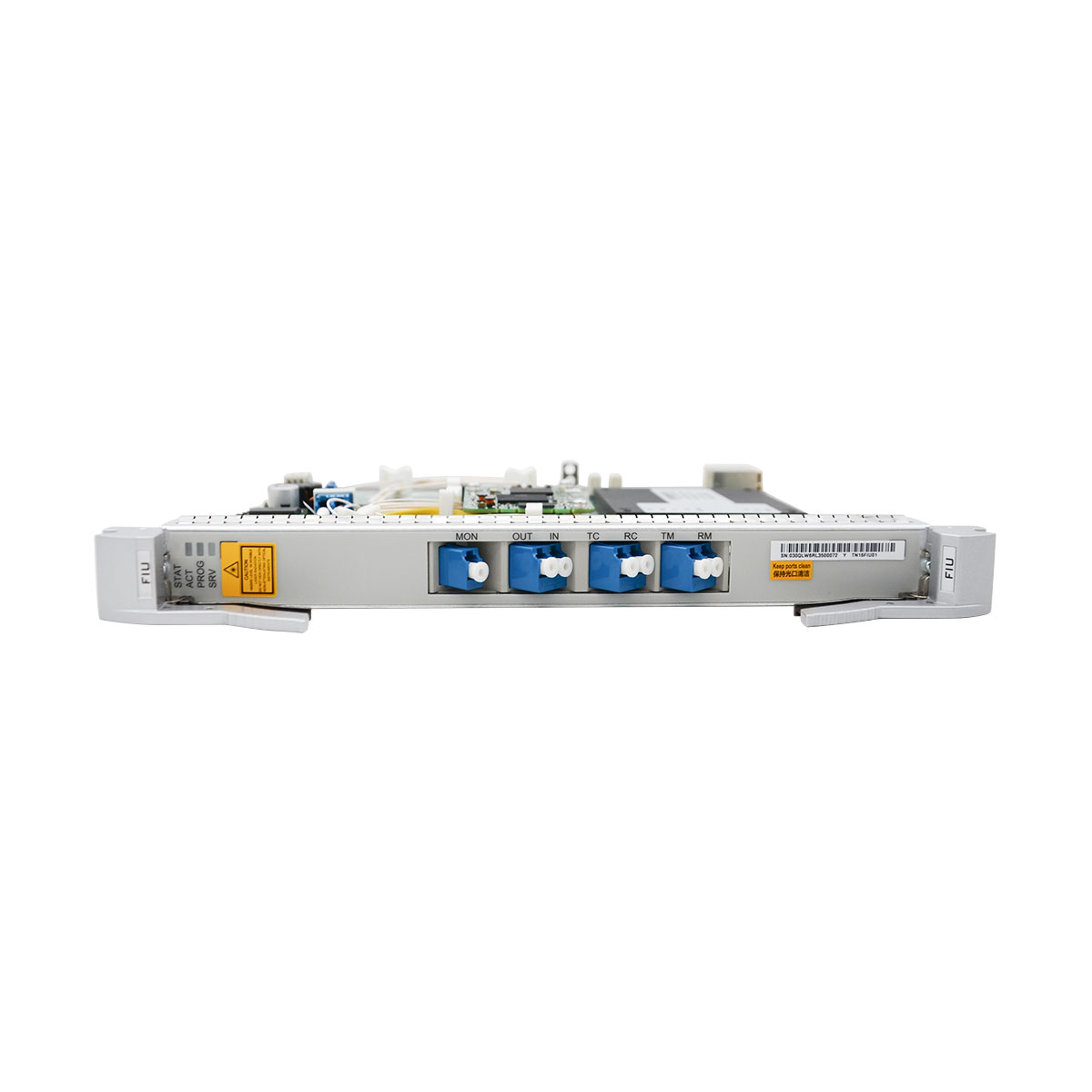

Provides an in-service monitoring port (MON).
The available functional versions of the FIU board are TN11, TN12, TN13, TN14, TN15 ,TN16, and TN21.
The following provides the board(s) supported by the product. However, the availability of the board(s) is subject to PCNs. For PCN information, contact the product manager at your local Huawei office.
| Board | General 8800 T64 Subrack | Enhanced 8800 T64 Subrack | General 8800 T32 Subrack | Enhanced 8800 T32 Subrack | 8800 T16 Subrack | 8800 Universal Platform Subrack | 6800 Subrack | 3800 Chassis |
|---|---|---|---|---|---|---|---|---|
| TN11FIU | N | N | N | N | N | N | Y | N |
| TN12FIU | Y | Y | Y | Y | Y | Y | Y | N |
| TN13FIU | Y | Y | Y | Y | Y | Y | Y | Ya |
| TN14FIU | Y | Y | Y | Y | Y | Y | Y | Y |
| TN15FIU | Y | Y | Y | Y | Y | Y | Y | Y |
| TN16FIU | Y | Y | Y | Y | Y | Y | Y | Y |
| TN21FIU | N | N | N | N | N | N | N | Y |
| Notice: OptiX OSN 3800 does not support the TN13FIU02 type. | ||||||||
