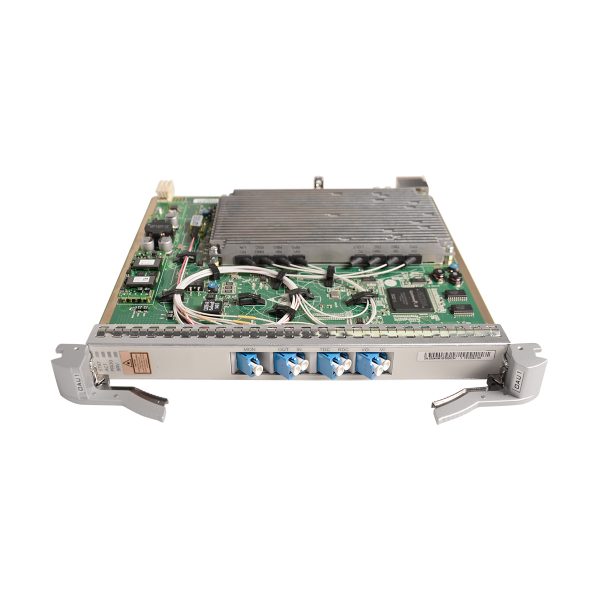

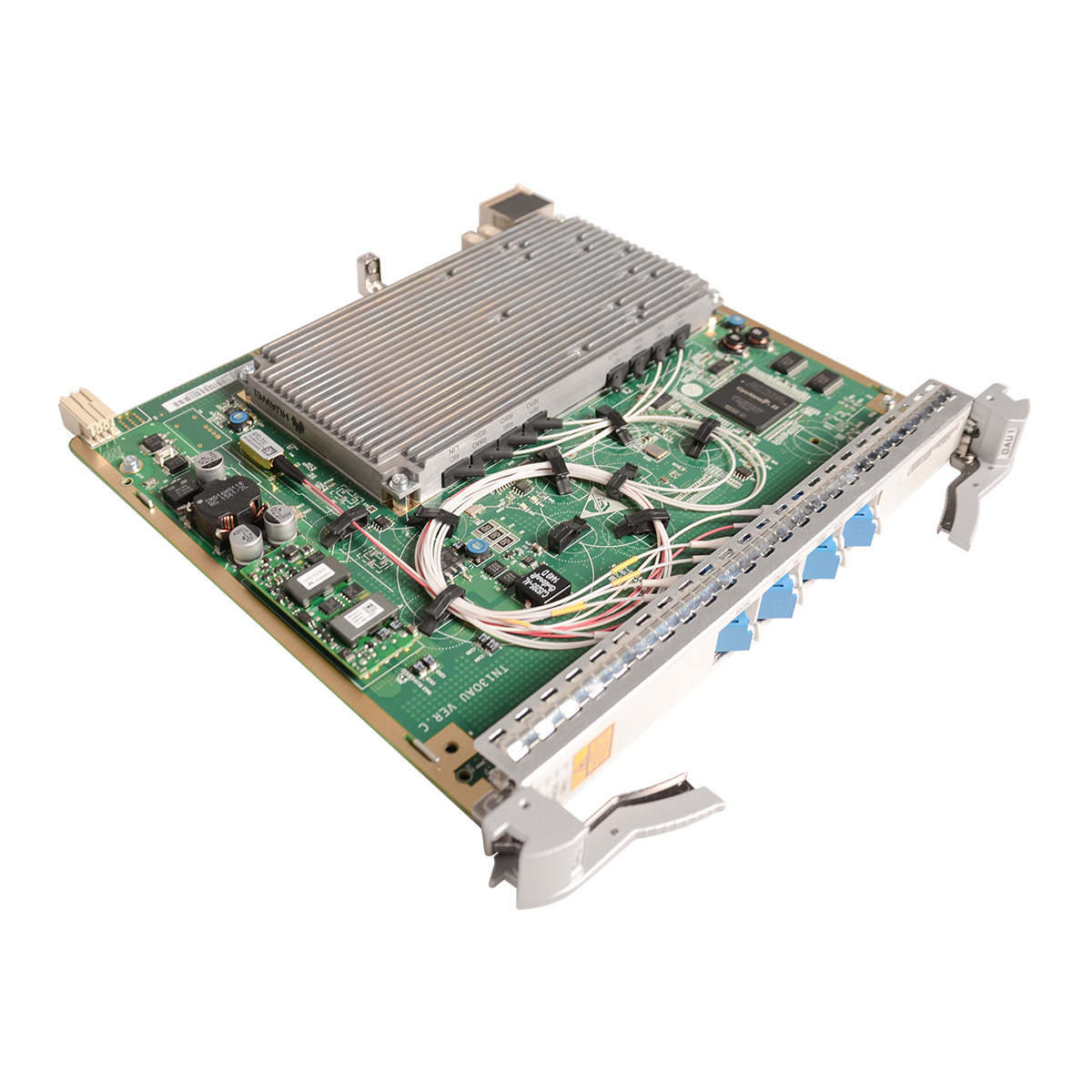

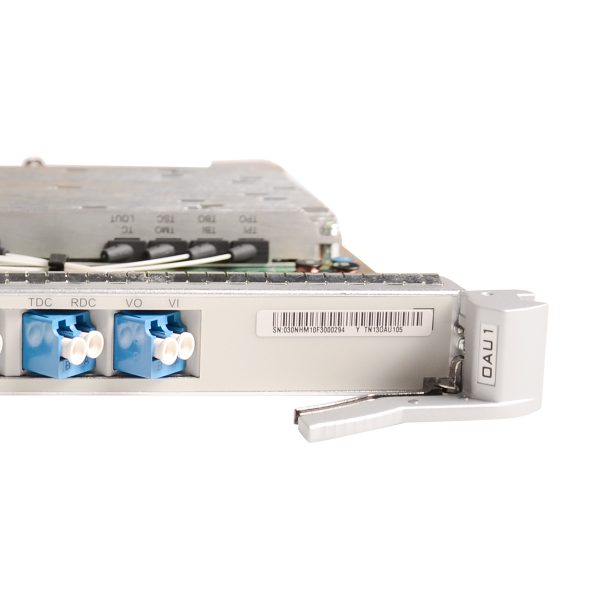

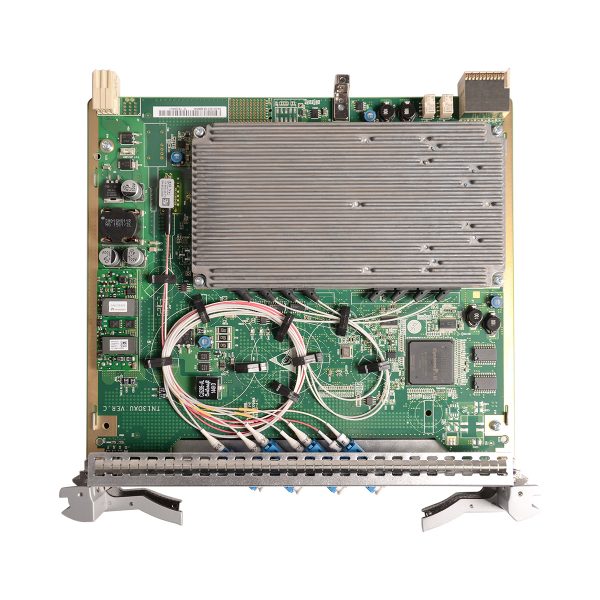

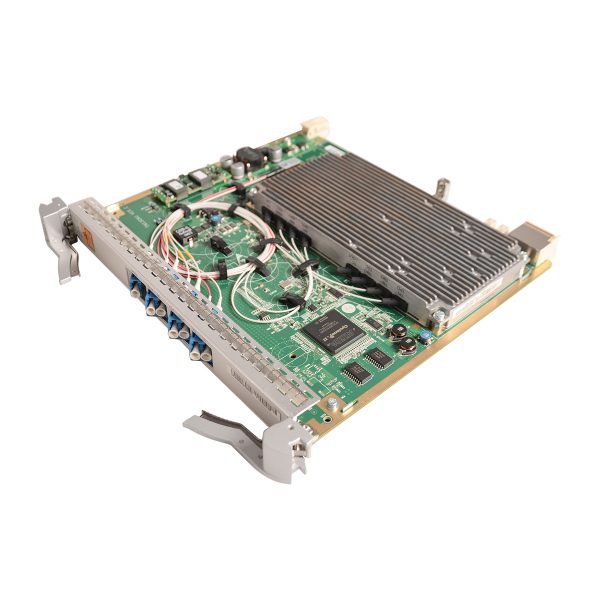

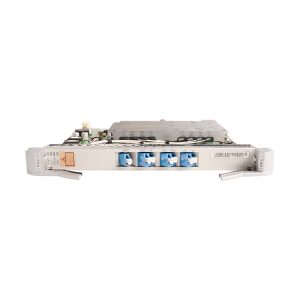

Huawei OSN6800 OSN8800 C-BAND Optical Amplifier Unit(MAX 0dBm IN and 23dBm OUT, Gain 23 to 34dB)
| Optical Specifications | |||||
| Item | Value | ||||
| Operating wavelength range(nm) | 1529-1561 | 1529-1561 | 1529-1561 | ||
| Nominal gain(dB) | 23 | 30 | 34 | ||
| Nominal input power range(dBm) | -32 to 0 | -32 to -7 | -32 to -11 | ||
| Input power range per channel(dBm) | 40 channels | -32 to -16 | -32 to -23 | -31 to -27 | |
| 80 channels | -32 to -19 | -32 to -26 | -32 to -30 | ||
| Nominal single-wavelength input optical power(dBm) | 40 channels | -16 | -23 | -27 | |
| 80 channels | -19 | -26 | -30 | ||
| Nominal single-wavelength output optical power(dBm) | 40 channels | 7 | 7 | 7 | |
| 80 channels | 4 | 4 | 4 | ||
| Noise figure (NF)a(dB) | <8.5 | <6 | <6 | ||
| Gain response time on adding/dropping of channels(ms) | < 10 | < 10 | < 10 | ||
| Channel gain(dB) | 23 to 34 | ||||
| Gain flatness(dB) | <= 2.0 | <= 2.0 | <= 2.0 | ||
| Multi-channel gain slope(dB) | <= 2.0 | <= 2.0 | <= 2.0 | ||
| Input reflectance(dB) | < -40 | < -40 | < -40 | ||
| Output reflectance(dB) | < -40 | < -40 | < -40 | ||
| Pump leakage at input(dBm) | < -30 | < -30 | < -30 | ||
| Maximum reflectance tolerance at input(dB) | -27 | -27 | -27 | ||
| Maximum reflectance tolerance at output(dB) | -27 | -27 | -27 | ||
| Maximum total output optical power(dBm) | 23 | 23 | 23 | ||
| Polarization dependent loss(dB) | <= 0.5 | <= 0.5 | <= 0.5 | ||
| VI-VOb(dB) | Inherent insertion loss | <= 1.5 | |||
| Dynamic attenuation range | 20 | ||||
| Adjustment accuracyb(dB) | 1 | ||||
| Mechanical Specifications | |||||
| Dimensions(mm) | 264.6(H) x 25.4(W) x 220(D) | ||||
| Weight(kg) | 1.6 | ||||
