Description

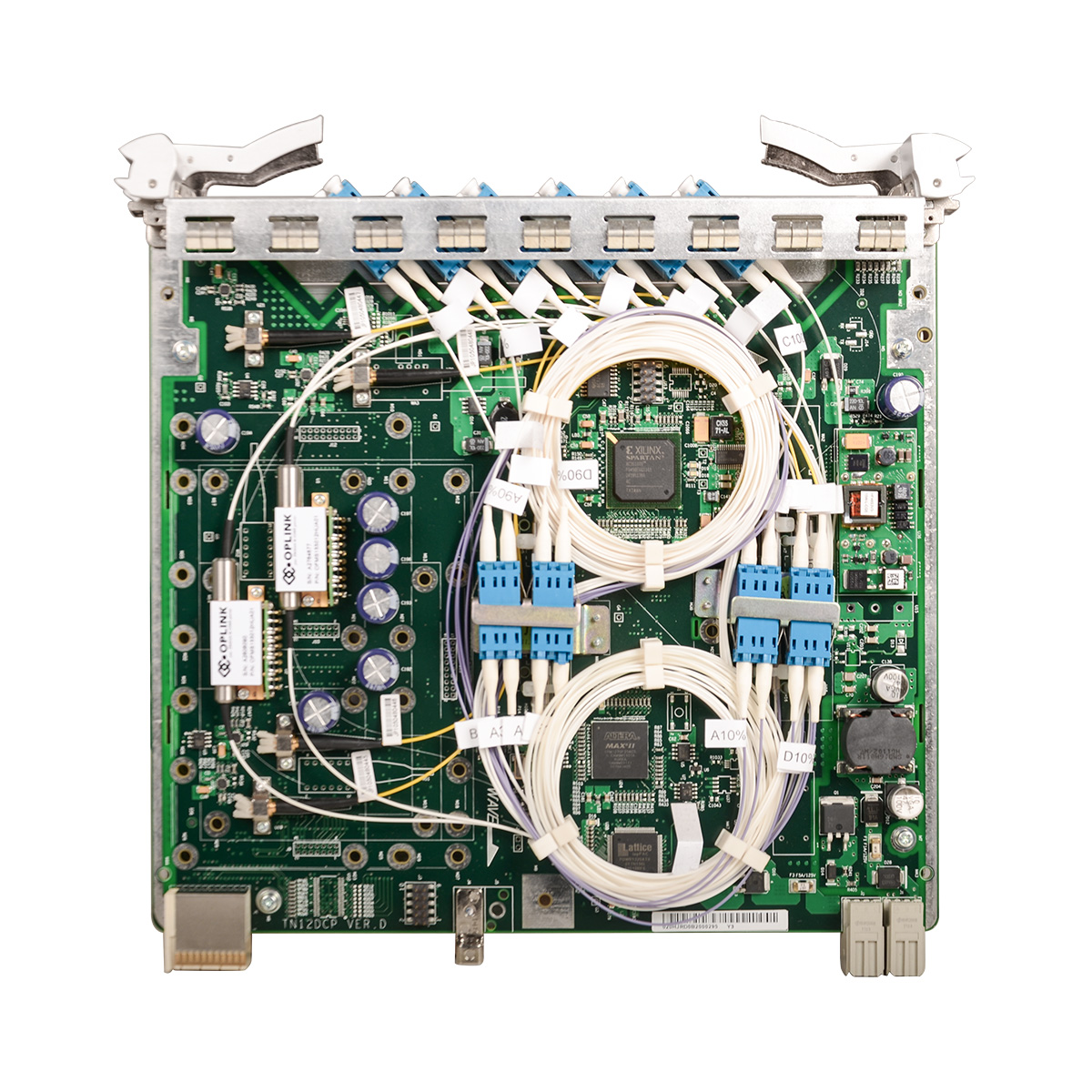

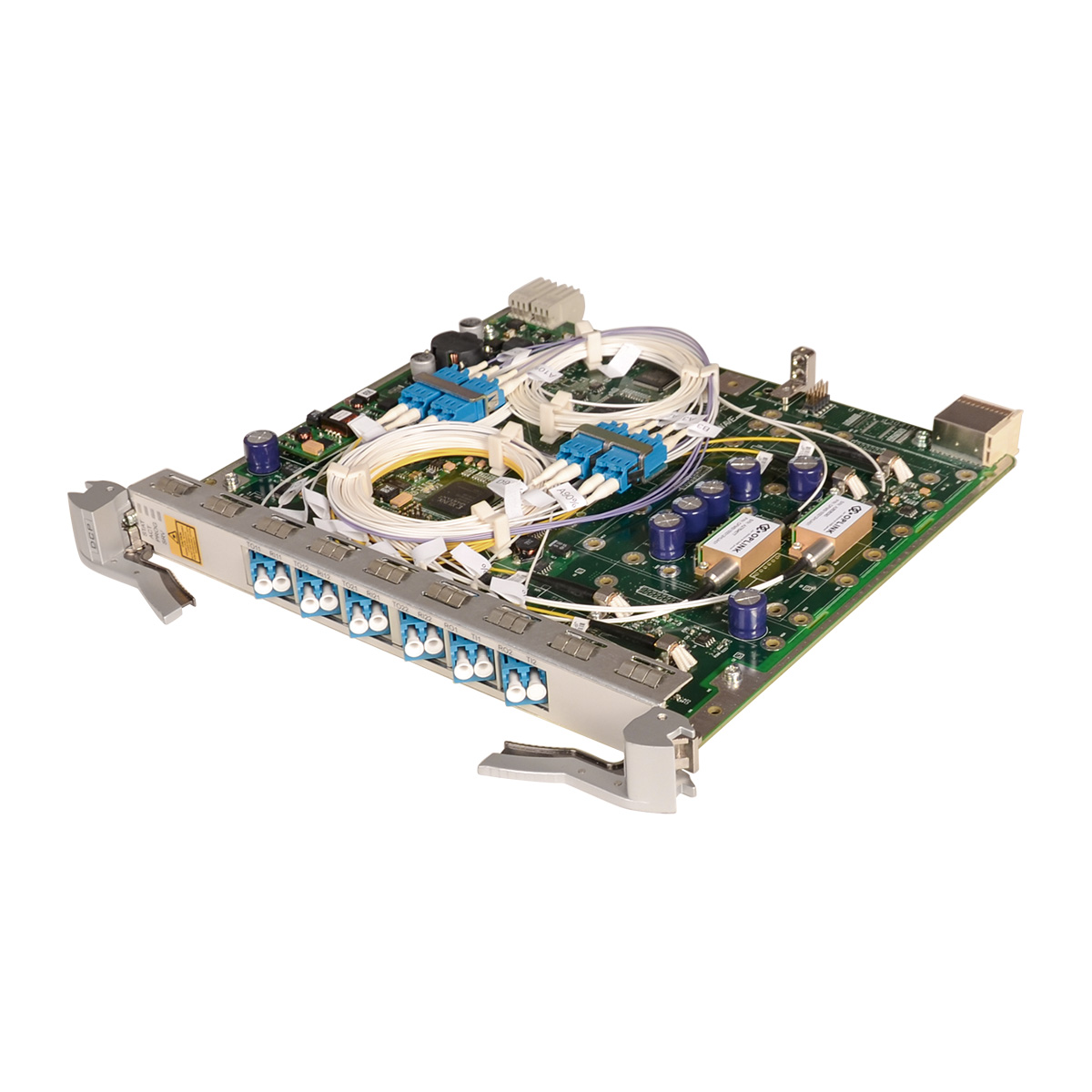

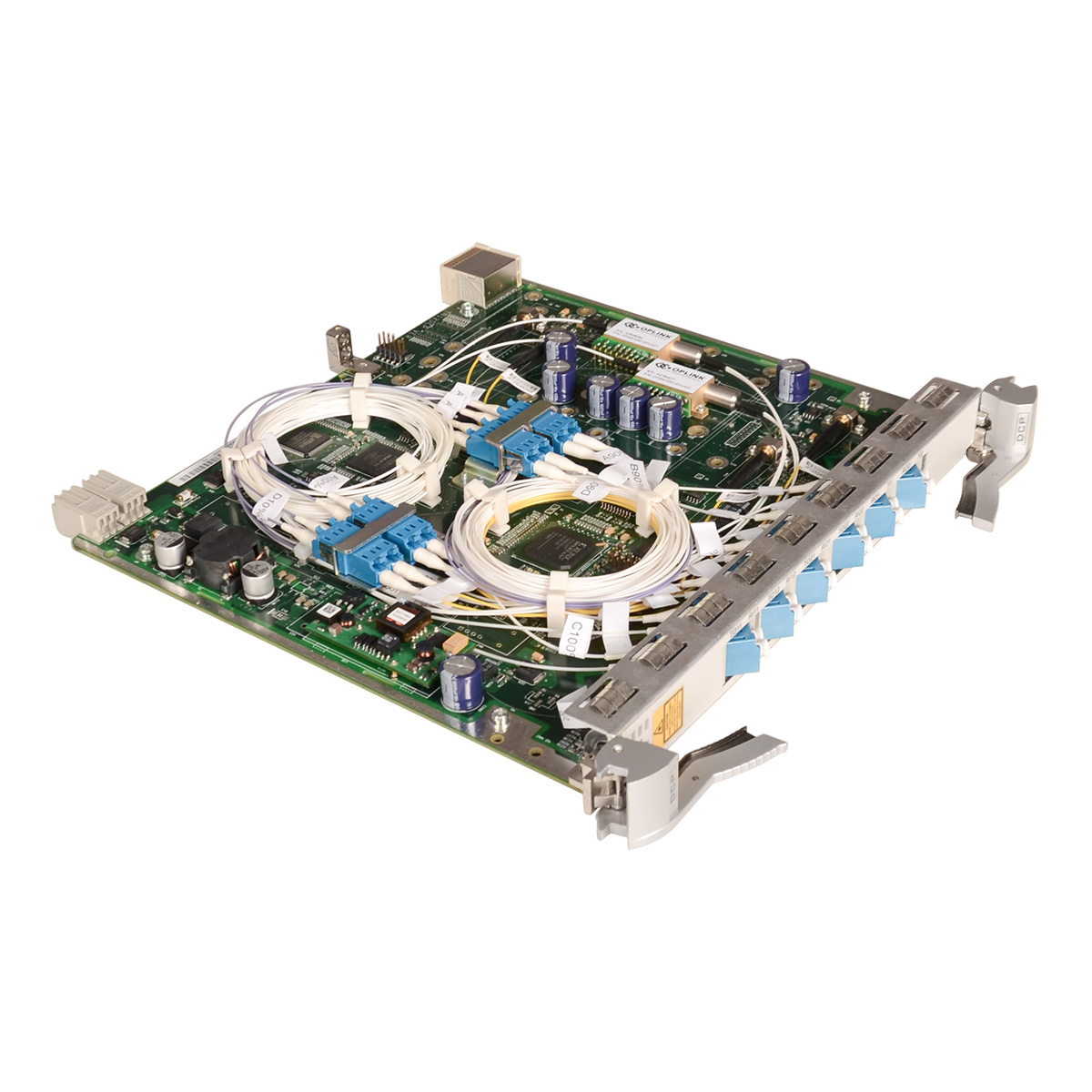

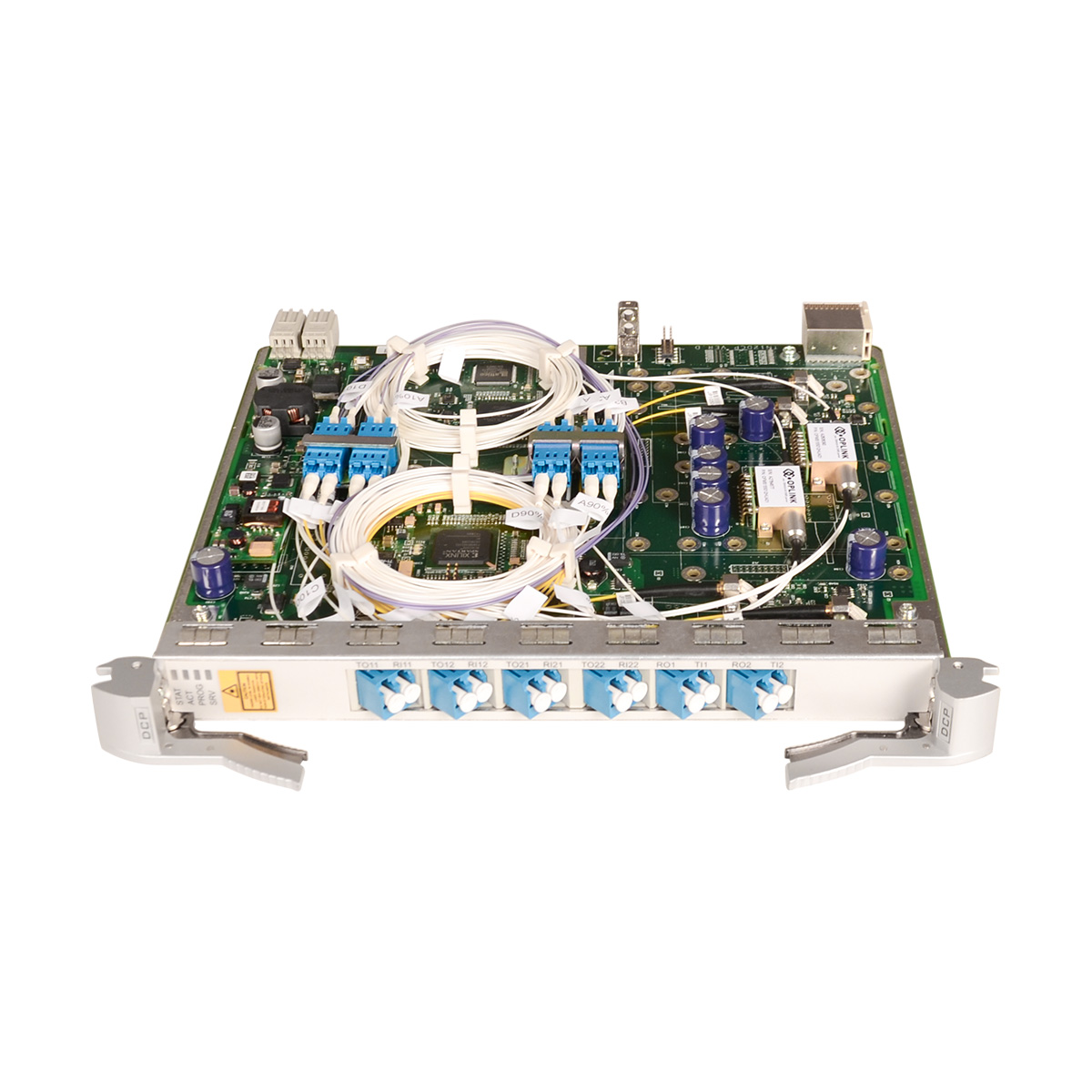

Huawei OSN6800 OSN8800 Double Channel Protect Board(SM)
| Interface | Item | Vaule |
| TI1-TO11
TI1-TO12 TI2-TO21 TI2-TO22 |
Insertion loss at the transmit end (dB) | ≤4 |
| RI11-RO1
RI12-RO1 RI21-RO2 RI22-RO2 |
nsertion loss at the receive end (dB) | ≤1.5 |
| Range of the input optical power(dBm) | – | -35 to 20 |
| Operating wavelength range(nm) | – | 1270 to 1350,
1528 to 1567 |
| Switching threshold of optical power difference(dB) | – | 5 |
| Range of the alarm threshold for the optical power difference(dB) | – | 3 to 8 |
| Power consumption(W) | Typical Power Consumption: 7.4
Maximum Power Consumption: 8.1 |
|
| Dimensions(mm) | 264.6(H) x 25.4(W) x 220(D) | |
| Weight(kg) | 1 | |
