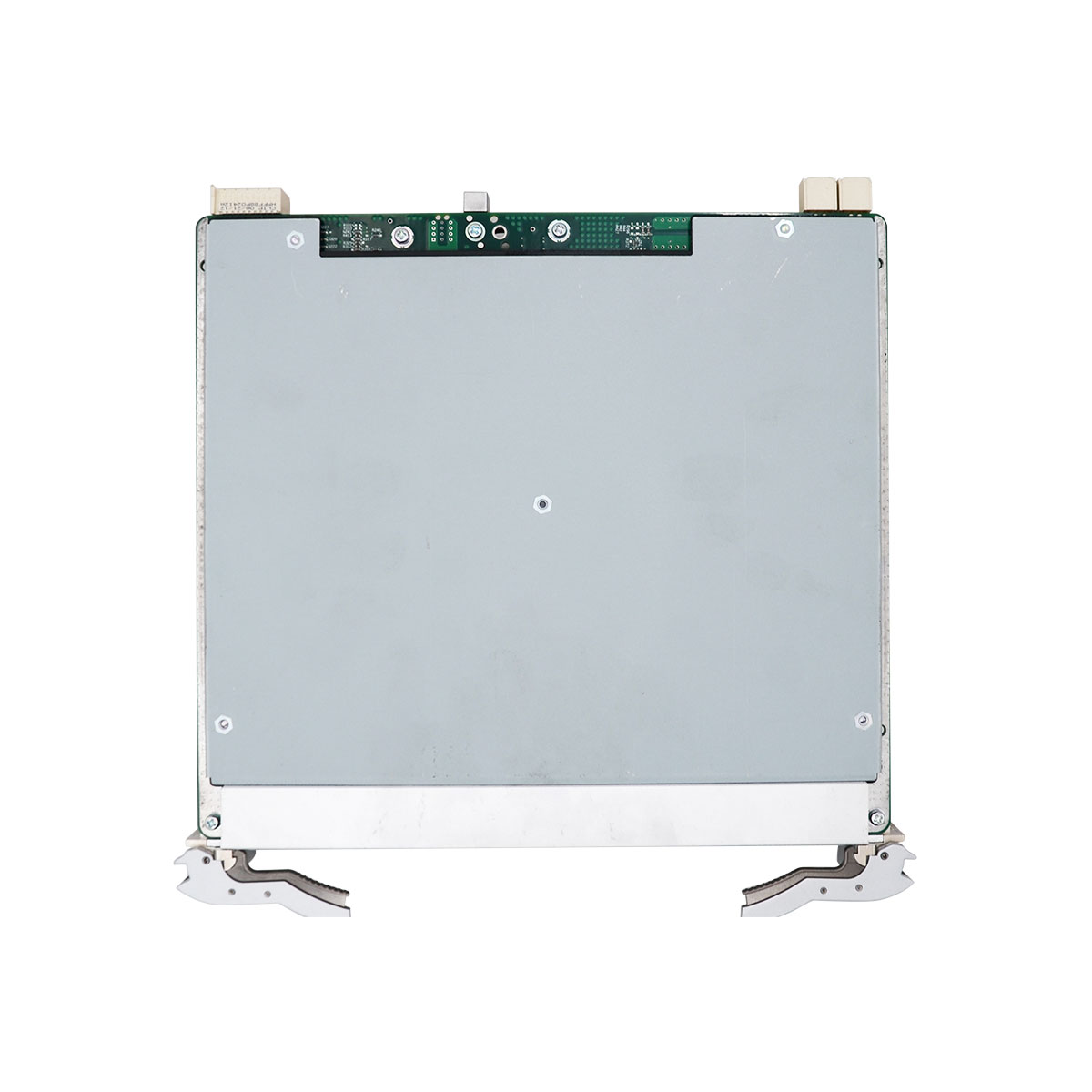

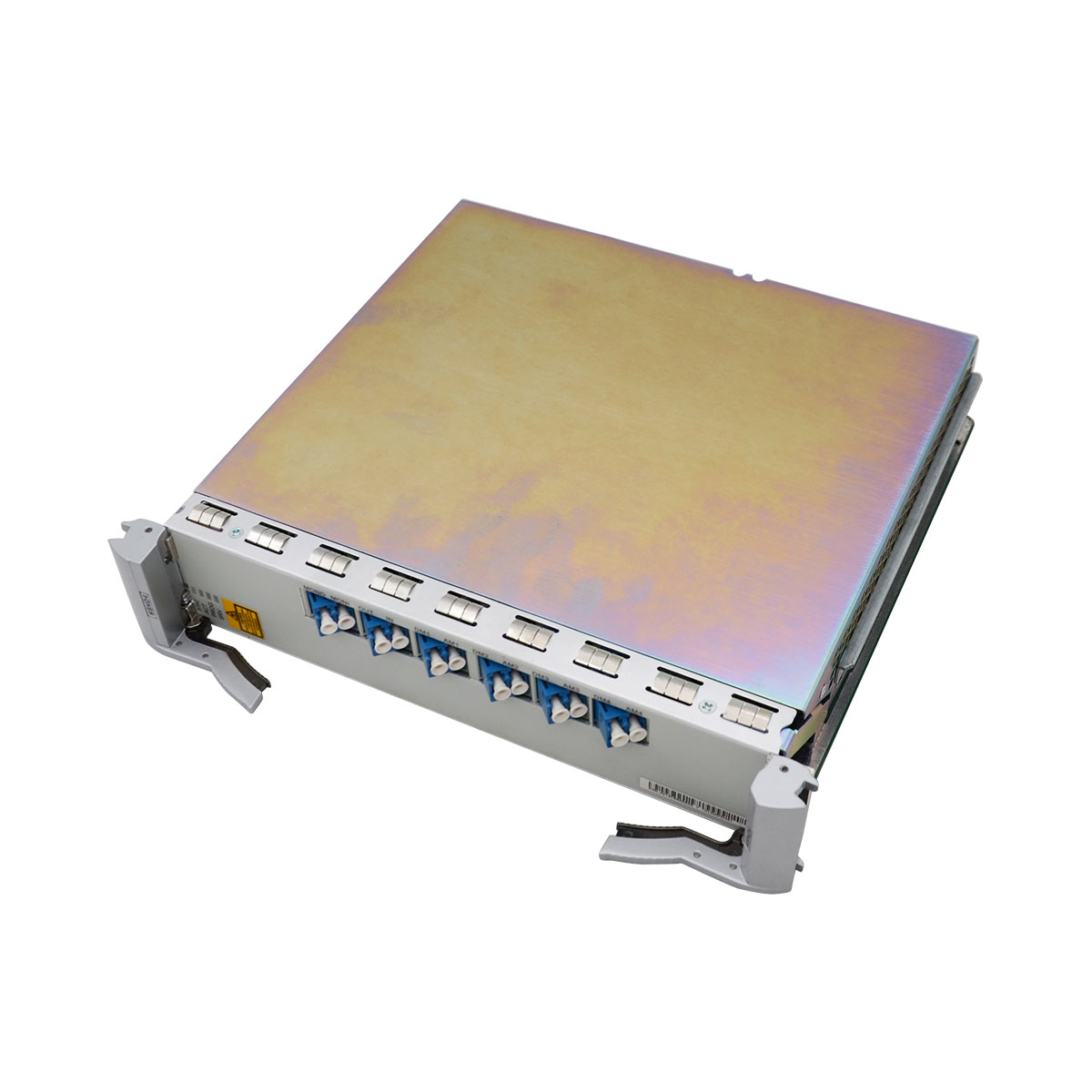

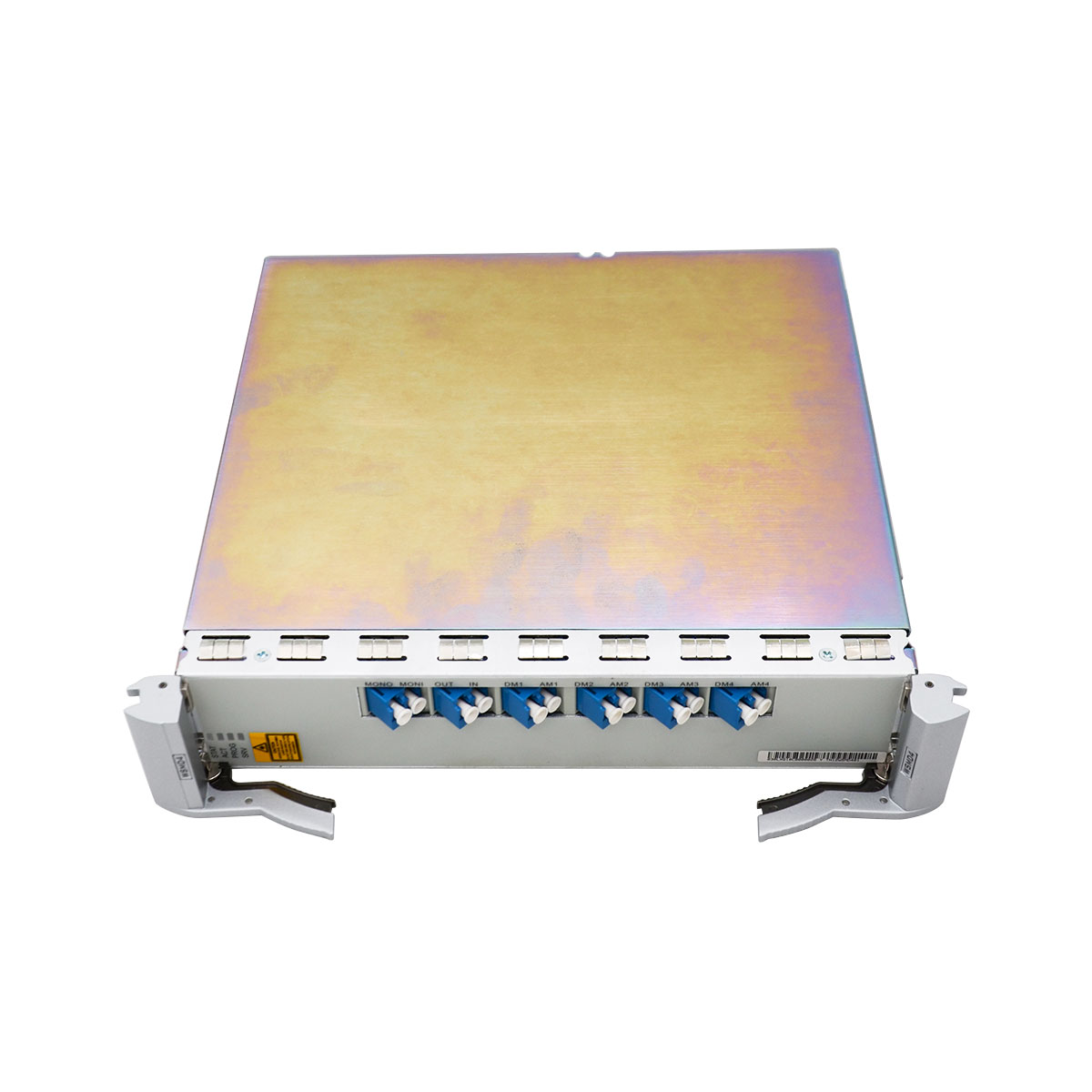

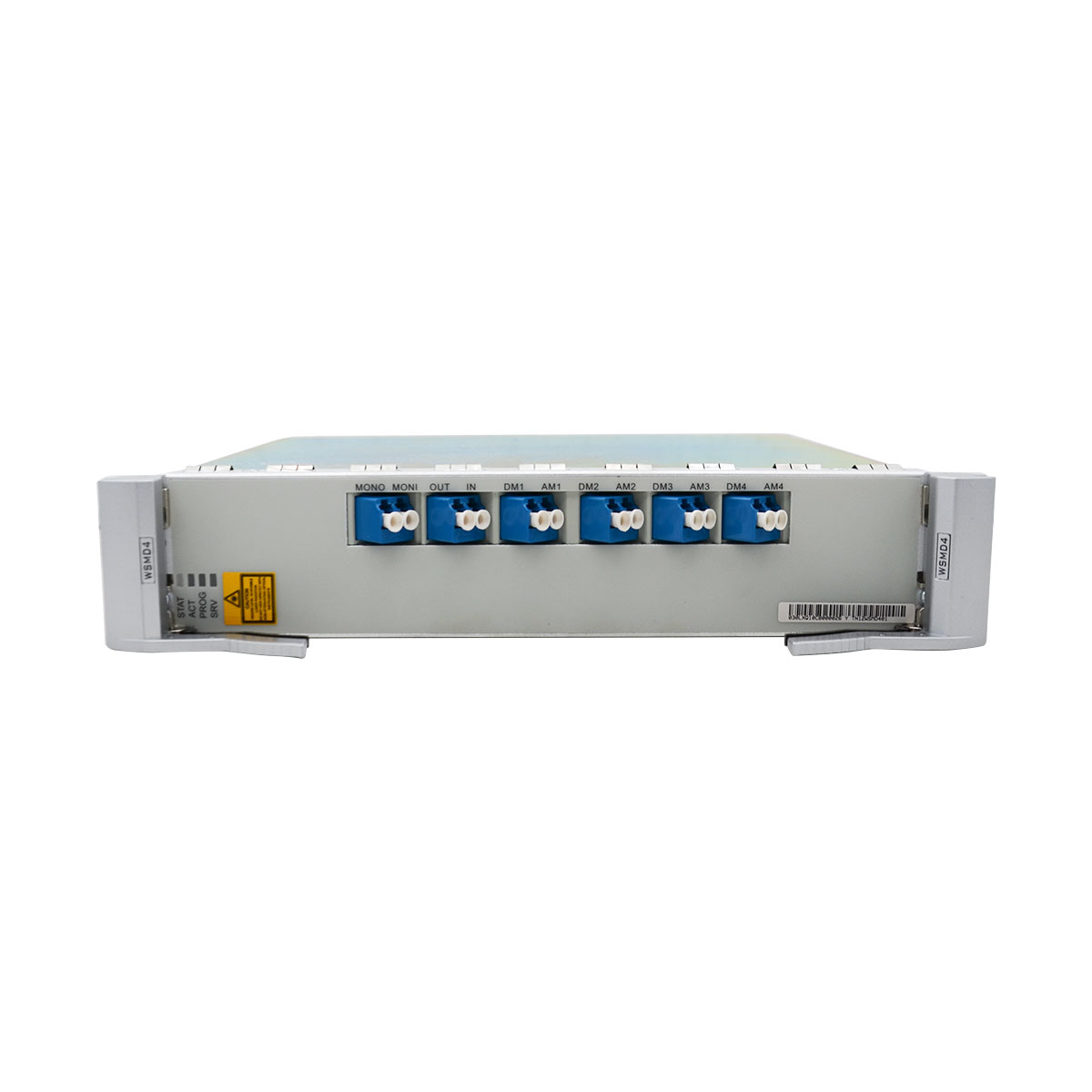

Huawei OSN6800 OSN8800 4*port 50GHz wavelength selective multiplexing and demultiplexing board
TN12WSMD401, 4*Port Wavelength selective multiplexing and Demultiplexing board, apply to Huawei OSN6800 OSN8800.
| Item | TN12WSMD401 |
| Valid Slot | OSN 8800 T64 subrack: IU1-IU7, IU11-IU17, IU19-IU25, IU27-IU33, IU35-IU41, IU45-IU51, IU53-IU59, IU61-IU67 OSN 8800 T32 subrack: IU1-IU7, IU12-IU18, IU20-IU26, IU29-IU35 OSN 8800 T16 subrack: IU1-IU7, IU11-IU17 OSN 8800 universal platform subrack: IU1-IU15 OSN 6800 subrack: IU1-IU16 |
| Optical specifications of the TN12WSMD4 board | |
| Optical channels | 80 |
| Adjacent channel spacing (GHz) | 50 |
| Maximum channel insertion loss difference (dB) | 1.5 |
| Operating wavelength range (nm) | 1529-1561 |
| Maximum reflectance (dB) | -40 |
| Attenuation range of each of adding wavelength (dB) | 0 to 15 |
| Directivity (dB) | 35 |
| Polarization dependence loss (dB) | <= 1 |
| Maximum Power Consumptiona (W) | 15 |
| Typical Power Consumption (W) | 12 |
| Mechanical Specifications | |
| Dimensions (mm) | 264.6 x 50.8 x 220 |
| Weight (kg) | 3.2 |
| Weight | 3.2 kg |
|---|---|
| Dimensions | 26.46 × 5.08 × 22 cm |
| Brand | Huawei |
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
| Item | TN12WSMD401 |
| Valid Slot | OSN 8800 T64 subrack: IU1-IU7, IU11-IU17, IU19-IU25, IU27-IU33, IU35-IU41, IU45-IU51, IU53-IU59, IU61-IU67 OSN 8800 T32 subrack: IU1-IU7, IU12-IU18, IU20-IU26, IU29-IU35 OSN 8800 T16 subrack: IU1-IU7, IU11-IU17 OSN 8800 universal platform subrack: IU1-IU15 OSN 6800 subrack: IU1-IU16 |
| Optical specifications of the TN12WSMD4 board | |
| Optical channels | 80 |
| Adjacent channel spacing (GHz) | 50 |
| Maximum channel insertion loss difference (dB) | 1.5 |
| Operating wavelength range (nm) | 1529-1561 |
| Maximum reflectance (dB) | -40 |
| Attenuation range of each of adding wavelength (dB) | 0 to 15 |
| Directivity (dB) | 35 |
| Polarization dependence loss (dB) | <= 1 |
| Maximum Power Consumptiona (W) | 15 |
| Typical Power Consumption (W) | 12 |
| Mechanical Specifications | |
| Dimensions (mm) | 264.6 x 50.8 x 220 |
| Weight (kg) | 3.2 |
