Description

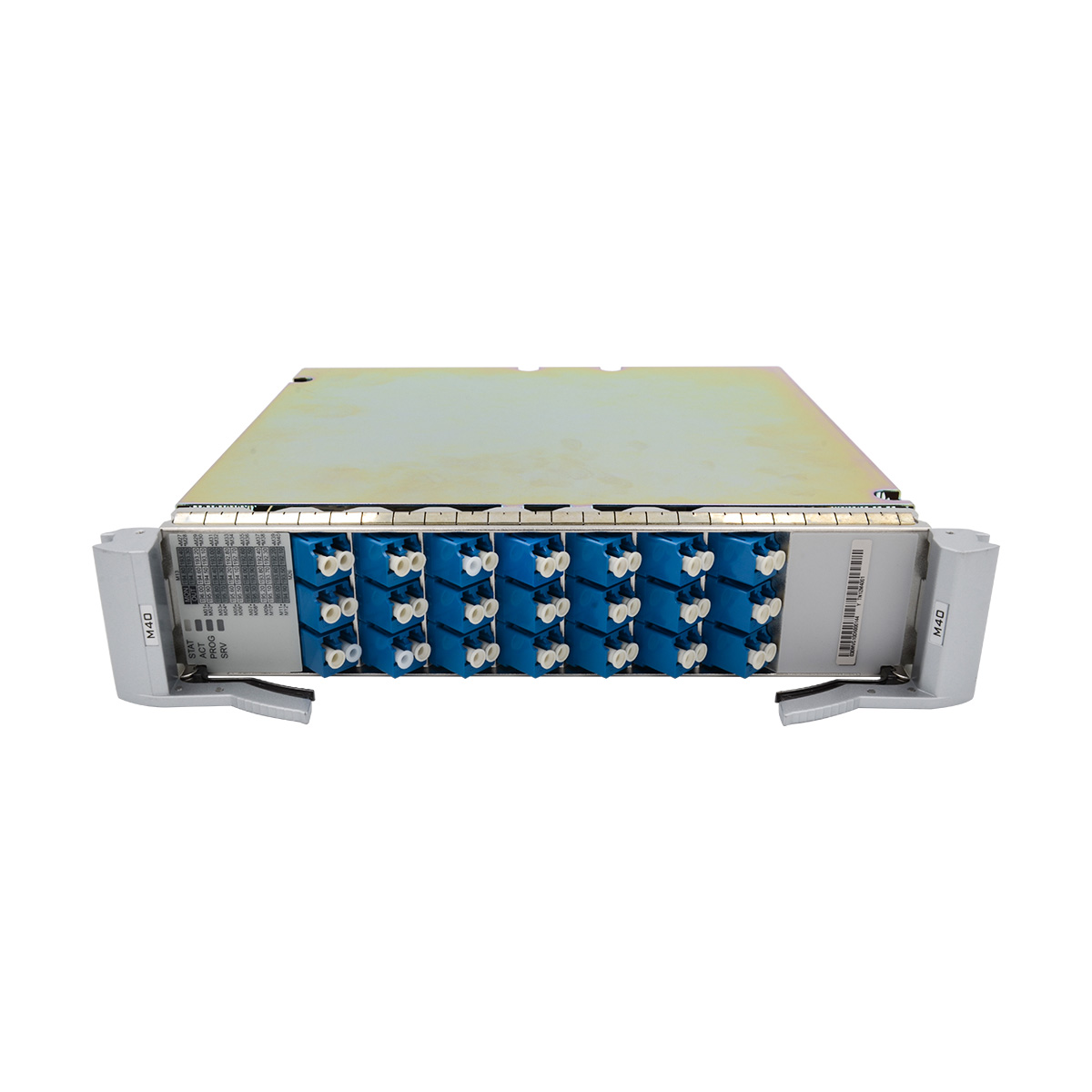

Huawei OSN6800 OSN8800 40-channel Multiplexing Board(C_ Even,196.00THz~192.10THz,100GHz,Thermal AWG,LC)
| Optical Interface Parameter | ||
| Adjacent channel spacing(GHz) | 100 | |
| Insertion loss(dB) | <= 6.5 | |
| Reflectance(dB) | < -40 | |
| Operating wavelength range(nm) | 1529-1561 | |
| Adjacent channel isolation(dB) | > 22 | |
| Non-adjacent channel isolation(dB) | > 25 | |
| Polarization dependent loss(dB) | <= 0.5 | |
| Temperature characteristics(nm/°C) | < 0.002 | |
| Maximum channel insertion loss difference(dB) | <= 3 | |
| Mechanical Specifications | ||
| Dimensions(mm) | 50.8(W) x 220(D) x 264.6(H) | |
| Weight(kg) | 2.0 | |
