Huawei OptiX OSN 8800 TN12LSX 10 Gbit/s wavelength conversion board

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

TN12LSX overview

TN12LSX 10 Gbit/s wavelength conversion board applied to OptiX OSN 8800/6800/3800.

The OptiX OSN 8800 Intelligent Optical Transport Platform (OptiX OSN 8800 for short) is a new generation of intelligent MS-OTN product. The OptiX OSN 8800 can interconnect with any product from the OptiX OSN product series, such as the OptiX OSN 1800, to form an end-to-end OTN network. The OptiX OSN 8800 T32/T16 supports unified switching and control based on ODUk, VC, and packets, achieving unified switching and transmission for multiple services on a single multi-service optical transport network (MS-OTN). The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform. The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers. It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.

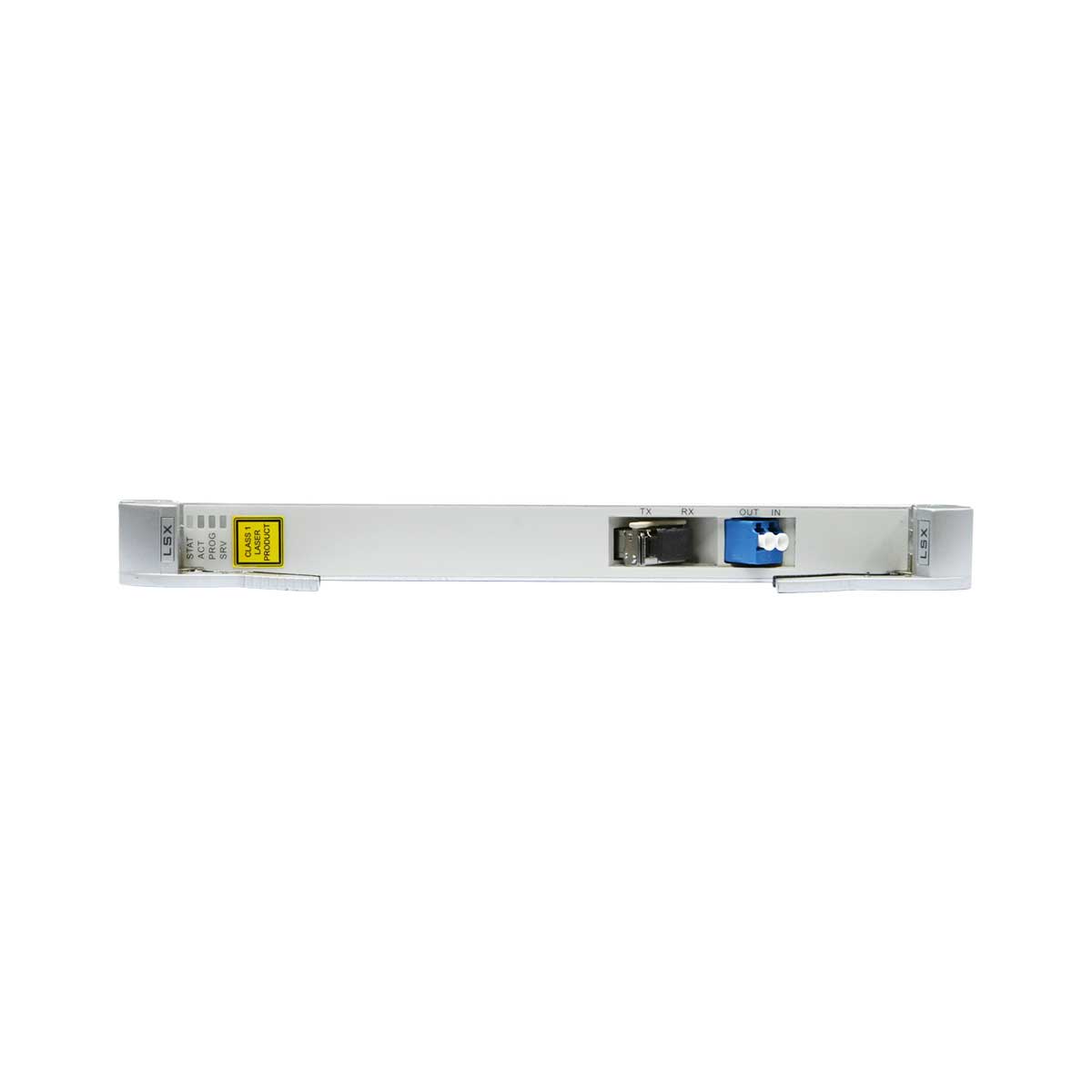

Front panel of the TN12LSX board

Front panel of the TN12LSX board

Valid slots for the TN12LSX board in a OptiX OSN 8800/6800 T64/T32/T16 subrack

Product	Valid Slots
OptiX OSN 8800 T64 subrack	IU1-IU8, IU11-IU42, IU45-IU68
OptiX OSN 8800 T32 subrack	IU1-IU8, IU12-IU27, IU29-IU36
OptiX OSN 8800 T16 subrack	IU1-IU18
OptiX OSN 8800 universal platform subrack	IU1-IU16
OptiX OSN 6800 subrack	IU1-IU17
OptiX OSN 3800 chassis	IU2-IU5, IU11

Item	TN12LSX
Basic function	LSX converts signals as follows: 1 x 10GE LAN/10GE WAN/STM-64/OC-192/OTU2 <-> 1 x OTU2 1 x FC1200/10GE LAN/OTU2e <-> 1 x OTU2e
Client-side service type	10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s FC1200: SAN service at a rate of 10.51 Gbit/s NOTE: The FC1200 service is only supported by the TN12LSX /TN13LSX/TN14LSX. When an XFP module is used as a WDM-side module on the TN13LSX board, the TN13LSX board does not support FC1200. The OTU2e service is only supported by the TN13LSX/TN14LSX.
OTN function	Provides the OTU2/OTU2e interface on WDM-side. Supports the OTN frame format and overhead processing by referring to the ITU-T G.709. Supports PM and TCM functions for ODU2. Supports PM and TCM non-intrusive monitoring for ODU2. Supports SM function for OTU2.
WDM specification	Supports DWDM specifications.
Tunable wavelength function	Supports tunable wavelength optical modules that provide for: 40 wavelengths tunable in the C band with 100 GHz channel spacing 80 wavelengths tunable in the C band with 50 GHz channel spacing
ESC function	Supported
PRBS test function	Supports the PRBS function on the client and WDM sides. NOTE: The TN12LSX board supports the PRBS test function only when it is provisioned with a client OTU2 service. The LSX boards of other versions support the PRBS the function only when the boards are provisioned with client STM-64/OC-192/OTU2/OTU2e services.
LPT function	The board supports the LPT function only when the client-side service type is 10GE LAN.
FEC coding	TN11LSX/TN12LSX: Supports ITU-T G.709-compliant forward error correction (FEC) on the client side, only when the client side service type is OTU2. Supports forward error correction (FEC) on the WDM side that complies with ITU-T G.709. Supports advanced forward error correction (AFEC) on the WDM side that complies with ITU-T G.975.1. TN13LSX/TN14LSX: Supports ITU-T G.709-compliant forward error correction (FEC) on the client side, only when the client side service type is OTU2/OTU2e. Supports forward error correction (FEC) on the WDM side that complies with ITU-T G.709. Supports advanced forward error correction (AFEC-2) on the WDM side that complies with ITU-T G.975.1. NOTE: Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors B1 bytes to help locate faults. Monitors OTN alarms and performance events. Monitors parameters such as the bias current, temperature, and optical power of the laser. Supports the remote monitoring (RMON) of Ethernet services (10GE LAN).
Regeneration board	The WDM-side signals from one TN11LSX/TN12LSX board can be regenerated by another TN11LSXR board. The WDM-side signals from one TN13LSX/TN14LSX board can be regenerated by another TN12ND2/TN52ND2/TN53ND2/TN55NO2/TN53NQ2/TN54NQ2 board.
ALS function	Supports the ALS function on the client side when client services are non-OTN services.
Test frame	Not supported
Latency measurement	The TN14LSX board supports latency measurement. The bidirectional latency at the ODUk layer between two tributary boards supporting the latency measurement function can be measured, and the latency data is displayed on the U2000. NOTE: This function is not supported when the client-side service type is OTU2/OTU2e.
IEEE 1588v2	Not supported
Physical clock	When the TN12LSX/TN13LSX/TN14LSX board receives 10GE LAN services and the port mapping is Bit Transparent Mapping (11.1 G) or is Bit Transparent Mapping (10.7 G) on its client side, the board can support synchronous Ethernet transparent transmission instead of synchronous Ethernet processing. NOTE: Only the TN12LSX supports Bit Transparent Mapping (10.7 G).
Optical-layer ASON	Supported by the TN12LSX/TN13LSX/TN14LSX
Electrical-layer ASON	Not supported
Protection scheme	Supports client 1+1 protection. Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board). Supports OWSP protection.
Ethernet service mapping mode	TN11LSX: Bit Transparent Mapping(11.1G), MAC Transparent Mapping(10.7G), Bit Transparent Mapping(10.7G) TN12LSX: Bit Transparent Mapping(11.1G), Bit Transparent Mapping(10.7G) TN13LSX/TN14LSX: Bit Transparent Mapping(11.1G), MAC Transparent Mapping(10.7G)
Loopback	WDM side	Inloop	Supported
	WDM side	Outloop	Supported
	Client side	Inloop	Supported
	Client side	Outloop	Supported
Dimensions (H x W x D)	264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
Weight	1.4 kg (3.1 lb.)

Item	TN12LSX
Basic function	LSX converts signals as follows: 1 x 10GE LAN/10GE WAN/STM-64/OC-192/OTU2 <-> 1 x OTU2 1 x FC1200/10GE LAN/OTU2e <-> 1 x OTU2e
Client-side service type	10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s FC1200: SAN service at a rate of 10.51 Gbit/s NOTE: The FC1200 service is only supported by the TN12LSX /TN13LSX/TN14LSX. When an XFP module is used as a WDM-side module on the TN13LSX board, the TN13LSX board does not support FC1200. The OTU2e service is only supported by the TN13LSX/TN14LSX.
OTN function	Provides the OTU2/OTU2e interface on WDM-side. Supports the OTN frame format and overhead processing by referring to the ITU-T G.709. Supports PM and TCM functions for ODU2. Supports PM and TCM non-intrusive monitoring for ODU2. Supports SM function for OTU2.
WDM specification	Supports DWDM specifications.
Tunable wavelength function	Supports tunable wavelength optical modules that provide for: 40 wavelengths tunable in the C band with 100 GHz channel spacing 80 wavelengths tunable in the C band with 50 GHz channel spacing
ESC function	Supported
PRBS test function	Supports the PRBS function on the client and WDM sides. NOTE: The TN12LSX board supports the PRBS test function only when it is provisioned with a client OTU2 service. The LSX boards of other versions support the PRBS the function only when the boards are provisioned with client STM-64/OC-192/OTU2/OTU2e services.
LPT function	The board supports the LPT function only when the client-side service type is 10GE LAN.
FEC coding	TN11LSX/TN12LSX: Supports ITU-T G.709-compliant forward error correction (FEC) on the client side, only when the client side service type is OTU2. Supports forward error correction (FEC) on the WDM side that complies with ITU-T G.709. Supports advanced forward error correction (AFEC) on the WDM side that complies with ITU-T G.975.1. TN13LSX/TN14LSX: Supports ITU-T G.709-compliant forward error correction (FEC) on the client side, only when the client side service type is OTU2/OTU2e. Supports forward error correction (FEC) on the WDM side that complies with ITU-T G.709. Supports advanced forward error correction (AFEC-2) on the WDM side that complies with ITU-T G.975.1. NOTE: Boards that use different FEC modes cannot interconnect with each other.
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors B1 bytes to help locate faults. Monitors OTN alarms and performance events. Monitors parameters such as the bias current, temperature, and optical power of the laser. Supports the remote monitoring (RMON) of Ethernet services (10GE LAN).
Regeneration board	The WDM-side signals from one TN11LSX/TN12LSX board can be regenerated by another TN11LSXR board. The WDM-side signals from one TN13LSX/TN14LSX board can be regenerated by another TN12ND2/TN52ND2/TN53ND2/TN55NO2/TN53NQ2/TN54NQ2 board.
ALS function	Supports the ALS function on the client side when client services are non-OTN services.
Test frame	Not supported
Latency measurement	The TN14LSX board supports latency measurement. The bidirectional latency at the ODUk layer between two tributary boards supporting the latency measurement function can be measured, and the latency data is displayed on the U2000. NOTE: This function is not supported when the client-side service type is OTU2/OTU2e.
IEEE 1588v2	Not supported
Physical clock	When the TN12LSX/TN13LSX/TN14LSX board receives 10GE LAN services and the port mapping is Bit Transparent Mapping (11.1 G) or is Bit Transparent Mapping (10.7 G) on its client side, the board can support synchronous Ethernet transparent transmission instead of synchronous Ethernet processing. NOTE: Only the TN12LSX supports Bit Transparent Mapping (10.7 G).
Optical-layer ASON	Supported by the TN12LSX/TN13LSX/TN14LSX
Electrical-layer ASON	Not supported
Protection scheme	Supports client 1+1 protection. Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board). Supports OWSP protection.
Ethernet service mapping mode	TN11LSX: Bit Transparent Mapping(11.1G), MAC Transparent Mapping(10.7G), Bit Transparent Mapping(10.7G) TN12LSX: Bit Transparent Mapping(11.1G), Bit Transparent Mapping(10.7G) TN13LSX/TN14LSX: Bit Transparent Mapping(11.1G), MAC Transparent Mapping(10.7G)
Loopback	WDM side	Inloop	Supported
	WDM side	Outloop	Supported
	Client side	Inloop	Supported
	Client side	Outloop	Supported
Dimensions (H x W x D)	264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
Weight	1.4 kg (3.1 lb.)
