Categories:OSN 6800/OSN 8800

TN11SRAU02

0 Reviews Write a review

PN03031KBG

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

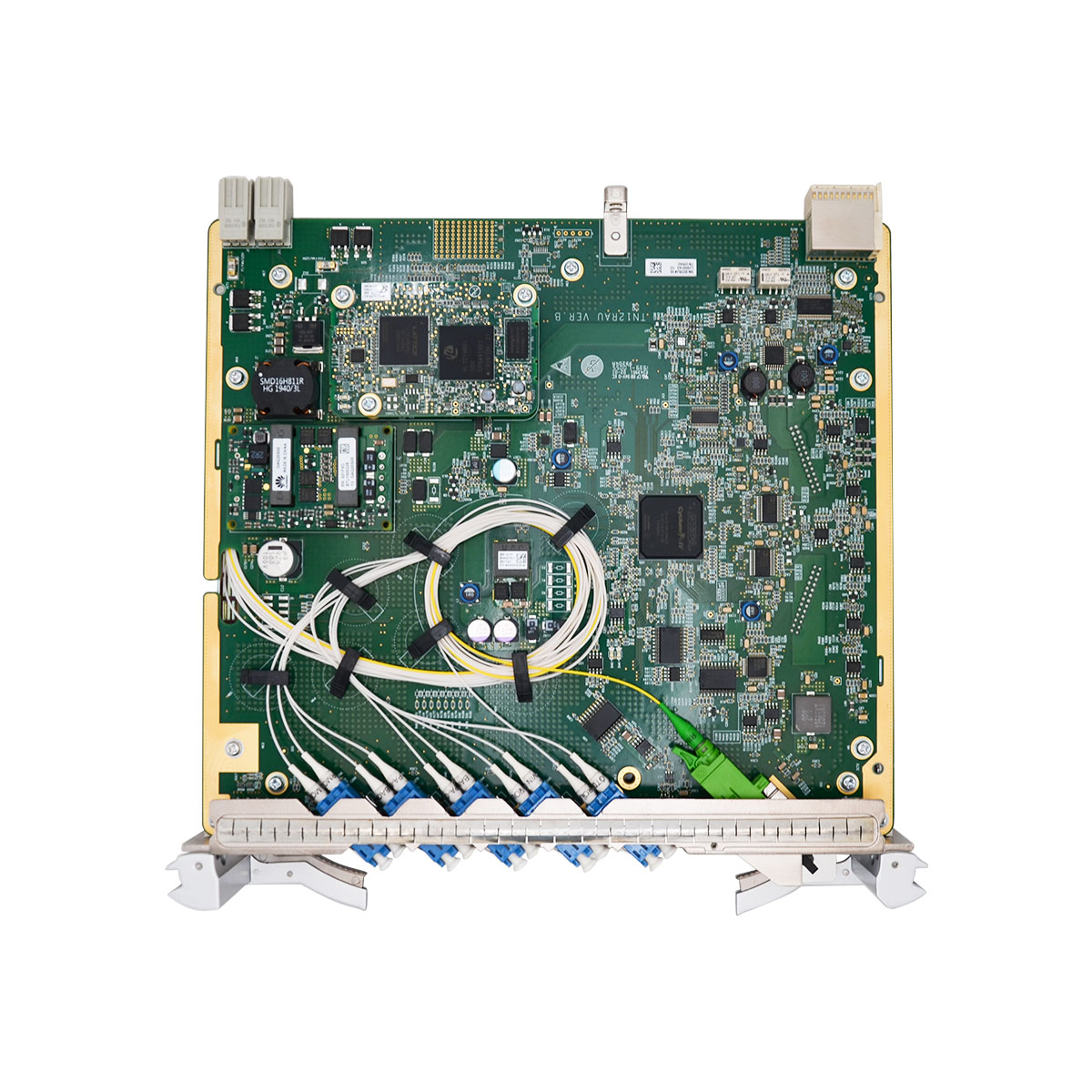

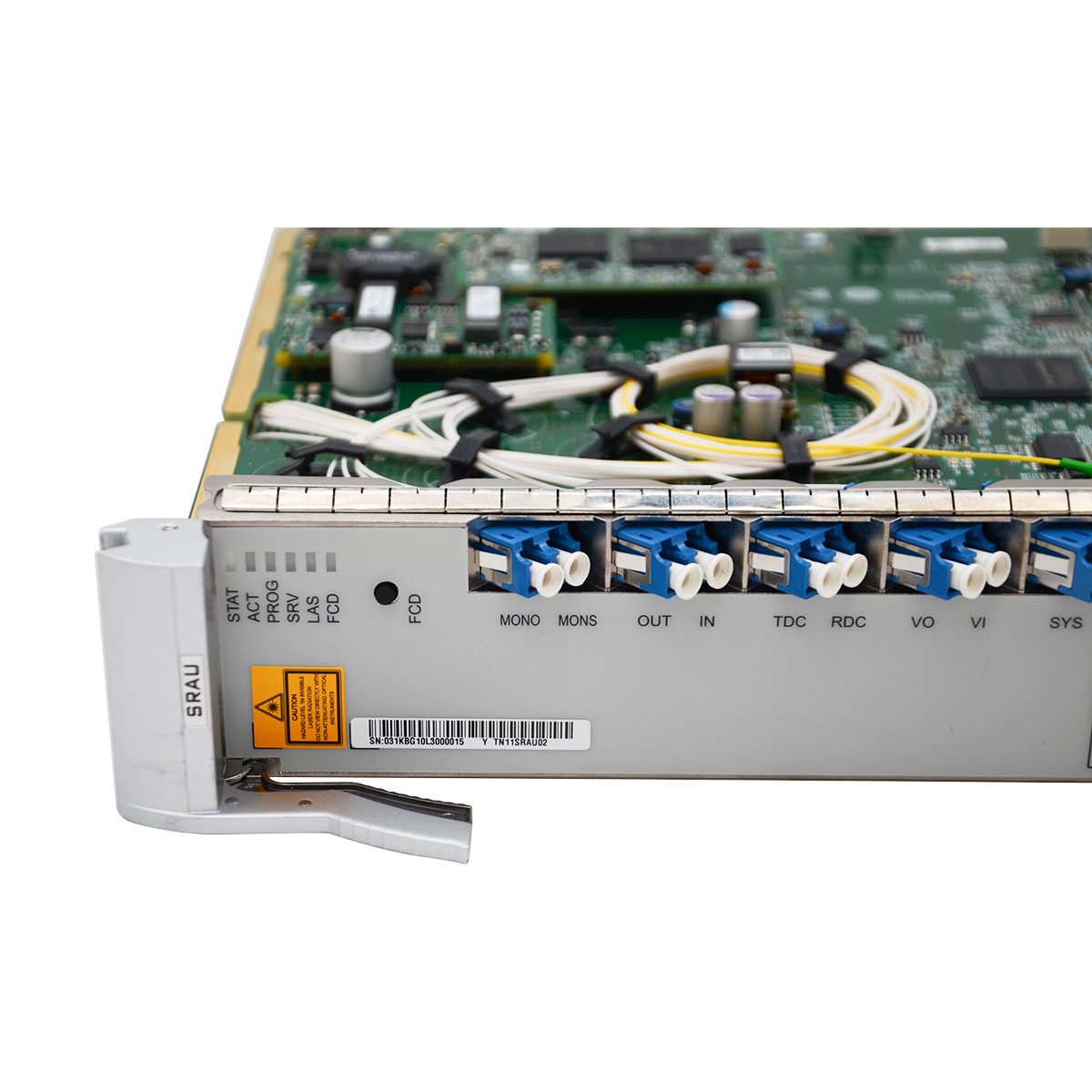

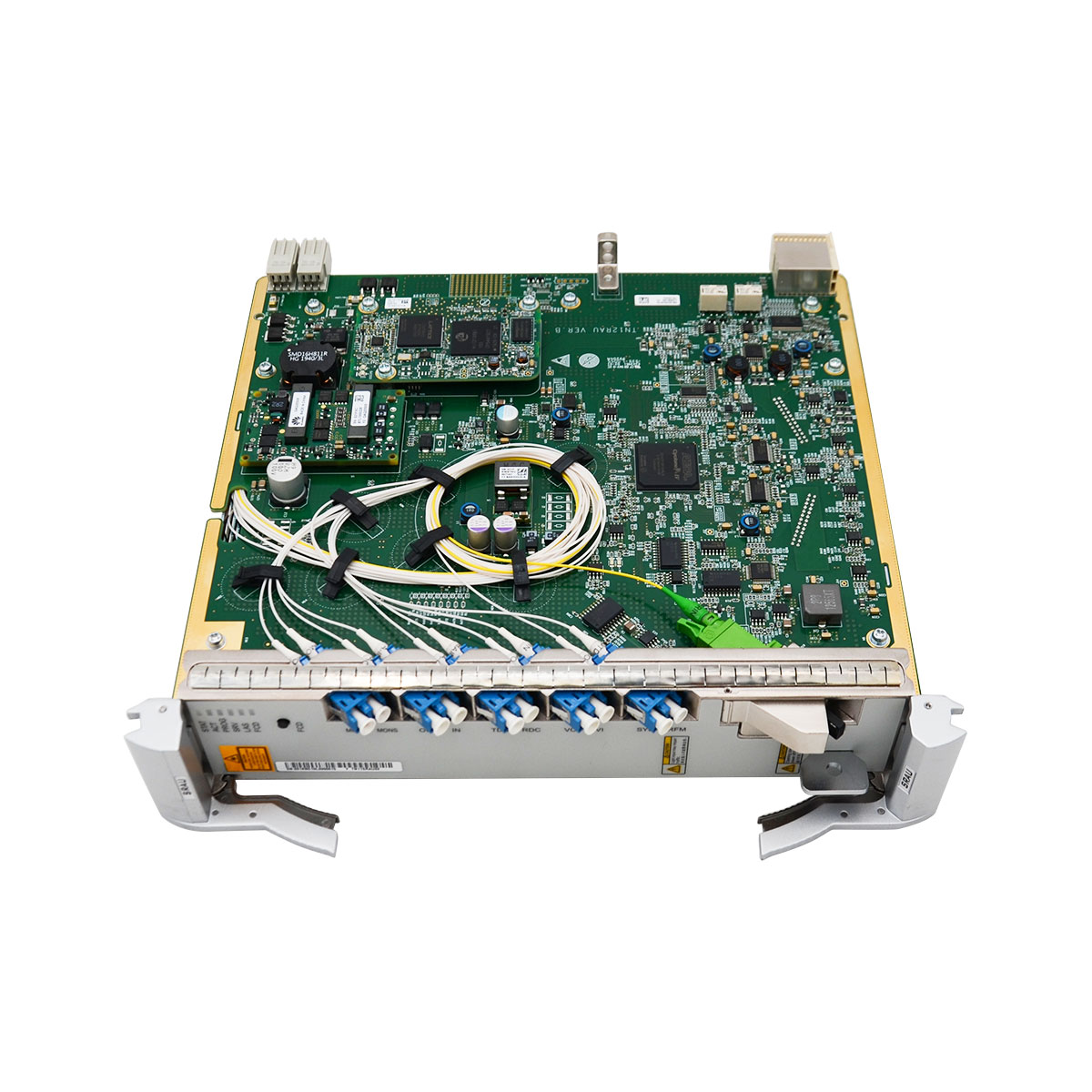

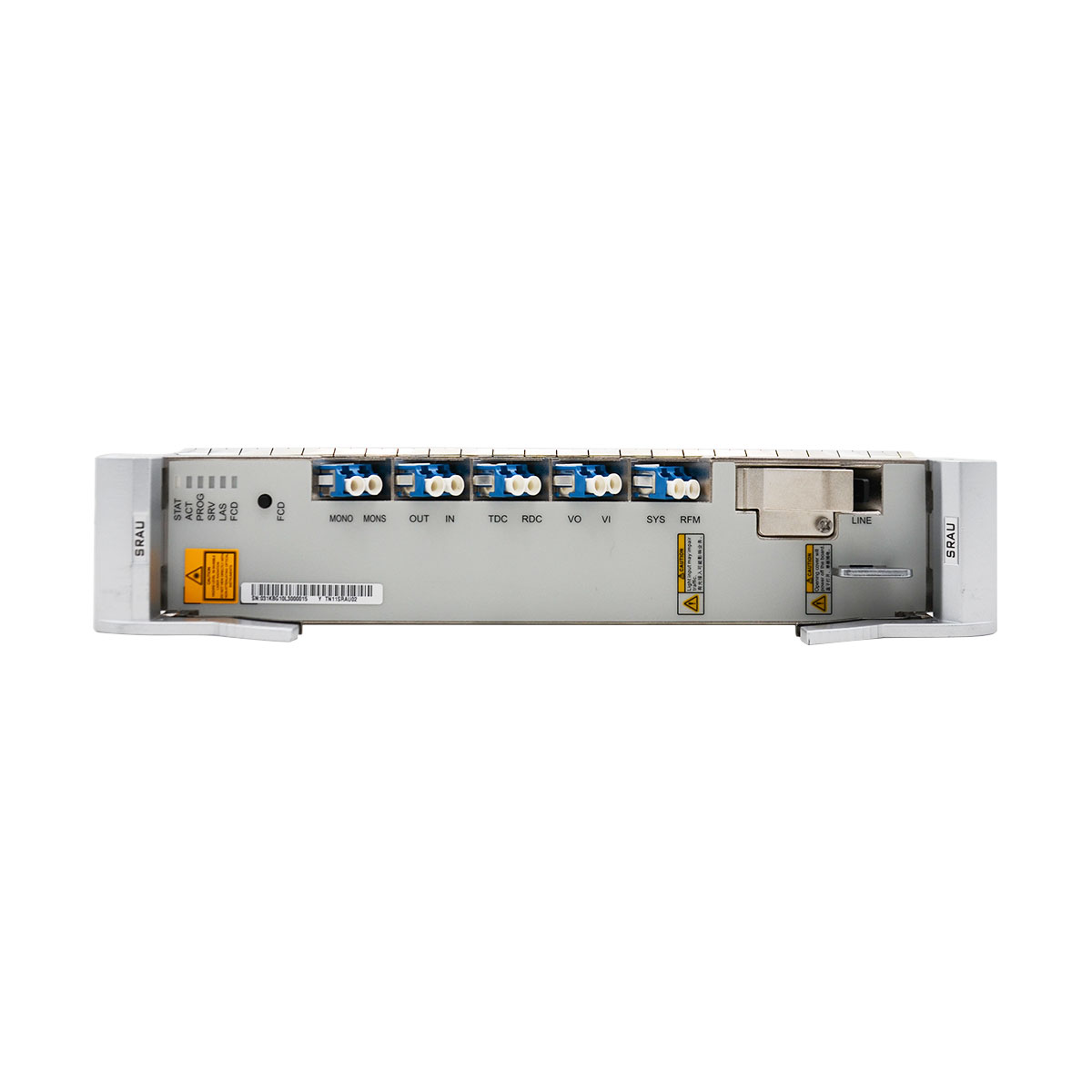

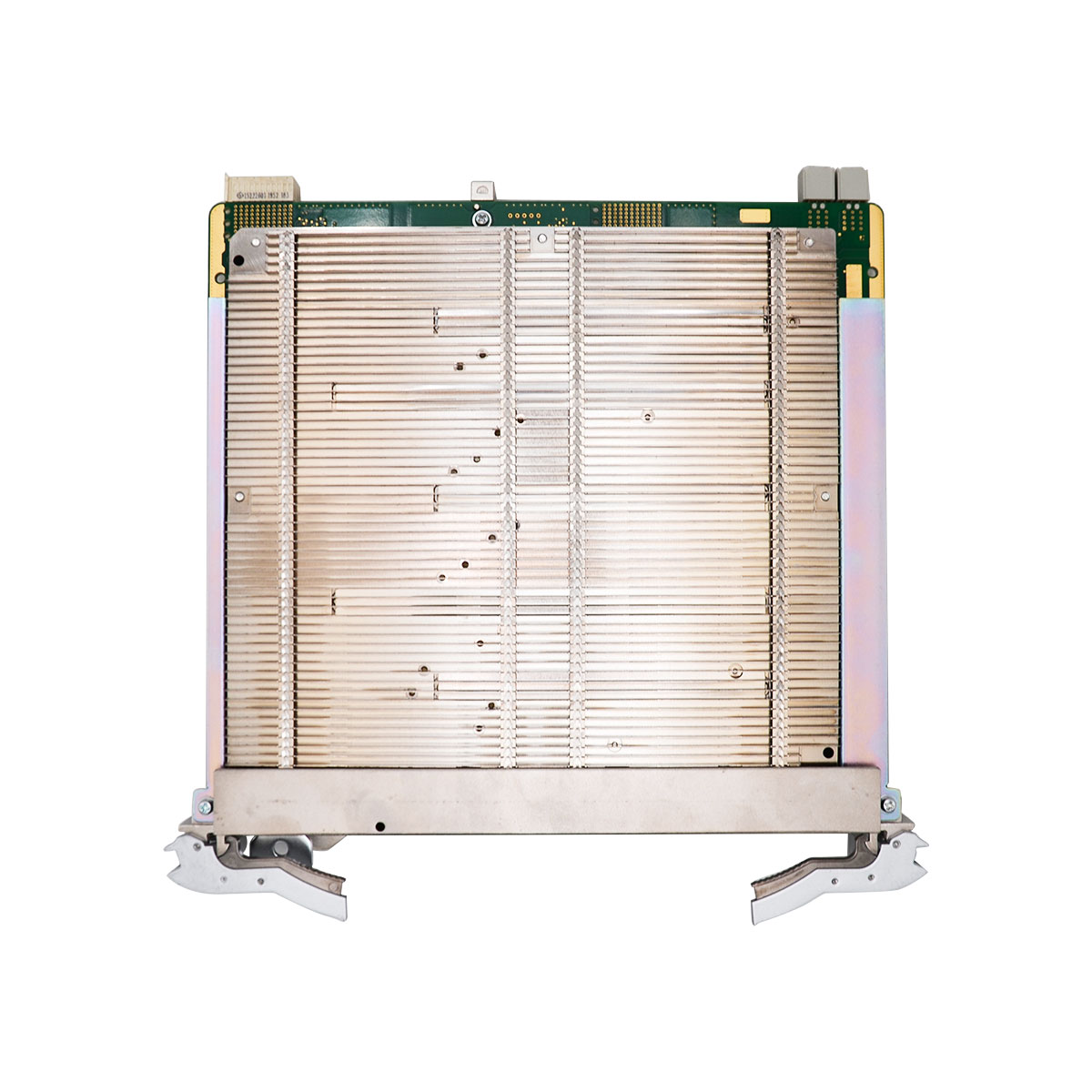

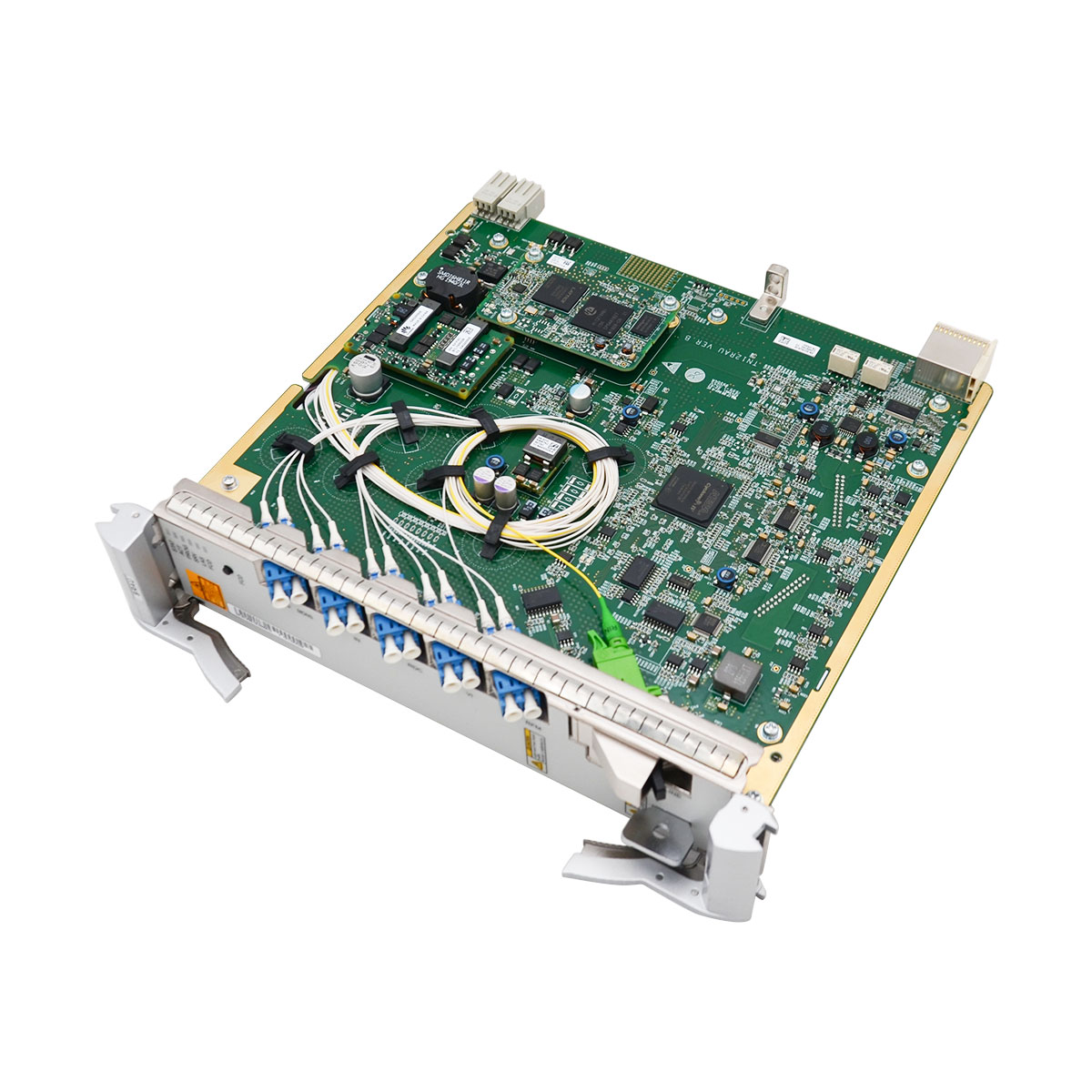

Huawei OSN6800 OSN8800 TN11SRAU02, Super C-band Backward Raman and Erbium Doped Fiber Hybrid Optical Amplifier Unit (MAX -7dBm LINE IN and MAX 20dBm OUT, Gain 27~38dB for G.652), 03031KBG

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

Huawei OSN6800 OSN8800 TN11SRAU02, Super C-band Backward Raman and Erbium Doped Fiber Hybrid Optical Amplifier Unit (MAX -7dBm LINE IN and MAX 20dBm OUT, Gain 27~38dB for G.652), 03031KBG

The available functional version of the SRAU board is TN11.

Type description of the SRAU board

Unit	Type	Description
TN11SRAU	01 or 02	The TN11SRAU boards of types 01 and 02 have the same functions and features but different specifications.

Optical specifications of the SRAU board

Item		Unit	Fiber	Value
Item		Unit	Fiber	TN11SRAU01	TN11SRAU02
SRAU board specifications	Operating wavelength range	nm	Any fiber	1529 to 1561	1529 to 1561
	Gain range	dB	G.652 fibers	22 to 30	27 to 38
			LEAF fibers	22 to 28	27 to 36
			G.653 fibers	22 to 28	27 to 36
			G.654B fibers	18 to 24	23 to 32
			G.656 fibers	22 to 30	27 to 38
			TWRS fibers	22 to 28	27 to 38
			TWC fibers	22 to 28	27 to 36
			TW+ fibers	22 to 28	27 to 36
			Teralight fibers	22 to 30	27 to 38
			SMFLS fibers	22 to 30	27 to 38
			G.654A fibers	22 to 30	27 to 38
	Equivalent noise figure^a	dB	G.652 fibers	< 0.2 (22 dB gain) < -1 (26 dB gain) < -1.2 (≥30 dB gain)	< 0 (27 dB gain) < -1 (32 dB gain) < -1.2 (≥38 dB gain)
			LEAF fibers	< 0.3 (22 dB gain) < -0.5 (25 dB gain) < -0.7 (≥28 dB gain)	< 0.2 (27 dB gain) < -0.6 (32 dB gain) < -0.7 (≥36 dB gain)
			G.653 fibers	<0.3 (22 dB gain) <-0.5 (26 dB gain) <-0.7 (≥28 dB gain)	<0.2 (27 dB gain) <-0.6 (32 dB gain) <-0.7 (≥36 dB gain)
			G.654B fibers	<2 (18 dB gain) <0.6 (22 dB gain) <0.4 (≥24 dB gain)	<1.7 (23 dB gain) <0.3 (28 dB gain) <0.2 (≥32 dB gain)
			G.656 fibers	<0.3 (22 dB gain) <-0.7 (26 dB gain) <-1 (≥30 dB gain)	<0.2 (27 dB gain) <-0.8 (32 dB gain) <-1 (≥38 dB gain)
			TWRS fibers	<0.3(22 dB gain) <-0.5(26 dB gain) <-0.7(≥28 dB gain)	<0.2(27 dB gain) <-0.6(32 dB gain) <-0.7(≥36 dB gain)
			TWC fibers	<0.3(22 dB gain) <-0.5(26 dB gain) <-0.7(≥28 dB gain)	<0.2(27 dB gain) <-0.6(32 dB gain) <-0.7(≥36 dB gain)
			TW+ fibers	<0.3(22 dB gain) <-0.5(26 dB gain) <-0.7(≥28 dB gain)	<0.2(27 dB gain) <-0.6(32 dB gain) <-0.7(≥36 dB gain)
			Teralight fibers	<0.3 (22 dB gain) <-0.7 (26 dB gain) <-1 (≥30 dB gain)	<0.2 (27 dB gain) <-0.8 (32 dB gain) <-1 (≥38 dB gain)
			SMFLS fibers	<0.3 (22 dB gain) <-0.7 (26 dB gain) <-1 (≥30 dB gain)	<0.2 (27 dB gain) <-0.8 (32 dB gain) <-1 (≥38 dB gain)
			G.654A fibers	<0.3 (22 dB gain) <-0.7 (26 dB gain) <-1 (≥30 dB gain)	<0.2 (27 dB gain) <-0.8 (32 dB gain) <-1 (≥38 dB gain)
	Gain flatness (LINE port to OUT port)	dB	G.652 fibers	< 4 (22 dB ≤ gain < 24 dB) < 3 (24 dB ≤ gain ≤ 30 dB) < 4 (maximum gain mode)	< 4 (27 dB ≤ gain < 29 dB) < 3 (29 dB ≤ gain ≤ 38 dB) < 4 (maximum gain mode)
			LEAF fibers	< 3.8 (22 dB ≤ gain ≤ 28 dB) < 4.5 (maximum gain mode)	< 3.8 (27 dB ≤ gain ≤ 36 dB) < 4.5 (maximum gain mode)
			G.653 fibers	<3.8 (22dB ≤gain ≤28dB) <4.5 (maximum gain mode)	<3.8 (27dB ≤gain ≤36dB) <4.5 (maximum gain mode)
			G.654B fibers	<3.8 (18dB ≤gain ≤24dB) <4.5 (maximum gain mode)	<3.8 (23dB ≤gain ≤32dB) <4.5 (maximum gain mode)
			G.656 fibers	<3.8 (22dB ≤gain ≤30dB) <4.5 (maximum gain mode)	<3.8 (27dB ≤gain ≤38dB) <4.5 (maximum gain mode)
			TWRS fibers	<3.8 (22dB ≤gain ≤28dB) <4.5 (maximum gain mode)	<3.8 (27dB ≤gain ≤36dB) <4.5 (maximum gain mode)
			TWC fibers	<3.8 (22dB ≤gain ≤28dB) <4.5 (maximum gain mode)	<3.8 (27dB ≤gain ≤36dB) <4.5 (maximum gain mode)
			TW+ fibers	<3.8 (22dB ≤gain ≤28dB) <4.5 (maximum gain mode)	<3.8 (27dB ≤gain ≤36dB) <4.5 (maximum gain mode)
			Teralight fibers	<3.8 (22dB ≤gain ≤30dB) <4.5 (maximum gain mode)	<3.8 (27dB ≤gain ≤38dB) <4.5 (maximum gain mode)
			SMFLS fibers	<3.8 (22dB ≤gain ≤30dB) <4.5 (maximum gain mode)	<3.8 (27dB ≤gain ≤38dB) <4.5 (maximum gain mode)
			G.654A fibers	<3.8 (22dB ≤gain ≤30dB) <4.5 (maximum gain mode)	<3.8 (27dB ≤gain ≤38dB) <4.5 (maximum gain mode)
	Total input optical power of LINE port	dBm	Any fiber	-29 to -2	-48 to -7
	Max. total optical power of OUT port	dBm	Any fiber	20	20
	Pump wavelength for the LINE port	nm	Any fiber	1400 to 1500	1400 to 1500
	Pump optical power of the LINE port	mW	Any fiber	≥ 1250	≥ 1250
	PDG	dB	Any fiber	< 0.7	< 0.7
	PMD	ps	Any fiber	< 0.7	< 0.7
	RFM port wavelength range	nm	Any fiber	1600 to 1645	1600 to 1645
Raman module specifications	Operating wavelength range	nm	Any fiber	1529 to 1561	1529 to 1561
	Total input optical power of LINE port	dBm	Any fiber	≤ -2	≤ -7
	Total output optical power of SYS port	dBm	Any fiber	-30 to 12	-30 to 7
	Valid gain^b	dB	G.652 fibers	14 to 18	14 to 18
			LEAF fibers	14 to 16	14 to 16
			G.653 fibers	14 to 16	14 to 16
			G.654B fibers	10 to 12	10 to 12
			G.656 fibers	14 to 18	14 to 18
			TWRS fibers	14 to 16	14 to 16
			TWC fibers	14 to 16	14 to 16
			TW+ fibers	14 to 16	14 to 16
			Teralight fibers	14 to 18	14 to 18
			SMFLS fibers	14 to 18	14 to 18
			G.654A fibers	14 to 18	14 to 18
	SYS port reflectance	dB	Any fiber	< -40	< -40
	LINE port reflectance	dB	Any fiber	< -40	< -40
	PDG	dB	Any fiber	< 0.5	< 0.5
	PMD	ps	Any fiber	< 0.5	< 0.5
	Pump wavelength	nm	Any fiber	1400 to 1500	1400 to 1500
	Max. pump optical power	mW	Any fiber	≥ 1250	≥ 1250
EDFA specifications	Operating wavelength range	nm	Any fiber	1529 to 1561	1529 to 1561
	Input optical power	dBm	Any fiber	-11 to 12	-19 to 7
	Output optical power	dBm	Any fiber	1 to 20	1 to 20
	Nominal single-wavelength input optical power	dBm	Any fiber	40 channels: -4 80 channels: -7	40 channels: -9 80 channels: -12
	Nominal single-wavelength output optical power	dBm	Any fiber	40 channels: 4 80 channels: 1	40 channels: 4 80 channels: 1
	Nominal gain	dB	Any fiber	8	13
	Channel gain	dB	Any fiber	8 to 12	13 to 20
	Gain flatness	dB	Any fiber	< 2.0	< 2.0
	Multi-channel gain slope	dB/dB	Any fiber	< 2.0	< 2.0
	PDG	dB	Any fiber	< 0.5	< 0.5
	PMD	ps	Any fiber	< 0.5	< 0.5
	Input reflectance	dB	Any fiber	< -40	< -40
	Output reflectance	dB	Any fiber	< -40	< -40
	VI-VO Inherent insertion loss	dB	Any fiber	≤ 1.5	≤ 1.5
	VI-VO Dynamic attenuation range	dB	Any fiber	15	15
	VI-VO Adjustment accuracy	dB	Any fiber	< 1	< 1
a: The gain can be adjusted continuously. The noise figure varies according to the gain. The previous table lists the noise figure when the noise figure uses the typical value. b: The gain of the Raman module can be set to the maximum value. The actual gain of the board is a variable and depends on the fiber type and status.

Brand	Huawei
Lead Time	3-5 days
