Categories:OSN 9800 M Series

TMF1AUX

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN03026EAS

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

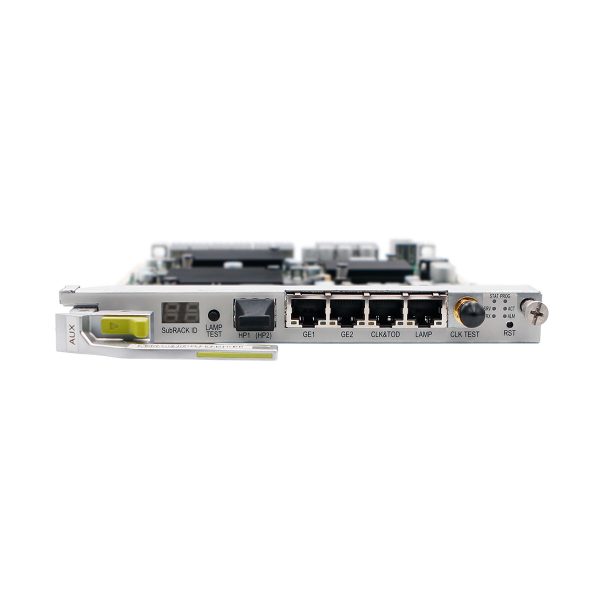

Huawei OSN 9800 M12 System auxiliary Communication Board With Clock Processing Function, 03026EAS

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

Huawei OSN 9800 M12 System auxiliary Communication Board With Clock Processing Function

Valid Slots

Device	Number of Occupied Slots	Physical Slot	Logical Slot
OptiX OSN 9800 M12	1	IU73, IU74	IU73, IU74

Mapping relationship of the TMF1AUX board

Board	Matching Device	Matching System Control Board – Cross-Connect Board	Initial Version of the Matching System Control and Cross-Connect Board
TMF1AUX	9800 M12	TMF1SCC	V100R007C00SPC700
TMF1AUX	9800 M12	TMF2SCC	V100R019C10SPC600

Functions and Features of the TMF1AUX Board (System Control and Communication Unit)

Function and Feature	Description
Basic function	Performs service grooming and configuration management inside the subrack and reports associated alarms to the NMS. The AUX board collects overheads of other boards and sends the overheads to the SCC board. Then, the SCC board processes the overheads and sends the processed overheads to the AUX board. Subsequently, the AUX board sends the processed overheads back to the other boards. Supports inter-NE communication through IP over DCC or HWECC.
OTN cluster	Not Supported
Master-Slave subrack	Supports subrack cascading.
DCC	Supports interconnection and communication between NEs through IP over DCC, or HWECC.
Backup mode	Supports 1+1 hot backup. When the active board is faulty, services are automatically switched to the standby board.

Functions and Features of the TMF1AUX Board (Clock Unit)

Function and Feature	Description
Basic function	The board provides system clock signals and frame header signals for each service board. Clock synchronization: synchronizes the time of an NE to the upstream system time to complete the clock and time synchronization of the entire NE. Clock source selection: The board can trace the external clock source, service clock source, or local clock source to provide the synchronization clock source for the board and the system.
Physical clock	Supported
IEEE 1588v2	Supported
ITU-T G.8275.1	Supported
ITU-T G.8273.2	Supported
High-precision clock synchronization	Supported NOTE: The high-precision clock synchronization function can be implemented only after the corresponding license is obtained. The board must work with the subrack and system control board that supports high-precision clock to support the high-precision clock synchronization function.For details, see Clock Synchronization Feature Guide.
ITU-T G.8271	Supported
Backup mode	Supports 1+1 hot backup.

Functions and Features of the TMF1AUX Board (Interface Unit)

Function and Feature	Description
Interface	Provides Ethernet communication. Provides common and emergency inter-subrack communication interfaces. Provides clock and time signal input and output interface.

Mechanical Specifications

Board	Item	Unit	Value
TMF1AUX	Dimensions (H x W x D)	mm	176.00×20.30×267.35
	Dimensions (H x W x D)	in.	6.93×0.80×10.53
	Weight	kg	0.9
	Weight	lb.	1.98
	Typical Power Consumption	W	36
	Maximum Power Consumption	W	45

Functions and Features of the TMF1AUX Board (System Control and Communication Unit)

Function and Feature	Description
Basic function	Performs service grooming and configuration management inside the subrack and reports associated alarms to the NMS. The AUX board collects overheads of other boards and sends the overheads to the SCC board. Then, the SCC board processes the overheads and sends the processed overheads to the AUX board. Subsequently, the AUX board sends the processed overheads back to the other boards. Supports inter-NE communication through IP over DCC or HWECC.
OTN cluster	Not Supported
Master-Slave subrack	Supports subrack cascading.
DCC	Supports interconnection and communication between NEs through IP over DCC, or HWECC.
Backup mode	Supports 1+1 hot backup. When the active board is faulty, services are automatically switched to the standby board.

Functions and Features of the TMF1AUX Board (Clock Unit)

Function and Feature	Description
Basic function	The board provides system clock signals and frame header signals for each service board. Clock synchronization: synchronizes the time of an NE to the upstream system time to complete the clock and time synchronization of the entire NE. Clock source selection: The board can trace the external clock source, service clock source, or local clock source to provide the synchronization clock source for the board and the system.
Physical clock	Supported
IEEE 1588v2	Supported
ITU-T G.8275.1	Supported
ITU-T G.8273.2	Supported
High-precision clock synchronization	Supported NOTE: The high-precision clock synchronization function can be implemented only after the corresponding license is obtained. The board must work with the subrack and system control board that supports high-precision clock to support the high-precision clock synchronization function.For details, see Clock Synchronization Feature Guide.
ITU-T G.8271	Supported
Backup mode	Supports 1+1 hot backup.

Functions and Features of the TMF1AUX Board (Interface Unit)

Function and Feature	Description
Interface	Provides Ethernet communication. Provides common and emergency inter-subrack communication interfaces. Provides clock and time signal input and output interface.

Mechanical Specifications

Board	Item	Unit	Value
TMF1AUX	Dimensions (H x W x D)	mm	176.00×20.30×267.35
	Dimensions (H x W x D)	in.	6.93×0.80×10.53
	Weight	kg	0.9
	Weight	lb.	1.98
	Typical Power Consumption	W	36
	Maximum Power Consumption	W	45

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
