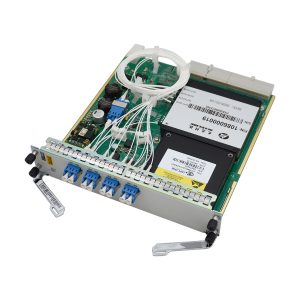

Huawei OSN1800 TMB1OPM801 8-channel Optical Power Monitor Board, 03033DPT

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Huawei OSN1800 TMB1OPM801 8-channel Optical Power Monitor Board, 03033DPT



Version description of the OPM8 board

Board

Product Applicable-System Control Board-Initial Board Version Supported by System Control Board

TMB1OPM8

1800 I&II Compact-TNF3SCC-V100R009C00SPC700

1800 II Enhanced-TNZ1UXCL/TNZ2UXCL-V100R009C00SPC700

1800 V-TNF5UXCM/TNF5UXCME/TNF5XCH/TNZ5UXCMS/TNZ8XCH-V100R009C00SPC700

1800 II TP-TMB1SCC-V100R019C10SPC300



Substitution relationship of the TMB1OPM8 boards

Original Board

Substitute Board

Substitution Rules

TNF1OPM8

TMB1OPM8

The TMB1OPM8 board can be created as the F1OPM8 board on the NMS to function as a TNF1OPM8 board. The NE software must be upgraded to V100R09C00SPC700 or a later version for replacement.

Notice: The TMB1OPM8 board can be used only with the TNF3SCC board on the OSN 1800 I&II compact devices.

Item TMB1OPM801
Optical specifications of the OPM8 board
Operating wavelength range (nm) 1529 to 1561
Detect range for single channel optical power(dBm) -30 to -10
Detected accuracy for optical power(dB) ±1.5
Channel spacing(GHz) 50/100
Numbers of optical interface(pcs) 8
Typical Power Consumption (W) 7
Maximum Power Consumption (W) 8 a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature.

Mechanical Specifications
Dimensions (W x H x D, unit: mm/in.) 193.8 x 40.1 x 205.9 (7.6 x 1.6 x 8.1)
Weight 0.8 kg (1.76 lb.)

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item TMB1OPM801
Optical specifications of the OPM8 board
Operating wavelength range (nm) 1529 to 1561
Detect range for single channel optical power(dBm) -30 to -10
Detected accuracy for optical power(dB) ±1.5
Channel spacing(GHz) 50/100
Numbers of optical interface(pcs) 8
Typical Power Consumption (W) 7
Maximum Power Consumption (W) 8 a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature.

Mechanical Specifications
Dimensions (W x H x D, unit: mm/in.) 193.8 x 40.1 x 205.9 (7.6 x 1.6 x 8.1)
Weight 0.8 kg (1.76 lb.)
