SS63S16B01

0 Reviews Write a review
PNSS63S16B(L-16.2,SC)
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

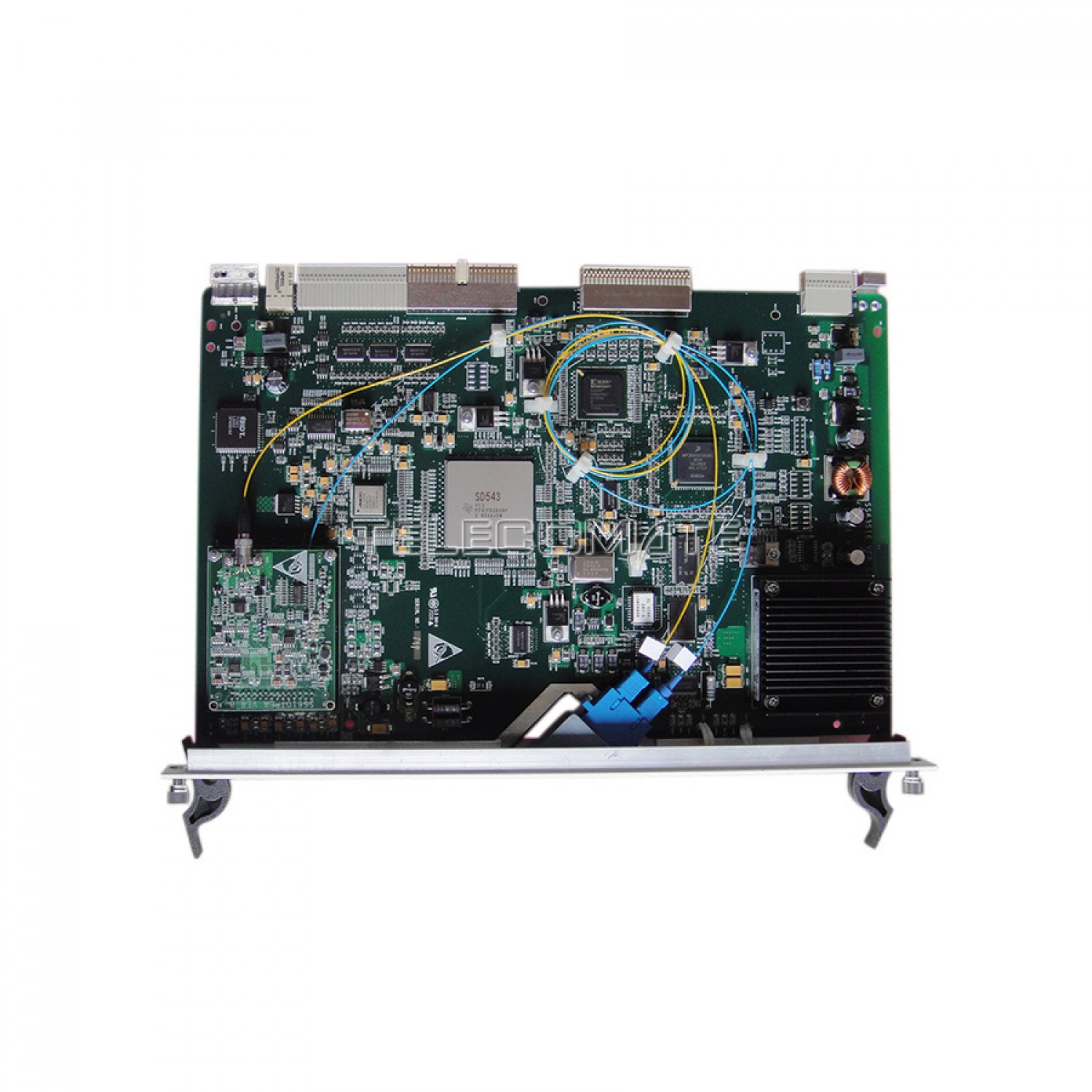

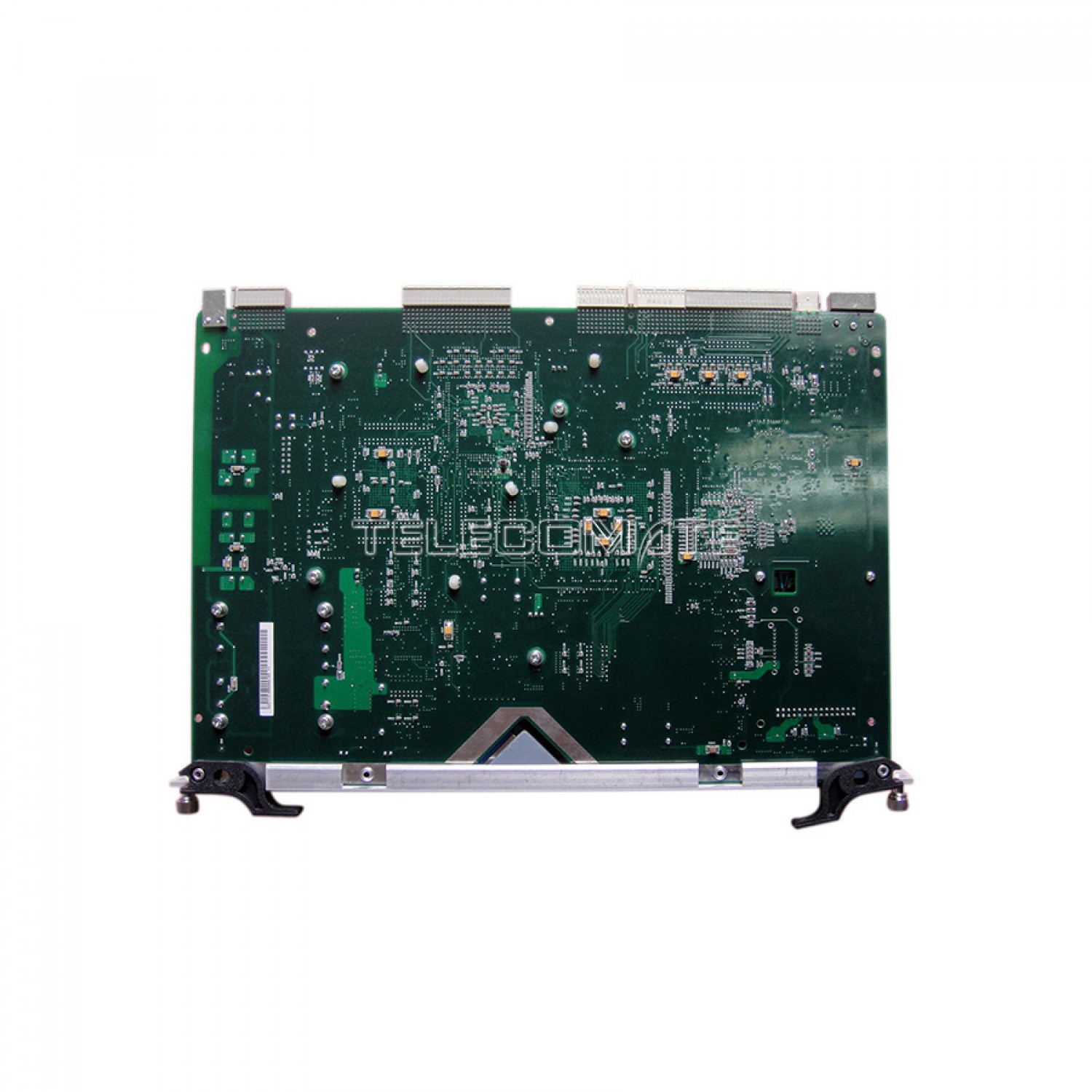

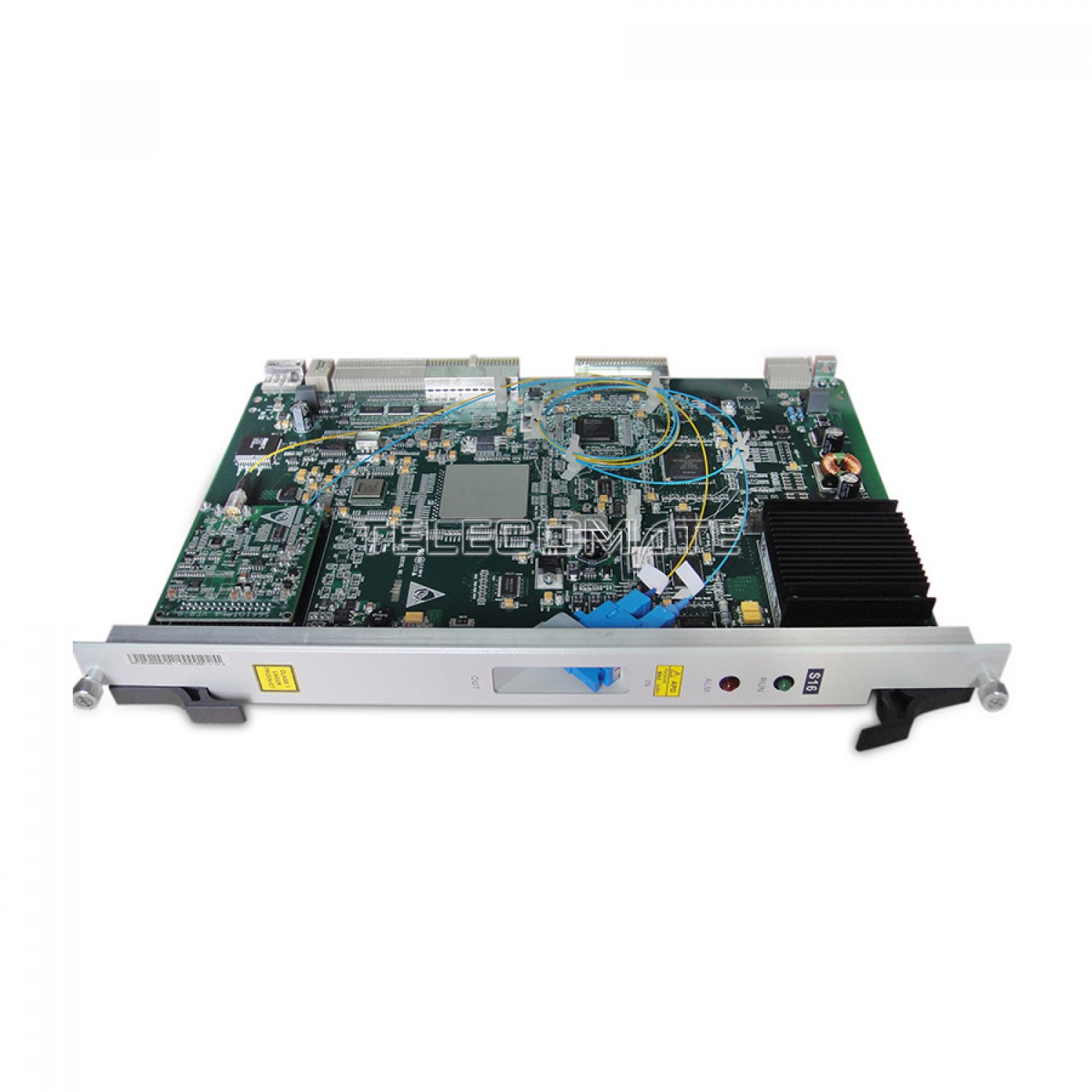

Huawei Metro 3000 series line board, 1 STM-16 Optical Interface Board with 1 L-16.2, 80km SFP module

Description

Optical Interface Parameter
Application code L-16.2
Transmission distance (km) 40 to 80
Type of fiber Single-mode LC
Operating wavelength (nm) 1550
Launched optical power range (dBm) -2 to +3
Receiver sensitivity (dBm) -28
Minimum overload (dBm) -9
Mechanical Specifications
Dimensions (mm) 340 mm (H)x32 mm (W)x218.5 mm (D)
Weight (kg) 0.73

Additional information

Weight 3.0000 kg
Dimensions 37.5000 × 34.0000 × 7.5000 cm
MSTP
