ZTE ZXA10 C620 switching and control board
SPUF provides one out-of-band management (MGMT) interface, one maintenance serial interface (Console), one Environmental detection serial interface (Monitor, supporting 3 digital input interfaces and 1 digital output interface) and one line card debugging serial interface (ODB).

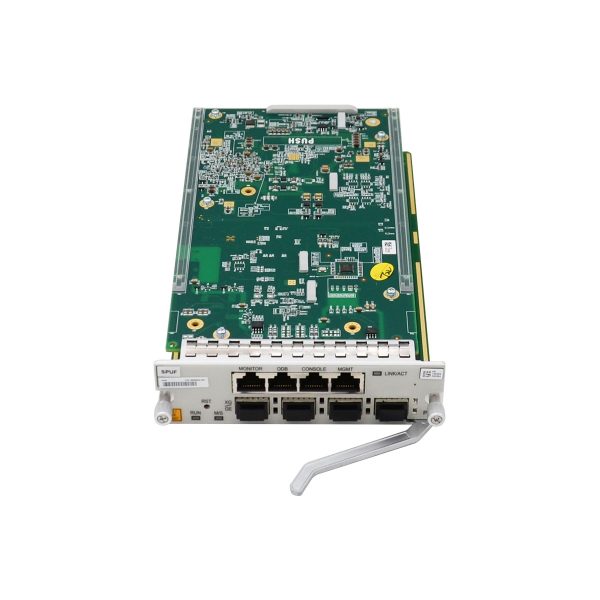

ZXA10 C620 SPUF switching and control card
Supports four 10GE/GE Ethernet optical interfaces
Supports hot swapping
| Item | SPUF |
| Forwarding capability | 40 Gbit/s |
| MAC number | 128K |
| Maximum frame size | 2052 bytes 9216 bytes (jumbo frame enabled) |
| VLAN forwarding | VLAN+MAC |
| Shaping in outband management | Supported |
| L3 forwarding | IPv4/IPv6 ARP table supported IPv4/IPv6 routing supported |
| Clock synchronization | 1588V2, 1588ACR, SyncE |
| Y.1731 | Supported |
| Link aggregation | Supported at Inter-board and Intra-board |
| MSTP ring network protection | Supported |
| G.8032 ring network protection | Supported |
| Operating temperature | -40°C to +65°C |
| Power consumption | GE mode:
|
| Dimensions (mm) | 128.9 × 36.5 × 225.7 |
| Weight(kg) | 0.77 |
| Brand | ZTE |
|---|---|
| Lead Time | 3-5 days |
| Ship From | Hongkong Warehouse |
| Item | SPUF |
| Forwarding capability | 40 Gbit/s |
| MAC number | 128K |
| Maximum frame size | 2052 bytes 9216 bytes (jumbo frame enabled) |
| VLAN forwarding | VLAN+MAC |
| Shaping in outband management | Supported |
| L3 forwarding | IPv4/IPv6 ARP table supported IPv4/IPv6 routing supported |
| Clock synchronization | 1588V2, 1588ACR, SyncE |
| Y.1731 | Supported |
| Link aggregation | Supported at Inter-board and Intra-board |
| MSTP ring network protection | Supported |
| G.8032 ring network protection | Supported |
| Operating temperature | -40°C to +65°C |
| Power consumption | GE mode:
|
| Dimensions (mm) | 128.9 × 36.5 × 225.7 |
| Weight(kg) | 0.77 |
