Categories:S7700/S9700 Series

S9712

0 Reviews Write a review

PN2113549

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S9712 Switch AC bundle including assembly chassis EH1BS9712E00 2xSRUD Main Board 2x800WAC power module

Core/Aggregation Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S9712 overview

Huawei S9706 switch is one of the S9700 series switches, which comes with 6 service card slots.

The S9700 series core routing switches (S9700 for short) are high-end switches designed for service integration in next-generation campus networks and data centers. Based on Huawei Versatile Routing Platform (VRP), the S9700 switches provide high-performance L2/L3 switching and integrate a range of services, such as MPLS VPN, hardware IPv6, desktop cloud, video conferencing, and wireless access. They also provide a variety of reliability technologies including hardware OAM/BFD and ring network protection. These improve the network efficiency and maximize the normal operation time, thereby reducing the total cost of ownership (TCO).

The S9700 comes in the following models: S9703, S9706, and S9712. These models support a maximum of 3, 6, and 12 line processing units (LPUs), respectively.

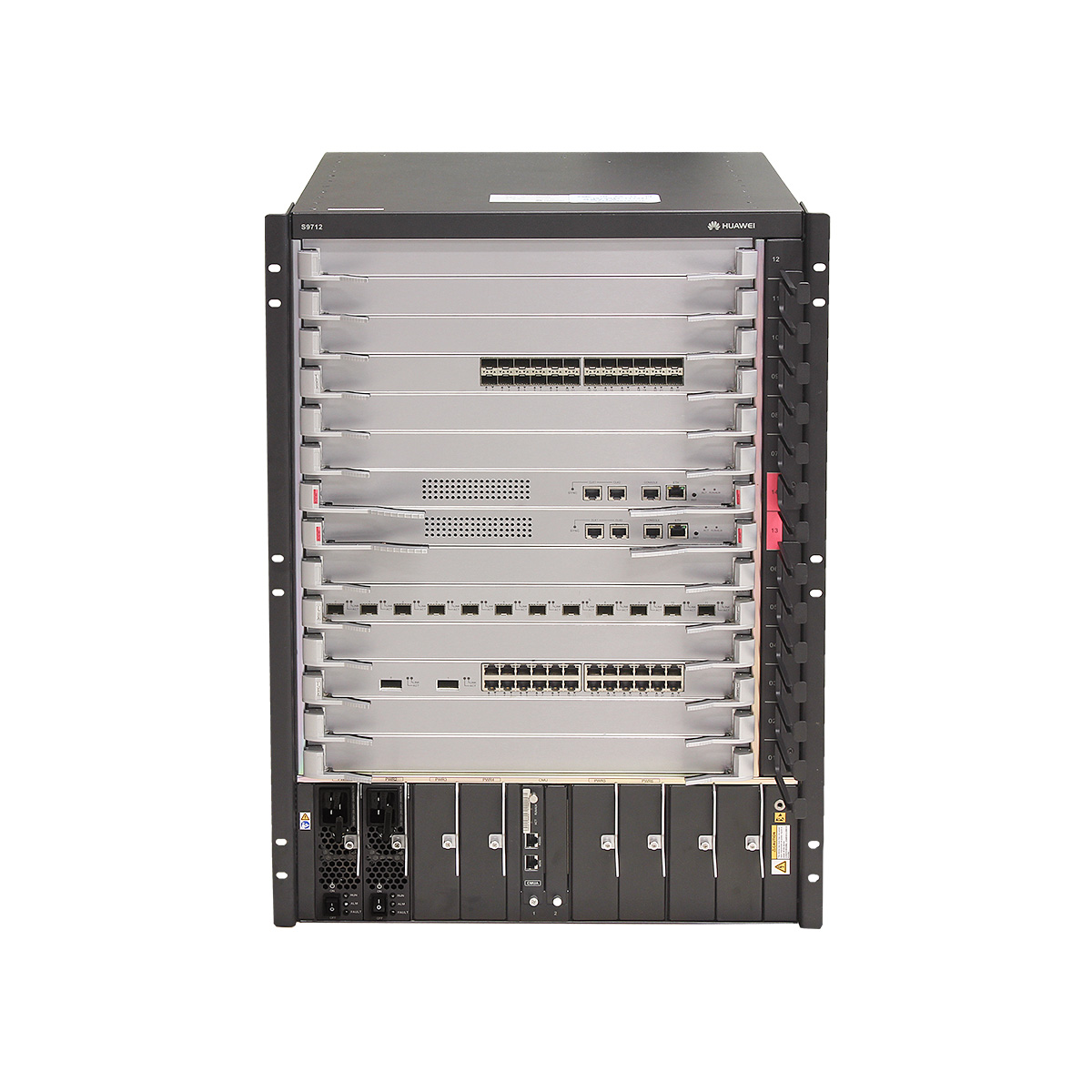

S9712 appearance

1. Twelve of the following service cards can be installed:

2. Two MPUs

3. A pair of mounting brackets

4. Two power modules

5. Two EH1D200CMU00-Centralized Monitoring Unit

6. Reserved slot

7. Front ESD jack

8. Cable management frames

Item	S9712
Switching capacity	8.64/18.56 Tbit/s
Packet forwarding rate	3840/6480 Mpps
Service slots	12
Wireless network management	Native AC
	AP access control, AP region management, and AP profile management
	Radio profile management, uniform static configuration, and centralized dynamic management
	Basic WLAN services, QoS, security, and user management
User management	unified user management
	802.1x, MAC address, and Portal authentication
	Traffic- and time-based accounting
	User authorization based on user groups, domains, and time ranges
iPCA quality awareness	Marking real service packets to obtain real-time count of dropped packets and packet loss ratio
iPCA quality awareness	Counting number of dropped packets and packet loss ratio on devices and L2/L3 networks
SVF virtualization	Virtualizing access switches (ASs) and APs into one logical device to simplify management and maintenance
	Two layers of ASs allowed in an SVF system
	Third-party devices allowed between SVF parent and clients
VLAN	Supports adding access, trunk, and hybrid interfaces to VLANs
	Supports the default VLAN
	Supports VLAN switching
	Supports QinQ and selective QinQ
	Supports MAC address-based VLAN assignment
MAC address	Supports automatic learning and aging of MAC addresses
	Supports static, dynamic, and blackhole MAC address entries
	Supports packet filtering based on source MAC addresses
	Supports MAC address limiting based on ports and VLANs
STP/ERPS	Supports STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	Supports BPDU protection, root protection, and loop protection
	Supports BPDU tunnel
	ERPS (G.8032)
IP routing	Supports IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS
IP routing	Supports IPv6 dynamic routing protocols, such as, RIPng, OSPFv3, ISISv6, and BGP4+
Multicast	Supports IGMP v1/v2/v3, IGMPv1/v2/v3 snooping
	Supports PIM-SM, PIM-DM, PIM-SSM
	Supports MSDP, MBGP
	Supports prompt leave
	Supports multicast traffic control
	Supports multicast querier
	Supports suppression on multicast packets
	Supports multicast CAC, ACL
MPLS	Supports basic MPLS functions
	Supports MPLS OAM
	Supports MPLS OAM
	Supports MPLS VPN/VLL/VPLS
Reliability	Supports LACP and E-Trunk
	Supports VRRP and BFD for VRRP
	Supports BFD for BGP/IS-IS/OSPF/static route
	Supports NSF, and GR for BGP/IS-IS/OSPF/LDP
	Supports TE FRR and IP FRR
	Supports Ethernet OAM (IEEE 802.3ah and 802.1ag) (Hardware level)
	Supports ITU-Y.1731
	Supports DLDP
	Supports In-Service Software Upgrade (ISSU)
QoS	Supports traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority
	Supports actions of ACL, CAR, re-mark, and schedule
	Supports queue scheduling algorithms, such as SP, WRR, DRR, SP+WRR, and SP+DRR
	Supports congestion avoidance mechanisms, such as WRED and tail drop
	Supports H-QoS
	Supports traffic shaping
Configuration and maintenance	Supports console, telnet, and SSH terminals
	Supports the network management protocols, such as SNMP v1/v2c/v3
	Supports file uploading and downloading using FTP and TFTP
	Supports BootROM upgrade and remote upgrade
	Supports hot patches
	Supports user operation logs
Security and management	Supports 802.1x authentication and Portal authentication
	Supports NAC
	Supports RADIUS and HWTACACS authentication for login users
	Supports command line authority control based on user levels, preventing unauthorized users from using commands
	Supports defense against DoS attacks, TCP SYN Flood attacks, UDP Flood attacks, broadcast storms, and heavy traffic attacks
	Supports 1K CPU queues
	Supports ping and traceroute functions based on ICMP packets
	Supports remote network monitoring
Value-added services	Supports firewall
	Supports NAT
	Supports NetStream
	Supports IPSec
	Supports load balancing
	Supports wireless AC
	Supports IPS
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST)
	Supports LNP (Similar to DTP)
	Supports VCMP (Similar to VTP)
Energy saving	Supports IEEE 802.3az: Energy Efficient Ethernet (EEE)
Dimensions(W x D x H)	442 mm × 476 mm × 664 mm
Chassis weight(empty)	< 45 kg
Operating voltage	DC: –38.4 V to –72 V AC: 90 V to 290V
Power supply capability of the equipment	6600W

Item	S9712
Switching capacity	8.64/18.56 Tbit/s
Packet forwarding rate	3840/6480 Mpps
Service slots	12
Wireless network management	Native AC
	AP access control, AP region management, and AP profile management
	Radio profile management, uniform static configuration, and centralized dynamic management
	Basic WLAN services, QoS, security, and user management
User management	unified user management
	802.1x, MAC address, and Portal authentication
	Traffic- and time-based accounting
	User authorization based on user groups, domains, and time ranges
iPCA quality awareness	Marking real service packets to obtain real-time count of dropped packets and packet loss ratio
iPCA quality awareness	Counting number of dropped packets and packet loss ratio on devices and L2/L3 networks
SVF virtualization	Virtualizing access switches (ASs) and APs into one logical device to simplify management and maintenance
	Two layers of ASs allowed in an SVF system
	Third-party devices allowed between SVF parent and clients
VLAN	Supports adding access, trunk, and hybrid interfaces to VLANs
	Supports the default VLAN
	Supports VLAN switching
	Supports QinQ and selective QinQ
	Supports MAC address-based VLAN assignment
MAC address	Supports automatic learning and aging of MAC addresses
	Supports static, dynamic, and blackhole MAC address entries
	Supports packet filtering based on source MAC addresses
	Supports MAC address limiting based on ports and VLANs
STP/ERPS	Supports STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	Supports BPDU protection, root protection, and loop protection
	Supports BPDU tunnel
	ERPS (G.8032)
IP routing	Supports IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS
IP routing	Supports IPv6 dynamic routing protocols, such as, RIPng, OSPFv3, ISISv6, and BGP4+
Multicast	Supports IGMP v1/v2/v3, IGMPv1/v2/v3 snooping
	Supports PIM-SM, PIM-DM, PIM-SSM
	Supports MSDP, MBGP
	Supports prompt leave
	Supports multicast traffic control
	Supports multicast querier
	Supports suppression on multicast packets
	Supports multicast CAC, ACL
MPLS	Supports basic MPLS functions
	Supports MPLS OAM
	Supports MPLS OAM
	Supports MPLS VPN/VLL/VPLS
Reliability	Supports LACP and E-Trunk
	Supports VRRP and BFD for VRRP
	Supports BFD for BGP/IS-IS/OSPF/static route
	Supports NSF, and GR for BGP/IS-IS/OSPF/LDP
	Supports TE FRR and IP FRR
	Supports Ethernet OAM (IEEE 802.3ah and 802.1ag) (Hardware level)
	Supports ITU-Y.1731
	Supports DLDP
	Supports In-Service Software Upgrade (ISSU)
QoS	Supports traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority
	Supports actions of ACL, CAR, re-mark, and schedule
	Supports queue scheduling algorithms, such as SP, WRR, DRR, SP+WRR, and SP+DRR
	Supports congestion avoidance mechanisms, such as WRED and tail drop
	Supports H-QoS
	Supports traffic shaping
Configuration and maintenance	Supports console, telnet, and SSH terminals
	Supports the network management protocols, such as SNMP v1/v2c/v3
	Supports file uploading and downloading using FTP and TFTP
	Supports BootROM upgrade and remote upgrade
	Supports hot patches
	Supports user operation logs
Security and management	Supports 802.1x authentication and Portal authentication
	Supports NAC
	Supports RADIUS and HWTACACS authentication for login users
	Supports command line authority control based on user levels, preventing unauthorized users from using commands
	Supports defense against DoS attacks, TCP SYN Flood attacks, UDP Flood attacks, broadcast storms, and heavy traffic attacks
	Supports 1K CPU queues
	Supports ping and traceroute functions based on ICMP packets
	Supports remote network monitoring
Value-added services	Supports firewall
	Supports NAT
	Supports NetStream
	Supports IPSec
	Supports load balancing
	Supports wireless AC
	Supports IPS
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST)
	Supports LNP (Similar to DTP)
	Supports VCMP (Similar to VTP)
Energy saving	Supports IEEE 802.3az: Energy Efficient Ethernet (EEE)
Dimensions(W x D x H)	442 mm × 476 mm × 664 mm
Chassis weight(empty)	< 45 kg
Operating voltage	DC: –38.4 V to –72 V AC: 90 V to 290V
Power supply capability of the equipment	6600W

Weight	65.0000 kg
Dimensions	81.0000 × 65.0000 × 61.0000 cm
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
