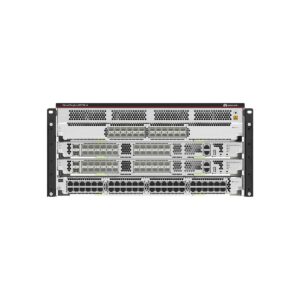

The Huawei CloudEngine S8700-4 is a next-gen modular switch in the S8700 series for campus network aggregation and access.

24 Ports Switch Electrical Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S8700-4 overview

The Huawei CloudEngine S8700 series is a high-performance chassis switch designed for cloud campus networks. Available in 4-slot, 6-slot, and 10-slot models, it offers full-rate GE/10GE/25GE/40GE/100GE access ports to support the efficient deployment of simplified two-layer architectures in medium to large-scale campus networks. Equipped with Huawei’s self-developed software platform, the S8700 ensures a secure system and reliable data access. Key components such as the main control unit, power supply, and fans adopt a redundant design, delivering carrier-grade reliability. Ideal for building next-generation cloud campus networks, the S8700 is widely used in industries such as transportation, manufacturing, and education, serving as an aggregation or access switch for large campuses and a core switch for small to medium-sized campuses — empowering global customers in their digital transformation journey.

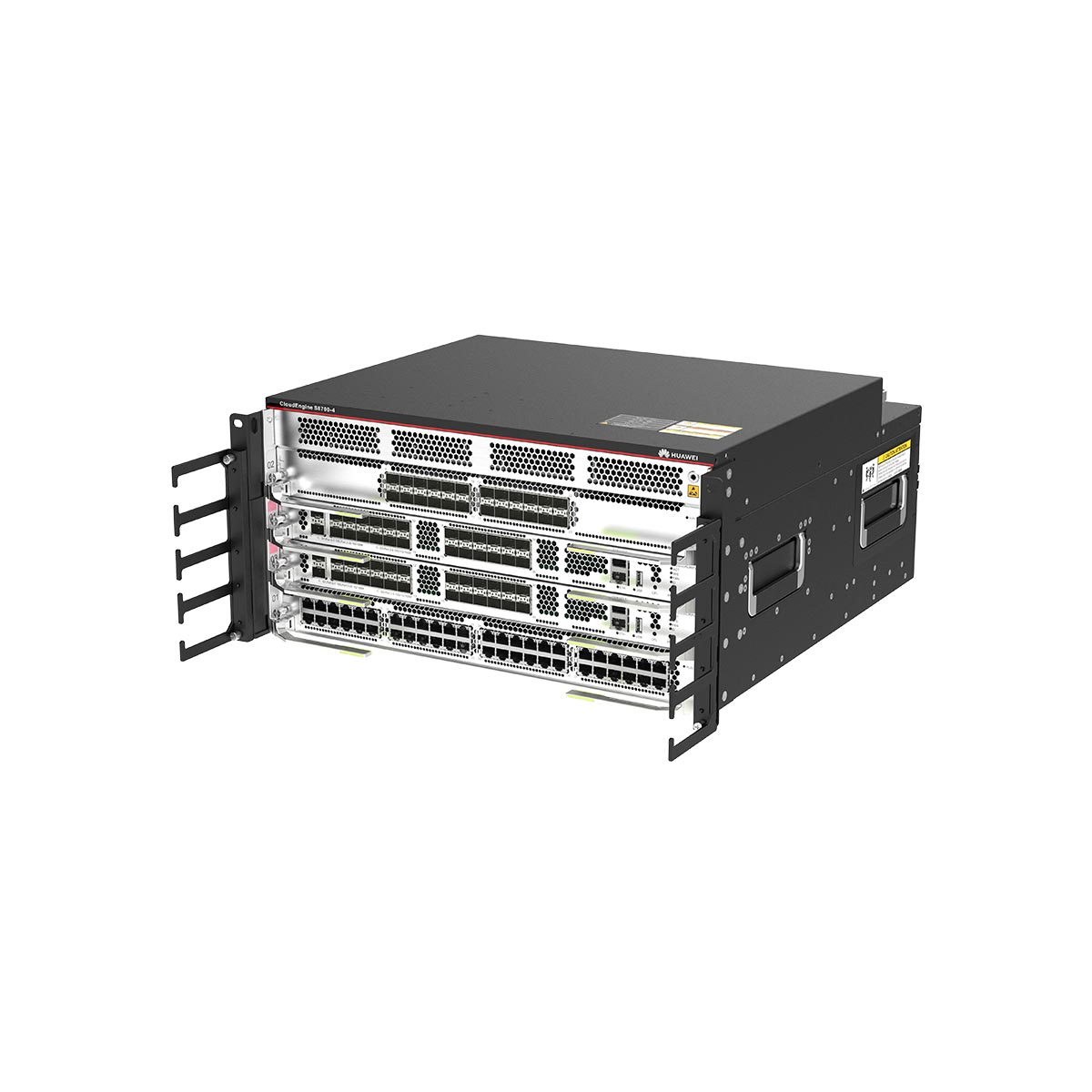

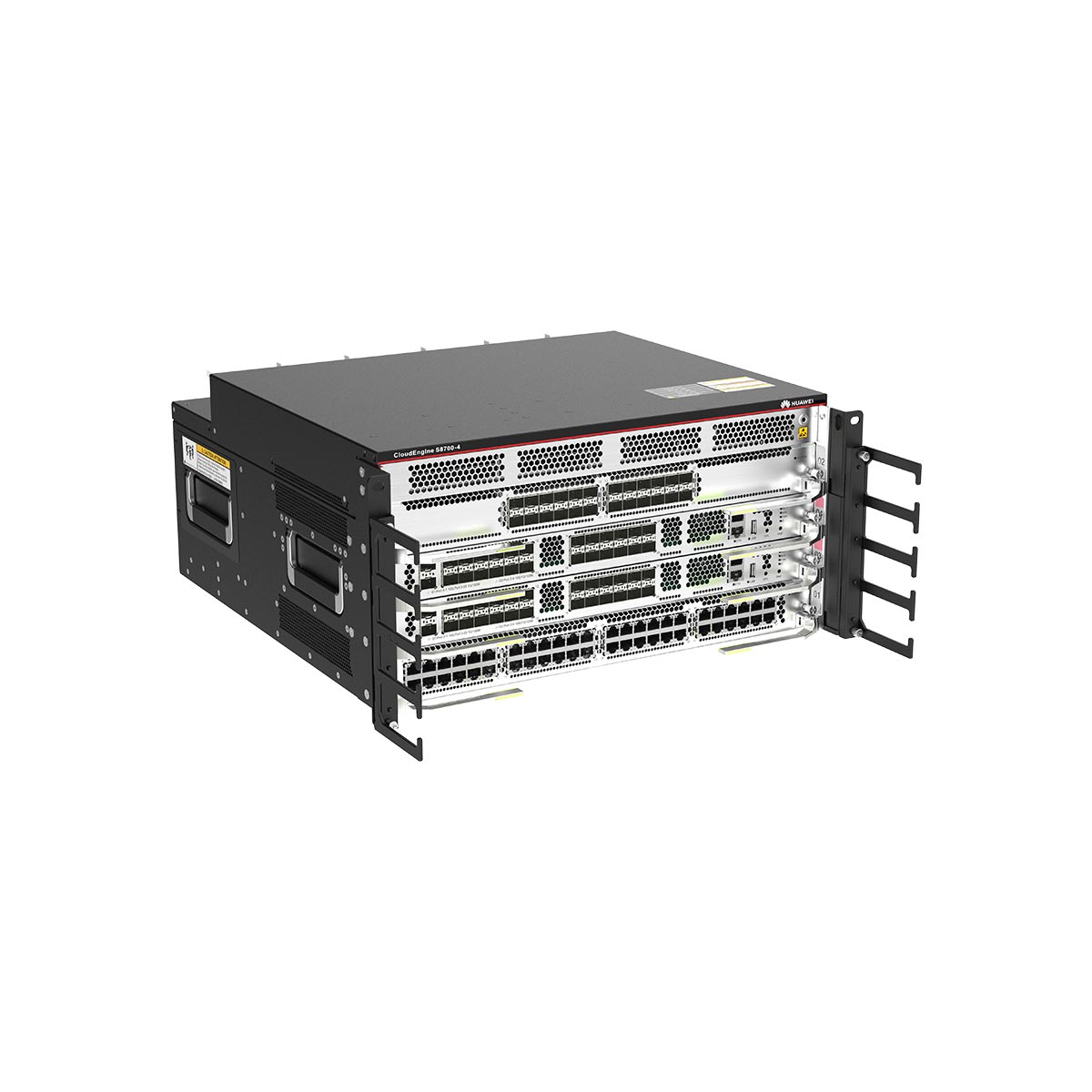

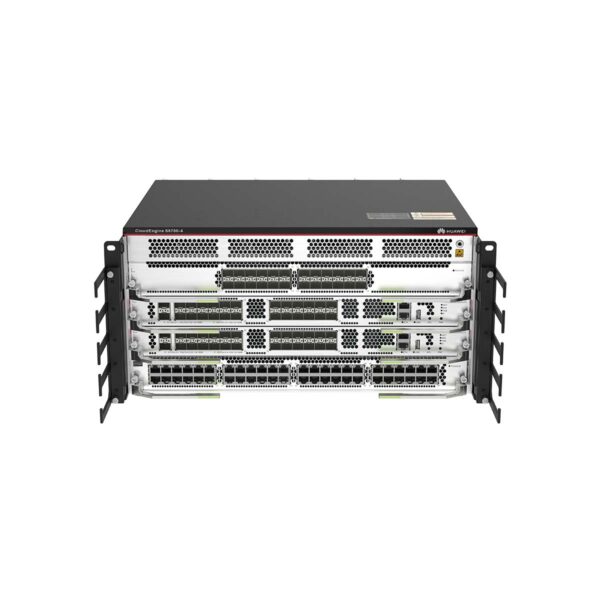

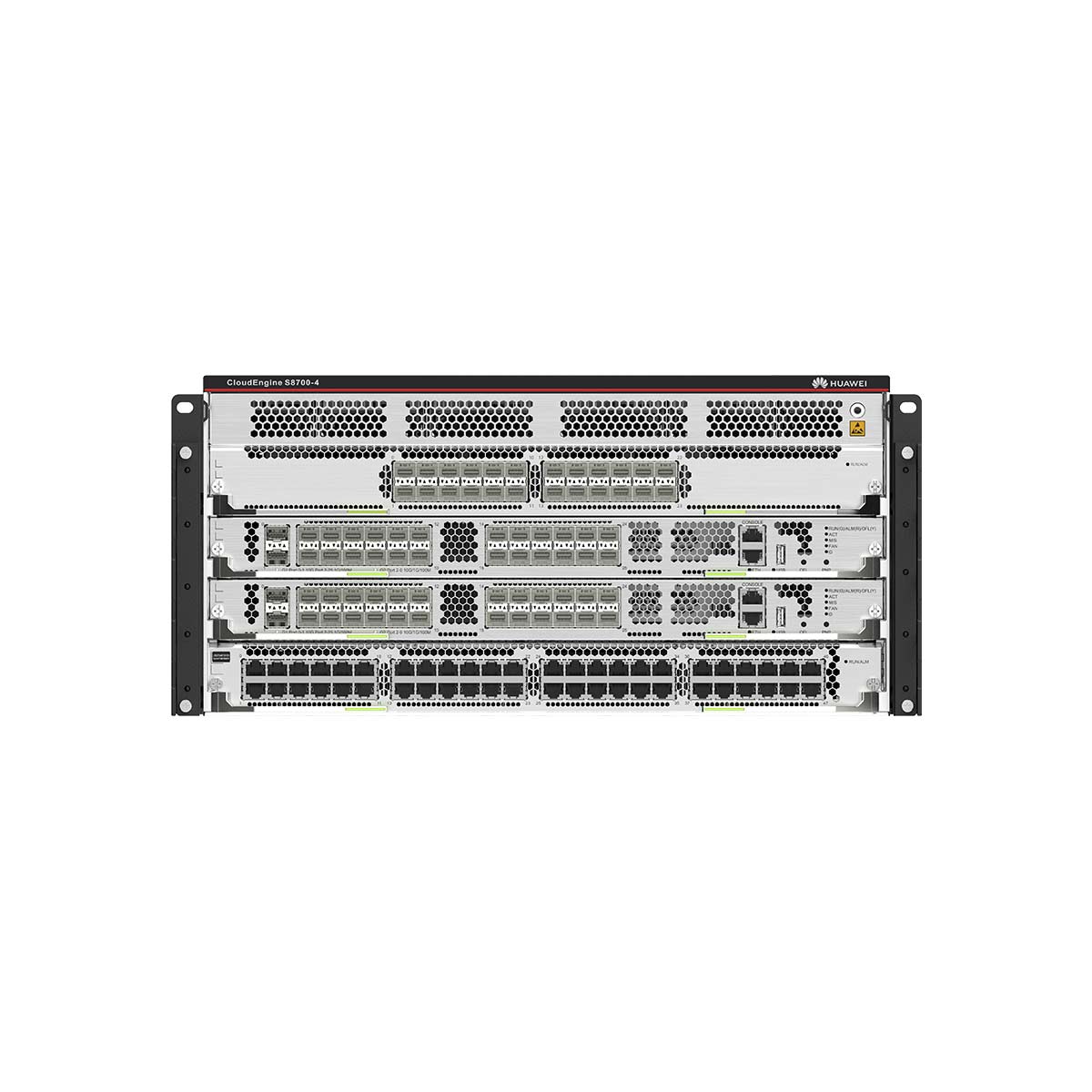

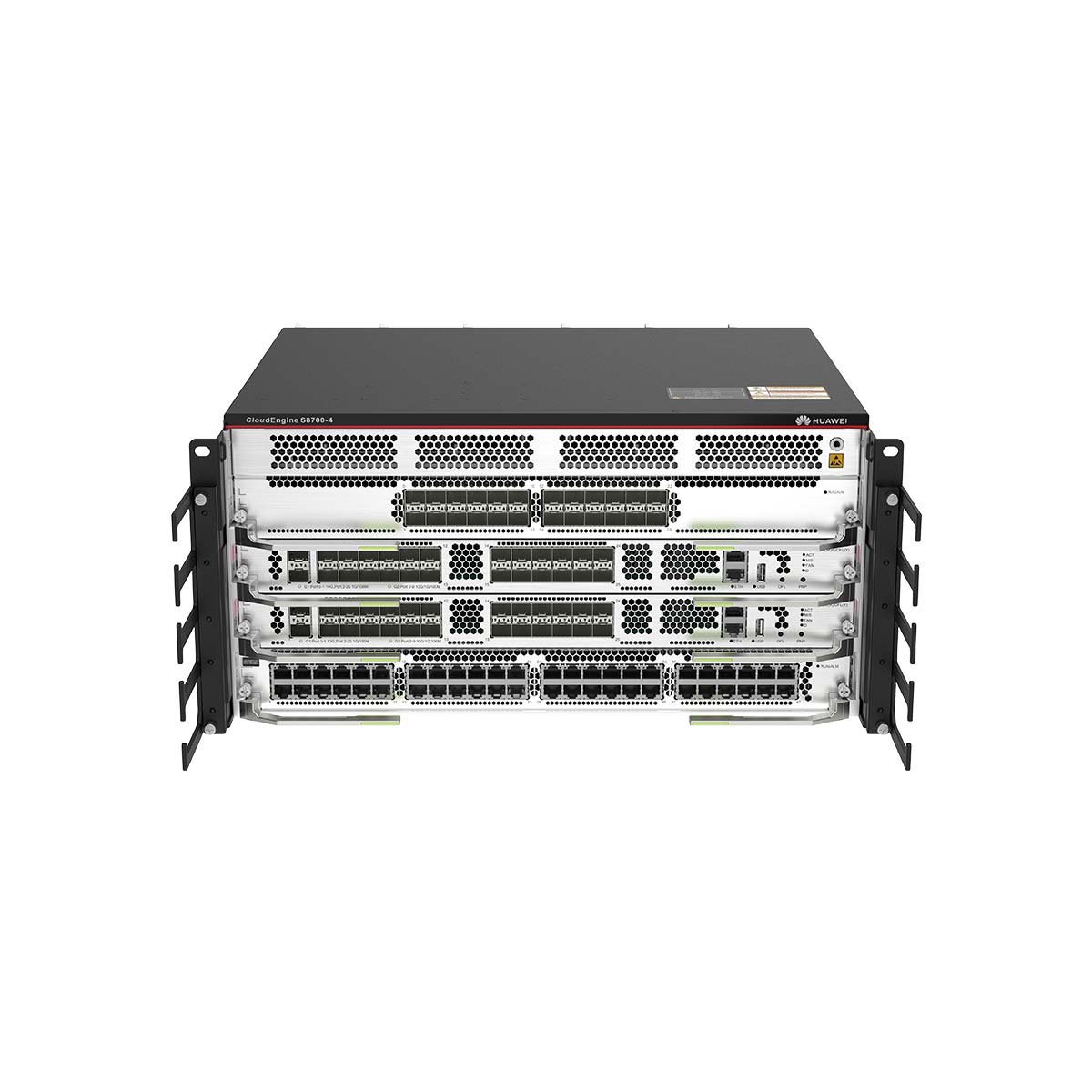

S8700-4 chassis Appearance

S8700-4

1. Chassis header

2. Mounting bracket

3. Cable management frame

4. Front ESD jack

5. LPU

6. SRU

7. Two ground points for a two-hole OT terminal

There is a yellow grounding label attached.

8. PWR

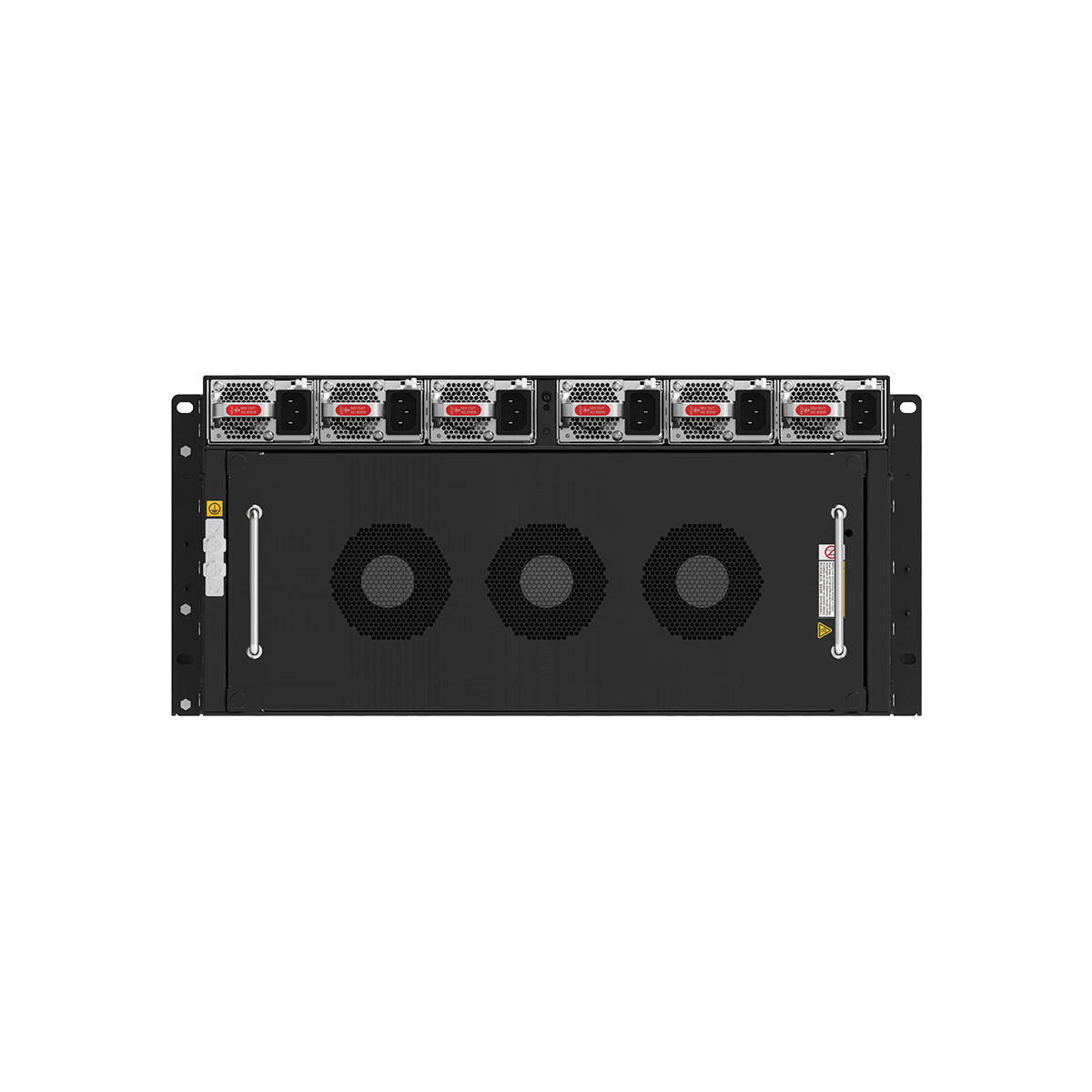

9. Fan module

–

Slot Type	Slot ID	Slot Direction	Remarks
LPU slot	Slots 1 to 2	Horizontal	Different types of LPUs can be installed in the same chassis.
SRU slot	Slots 3 and 4	Horizontal	Two SRUs work in active/standby mode for 1:1 hot standby. By default, the SRU with a smaller slot ID is the active SRU, and the SRU with a larger slot ID is the standby SRU. The SRU can provide service ports.
PWR slot	Slots 1 to 6	Horizontal	PWRs are plug-and-play.
FAN slot	Slots 1	Horizontal	The system can operate properly for a short time after a single fan fails. You are advised to replace the faulty fan module immediately.

Item	S8700-4
Chassis material	Metal
Weight without packaging [kg(lb)]	23 kg (50.71 lb) (including the device, auxiliary material package, and cable management frames)
Weight without packaging (full configuration) [kg(lb)]	44.28 kg (97.62 lb)
Maximum power consumption [W]	638 W (full configuration, without PoE)
Maximum heat dissipation [BTU/hour]	2176.93 BTU/hour
MTBF [years]	35.17 years
Availability	0.9999935084
Noise at normal temperature (acoustic power) [dB(A)]	≤ 69.5 dB(A) @ N+N power supply ≤ 73.1 dB(A) @ N+1 power supply ≤ 77.1 dB(A) @ N+0 power supply
Number of MPU slots	2
Number of service board slots	2 NOTE: The main control board can provide service ports, which have the same service access capability as those on the service board.
Number of power slots	6
Number of fans modules	1
LPU slot direction	Horizontal
Redundant MPUs	The control unit and switching unit work in hot standby (1:1) mode.
Redundant power supply	DC power supply: The N+0 and N+1 modes are supported. The N+1 mode is recommended. AC power supply: The N+0, N+1, and N+N modes are supported. The N+1 mode is recommended.
Redundant fans	If a single fan in the fan tray is faulty, the system can work properly for a short period of time. However, you are advised to replace the faulty fan tray immediately.
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of –60 m to +1800 m (–197 ft. to +5906 ft.)
Short-term operating temperature [°C(°F)]	–5°C to +55°C (23°F to 131°F) at an altitude of –60 m to 1800 m (–197 ft. to 5906 ft.) NOTE: When the short-term operating temperature ranges from 45°C to 55°C (113°F to 131°F), only optical modules with a transmission distance of less than or equal to 10 km can be used.
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800 m to 5000 m (5905.44 ft. to 16404.00 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–197 ft. to 16404 ft.)
Storage altitude [m(ft.)]	< 5000 m (16404 ft.)
Rated input voltage [V]	DC input: –48 V DC/–60 V DC AC input: 110 V AC/220 V AC, 50 Hz/60 Hz High-voltage DC input: 240 V DC
Input voltage range [V]	DC input: -38.4 V DC to -72 V DC AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz High-voltage DC input: 190 V DC to 290 V DC
Power supply surge protection [kV]	600 W AC&240 V DC/1000 W AC&240 V DC power module, AC power port: ±6 kV in common mode and ±6 kV in differential mode; HVDC power port: ±2 kV in common mode and ±4 kV in differential mode 1000 W PoE DC power module, DC power port: ±2 kV in common mode and ±4 kV in differential mode
Ingress protection level (dustproof/waterproof)	IP20
Heat dissipation mode	Absorbing cold air into the device
Airflow direction	Front-to-back airflow
PoE	Supported
Relationship between PoE and system power modules [W]	Shared, not differentiated
Maximum PoE output power per slot [W]	4800 W (2880 W/slot for the current card)
Maximum number of PoE ports per slot	48
Maximum PoE output power [W]	90 W
Maximum power output capability [W]	Six 1000 W AC&240 V DC power modules: 6000 W Six 600 W AC&240 V DC power modules: 3600 W Six 1000 W PoE DC power modules: 6000 W N 1000 W power modules and M 600 W power modules: N x 1000 W + M x 600 W NOTE: When the input voltage of an AC power module is 110 V, the AC power module cannot be used together with other power modules. Otherwise, overcurrent protection may be triggered for the power module.
Certification	EMC certification Safety certification Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	219.5 mm x 442.0 mm x 475.1 mm (8.64 in. x 17.4 in. x 18.7 in.), dimensions of the chassis body, excluding mounting brackets 219.5 mm x 482.6 mm x 577.3 mm (8.64 in. x 19 in. x 22.73 in.), including mounting brackets and cable management frames
Dimensions with packaging (H x W x D) [mm(in.)]	510 mm x 590 mm x 790 mm (20.08 in. x 23.23 in. x 31.10 in.)
Chassis height [U]	5 U
Cabinet installation standards	A66E

Item	S8700-4
Chassis material	Metal
Weight without packaging [kg(lb)]	23 kg (50.71 lb) (including the device, auxiliary material package, and cable management frames)
Weight without packaging (full configuration) [kg(lb)]	44.28 kg (97.62 lb)
Maximum power consumption [W]	638 W (full configuration, without PoE)
Maximum heat dissipation [BTU/hour]	2176.93 BTU/hour
MTBF [years]	35.17 years
Availability	0.9999935084
Noise at normal temperature (acoustic power) [dB(A)]	≤ 69.5 dB(A) @ N+N power supply ≤ 73.1 dB(A) @ N+1 power supply ≤ 77.1 dB(A) @ N+0 power supply
Number of MPU slots	2
Number of service board slots	2 NOTE: The main control board can provide service ports, which have the same service access capability as those on the service board.
Number of power slots	6
Number of fans modules	1
LPU slot direction	Horizontal
Redundant MPUs	The control unit and switching unit work in hot standby (1:1) mode.
Redundant power supply	DC power supply: The N+0 and N+1 modes are supported. The N+1 mode is recommended. AC power supply: The N+0, N+1, and N+N modes are supported. The N+1 mode is recommended.
Redundant fans	If a single fan in the fan tray is faulty, the system can work properly for a short period of time. However, you are advised to replace the faulty fan tray immediately.
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of –60 m to +1800 m (–197 ft. to +5906 ft.)
Short-term operating temperature [°C(°F)]	–5°C to +55°C (23°F to 131°F) at an altitude of –60 m to 1800 m (–197 ft. to 5906 ft.) NOTE: When the short-term operating temperature ranges from 45°C to 55°C (113°F to 131°F), only optical modules with a transmission distance of less than or equal to 10 km can be used.
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800 m to 5000 m (5905.44 ft. to 16404.00 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–197 ft. to 16404 ft.)
Storage altitude [m(ft.)]	< 5000 m (16404 ft.)
Rated input voltage [V]	DC input: –48 V DC/–60 V DC AC input: 110 V AC/220 V AC, 50 Hz/60 Hz High-voltage DC input: 240 V DC
Input voltage range [V]	DC input: -38.4 V DC to -72 V DC AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz High-voltage DC input: 190 V DC to 290 V DC
Power supply surge protection [kV]	600 W AC&240 V DC/1000 W AC&240 V DC power module, AC power port: ±6 kV in common mode and ±6 kV in differential mode; HVDC power port: ±2 kV in common mode and ±4 kV in differential mode 1000 W PoE DC power module, DC power port: ±2 kV in common mode and ±4 kV in differential mode
Ingress protection level (dustproof/waterproof)	IP20
Heat dissipation mode	Absorbing cold air into the device
Airflow direction	Front-to-back airflow
PoE	Supported
Relationship between PoE and system power modules [W]	Shared, not differentiated
Maximum PoE output power per slot [W]	4800 W (2880 W/slot for the current card)
Maximum number of PoE ports per slot	48
Maximum PoE output power [W]	90 W
Maximum power output capability [W]	Six 1000 W AC&240 V DC power modules: 6000 W Six 600 W AC&240 V DC power modules: 3600 W Six 1000 W PoE DC power modules: 6000 W N 1000 W power modules and M 600 W power modules: N x 1000 W + M x 600 W NOTE: When the input voltage of an AC power module is 110 V, the AC power module cannot be used together with other power modules. Otherwise, overcurrent protection may be triggered for the power module.
Certification	EMC certification Safety certification Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	219.5 mm x 442.0 mm x 475.1 mm (8.64 in. x 17.4 in. x 18.7 in.), dimensions of the chassis body, excluding mounting brackets 219.5 mm x 482.6 mm x 577.3 mm (8.64 in. x 19 in. x 22.73 in.), including mounting brackets and cable management frames
Dimensions with packaging (H x W x D) [mm(in.)]	510 mm x 590 mm x 790 mm (20.08 in. x 23.23 in. x 31.10 in.)
Chassis height [U]	5 U
Cabinet installation standards	A66E
