S6750-S16X10Y2CZ

Name: S6750-S16X10Y2CZ
SKU: 2026814
Availability: InStock

0 Reviews Write a review

SKU2026814

AvailabilityIn Stock

Campus Switch S5730S-EI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

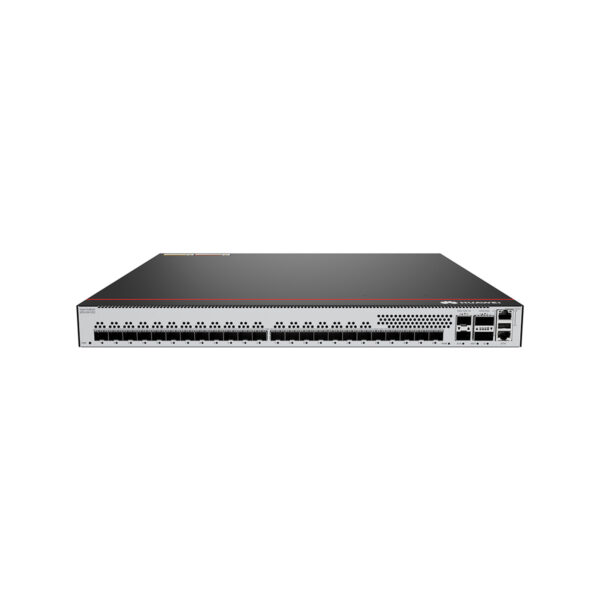

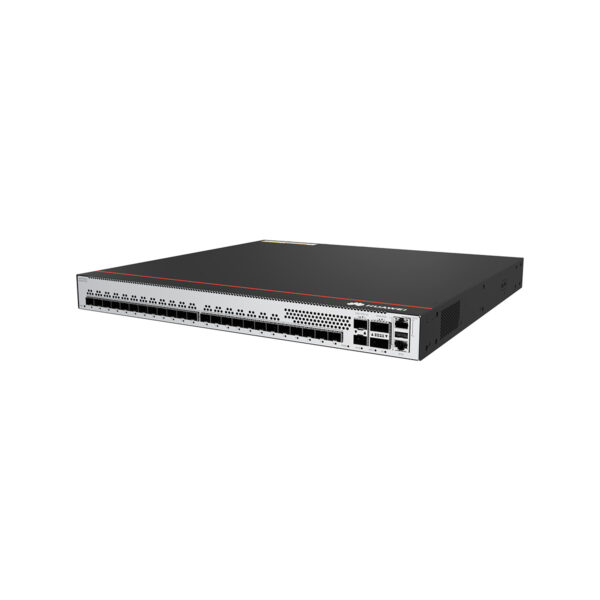

Huawei S6750-S16X10Y2CZ switch supports 16*10GE SFP+ ports, 8*25GE SFP28 ports, expansion card slot, without power module

Customer Satisfacition

Description

S6750-S16X10Y2CZ Overview

Item	S6750-S16X10Y2CZ
Description	S6750-S16X10Y2CZ (1610GE SFP+ ports, 1025GE SFP28 ports, 2*100GE QSFP28 ports, expansion card slot, without power module)
Part Number	98012444
Model	S6750-S16X10Y2CZ
First supported version	V600R024C00
Remarks	When cards are used, power modules with a power of 240 W or higher must be used.

S6750-S16X10Y2CZ Quick Spec

1	One PNP button	2	Sixteen FE/GE/2.5GE/10GE SFP+ optical ports
3	Ten GE/2.5GE/10GE/25GE SFP28 optical ports	4	Two 40GE/100GE QSFP28 optical ports
5	One console port	6	One USB port
7	One ETH management port	8	Ground screw
9	Card slot	10	Fan module slot 1
11	Fan module slot 2	12	Power module slot 1 NOTE: Applicable power modules: PAC180S12-CN PDC240S12-CN PDC400S12-CB PAC600S12-PB
13	Power module slot 2 NOTE: Applicable power modules: PAC180S12-CN PDC240S12-CN PDC400S12-CB PAC600S12-PB	–	–

S6750-S16X10Y2CZ Datasheet

Item	S6750-S16X10Y2CZ
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 454.0 mm (1.72 in. x 17.4 in. x 17.87 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	145.0 mm x 650.0 mm x 550.0 mm (5.71 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Chassis material	Metal
Weight without packaging [kg(lb)]	5.20 kg (11.46 lb)
Weight with packaging [kg(lb)]	7.67 kg (16.91 lb)
Typical power consumption [W]	30% traffic under the ATIS standard and dual power modules: 79 W (with two 180 W AC power modules) 73 W (with two 240 W DC power modules)
Typical heat dissipation [BTU/hour]	30% traffic under the ATIS standard and dual power modules: 270 (with two 180 W AC power modules) 249 (with two 240 W DC power modules)
Maximum power consumption [W]	100% traffic under the ATIS standard and dual power modules: 85 W (with two 180 W AC power modules) 78 W (with two 240 W DC power modules)
Maximum heat dissipation [BTU/hour]	100% traffic under the ATIS standard and dual power modules: 290 (with two 180 W AC power modules) 266 (with two 240 W DC power modules)
Static power consumption [W]	50 W
MTBF [years]	81.40 years
MTTR [hours]	1.47 hours
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	54.2 dBA
Noise at normal temperature (acoustic pressure) [dB(A)]	41.2 dBA
Number of card slots	1
Number of power slots	2
Number of fans modules	2
Redundant power supply	1+1 Pluggable AC and DC power modules can be used together on the same device. NOTE: Power modules with fans and power modules without fans cannot be installed on the same device.
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met: The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year. The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours. The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year. If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur. Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Memory	4 GB
Flash memory	Physical space: 2 GB
Console port	RJ45
Eth Management port	RJ45
USB	Supported
RTC	Supported
RPS input	Not supported
Power supply surge protection [kV]	Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Pluggable
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from front and right and air exhaust from rear
PoE	Not supported
Certification	EMC certification Safety certification Manufacturing certification

S6750-S16X10Y2CZ Datasheet

Item	S6750-S16X10Y2CZ
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 454.0 mm (1.72 in. x 17.4 in. x 17.87 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	145.0 mm x 650.0 mm x 550.0 mm (5.71 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Chassis material	Metal
Weight without packaging [kg(lb)]	5.20 kg (11.46 lb)
Weight with packaging [kg(lb)]	7.67 kg (16.91 lb)
Typical power consumption [W]	30% traffic under the ATIS standard and dual power modules: 79 W (with two 180 W AC power modules) 73 W (with two 240 W DC power modules)
Typical heat dissipation [BTU/hour]	30% traffic under the ATIS standard and dual power modules: 270 (with two 180 W AC power modules) 249 (with two 240 W DC power modules)
Maximum power consumption [W]	100% traffic under the ATIS standard and dual power modules: 85 W (with two 180 W AC power modules) 78 W (with two 240 W DC power modules)
Maximum heat dissipation [BTU/hour]	100% traffic under the ATIS standard and dual power modules: 290 (with two 180 W AC power modules) 266 (with two 240 W DC power modules)
Static power consumption [W]	50 W
MTBF [years]	81.40 years
MTTR [hours]	1.47 hours
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	54.2 dBA
Noise at normal temperature (acoustic pressure) [dB(A)]	41.2 dBA
Number of card slots	1
Number of power slots	2
Number of fans modules	2
Redundant power supply	1+1 Pluggable AC and DC power modules can be used together on the same device. NOTE: Power modules with fans and power modules without fans cannot be installed on the same device.
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met: The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year. The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours. The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year. If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur. Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Memory	4 GB
Flash memory	Physical space: 2 GB
Console port	RJ45
Eth Management port	RJ45
USB	Supported
RTC	Supported
RPS input	Not supported
Power supply surge protection [kV]	Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Pluggable
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from front and right and air exhaust from rear
PoE	Not supported
Certification	EMC certification Safety certification Manufacturing certification
