Categories:S6750-S Series

S6750-H36C

Name: S6750-H36C
SKU: 2026879
Availability: InStock

0 Reviews Write a review

PN02355UEK

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

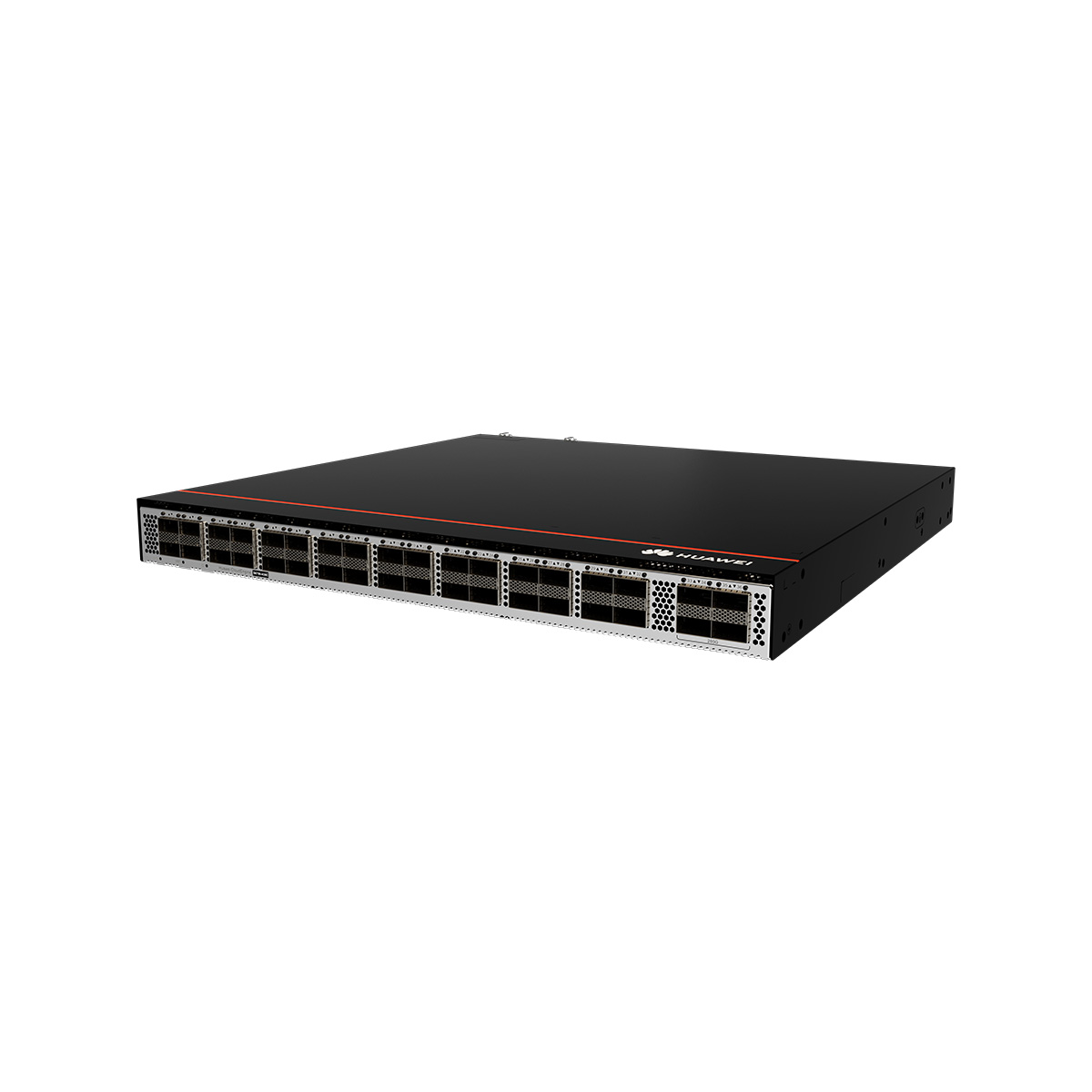

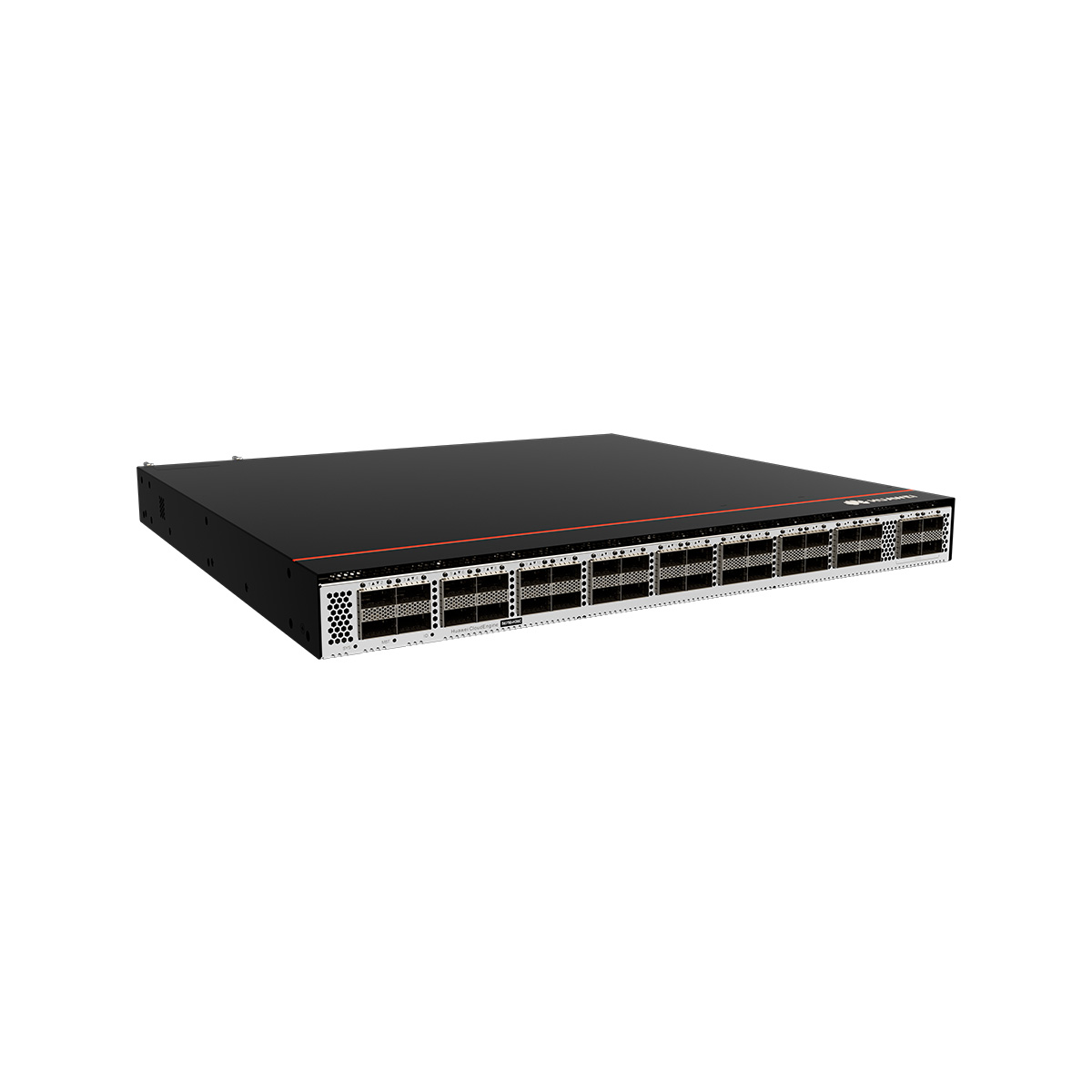

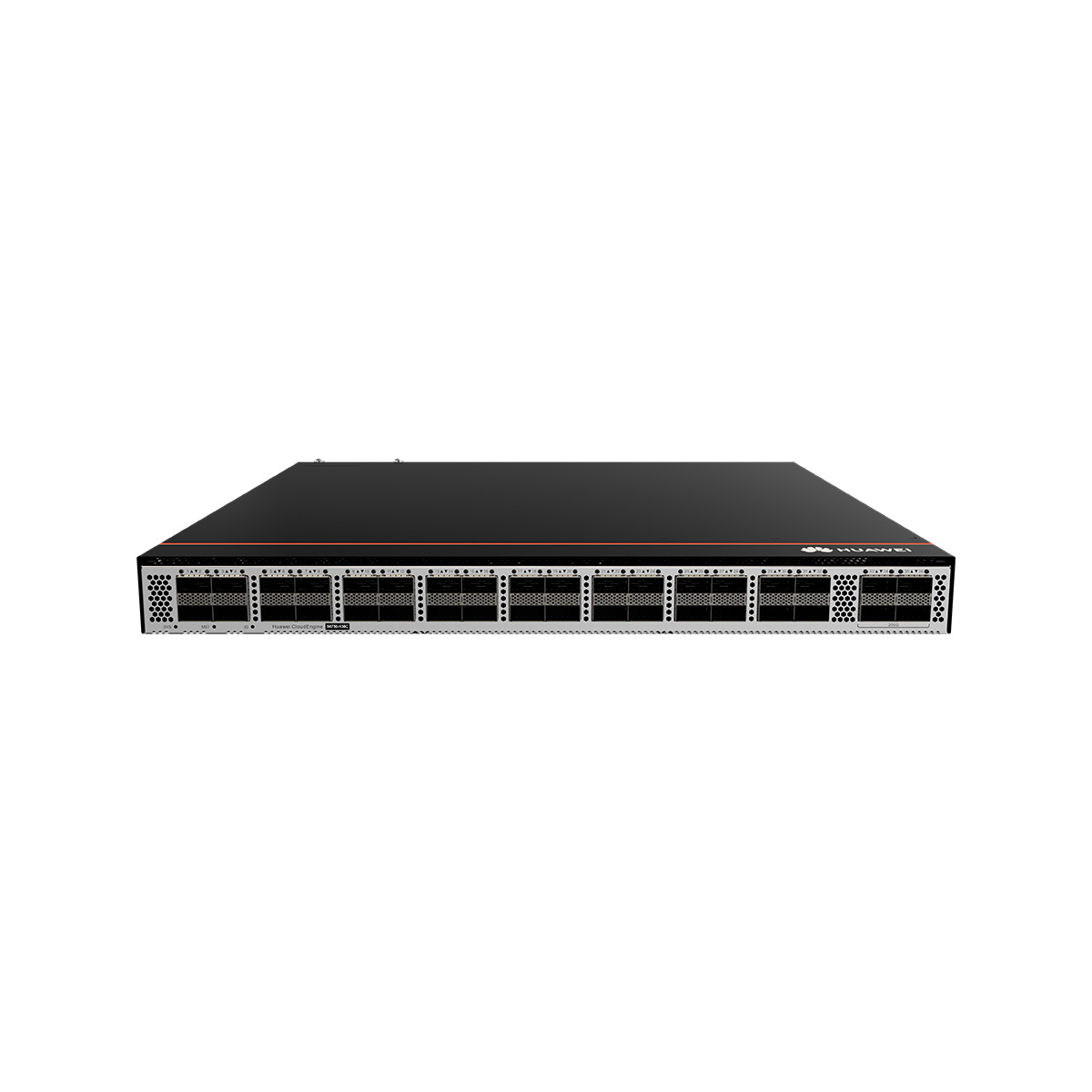

Huawei S6750-H36C switch supports 36*100GE QSFP28 ports, without power module

Customer Satisfacition

Description

S6750-H36C Overview

Item	S6750-H36C
Description	S6750-H36C (36*100GE QSFP28 ports, without power module)
Part Number	02355UEK
Model	S6750-H36C
First supported version	V600R023C10

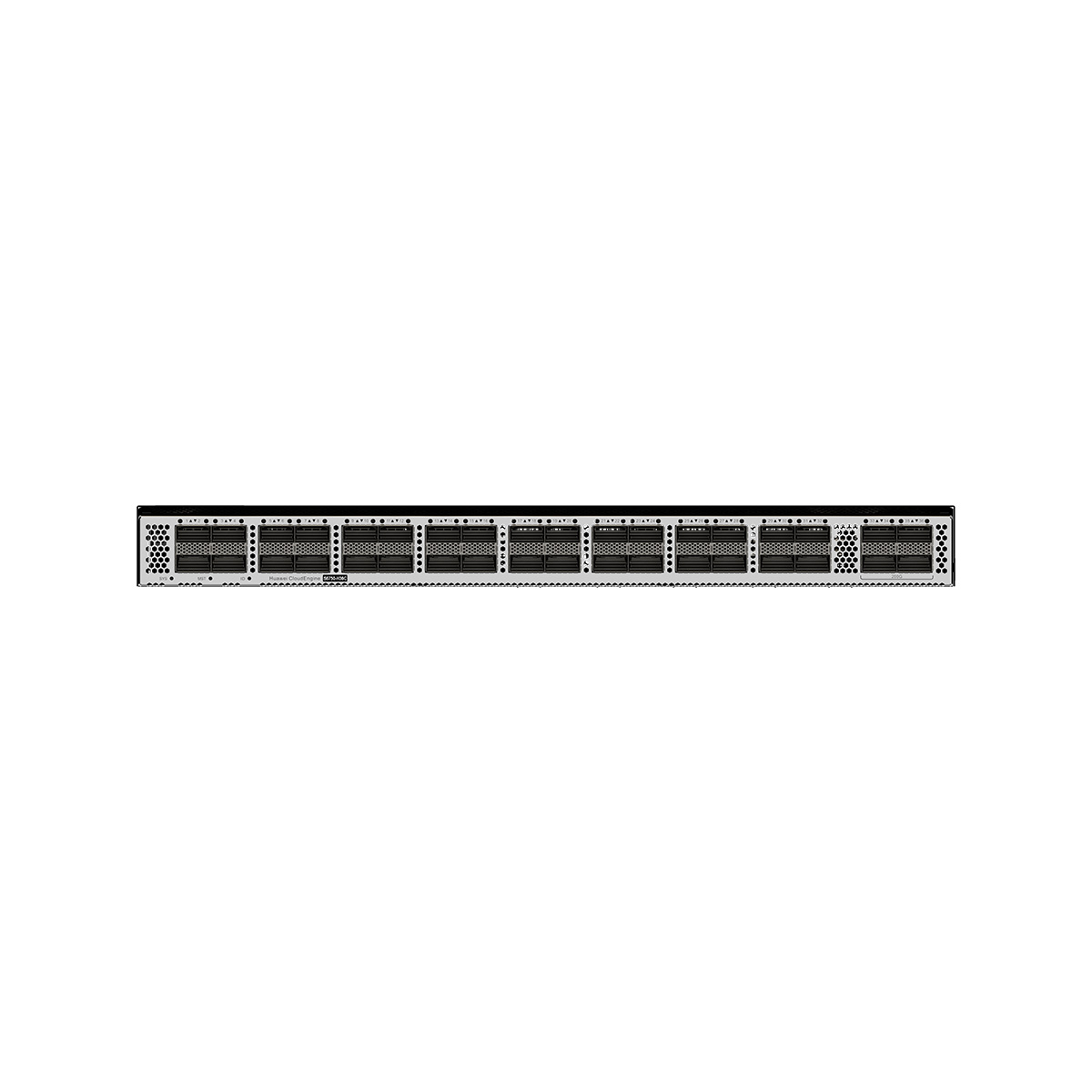

S6750-H36C Quick Spec

1	Thirty-two 40GE/100GE QSFP28 optical ports	2	Four 40GE/100GE QSFP28 optical ports NOTE: The 200GE rate is reserved and is not supported in V600R023C10.
3	Ground screw	4	One USB port
5	One console port	6	One ETH management port
7	Fan module slot 1	8	Fan module slot 2
9	Fan module slot 3	10	Fan module slot 4
11	Fan module slot 5	12	Power module slot 1 NOTE: Applicable power modules: PAC1K2S12-PB(1200W AC&240V DC Power Module (66 mm Width Case, Back to Front,Power panel side exhaust)) PDC1K2S12-CE(1200W DC Power Module (66 mm Width case, Back to Front, Power panel side exhaust))
13	Power module slot 2 NOTE: Applicable power modules: PAC1K2S12-PB(1200W AC&240V DC Power Module (66 mm Width Case, Back to Front,Power panel side exhaust)) PDC1K2S12-CE (1200W DC Power Module (66 mm Width case, Back to Front, Power panel side exhaust))	–	–

S6750-H36C Datasheet

Item	S6750-H36C
Typical power consumption [W]	30% traffic under the ATIS standard and dual power modules: 537 W
Typical heat dissipation [BTU/hour]	30% traffic under the ATIS standard and dual power modules: 1832.30
Maximum power consumption [W]	100% traffic under the ATIS standard and dual power modules: 558 W High temperature 45°C (113°F), 100% traffic, long-distance optical module, and dual power modules: 679 W
Maximum heat dissipation [BTU/hour]	100% traffic under the ATIS standard and dual power modules: 1903.95 High temperature 45°C (113°F), 100% traffic, long-distance optical module, and dual power modules: 2316.82
Static power consumption [W]	317 W
MTBF [years]	27.77 years
MTTR [hours]	2 hours
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	57.7 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	57.2 dB(A)
Number of card slots	0
Number of power slots	2
Number of fans modules	5
Redundant power supply	1+1 Pluggable AC and DC power modules can be used together in the same switch.
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 240 V AC; 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45–65 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Memory	8 GB
Flash memory	Physical space: 4 GB
Console port	RJ45
Eth Management port	RJ45
USB	Supported
RTC	Supported
RPS input	Not supported
Service port surge protection [kV]	-
Power supply surge protection [kV]	Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Pluggable
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from front, air exhaustion from rear (front-to-rear)
PoE	Not supported
Certification	EMC certification Safety certification Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.5 mm (1.72 in. x 17.4 in. x 17.58 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Chassis material	Metal
Weight without packaging [kg(lb)]	6.72 kg (14.81 lb)
Weight with packaging [kg(lb)]	11 kg (24.25 lb)

S6750-H36C Datasheet

Item	S6750-H36C
Typical power consumption [W]	30% traffic under the ATIS standard and dual power modules: 537 W
Typical heat dissipation [BTU/hour]	30% traffic under the ATIS standard and dual power modules: 1832.30
Maximum power consumption [W]	100% traffic under the ATIS standard and dual power modules: 558 W High temperature 45°C (113°F), 100% traffic, long-distance optical module, and dual power modules: 679 W
Maximum heat dissipation [BTU/hour]	100% traffic under the ATIS standard and dual power modules: 1903.95 High temperature 45°C (113°F), 100% traffic, long-distance optical module, and dual power modules: 2316.82
Static power consumption [W]	317 W
MTBF [years]	27.77 years
MTTR [hours]	2 hours
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	57.7 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	57.2 dB(A)
Number of card slots	0
Number of power slots	2
Number of fans modules	5
Redundant power supply	1+1 Pluggable AC and DC power modules can be used together in the same switch.
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 240 V AC; 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45–65 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Memory	8 GB
Flash memory	Physical space: 4 GB
Console port	RJ45
Eth Management port	RJ45
USB	Supported
RTC	Supported
RPS input	Not supported
Service port surge protection [kV]	-
Power supply surge protection [kV]	Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Pluggable
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from front, air exhaustion from rear (front-to-rear)
PoE	Not supported
Certification	EMC certification Safety certification Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.5 mm (1.72 in. x 17.4 in. x 17.58 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Chassis material	Metal
Weight without packaging [kg(lb)]	6.72 kg (14.81 lb)
Weight with packaging [kg(lb)]	11 kg (24.25 lb)

Weight	15.0000 kg
Dimensions	71.0000 × 55.0000 × 17.5000 cm
