S6730S-S24X6Q-A

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN02353AJX

BrandsHuawei

AvailabilityIn Stock

Campus Switch S6730S-S

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S6730S-S24X6Q-A switch supports 24 10GE SFP+ ports, 6 40GE QSFP+ ports, 2 hot swappable AC/DC power supplies, 1 AC equipped

10GE Switch 24 Ports Switch 40GE Uplink Switch Core/Aggregation Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

Huawei S6730S-S24X6Q-A overview

Huawei S6730S-S24X6Q-A with 24 10GE SFP+ ports, 6 40GE QSFP+ ports, is one of the Huawei S6730 series switches.

Huawei CloudEngine S6730-S series full-featured 10 GE switches are Huawei’s new generation fixed switches, to provide 10GE downlink ports as well as 40GE uplink ports. Huawei CloudEngine S6730-S can be used to provide high-speed access for 10 Gbit/s access to high-density servers or function as a core/aggregation switch on a campus network to provide 40 Gbit/s rates. In addition, S6730-S provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable, reliable, and secure campus and data center networks.

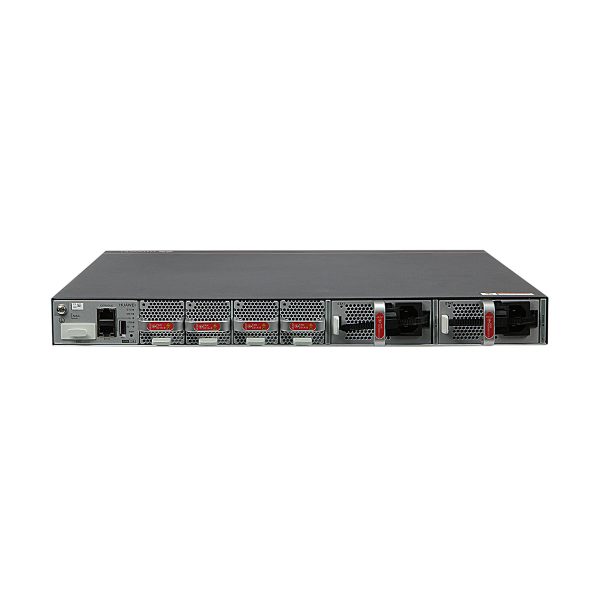

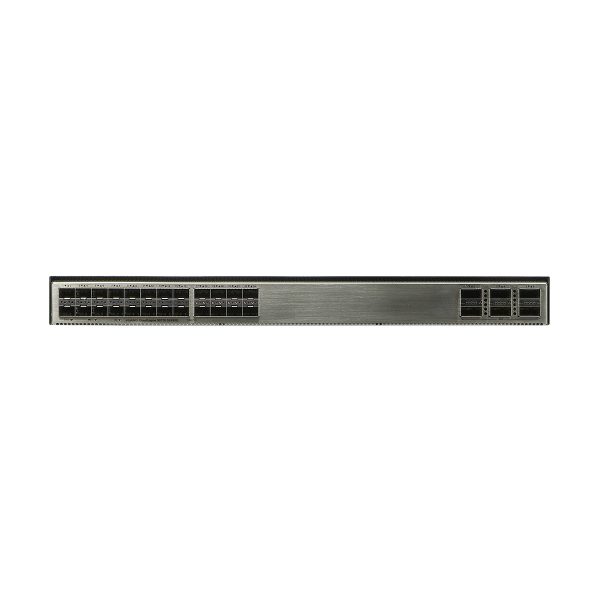

S6730S-S24X6Q-A appearance and structure

1. Twenty-four 10GE SFP+ ports OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR	8. One PNP button
2. Six 40GE QSFP+ optical ports QSFP-40G-eSR4 QSFP-40G-iSR4 QSFP-40G-eSDLC-PAM QSFP-40G-LR4 QSFP-40G-SDLC-PAM	9. Fan module slot 1
3. Ground screw	10. Fan module slot 2
4. SSD card slot	11. Fan module slot 3
5. One console port	12. Fan module slot 4
6. One ETH management port	13. Power module slot 1
7. One USB port	14. Power module slot 2

Item	S6730S-S24X6Q-A
Fixed port	24 x 10 Gig SFP+, 6 x 40 Gig QSFP+
Extended slot	NA
Forwarding performance	490Mpps
Switching capacity	960Gbps/2.4Tbps NOTE The value before the slash (/) refers to the device's switching capability, while the value after the slash (/) means the chip's switching capability.
MAC address table	Up to 64K MAC address entries IEEE 802.1d standards compliance MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN	4K VLANs Guest VLANs and voice VLANs GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping
ARP	Static ARP
ARP	Dynamic ARP
IP routing	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy Up to 32K FIBv4 entries Up to 16K FIBv6 entries
Interoperability	VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST Link-type Negotiation Protocol (LNP), similar to DTP VLAN Central Management Protocol (VCMP), similar to VTP
Ethernet loop protection	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
	SEP
	ERPS (G.8032)
	BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	BPDU protection, root protection, and loop protection
IPv6 features	Neighbor Discover (ND)
	PMTU
	IPv6 Ping, IPv6 Tracert, IPv6 Telnet
	ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types
	Multicast Listener Discovery snooping (MLDv1/v2)
	IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
	IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM
	MSDP
	Multicast VPN
QoS/ACL	Rate limiting in the inbound and outbound directions of a port Packet redirection port-based traffic policing and two-rate three-color CAR Eight queues on each port DRR, SP, and DRR+SP queue scheduling algorithms WRED Re-marking of the 802.1p and DSCP fields of packets Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination the port number, protocol type, and VLAN ID Queue-based rate-limiting and shaping on ports
Security features	Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, port number, and VLAN ID Port isolation, port security, and sticky MAC MAC Forced Forwarding (MFF) Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1X authentication and limit on the number of users on a port AAA authentication, RADIUS authentication, and HWTACACS authentication NAC SSH V2.0 HTTPS CPU protection Blacklist and whitelist Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets IPSec for management packet encryption ECA Deception
Reliability	LACP E-Trunk Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag) ITU-Y.1731 DLDP LLDP BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routes
VXLAN	VXLAN functions, VXLAN L2 and L3 gateways, BGP EVPN VXLAN configuration using NETCONF/YANG
SVF	Acting as the parent node to vertically virtualize downlink switches and APs as one device for management Two-layer client architecture ASs can be independently configured. Services not supported by templates can be configured on the parent node. Third-party devices allowed between SVF parent and clients
iPCA	Marking service packets to obtain the packet loss ratio and number of lost packets in real-time Measurement of the number of lost packets and packet loss ratio on networks and devices
Management and maintenance	Cloud-based management Virtual cable test SNMP v1/v2c/v3 RMON Web-based NMS System logs and alarms of different severities GVRP MUX VLAN NetStream Telemetry
Input voltage	AC Power Rated AC voltage: 100V to 240V AC; 50/60 Hz Max. AC voltage: 90V to 290V AC; 45–65 Hz DC Power –48V～–60V
Dimensions (mm)	442 mm x 420 mm x 43.6 mm
Input current	AC 600W：Max 8A
Operating temperature	1800 m altitude: -5°C to 45°C
Operating temperature	1800–5000 m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220 m.
Heat dissipation	Heat dissipation with fan, intelligent fan speed adjustment

Item	S6730S-S24X6Q-A
Fixed port	24 x 10 Gig SFP+, 6 x 40 Gig QSFP+
Extended slot	NA
Forwarding performance	490Mpps
Switching capacity	960Gbps/2.4Tbps NOTE The value before the slash (/) refers to the device's switching capability, while the value after the slash (/) means the chip's switching capability.
MAC address table	Up to 64K MAC address entries IEEE 802.1d standards compliance MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN	4K VLANs Guest VLANs and voice VLANs GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping
ARP	Static ARP
ARP	Dynamic ARP
IP routing	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy Up to 32K FIBv4 entries Up to 16K FIBv6 entries
Interoperability	VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST Link-type Negotiation Protocol (LNP), similar to DTP VLAN Central Management Protocol (VCMP), similar to VTP
Ethernet loop protection	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
	SEP
	ERPS (G.8032)
	BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	BPDU protection, root protection, and loop protection
IPv6 features	Neighbor Discover (ND)
	PMTU
	IPv6 Ping, IPv6 Tracert, IPv6 Telnet
	ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types
	Multicast Listener Discovery snooping (MLDv1/v2)
	IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
	IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM
	MSDP
	Multicast VPN
QoS/ACL	Rate limiting in the inbound and outbound directions of a port Packet redirection port-based traffic policing and two-rate three-color CAR Eight queues on each port DRR, SP, and DRR+SP queue scheduling algorithms WRED Re-marking of the 802.1p and DSCP fields of packets Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination the port number, protocol type, and VLAN ID Queue-based rate-limiting and shaping on ports
Security features	Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, port number, and VLAN ID Port isolation, port security, and sticky MAC MAC Forced Forwarding (MFF) Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1X authentication and limit on the number of users on a port AAA authentication, RADIUS authentication, and HWTACACS authentication NAC SSH V2.0 HTTPS CPU protection Blacklist and whitelist Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets IPSec for management packet encryption ECA Deception
Reliability	LACP E-Trunk Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag) ITU-Y.1731 DLDP LLDP BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routes
VXLAN	VXLAN functions, VXLAN L2 and L3 gateways, BGP EVPN VXLAN configuration using NETCONF/YANG
SVF	Acting as the parent node to vertically virtualize downlink switches and APs as one device for management Two-layer client architecture ASs can be independently configured. Services not supported by templates can be configured on the parent node. Third-party devices allowed between SVF parent and clients
iPCA	Marking service packets to obtain the packet loss ratio and number of lost packets in real-time Measurement of the number of lost packets and packet loss ratio on networks and devices
Management and maintenance	Cloud-based management Virtual cable test SNMP v1/v2c/v3 RMON Web-based NMS System logs and alarms of different severities GVRP MUX VLAN NetStream Telemetry
Input voltage	AC Power Rated AC voltage: 100V to 240V AC; 50/60 Hz Max. AC voltage: 90V to 290V AC; 45–65 Hz DC Power –48V～–60V
Dimensions (mm)	442 mm x 420 mm x 43.6 mm
Input current	AC 600W：Max 8A
Operating temperature	1800 m altitude: -5°C to 45°C
Operating temperature	1800–5000 m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220 m.
Heat dissipation	Heat dissipation with fan, intelligent fan speed adjustment

Weight	19 kg
Dimensions	71 × 55 × 17.5 cm
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
Campus Switch	S6730S-S
