Categories:S6730 Series

S6730-S24X6Q-AC

Rated 4.67 out of 5 based on 3 customer ratings

3 Reviews Write a review

PN02353AJW

BrandsHuawei

AvailabilityIn Stock

Campus Switch S6730-S

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S6730-S24X6Q-AC switch supports 24 10GE SFP+ ports, 6 40GE QSFP ports, 2 hot swappable power supplies, 1 AC equipped

10GE Switch 24 Ports Switch 40GE Uplink Switch Core/Aggregation Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S6730-S24X6Q-AC overview

Huawei S6730-S24X6Q-AC with 24 10GE SFP+ ports and 6 40GE QSFP+ ports is one of the Huawei S6730 series switches.

Huawei CloudEngine S6730-S series full-featured switches provide 10 GE downlink ports and 40 GE uplink ports. They can be used to provide high-speed access for 10 Gbit/s access to high-density servers or function as core/aggregation switches on a campus network to provide a rate of 40 Gbit/s. With VXLAN-based virtualization, comprehensive security policies, and various QoS features, CloudEngine S6730-S can help you build scalable, reliable, and secure campus and data center networks.

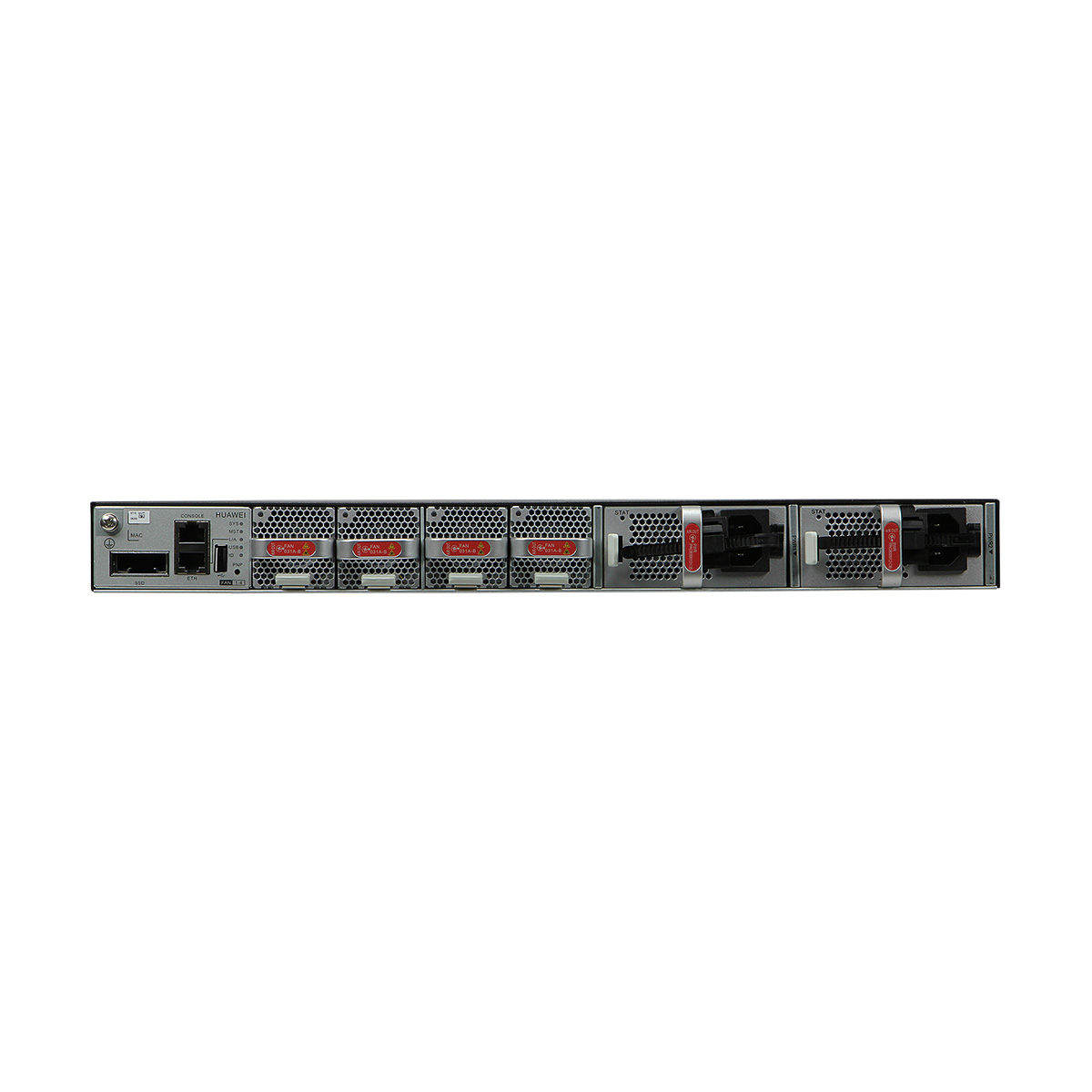

S6730-S24X6Q-AC appearance and structure

1. Twenty-four 10GE SFP+ ports OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR	8. One PNP button
2. Six 40GE QSFP+ optical ports QSFP-40G-eSR4 QSFP-40G-iSR4 QSFP-40G-eSDLC-PAM QSFP-40G-LR4 QSFP-40G-SDLC-PAM	9. Fan module slot 1
3. Ground screw	10. Fan module slot 2
4. SSD card slot	11. Fan module slot 3
5. One console port	12. Fan module slot 4
6. One ETH management port	13. Power module slot 1
7. One USB port	14. Power module slot 2

Item	S6730-S24X6Q-AC
Fixed port	24 x 10 GE SFP+, 6 x 40 GE QSFP
Extended slot	NA
MAC address table	Up to 64K MAC address entries
	IEEE 802.1d standards compliance
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLANs and voice VLANs
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	VLAN mapping
ARP	Static ARP
ARP	Dynamic ARP
IP routing	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy
	Up to 64K FIBv4 entries
	Up to 32K FIBv6 entries
Interoperability	VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST
	Link-type Negotiation Protocol (LNP), similar to DTP
	VLAN Central Management Protocol (VCMP), similar to VTP
Ethernet loop protection	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
	SEP
	ERPS (G.8032)
	BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	BPDU protection, root protection, and loop protection
IPv6 features	Neighbor Discover (ND)
	PMTU
	IPv6 Ping, IPv6 Tracert, IPv6 Telnet
	ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types
	Multicast Listener Discovery snooping (MLDv1/v2)
	IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
	IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM
	MSDP
	Multicast VPN
QoS/ACL	Inbound and outbound traffic rate limiting on a port
	Packet redirection
	Broadcast storm control
	Port-based traffic policing and two-rate and three-color CAR
	Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
	Weighted random early detection (WRED)
	Re-marking of the 802.1p priority and DSCP value of packets
	Packet filtering based on Layer 2 to Layer 4 information, includi ng source MAC addresses, destination MAC addresses, source IP addresses, destination IP addresses, TCP/UCD source/destination ports, protocol types, and VLAN IDs
	Per queue rate limiting and interface traffic shaping
	1:1,N:1,N:4 port mirroring; VLAN mirroring
Security features	Hierarchical user management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, port number, and VLAN ID
	Port isolation, port security, and sticky MAC
	MAC Forced Forwarding (MFF)
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	IEEE 802.1X authentication and limit on the number of users on a port
	AAA authentication, RADIUS authentication, and HWTACACS authentication
	NAC
	SSH V2.0
	HTTPS
	CPU protection
	Blacklist and whitelist
	Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets
	IPSec for management packet encryption
	ECA
	Deception
Reliability	LACP
	E-Trunk
	Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag)
	ITU-Y.1731
	DLDP
	LLDP
	BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routes
VXLAN	VXLAN functions, VXLAN L2 and L3 gateways, BGP EVPN
VXLAN	VXLAN configuration using NETCONF/YANG
SVF	Acting as the parent node to vertically virtualize downlink switches and APs as one device for management
	Two-layer client architecture
	ASs can be independently configured. Services not supported by templates can be configured on the parent node.
	Third-party devices allowed between SVF parent and clients
iPCA	Marking service packets to obtain the packet loss ratio and number of lost packets in real time
iPCA	Measurement of the number of lost packets and packet loss ratio on networks and devices
Management and maintenance	Cloud-based management
	Virtual cable test
	SNMP v1/v2c/v3
	RMON
	Web-based NMS
	System logs and alarms of different severities
	GVRP
	MUX VLAN
	802.3az Energy Efficient Ethernet (EEE)
	NetStream
	Telemetry
Input voltage	Rated AC voltage: 100V to 240V AC; 50/60 Hz
Input voltage	Max. AC voltage: 90V to 290V AC; 45–65 Hz
Dimensions (mm)	442 (W) x 220 (D)x 43.6 (H)
Input current	AC 600W：Max 8A
Operating temperature	1800 m altitude: -5°C to 45°C
Operating temperature	1800–5000 m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220 m.
Heat dissipation	Heat dissipation with fan, intelligent fan speed adjustment

Item	S6730-S24X6Q-AC
Fixed port	24 x 10 GE SFP+, 6 x 40 GE QSFP
Extended slot	NA
MAC address table	Up to 64K MAC address entries
	IEEE 802.1d standards compliance
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLANs and voice VLANs
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	VLAN mapping
ARP	Static ARP
ARP	Dynamic ARP
IP routing	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy
	Up to 64K FIBv4 entries
	Up to 32K FIBv6 entries
Interoperability	VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST
	Link-type Negotiation Protocol (LNP), similar to DTP
	VLAN Central Management Protocol (VCMP), similar to VTP
Ethernet loop protection	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
	SEP
	ERPS (G.8032)
	BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	BPDU protection, root protection, and loop protection
IPv6 features	Neighbor Discover (ND)
	PMTU
	IPv6 Ping, IPv6 Tracert, IPv6 Telnet
	ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types
	Multicast Listener Discovery snooping (MLDv1/v2)
	IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
	IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM
	MSDP
	Multicast VPN
QoS/ACL	Inbound and outbound traffic rate limiting on a port
	Packet redirection
	Broadcast storm control
	Port-based traffic policing and two-rate and three-color CAR
	Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
	Weighted random early detection (WRED)
	Re-marking of the 802.1p priority and DSCP value of packets
	Packet filtering based on Layer 2 to Layer 4 information, includi ng source MAC addresses, destination MAC addresses, source IP addresses, destination IP addresses, TCP/UCD source/destination ports, protocol types, and VLAN IDs
	Per queue rate limiting and interface traffic shaping
	1:1,N:1,N:4 port mirroring; VLAN mirroring
Security features	Hierarchical user management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, port number, and VLAN ID
	Port isolation, port security, and sticky MAC
	MAC Forced Forwarding (MFF)
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	IEEE 802.1X authentication and limit on the number of users on a port
	AAA authentication, RADIUS authentication, and HWTACACS authentication
	NAC
	SSH V2.0
	HTTPS
	CPU protection
	Blacklist and whitelist
	Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets
	IPSec for management packet encryption
	ECA
	Deception
Reliability	LACP
	E-Trunk
	Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag)
	ITU-Y.1731
	DLDP
	LLDP
	BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routes
VXLAN	VXLAN functions, VXLAN L2 and L3 gateways, BGP EVPN
VXLAN	VXLAN configuration using NETCONF/YANG
SVF	Acting as the parent node to vertically virtualize downlink switches and APs as one device for management
	Two-layer client architecture
	ASs can be independently configured. Services not supported by templates can be configured on the parent node.
	Third-party devices allowed between SVF parent and clients
iPCA	Marking service packets to obtain the packet loss ratio and number of lost packets in real time
iPCA	Measurement of the number of lost packets and packet loss ratio on networks and devices
Management and maintenance	Cloud-based management
	Virtual cable test
	SNMP v1/v2c/v3
	RMON
	Web-based NMS
	System logs and alarms of different severities
	GVRP
	MUX VLAN
	802.3az Energy Efficient Ethernet (EEE)
	NetStream
	Telemetry
Input voltage	Rated AC voltage: 100V to 240V AC; 50/60 Hz
Input voltage	Max. AC voltage: 90V to 290V AC; 45–65 Hz
Dimensions (mm)	442 (W) x 220 (D)x 43.6 (H)
Input current	AC 600W：Max 8A
Operating temperature	1800 m altitude: -5°C to 45°C
Operating temperature	1800–5000 m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220 m.
Heat dissipation	Heat dissipation with fan, intelligent fan speed adjustment

Weight	19 kg
Dimensions	71 × 55 × 17.5 cm
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
