S6730-H48X6C

10 Reviews Write a review
PN02352FSF
Brands
AvailabilityIn Stock
Campus Switch S6730-H
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei S6730-H48X6C switch supports 48 10GE SFP+ ports, 6 40GE/100GE QSFP+ ports, 2 hot swappable AC/DC power supplies, 1 AC equipped

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

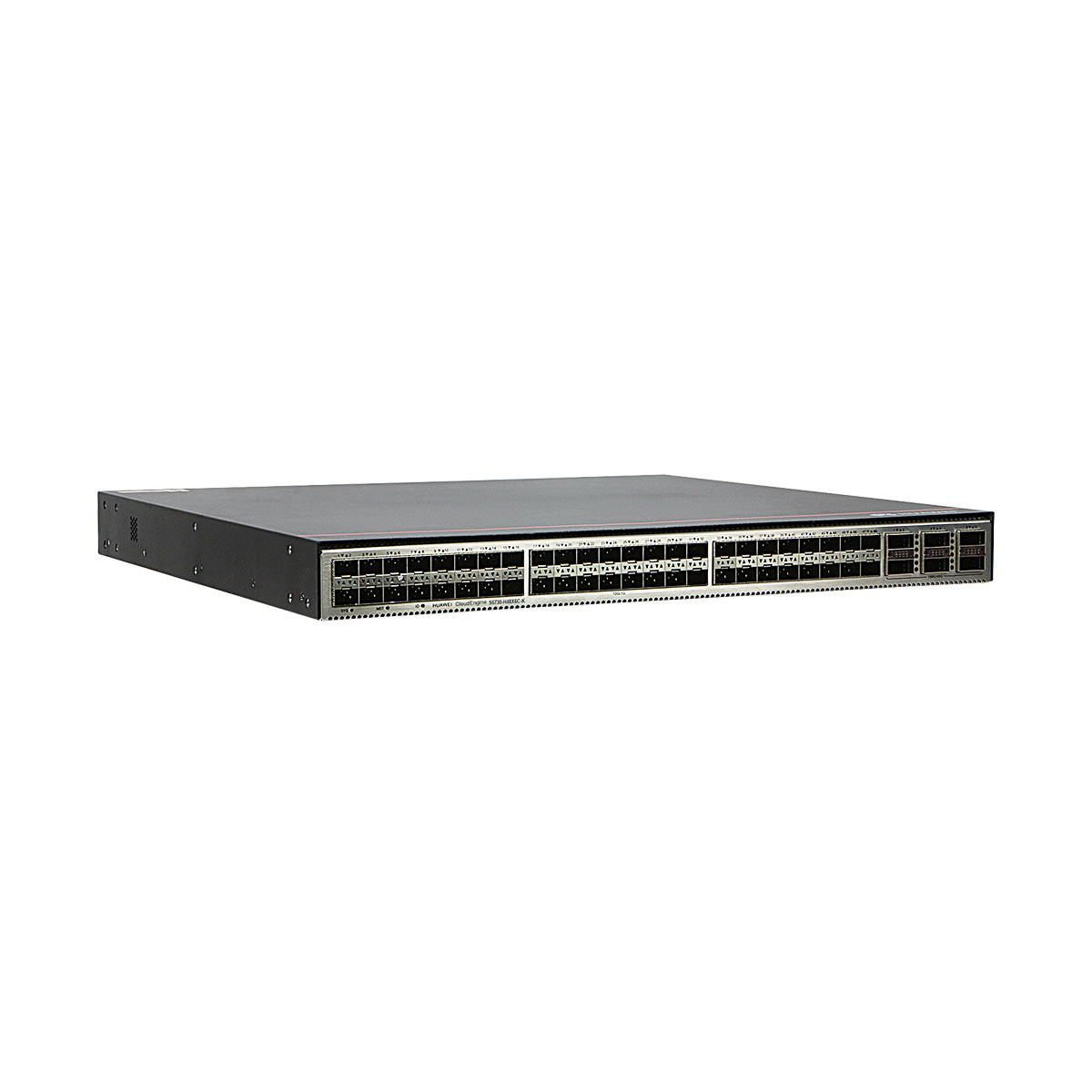

S6730-H48X6C overview

This Huawei switch comes with 48 10GE SFP+ ports, 6 40GE/100GE QSFP+ ports, 2 hot swappable AC/DC power supplies, which is one of the S6730 series switches.

Huawei CloudEngine S6730-H series switches offer 10GE, 25GE, 40GE, and 100GE port types, flexibly adapting to diversified network bandwidth requirements. They also support cloud management and implement cloud-managed network services throughout the full lifecycle from planning, deployment, monitoring, experience visibility, and fault rectification, all the way to network optimization, greatly simplifying network management.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.



S6730-H48X6C quick spec

48 10GE SFP+ ports

6 40GE/100GE QSFP28 ports

2 hot swappable AC/DC power supplies

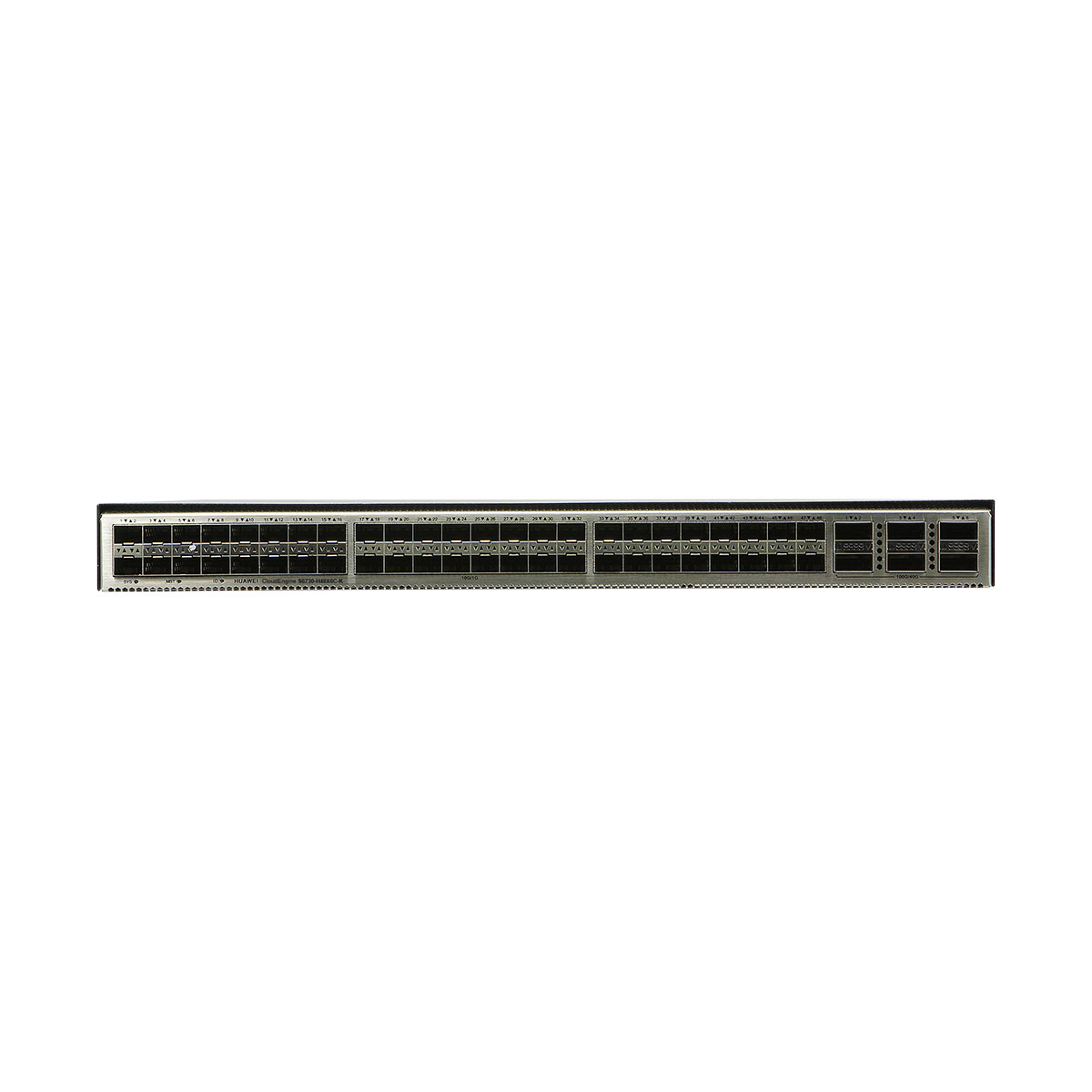

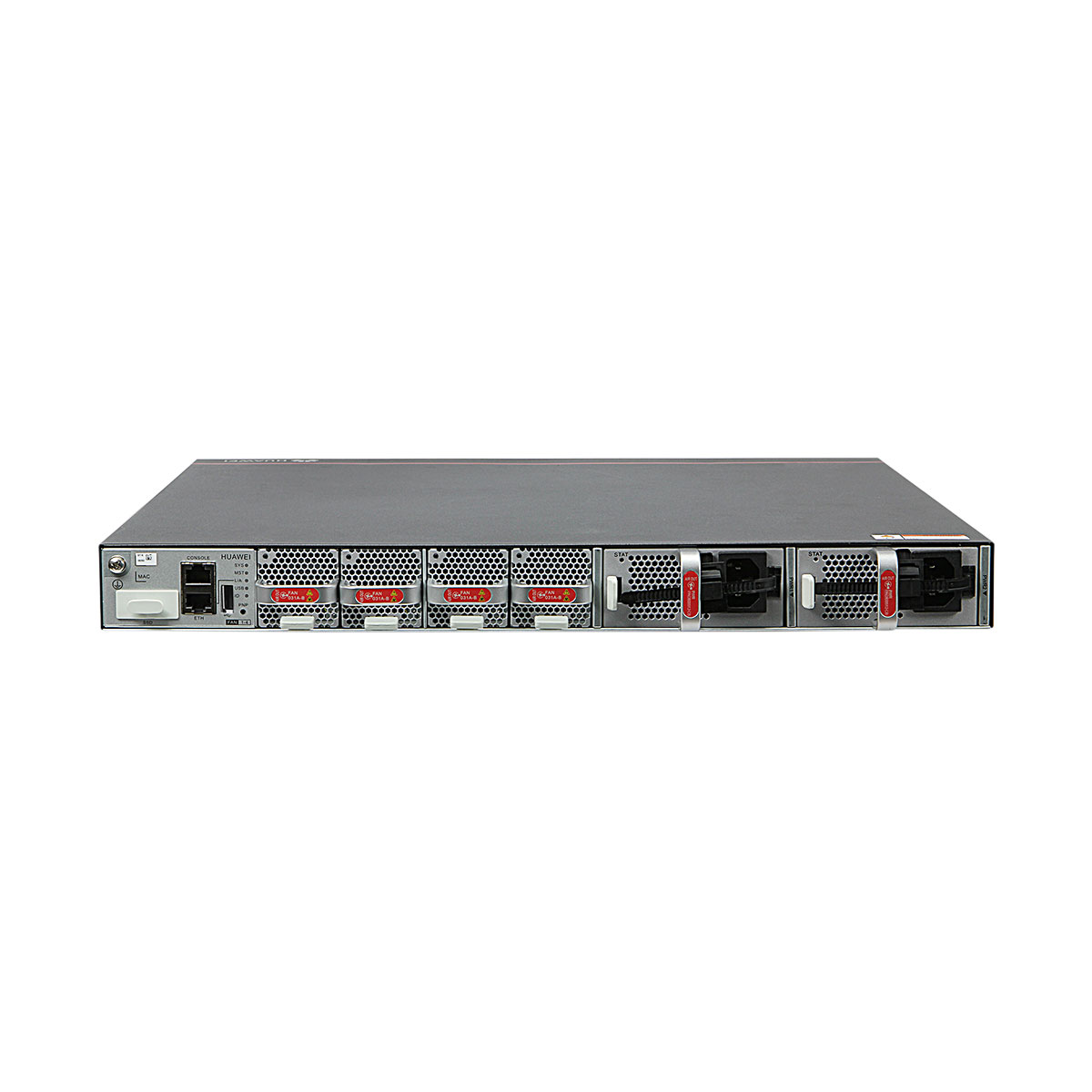

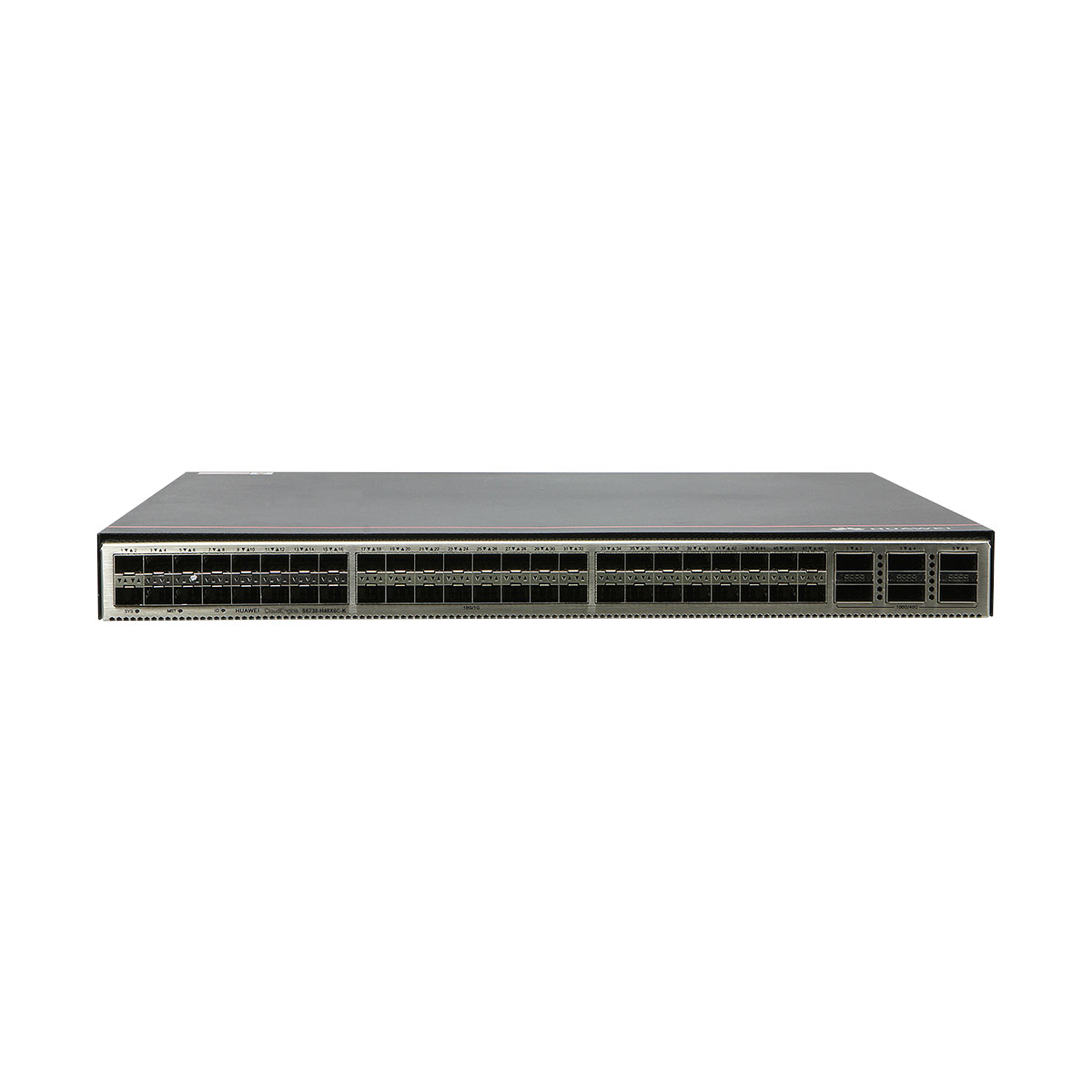

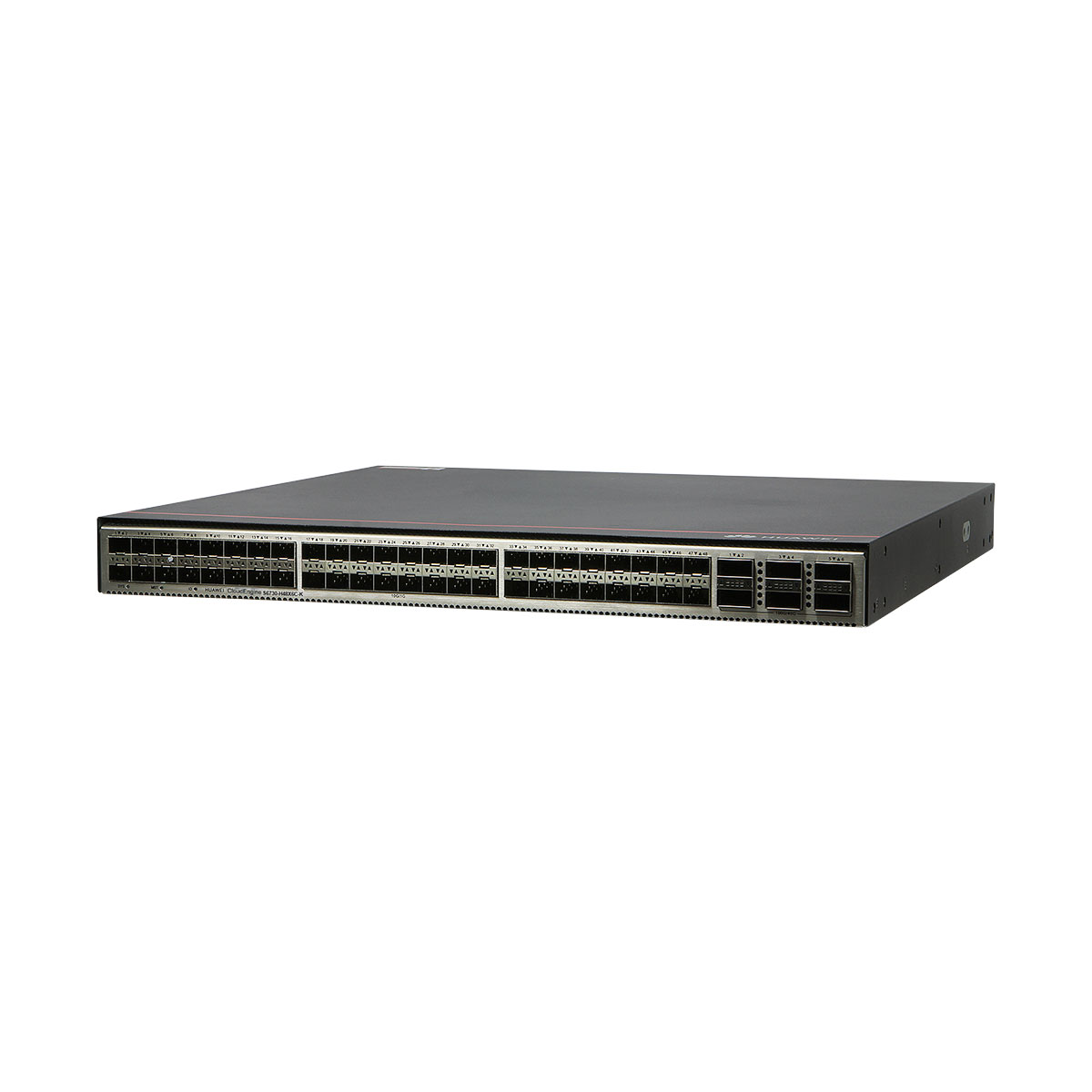

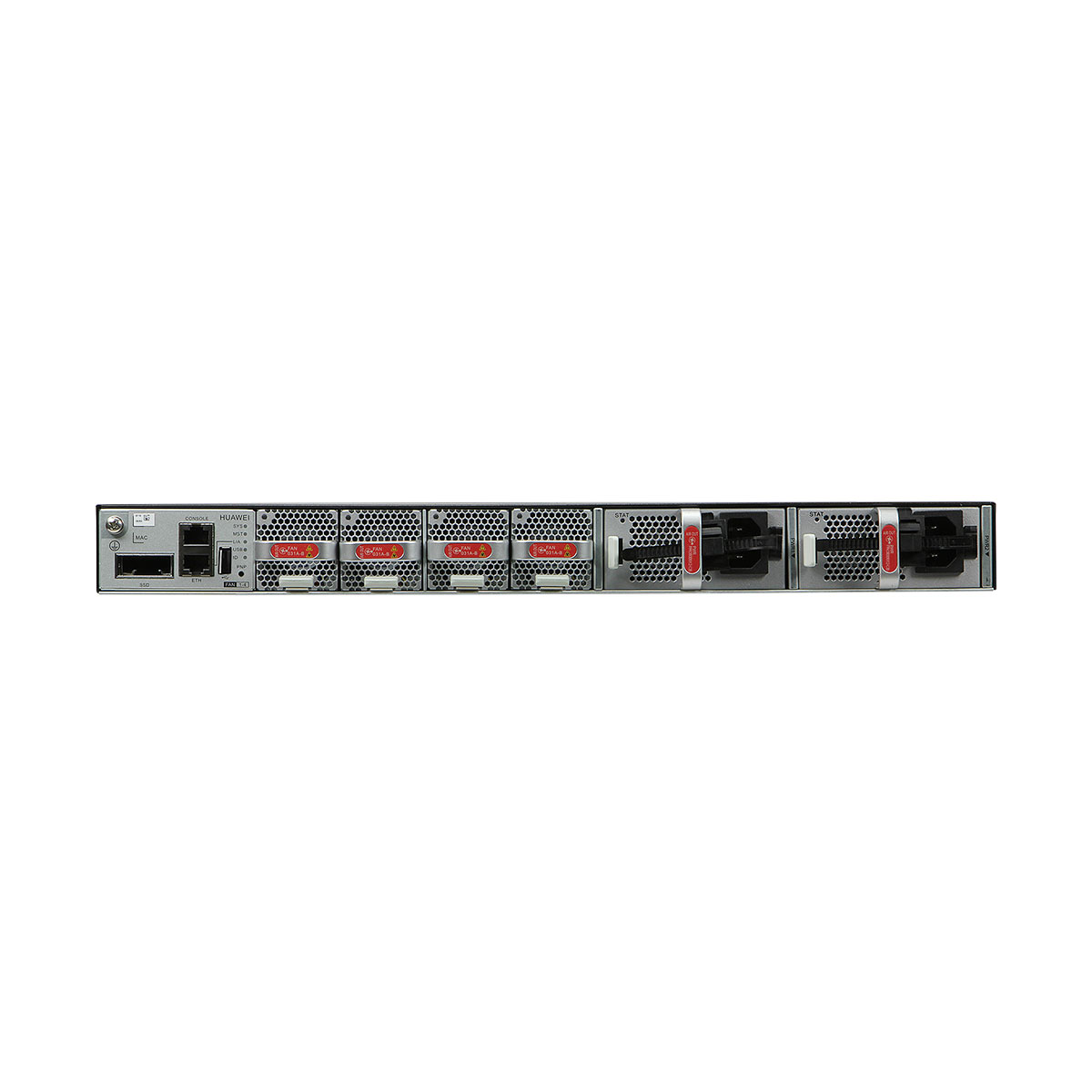

S6730-H48X6C appearance and structure

S6730-H48X6C

1. Forty-eight 10GE SFP+ ports

OMXD30000 OSX010000

OSX040N01 SFP-10G-ZR SFP-10G-USR

 8. One PNP button
2. Six 40GE/100GE QSFP28 optical ports

40GE QSFP+: QSFP-40G-eSR4 QSFP-40G-iSR4 QSFP-40G-eSDLC-PAM

QSFP-40G-LR4 QSFP-40G-SDLC-PAM

100GE QSFP28: QSFP-100G-CWDM4 QSFP-100G-ER4-Lite QSFP28-100G-LR4 QSFP28-100G-PSM4

 9. Fan module slot 1
3. Ground screw 10. Fan module slot 2
4. SSD card slot 11. Fan module slot 3
5. One console port 12. Fan module slot 4
6. One ETH management port 13. Power module slot 1
7. One USB port 14. Power module slot 2
Item S6730-H48X6C
Memory (RAM) 4 GB
Flash 2 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 56.87 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection N/A
Stack ports Any 10GE SFP+ ports (a maximum of 16 physical ports)
Any 40GE/100GE QSFP28 ports (a maximum of 6 physical ports)
RTC Supported
RPS Not supported
PoE Not supported
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
DC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 291 W
Typical power consumption (30% of traffic load, tested according to ATIS standard) 165 W
Operating temperature -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
The operating temperature of the switch is -5°C to 40°C (23°F to 104°F) when it uses QSFP-100G-ER4 optical module.
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 65 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 02352FSF
02353FWL
02352FSF-003
02353FWL-003
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)
Weight (with packaging) 9.2 kg (20.28 lb)

Additional information

Weight 19 kg
Dimensions 71 × 55 × 17.5 cm
Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Campus Switch

Item S6730-H48X6C
Memory (RAM) 4 GB
Flash 2 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 56.87 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection N/A
Stack ports Any 10GE SFP+ ports (a maximum of 16 physical ports)
Any 40GE/100GE QSFP28 ports (a maximum of 6 physical ports)
RTC Supported
RPS Not supported
PoE Not supported
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
DC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 291 W
Typical power consumption (30% of traffic load, tested according to ATIS standard) 165 W
Operating temperature -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
The operating temperature of the switch is -5°C to 40°C (23°F to 104°F) when it uses QSFP-100G-ER4 optical module.
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 65 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 02352FSF
02353FWL
02352FSF-003
02353FWL-003
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)
Weight (with packaging) 9.2 kg (20.28 lb)

Reviews

  1. Maria –

    Surprised by the delivery time, I placed an order on monday this week and got it this morning!

  2. Claudio –

    QSFP28 port is 40GE by default, can support 100GE after activate one license.
    Telecomate.com can provide the license.

  3. Shelton –

    Nice sales and fast delivery. They solved the license issue patiently. But this switch can not support PoE+.

  4. Gomes –

    This Huawei switch is very good, load 40G to 100G license to support 100G port.

  5. Evgeniya –

    I used S6730-H48X6C to replace of S6330-H48X6C,

  6. Elijah –

    I bought 100G license for S6730-H48X6C alone here, nice!

  7. Yolanda Sanchez –

    He comprado este switch para nuestro core red, nos da un buen rendimiento. Perfecto

  8. Elizabeth –

    I can buy only S6730-H48X6C 100G license from Telecomate.com.

  9. Qadir –

    Telecomate.com helps us load 100G RTU license into S6730-H48X6 before shipping, so great.

  10. Aaron –

    Goods are OK, I have no idea why the delivery speed of UPS Express is so slow!?
