Categories:S6730 Series

S6730-H24X4Y4C

Rated 4.83 out of 5 based on 6 customer ratings

6 Reviews Write a review

PN02353NRD

BrandsHuawei

AvailabilityIn Stock

Campus Switch S6730-H

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S6730-H24X4Y4C switch supports 24 10GE SFP+ ports, 4 GE/10GE/25GE SFP28 ports, 4 40GE/100GE QSFP28 ports, 2 hot swappable AC/DC power supplies, without power model equipped

100GE Uplink Switch 10GE Switch 24 Ports Switch 40GE Uplink Switch Core/Aggregation Switch Multi-Rate Switch RTU Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S6730-H24X4Y4C overview

This Huawei switch comes with 24 10GE SFP+ ports, 4 GE/10GE/25GE SFP28 ports, 4 40GE/100GE QSFP28 ports, 2 hot swappable AC/DC power supplies, without power model equipped, which is one of the S6730 series switches.

Huawei CloudEngine S6730-H series switches offer 10GE, 25GE, 40GE, and 100GE port types, flexibly adapting to diversified network bandwidth requirements. They also support cloud management and implement cloud-managed network services throughout the full lifecycle from planning, deployment, monitoring, experience visibility, and fault rectification, all the way to network optimization, greatly simplifying network management.

Telecomate.com provides a full range of Huawei switches, optical modules, and extension boards, if you have more demands, please contact csd@telecomate.com.

S6730-H24X4Y4C quick spec

24 10GE SFP+ ports

4 GE/10GE/25GE SFP28 ports

4 40GE/100GE QSFP28 ports

2 hot swappable AC/DC power supplies

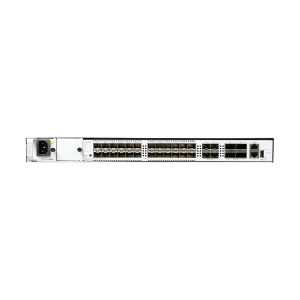

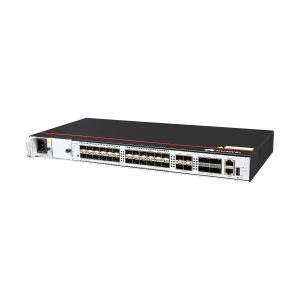

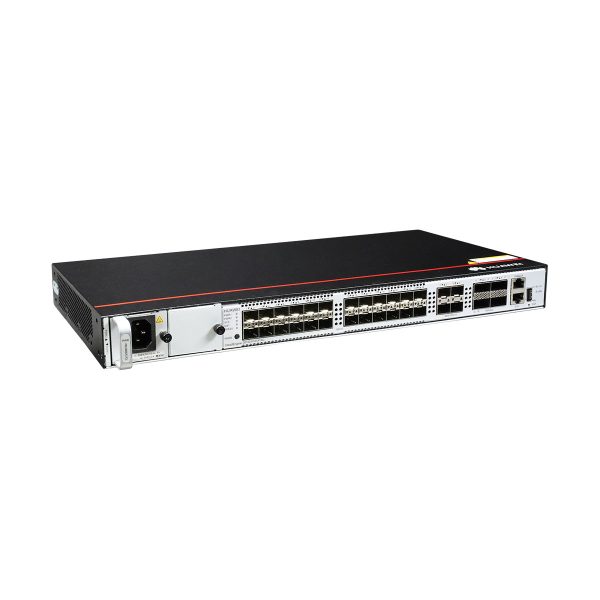

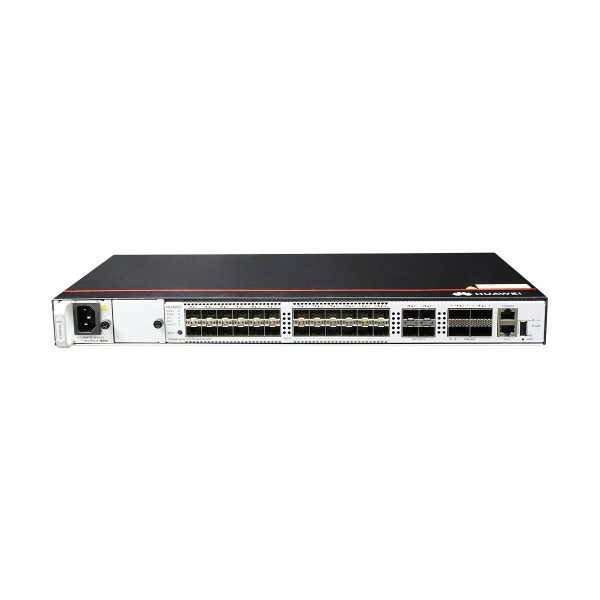

S6730-H24X4Y4C appearance and structure

1	Power module slot 1	5	Four 40GE/100GE QSFP28 optical ports 40GE QSFP+: QSFP-40G-eSR4 QSFP-40G-iSR4 QSFP-40G-eSDLC-PAM QSFP-40G-LR4 QSFP-40G-SDLC-PAM 100GE QSFP28: QSFP-100G-CWDM4 QSFP-100G-ER4-Lite QSFP28-100G-LR4 QSFP28-100G-PSM4
2	Power module slot 2	6	One console port
3	Twenty-four 10GE SFP+ ports OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR	7	One ETH management port
4	Four 1GE/10GE/25GE SFP28 optical ports	8	One USB port

Item	S6730-H24X4Y4C
Memory	4 GB
Flash memory	2 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Eth Management port	RJ45
USB	Supported
RTC	Supported
RPS	Not supported
Service port surge protection [kV]	-
Power supply surge protection [kV]	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Power supply surge protection [kV]	Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Types of fans	Built-in
Heat dissipation	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air flows in from the left side and front panel, and exhausts from the right side.
PoE	Not supported
Certification	EMC certification
	Safety certification
	Manufacturing certification
Number of card slots	0
Number of power slots	2
Number of fans	3
Redundant power supply	1+1
Redundant power supply	AC and DC power can be used together.
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]	Not supported
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
	The operating temperature of the switch is -5°C to 40°C (23°F to 104°F) when it uses QSFP-100G-ER4 optical module.
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz
	High-Voltage DC input: 240 V DC
	DC input: -48 V DC to -60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
	High-Voltage DC input: 190 V DC to 290 V DC
	DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	300 W AC: 4 A
Maximum input current [A]	260 W DC: 10 A
Weight without packaging [kg(lb)]	3.4 kg (7.5 lb)
Weight with packaging [kg(lb)]	4.65 kg (10.25 lb)
Typical power consumption [W]	186 W
Typical heat dissipation [BTU/hour]	634.65 BTU/hour
Maximum power consumption [W]	253 W
Maximum heat dissipation [BTU/hour]	863.26 BTU/hour
MTBF [year]	54.68 year
MTTR [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	64.5 dB(A)
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Dimensions without packaging (H x W x D) [mm(in.)]	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 231.0 mm (1.72 in. x 17.4 in. x 9.1 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	115 mm × 545 mm × 360 mm (4.53 in. x 21.46 in. x 14.17 in.)
Chassis height [U]	1 U

Item	S6730-H24X4Y4C
Memory	4 GB
Flash memory	2 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Eth Management port	RJ45
USB	Supported
RTC	Supported
RPS	Not supported
Service port surge protection [kV]	-
Power supply surge protection [kV]	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Power supply surge protection [kV]	Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Types of fans	Built-in
Heat dissipation	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air flows in from the left side and front panel, and exhausts from the right side.
PoE	Not supported
Certification	EMC certification
	Safety certification
	Manufacturing certification
Number of card slots	0
Number of power slots	2
Number of fans	3
Redundant power supply	1+1
Redundant power supply	AC and DC power can be used together.
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]	Not supported
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
	The operating temperature of the switch is -5°C to 40°C (23°F to 104°F) when it uses QSFP-100G-ER4 optical module.
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz
	High-Voltage DC input: 240 V DC
	DC input: -48 V DC to -60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
	High-Voltage DC input: 190 V DC to 290 V DC
	DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	300 W AC: 4 A
Maximum input current [A]	260 W DC: 10 A
Weight without packaging [kg(lb)]	3.4 kg (7.5 lb)
Weight with packaging [kg(lb)]	4.65 kg (10.25 lb)
Typical power consumption [W]	186 W
Typical heat dissipation [BTU/hour]	634.65 BTU/hour
Maximum power consumption [W]	253 W
Maximum heat dissipation [BTU/hour]	863.26 BTU/hour
MTBF [year]	54.68 year
MTTR [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	64.5 dB(A)
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Dimensions without packaging (H x W x D) [mm(in.)]	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 231.0 mm (1.72 in. x 17.4 in. x 9.1 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	115 mm × 545 mm × 360 mm (4.53 in. x 21.46 in. x 14.17 in.)
Chassis height [U]	1 U

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
Campus Switch	S6730-H
