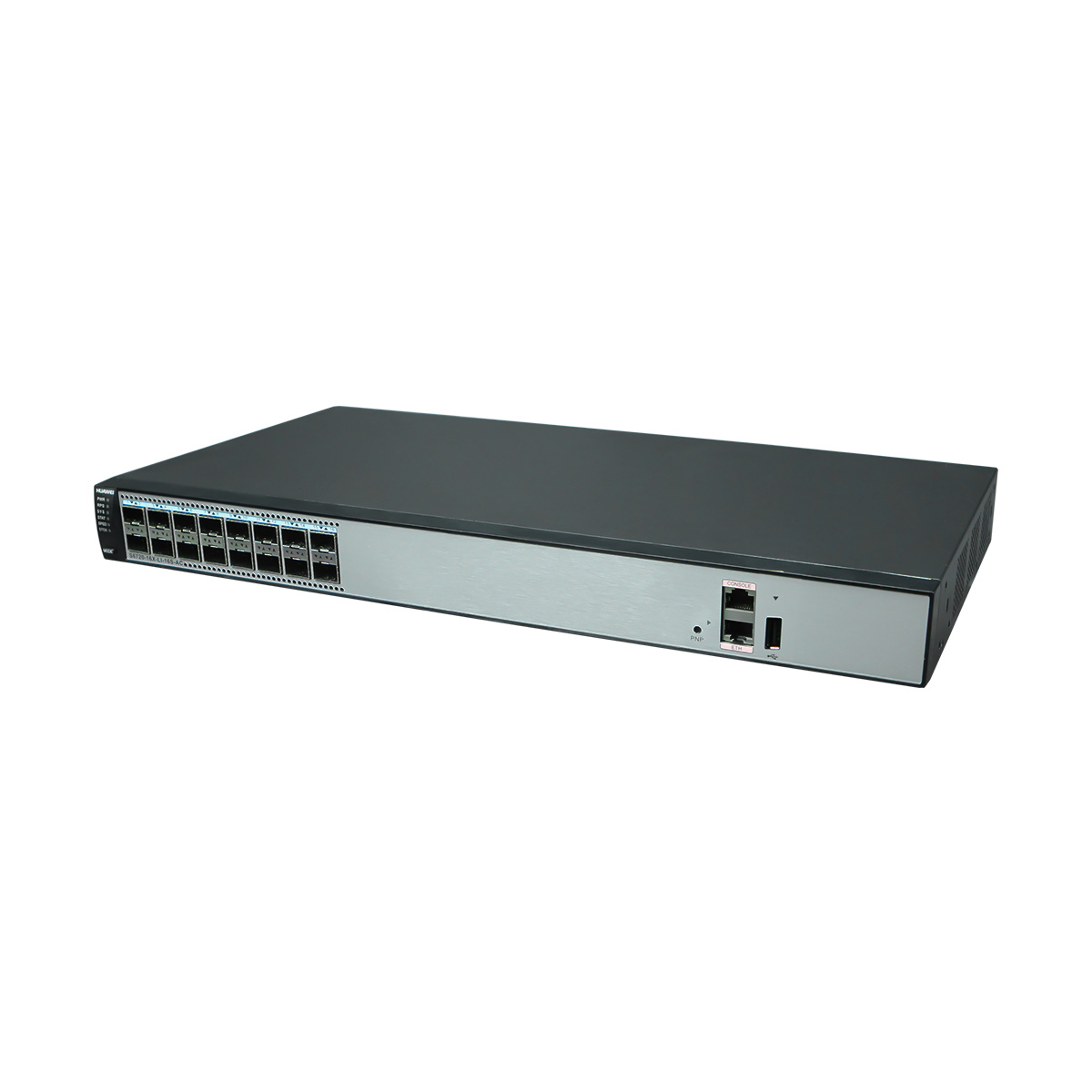

S6720S-16X-LI-16S-AC

Rated 5.00 out of 5 based on 2 customer ratings

2 Reviews Write a review

PN98010688

BrandsHuawei

AvailabilityIn Stock

Campus Switch S6720S-LI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S6720S-16X-LI-16S-AC switch supports16 10GE SFP+ ports, fixed AC power, supports RPS.

10GE Switch 16 Ports Switch Core/Aggregation Switch Fixed AC Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

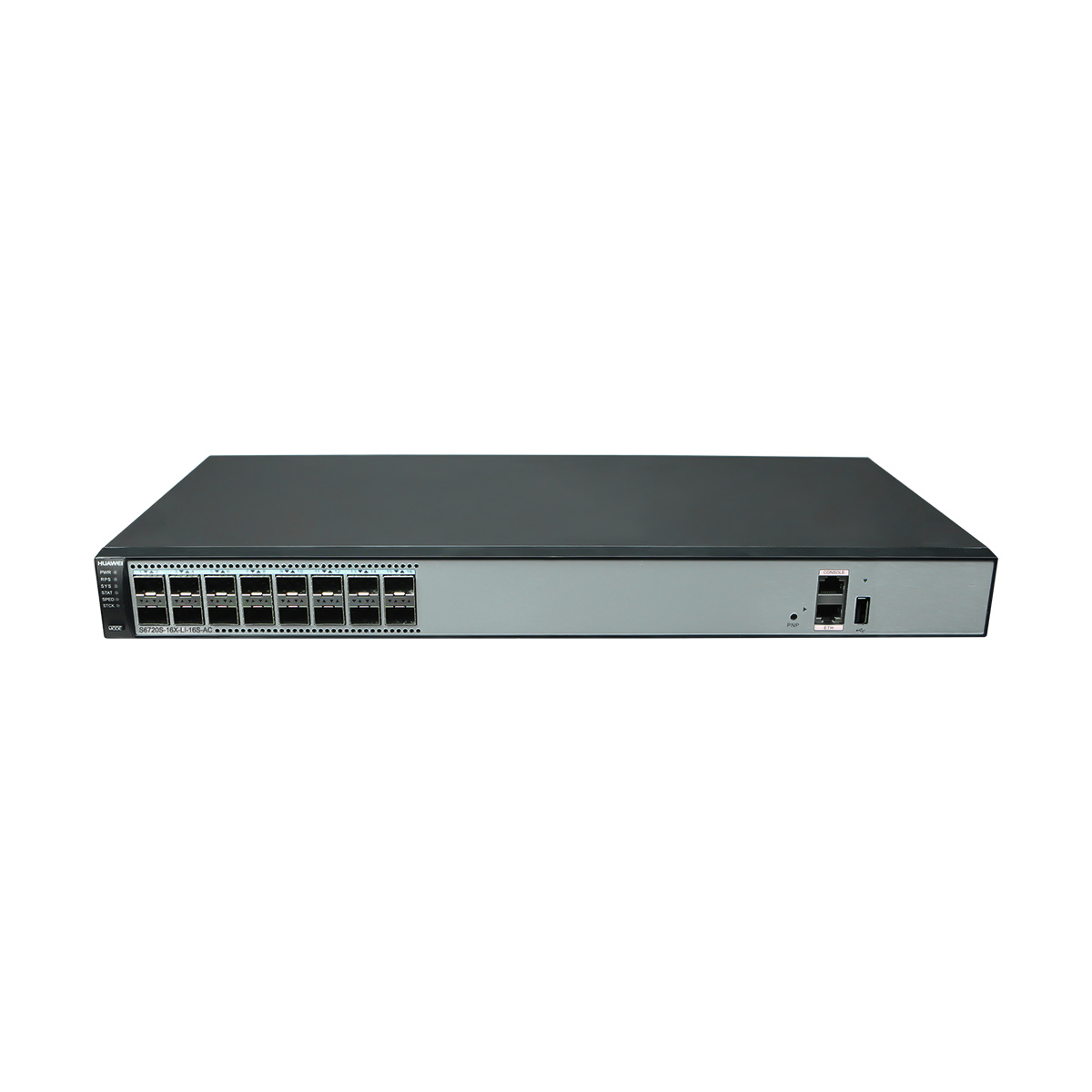

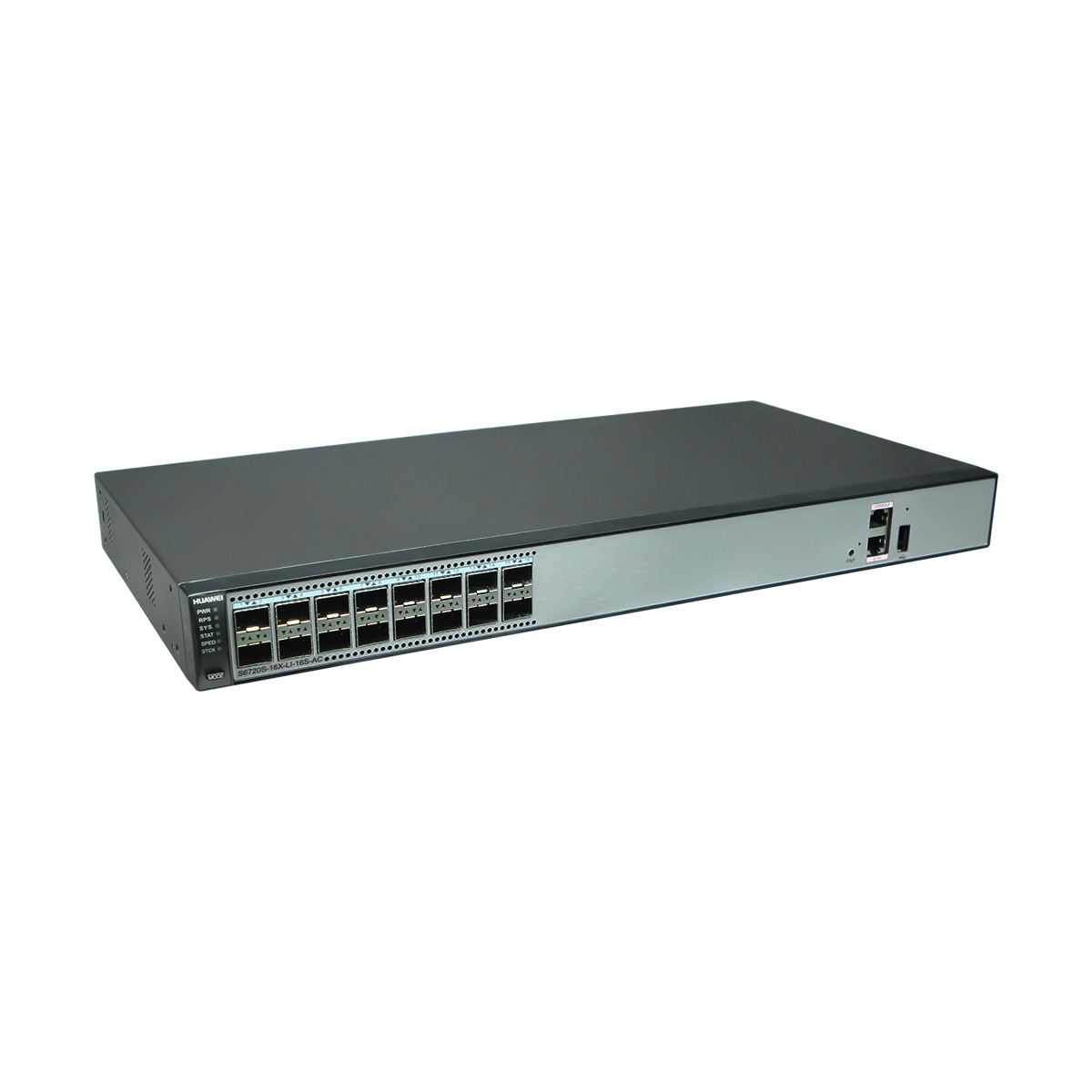

S6720S-16X-LI-16S-AC overview

Huawei S6720S-16X-LI-16S-AC switch with 16 10GE SFP+ ports is one of the Huawei S6720 series switches.

The S6720-LI series switches (S6720-LI) are next-generation simplified 10GE fixed switches and can be used as 10GE access switches on campus networks and data center networks. The S6720-LI provides line-rate 10GE access ports and 40GE uplink ports. In addition, the S6720-LI delivers a wide variety of services, comprehensive security control policies, and various QoS features to help customers build scalable, reliable, manageable, and secure campus and data center networks.

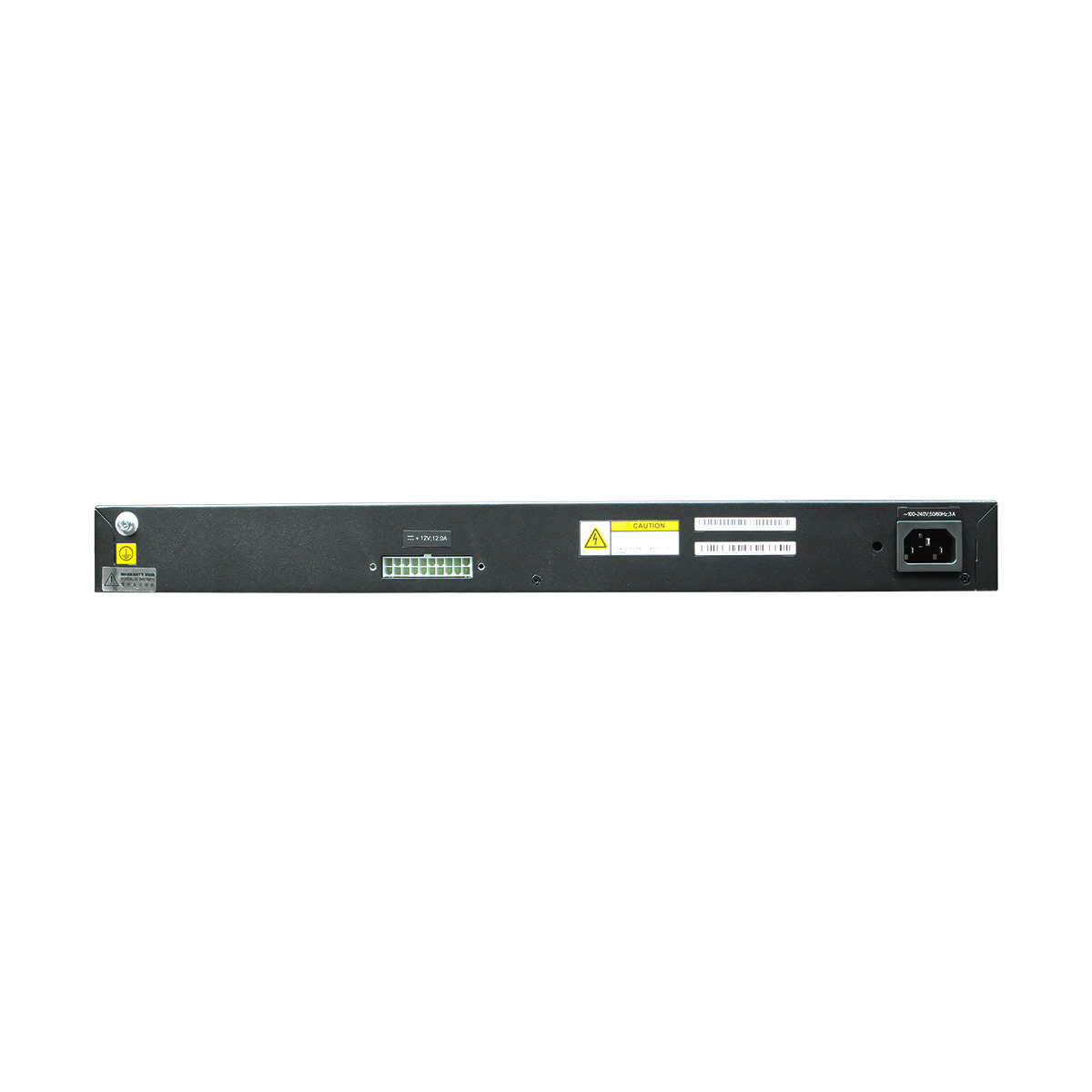

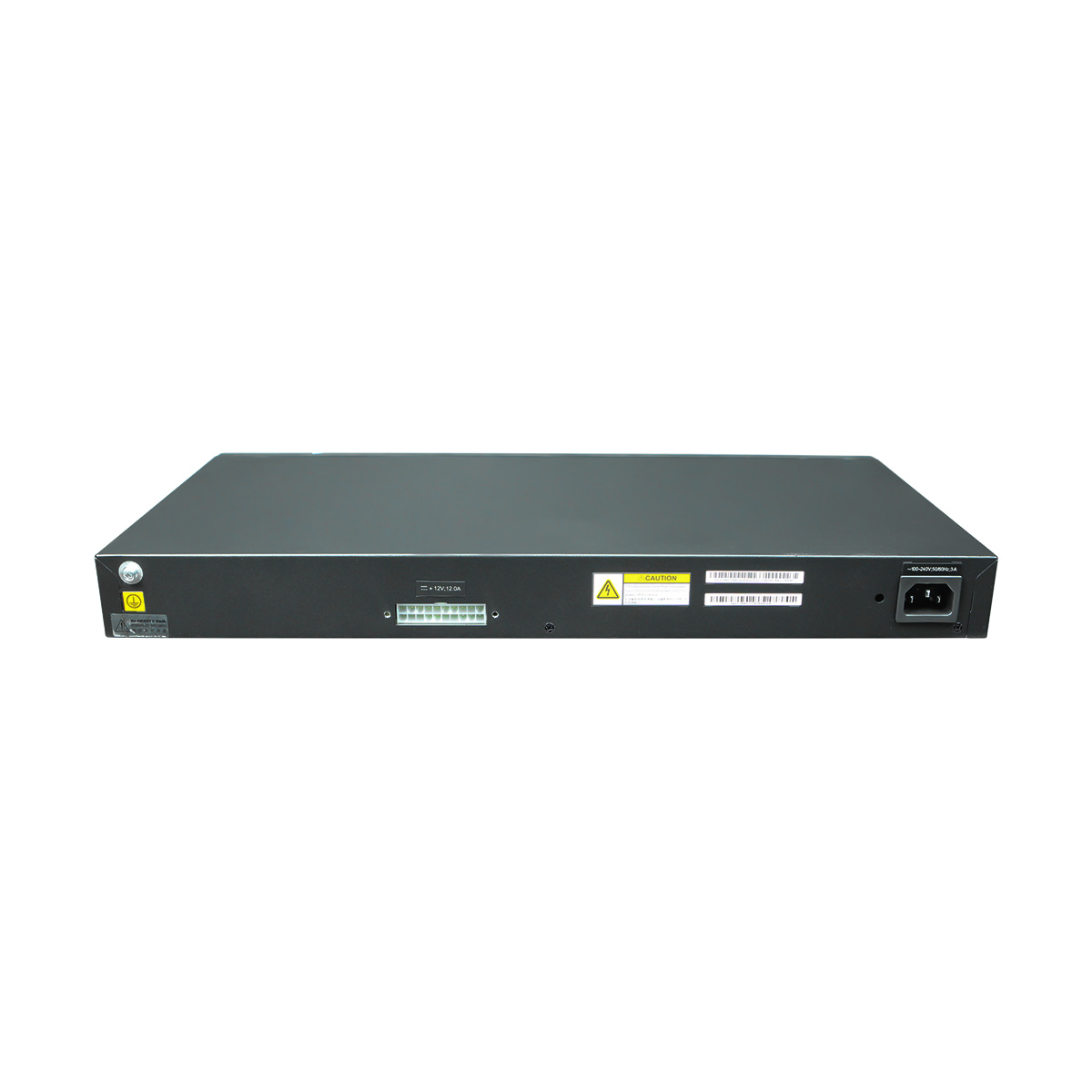

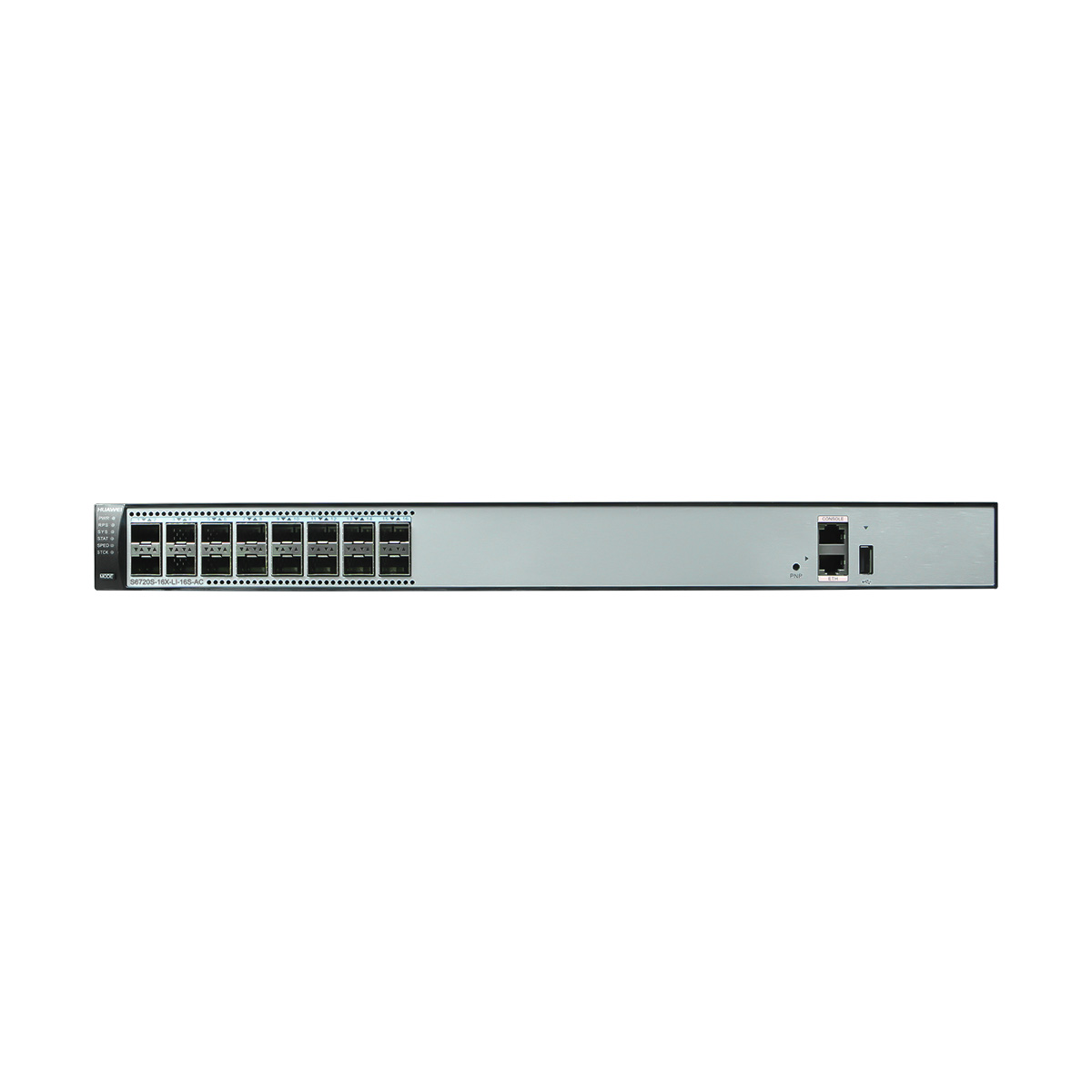

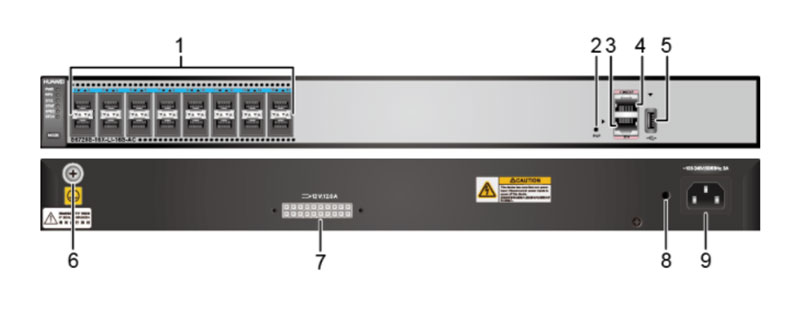

S6720S-16X-LI-16S-AC appearance and structure

1. Sixteen 10GE SFP+ ports OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR	6. Ground screw
2. One PNP button	7. RPS socket
3. One ETH management port	8. Jack for AC power cable locking strap
4. One console port	9. AC socket
5. One USB port

Item	S6720S-16X-LI-16S-AC
Fixed port	16x10GE SFP+
Extended slot	Not supported
Forwarding performance	240 Mpps
Switching capacity	1.28/12.8Tbps
VLAN features	4K VLANs
	Guest VLAN and voice VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	VLAN Mapping
	Basic QinQ and selective QinQ
IPv4 routing	Static routing, RIP, and OSPF
	VRRP
	Policy-based routing
	Routing policies
IPv6 routing	Static routing
	RIPng
	OSPFv3
IPv6 features	Neighbor Discovery (ND) and ND snooping
	IPv6 Ping
	VRRP6
	DHCPv6 snooping, DHCPv6 server, and DHCPv6 relay
Multicast	IGMPv1/v2/v3 snooping
	Fast leave
	IGMP snooping proxy
	Multicast Listener Discovery (MLD) snooping
	Port-based multicast traffic suppression
	Inter-VLAN multicast replication, Controllable multicast
QoS/ACL	Traffic classification based on ACLs
	Traffic classification based on outer 802.1p fields, outer VL AN IDs,
	source MAC addresses, and Ethernet types
	Access control after traffic classification
	Traffic policing based on traffic classifiers
	Re-marking based on traffic classifiers
	Class-based packet queuing
	Associating traffic classifiers with traffic behaviors
	Rate limiting on inbound and outbound ports
	Traffic shaping based on ports and queues
	Tail drop Priority Queuing (PQ)
	Deficit Round Robin (DRR)
	PQ + DRR scheduling
	Weighted Round Robin (WRR)
	PQ + WRR scheduling
Reliability	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	BPDU protection, root protection, and loop protection
	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing millisecond-level
	protection switchover
	Smart Ethernet Protection (SEP)
	G.8032 Ethernet Ring Protection Switching (ERPS)
	Enhanced trunk (E-trunk)
Security features	Defense against DoS, ARP, and ICMP attacks
	Binding of the IP address, MAC address, port number, and VLAN ID of a user
	Port isolation, port security, and sticky MAC
	MAC-Forced Forwarding (MACFF)
	Limit on the number of learned MAC addresses
	IEEE 802.1X authentication and the limit on the number of users on a port
	AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
	CPU defense
Super Virtual Fabric (SVF)	SVF Client
Management and maintenance	iStack (using service ports as stack ports)
	Virtual Cable Test (VCT)
	Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag)
	SNMPv1/v2/v3
	RMON
	Web-based network management system and relevant features
	System logs and multi-level alarms
	GVRP
	MUX VLAN
	sFlow
	SSH2
	HTTPS
Operating environment	Working temperature: 0 m–1800 m, 0°C–45°C; 1800 m–5000 m, the highest operating
	temperature reduces by 1°C every time the altitude increases by 220 m.
	Relative humidity: 5% to 95% (noncondensing
Input AC voltage	AC:
	Rated voltage range: 100 V to 240 V A C, 50/60 Hz
	Maximum voltage range: 90 V to 264 V A C, 47/63 H
Dimensions	420 (W)×220 (W)×43.6 (H)
Typical power consumption	45.2W

Item	S6720S-16X-LI-16S-AC
Fixed port	16x10GE SFP+
Extended slot	Not supported
Forwarding performance	240 Mpps
Switching capacity	1.28/12.8Tbps
VLAN features	4K VLANs
	Guest VLAN and voice VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	VLAN Mapping
	Basic QinQ and selective QinQ
IPv4 routing	Static routing, RIP, and OSPF
	VRRP
	Policy-based routing
	Routing policies
IPv6 routing	Static routing
	RIPng
	OSPFv3
IPv6 features	Neighbor Discovery (ND) and ND snooping
	IPv6 Ping
	VRRP6
	DHCPv6 snooping, DHCPv6 server, and DHCPv6 relay
Multicast	IGMPv1/v2/v3 snooping
	Fast leave
	IGMP snooping proxy
	Multicast Listener Discovery (MLD) snooping
	Port-based multicast traffic suppression
	Inter-VLAN multicast replication, Controllable multicast
QoS/ACL	Traffic classification based on ACLs
	Traffic classification based on outer 802.1p fields, outer VL AN IDs,
	source MAC addresses, and Ethernet types
	Access control after traffic classification
	Traffic policing based on traffic classifiers
	Re-marking based on traffic classifiers
	Class-based packet queuing
	Associating traffic classifiers with traffic behaviors
	Rate limiting on inbound and outbound ports
	Traffic shaping based on ports and queues
	Tail drop Priority Queuing (PQ)
	Deficit Round Robin (DRR)
	PQ + DRR scheduling
	Weighted Round Robin (WRR)
	PQ + WRR scheduling
Reliability	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	BPDU protection, root protection, and loop protection
	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing millisecond-level
	protection switchover
	Smart Ethernet Protection (SEP)
	G.8032 Ethernet Ring Protection Switching (ERPS)
	Enhanced trunk (E-trunk)
Security features	Defense against DoS, ARP, and ICMP attacks
	Binding of the IP address, MAC address, port number, and VLAN ID of a user
	Port isolation, port security, and sticky MAC
	MAC-Forced Forwarding (MACFF)
	Limit on the number of learned MAC addresses
	IEEE 802.1X authentication and the limit on the number of users on a port
	AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
	CPU defense
Super Virtual Fabric (SVF)	SVF Client
Management and maintenance	iStack (using service ports as stack ports)
	Virtual Cable Test (VCT)
	Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag)
	SNMPv1/v2/v3
	RMON
	Web-based network management system and relevant features
	System logs and multi-level alarms
	GVRP
	MUX VLAN
	sFlow
	SSH2
	HTTPS
Operating environment	Working temperature: 0 m–1800 m, 0°C–45°C; 1800 m–5000 m, the highest operating
	temperature reduces by 1°C every time the altitude increases by 220 m.
	Relative humidity: 5% to 95% (noncondensing
Input AC voltage	AC:
	Rated voltage range: 100 V to 240 V A C, 50/60 Hz
	Maximum voltage range: 90 V to 264 V A C, 47/63 H
Dimensions	420 (W)×220 (W)×43.6 (H)
Typical power consumption	45.2W

Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
Campus Switch	S6720S-LI
