Categories:S6720 Series

S6720-50L-HI-48S

Rated 4.33 out of 5 based on 4 customer ratings

3 Reviews Write a review

PN02351MXN

BrandsHuawei

AvailabilityIn Stock

Campus Switch S6720-HI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S6720-50L-HI-48S switch supports 48 10GE SFP+ ports, 6 40GE QSFP+ or 44 10GE SFP+ ports, 4 40GE QSFP+ ports, 2 100GE QSFP28 ports, 2 hot swappable AC/DC power supplies, without power supply equipped.

100GE Uplink Switch 10GE Switch 40GE Uplink Switch 48 Ports Switch Core/Aggregation Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

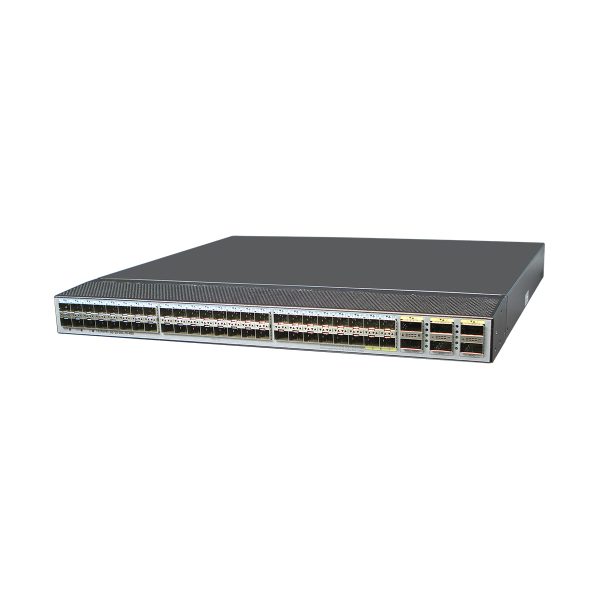

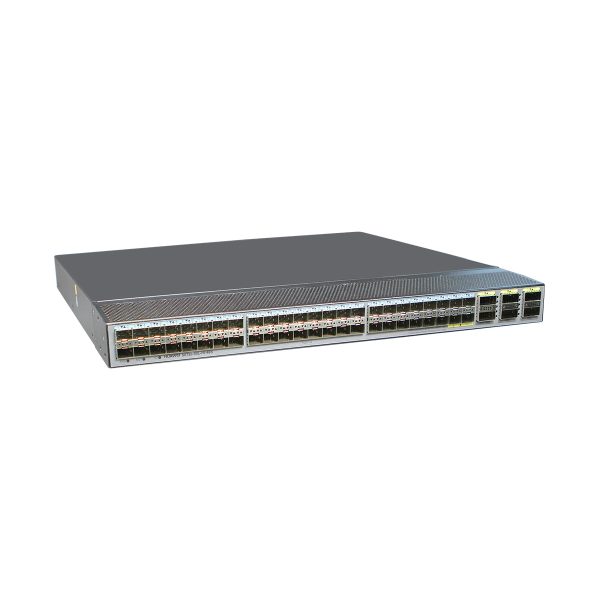

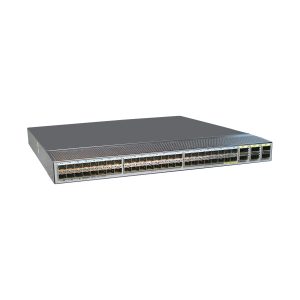

S6720-50L-HI-48S overview

Huawei S6720-50L-HI-48S switch with 48 10 GE SFP+, 6 40GE QSFP+ or 44 10GE SFP+, 4 40GE QSFP+, and 2 100GE QSFP28.

S6720-HI series full-featured 10 GE routing switches are Huawei’s first IDN-ready fixed switches to provide 10 GE downlink ports as well as 40 GE and 100 GE uplink ports.

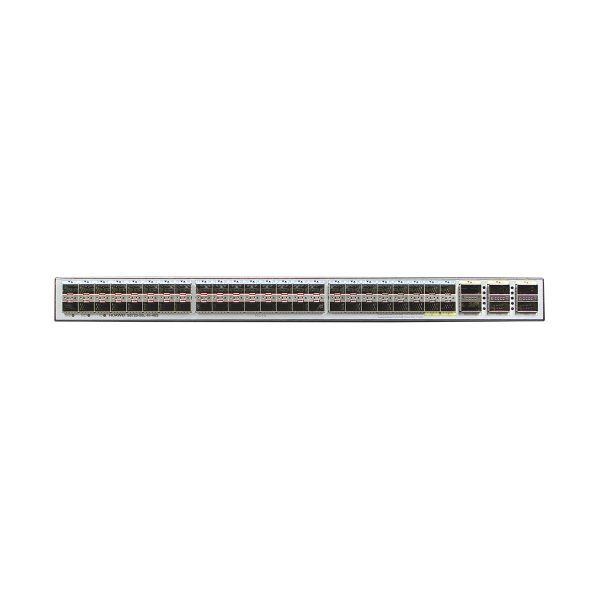

S6720-50L-HI-48S appearance and structure

1. Forty-eight 10GE SFP+ ports OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR	7. One ETH management port
2. Two 40GE/100GE QSFP28 ports 100GE QSFP28: QSFP-100G-CWDM4 QSFP-100G-ER4-Lite QSFP28-100G-LR4 QSFP28-100G-PSM4	8. ESN label
3. Four 40GE QSFP+ ports QSFP-40G-eSR4 QSFP-40G-iSR4 QSFP-40G-eSDLC-PAM QSFP-40G-LR4 QSFP-40G-SDLC-PAM	9. One USB port

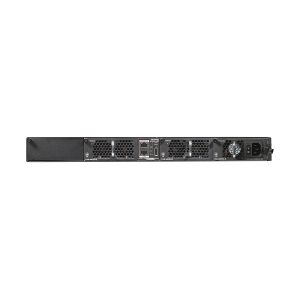

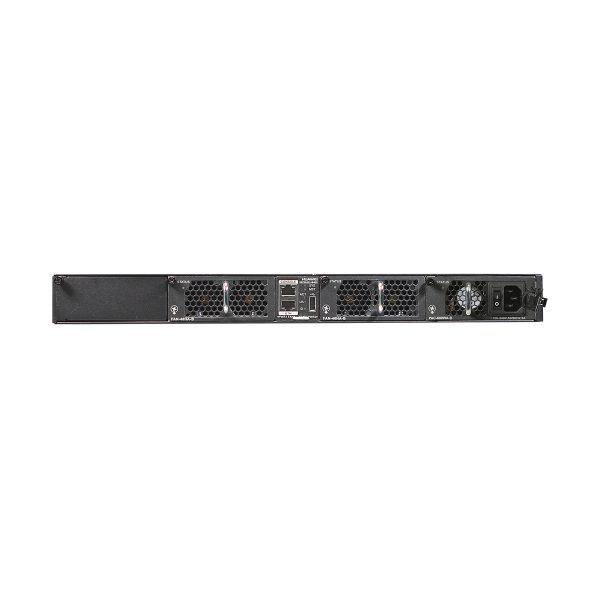

4. Power module slot 1	10. Fan slot 2
5. Fan slot 1	11. Power module slot 2
6. One console port	12. Ground screw

Item	S6720-50L-HI-48S
Fixed port	48 x 10 Gig SFP+, 6 x 40 Gig QSFP+ or 44 x 10 Gig SFP+, 4 x 40 Gig QSFP+, 2 x 100 Gig QSFP28
Extended slot	NA
Forwarding performance	420Mpps
Switching capacity	2.56Tbps
VLAN	4K VLANs
	Guest VLANs and voice VLANs
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	VLAN mapping
IP routing	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy
Interoperability	VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST
	Link-type Negotiation Protocol (LNP), similar to DTP
	VLAN Central Management Protocol (VCMP), similar to VTP
Wireless Service	AP access control, AP domain management, and AP configuration template management
	Radio management, unified static configuration, and dynamic centralized management
	WLAN basic services, QoS, security, and user management
	CAPWAP, tag/terminal location, and spectrum analysis
Ethernet Loop Protection	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
	SEP
	ERPS (G.8032)
	BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	BPDU protection, root protection, and loop protection
MPLS	MPLS L3VPN
	MPLS L2VPN (VPWS/VPLS)
	MPLS-TE
	MPLS QoS
IPv6 Features	Neighbor Discover (ND)
	PMTU
	IPv6 Ping, IPv6 Tracert, IPv6 Telnet
	ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types
	Multicast Listener Discovery snooping (MLDv1/v2)
	IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
	IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM
	MSDP
	Multicast VPN
QoS/ACL	Rate limiting in the inbound and outbound directions of a port
	Packet redirection
	Port-based traffic policing and two-rate three-color CAR
	HQoS
	Eight queues on each port
	DRR, SP, and DRR+SP queue scheduling algorithms
	WRED
	Re-marking of the 802.1p and DSCP fields of packets
	Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol type, and VLAN ID
	Queue-based rate limiting and shaping on ports
Security	Hierarchical user management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, port number, and VLAN ID
	Port isolation, port security, and sticky MAC
	MAC Forced Forwarding (MFF)
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	IEEE 802.1X authentication and limit on the number of users on a port
	AAA authentication, RADIUS authentication, and HWTACACS authentication
	NAC
	SSH V2.0
	HTTPS
	CPU protection
	Blacklist and whitelist
	Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets
	IPSec for management packet encryption
Reliability	LACP
	E-trunk
	Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag)
	ITU-Y.1731
	DLDP
	LLDP
	BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routes
VXLAN	VXLAN functions, VXLAN L2 and L3 gateways, BGP EVPN
VXLAN	VXLAN configuration using NETCONF/YANG
SVF	Acting as the parent node to vertically virtualize downlink switches and APs as one device for management
	Two-layer client architecture
	ASs can be independently configured. Services not supported by templates can be configured on the parent node.
	Third-party devices allowed between SVF parent and clients
iPCA	Marking service packets to obtain the packet loss ratio and number of lost packets in real time
iPCA	Measurement of the number of lost packets and packet loss ratio on networks and devices
Management and Maintenance	Cloud-based management
	Virtual cable test
	SNMP v1/v2c/v3
	RMON
	Web-based NMS
	System logs and alarms of different severities
	GVRP
	MUX VLAN
	802.3az Energy Efficient Ethernet (EEE)
	NetStream
	Dying gasp upon power-off
	442 mm x 420 mm x 43.6 mm
Input Voltage	AC:
	Rated AC voltage: 100V to 240V; 50/60 Hz
	Max. AC voltage: 90V to 264V; 47–63 Hz
	DC:
	Rated DC power: –48V to 60V
	Max. DC voltage: –38.4V to 72V
Maximum Power Consumption	279W
Power Consumption (30% Traffic Load)	194W
Operating Temperature	l 0m to 1,800m altitude: 0°C to 45°C
Operating Temperature	l 1,800m to 5,000m altitude: The operating temperature reduces by 1°C for each 220m increase in altitude.
Heat Dissipation	Heat dissipation with fan, intelligent fan speed adjustment

Item	S6720-50L-HI-48S
Fixed port	48 x 10 Gig SFP+, 6 x 40 Gig QSFP+ or 44 x 10 Gig SFP+, 4 x 40 Gig QSFP+, 2 x 100 Gig QSFP28
Extended slot	NA
Forwarding performance	420Mpps
Switching capacity	2.56Tbps
VLAN	4K VLANs
	Guest VLANs and voice VLANs
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	VLAN mapping
IP routing	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy
Interoperability	VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST
	Link-type Negotiation Protocol (LNP), similar to DTP
	VLAN Central Management Protocol (VCMP), similar to VTP
Wireless Service	AP access control, AP domain management, and AP configuration template management
	Radio management, unified static configuration, and dynamic centralized management
	WLAN basic services, QoS, security, and user management
	CAPWAP, tag/terminal location, and spectrum analysis
Ethernet Loop Protection	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
	SEP
	ERPS (G.8032)
	BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	BPDU protection, root protection, and loop protection
MPLS	MPLS L3VPN
	MPLS L2VPN (VPWS/VPLS)
	MPLS-TE
	MPLS QoS
IPv6 Features	Neighbor Discover (ND)
	PMTU
	IPv6 Ping, IPv6 Tracert, IPv6 Telnet
	ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types
	Multicast Listener Discovery snooping (MLDv1/v2)
	IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
	IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM
	MSDP
	Multicast VPN
QoS/ACL	Rate limiting in the inbound and outbound directions of a port
	Packet redirection
	Port-based traffic policing and two-rate three-color CAR
	HQoS
	Eight queues on each port
	DRR, SP, and DRR+SP queue scheduling algorithms
	WRED
	Re-marking of the 802.1p and DSCP fields of packets
	Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol type, and VLAN ID
	Queue-based rate limiting and shaping on ports
Security	Hierarchical user management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, port number, and VLAN ID
	Port isolation, port security, and sticky MAC
	MAC Forced Forwarding (MFF)
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	IEEE 802.1X authentication and limit on the number of users on a port
	AAA authentication, RADIUS authentication, and HWTACACS authentication
	NAC
	SSH V2.0
	HTTPS
	CPU protection
	Blacklist and whitelist
	Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets
	IPSec for management packet encryption
Reliability	LACP
	E-trunk
	Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag)
	ITU-Y.1731
	DLDP
	LLDP
	BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routes
VXLAN	VXLAN functions, VXLAN L2 and L3 gateways, BGP EVPN
VXLAN	VXLAN configuration using NETCONF/YANG
SVF	Acting as the parent node to vertically virtualize downlink switches and APs as one device for management
	Two-layer client architecture
	ASs can be independently configured. Services not supported by templates can be configured on the parent node.
	Third-party devices allowed between SVF parent and clients
iPCA	Marking service packets to obtain the packet loss ratio and number of lost packets in real time
iPCA	Measurement of the number of lost packets and packet loss ratio on networks and devices
Management and Maintenance	Cloud-based management
	Virtual cable test
	SNMP v1/v2c/v3
	RMON
	Web-based NMS
	System logs and alarms of different severities
	GVRP
	MUX VLAN
	802.3az Energy Efficient Ethernet (EEE)
	NetStream
	Dying gasp upon power-off
	442 mm x 420 mm x 43.6 mm
Input Voltage	AC:
	Rated AC voltage: 100V to 240V; 50/60 Hz
	Max. AC voltage: 90V to 264V; 47–63 Hz
	DC:
	Rated DC power: –48V to 60V
	Max. DC voltage: –38.4V to 72V
Maximum Power Consumption	279W
Power Consumption (30% Traffic Load)	194W
Operating Temperature	l 0m to 1,800m altitude: 0°C to 45°C
Operating Temperature	l 1,800m to 5,000m altitude: The operating temperature reduces by 1°C for each 220m increase in altitude.
Heat Dissipation	Heat dissipation with fan, intelligent fan speed adjustment

Brand	Huawei
Campus Switch	S6720-HI
Ship From	Shenzhen Warehouse
Lead Time	3-5 days
