Categories:S6720 Series

S6700-24-EI

Rated 4.50 out of 5 based on 2 customer ratings

2 Reviews Write a review

PN2352768

BrandsHuawei

AvailabilityIn Stock

Campus Switch S6700-EI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S6700-24-EI switch supports 24 10GE SFP+ ports, 2 hot swappable AC/DC power supplies, without power supply equipped

10GE Switch 24 Ports Switch Core/Aggregation Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S6700-24-EI overview

Huawei S6700-24-EI with 24 10GE SFP+ ports, is one of the Huawei S6700 series switches. The S6700 has industry-leading performance and provides up to 24 or 48 line-speed 10 GE ports. It can be used in a data center to provide 10 Gbit/s access to servers or function as a core switch on a campus network to provide 10 Gbit/s traffic aggregation. In addition, the S6700 provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable, reliable, and secure data centers.

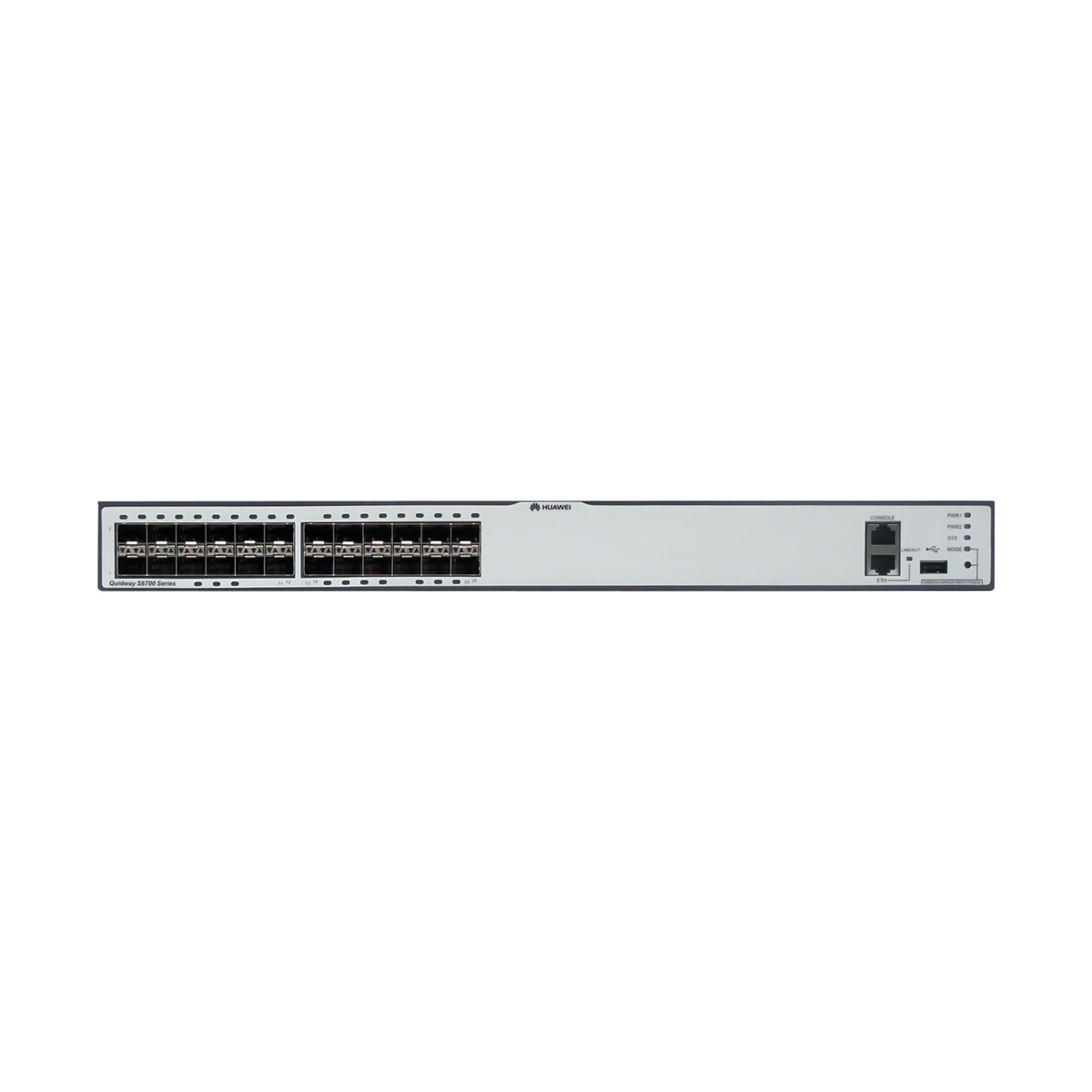

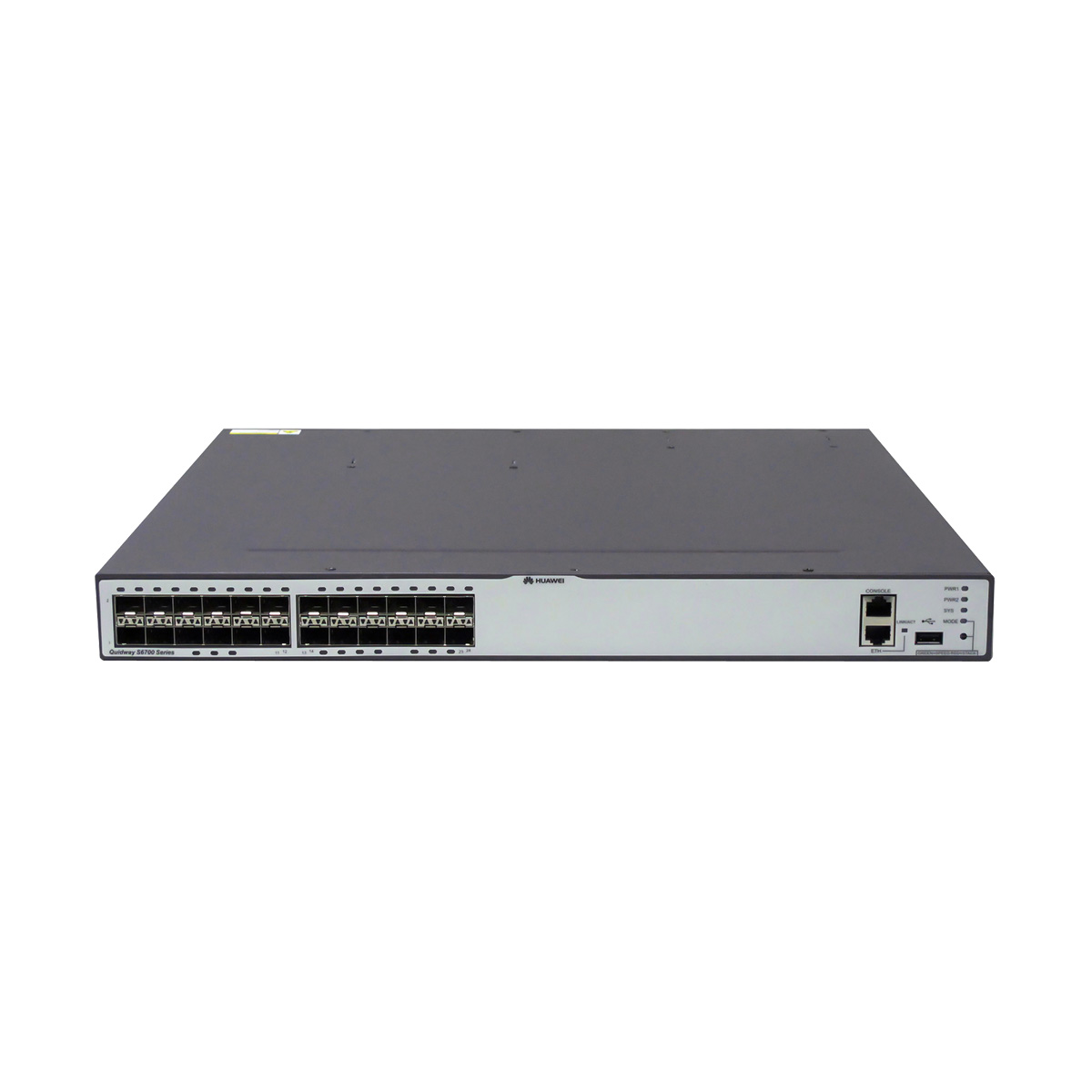

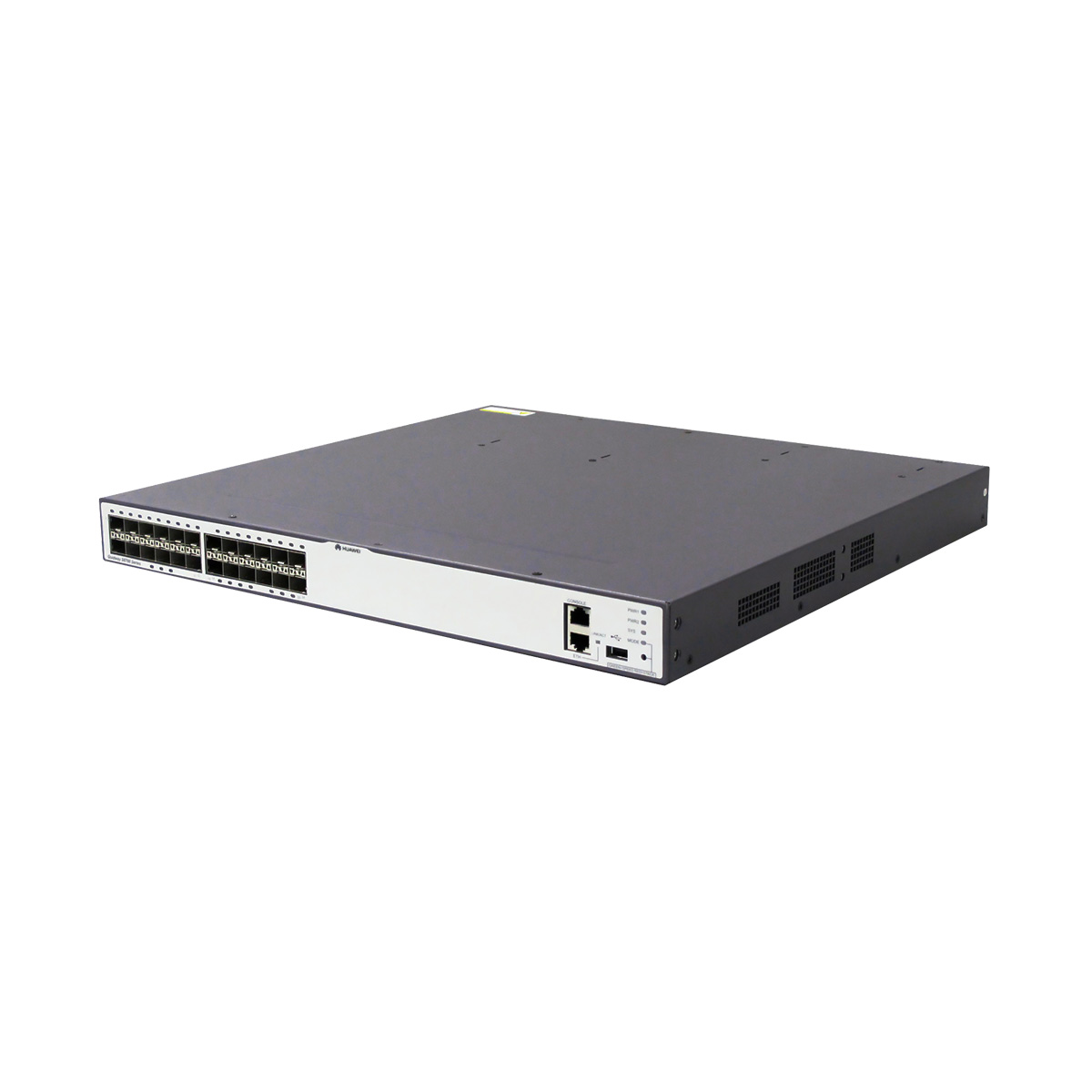

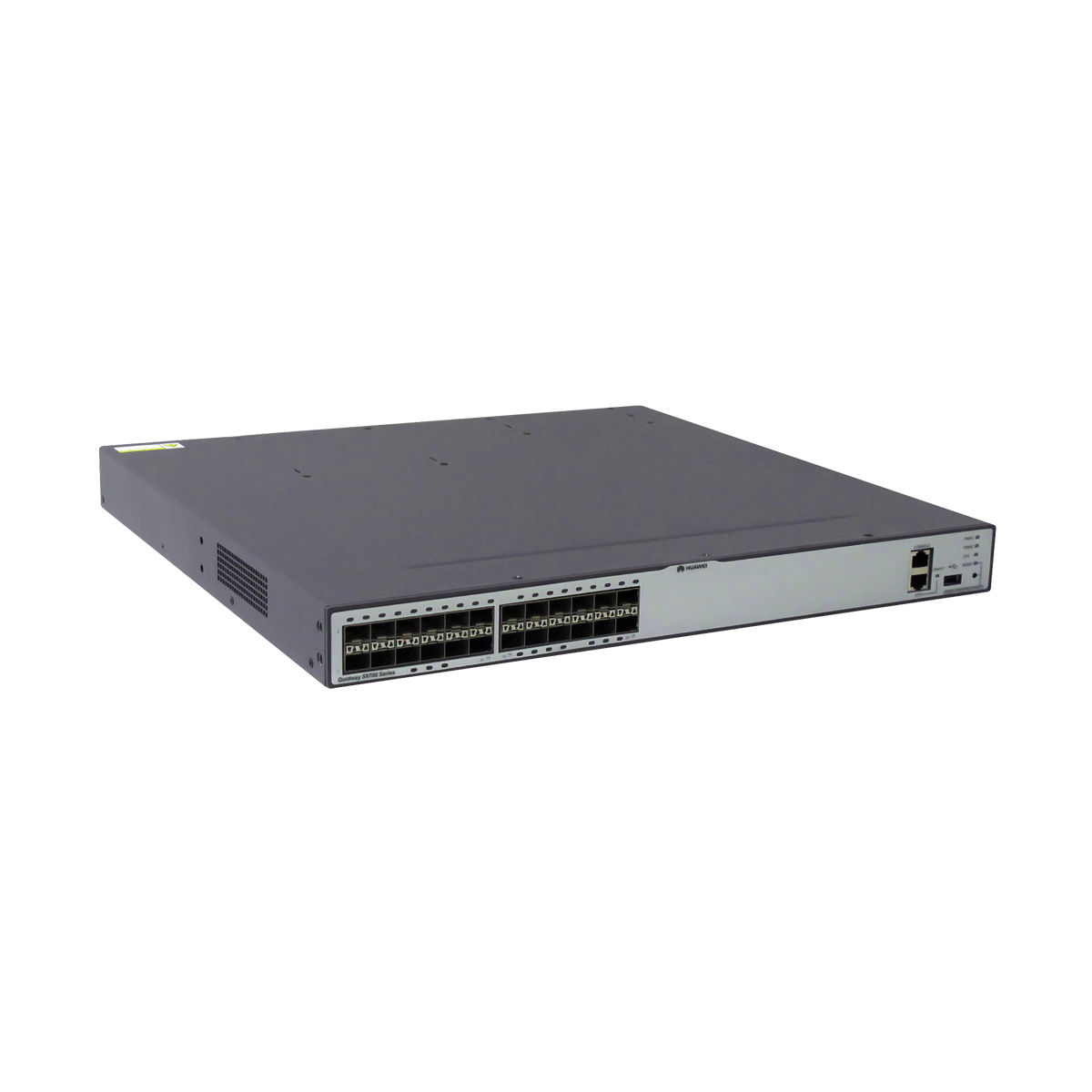

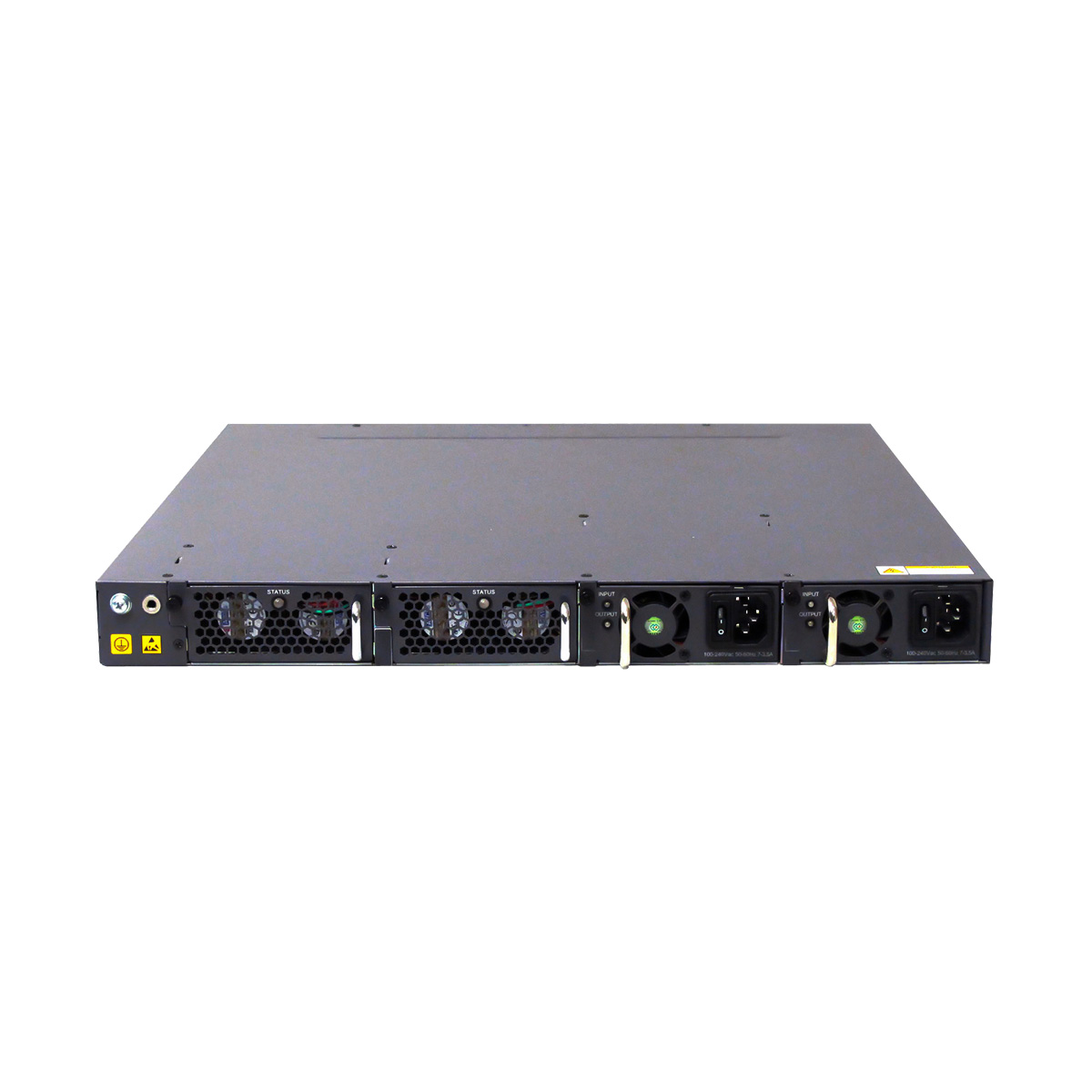

S6700-24-EI appearance and structure

1. Twenty-four 10GE SFP+ ports OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR	6. ESD jack
2. One ETH management port	7. Fan slot 2
3. One console port	8. Fan slot 1
4. One USB port	9. Power module slot 2
5. Ground screw	10. Power module slot 1

S6700-24-EI datasheet

Item	S6700-24-EI
Port	24 GE SFP/10 GE SFP+ ports
Extended slot	NA
Forwarding perfomance	360Mpps
Switching capacity	960Gbps
MAC address table	128 K MAC address entries
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN Mapping
	QinQ and selective QinQ
Reliability	STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s)
	BPDU protection, root protection, and loop protection
	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
	SEP, E-Trunk
	ERPS(G.8032 v2)
	BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
IPv4 routing	Static routing, RIPv1, RIPv2, ECMP, and URPF
	OSPF, IS-IS, and BGP
	VRRP
	Policy-based routing
	Routing policy
IPv6 routing	Static route
	RIPng
	OSPFv3
	BGP4+
IPv6 features	Neighbor Discovery (ND)
	Path MTU (PMTU)
	IPv6 ping, IPv6 tracert, and IPv6 Telnet
	ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
	MLD v1/v2 snooping
	6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Multicast	Static Layer 2 multicast MAC address
	MAC-based multicast forwarding
	IGMP snooping and IGMP fast leave
	Multicast VLAN
	MLD snooping
	IGMP proxy
	Controllable multicast
	Port-based multicast traffic statistics
	IGMP v1/v2/v3
	PIM-SM, PIM-DM, and PIM-SSM
	MSDP
QoS/ACL	Rate limiting on packets sent and received by an interface
	Packet redirection
	Port-based traffic policing and two-rate three-color CAR
	Eight queues on each port
	WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
	Re-marking of the 802.1p priority and DSCP priority
	Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID
	Rate limiting in each queue and traffic shaping on ports
MPLS features	MPLS L3VPN
	MPLS L2VPN (VPWS/VPLS)
	MPLS-TE
	MPLS QoS
Security	DoS attack defense, ARP attack defense, and ICMP attack defense
	802.1x authentication and limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
	SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	CPU defense
	Blacklist and whitelist
Management and maintenance	MAC Forced Forwarding (MFF), iStack (using service ports as stack ports)
	Virtual cable test,
	SNMP v1/v2c/v3,
	RMON
	Web-based NMS
	System logs and alarms of different levels
	GVRP
	MUX VLAN
	Local port mirroring and remote switched port analyzer (RSPAN), allowing an observing port to forward packets
	Ethernet OAM (IEEE 802.3ah and 802.1ag), sFlow
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST)
	Supports LNP (Similar to DTP)
	Supports VCMP (Similar to VTP)
Input DC voltage: Rated input voltage range	-48 V DC to -60 V DC
Input DC voltage: Maximum voltage range	-36 V DC to -72 V DC
Input AC voltage: Rated input voltage range	100 V AC to 240 V AC, 50/60 Hz
Input AC voltage: Maximum voltage range	90 V AC to 264 V AC, 50/60 Hz
Operating temperature	Operating temperature: 0-45℃
Relative humidity	5% to 95% (non-condensing)
Dimensions (W x D x H)	442mm×420mm×43.6mm
Power consumption	153W

S6700-24-EI datasheet

Item	S6700-24-EI
Port	24 GE SFP/10 GE SFP+ ports
Extended slot	NA
Forwarding perfomance	360Mpps
Switching capacity	960Gbps
MAC address table	128 K MAC address entries
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN Mapping
	QinQ and selective QinQ
Reliability	STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s)
	BPDU protection, root protection, and loop protection
	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
	SEP, E-Trunk
	ERPS(G.8032 v2)
	BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
IPv4 routing	Static routing, RIPv1, RIPv2, ECMP, and URPF
	OSPF, IS-IS, and BGP
	VRRP
	Policy-based routing
	Routing policy
IPv6 routing	Static route
	RIPng
	OSPFv3
	BGP4+
IPv6 features	Neighbor Discovery (ND)
	Path MTU (PMTU)
	IPv6 ping, IPv6 tracert, and IPv6 Telnet
	ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
	MLD v1/v2 snooping
	6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Multicast	Static Layer 2 multicast MAC address
	MAC-based multicast forwarding
	IGMP snooping and IGMP fast leave
	Multicast VLAN
	MLD snooping
	IGMP proxy
	Controllable multicast
	Port-based multicast traffic statistics
	IGMP v1/v2/v3
	PIM-SM, PIM-DM, and PIM-SSM
	MSDP
QoS/ACL	Rate limiting on packets sent and received by an interface
	Packet redirection
	Port-based traffic policing and two-rate three-color CAR
	Eight queues on each port
	WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
	Re-marking of the 802.1p priority and DSCP priority
	Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID
	Rate limiting in each queue and traffic shaping on ports
MPLS features	MPLS L3VPN
	MPLS L2VPN (VPWS/VPLS)
	MPLS-TE
	MPLS QoS
Security	DoS attack defense, ARP attack defense, and ICMP attack defense
	802.1x authentication and limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
	SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	CPU defense
	Blacklist and whitelist
Management and maintenance	MAC Forced Forwarding (MFF), iStack (using service ports as stack ports)
	Virtual cable test,
	SNMP v1/v2c/v3,
	RMON
	Web-based NMS
	System logs and alarms of different levels
	GVRP
	MUX VLAN
	Local port mirroring and remote switched port analyzer (RSPAN), allowing an observing port to forward packets
	Ethernet OAM (IEEE 802.3ah and 802.1ag), sFlow
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST)
	Supports LNP (Similar to DTP)
	Supports VCMP (Similar to VTP)
Input DC voltage: Rated input voltage range	-48 V DC to -60 V DC
Input DC voltage: Maximum voltage range	-36 V DC to -72 V DC
Input AC voltage: Rated input voltage range	100 V AC to 240 V AC, 50/60 Hz
Input AC voltage: Maximum voltage range	90 V AC to 264 V AC, 50/60 Hz
Operating temperature	Operating temperature: 0-45℃
Relative humidity	5% to 95% (non-condensing)
Dimensions (W x D x H)	442mm×420mm×43.6mm
Power consumption	153W

Weight	14.0000 kg
Dimensions	71.0000 × 55.0000 × 17.5000 cm
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
Campus Switch	S6700-EI
