S5755-H24P4Y2CZ

0 Reviews Write a review 2 Solds

PN98012220

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5755-H24P4Y2CZ switch supports twenty-four 10/100/1000BASE-T PoE+ ports, four 1GE/10GE/25GE SFP28 optical ports

Huawei FutureMatrix Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5755-H24P4Y2CZ overview

Item	Details
Description	S5755-H24P4Y2CZ (2410/100/1000BASE-T ports, 425GE SFP28 ports, 2*100GE QSFP28 ports, expansion card slot, PoE+, without power module)
Part Number	98012220
Model	S5755-H24P4Y2CZ
First supported version	V600R023C00

S5755-H24P4Y2CZ quick spec

Twenty-four 10/100/1000BASE-T PoE+ ports
Four 1GE/10GE/25GE SFP28 optical ports
Two 40GE/100GE QSFP28 optical ports

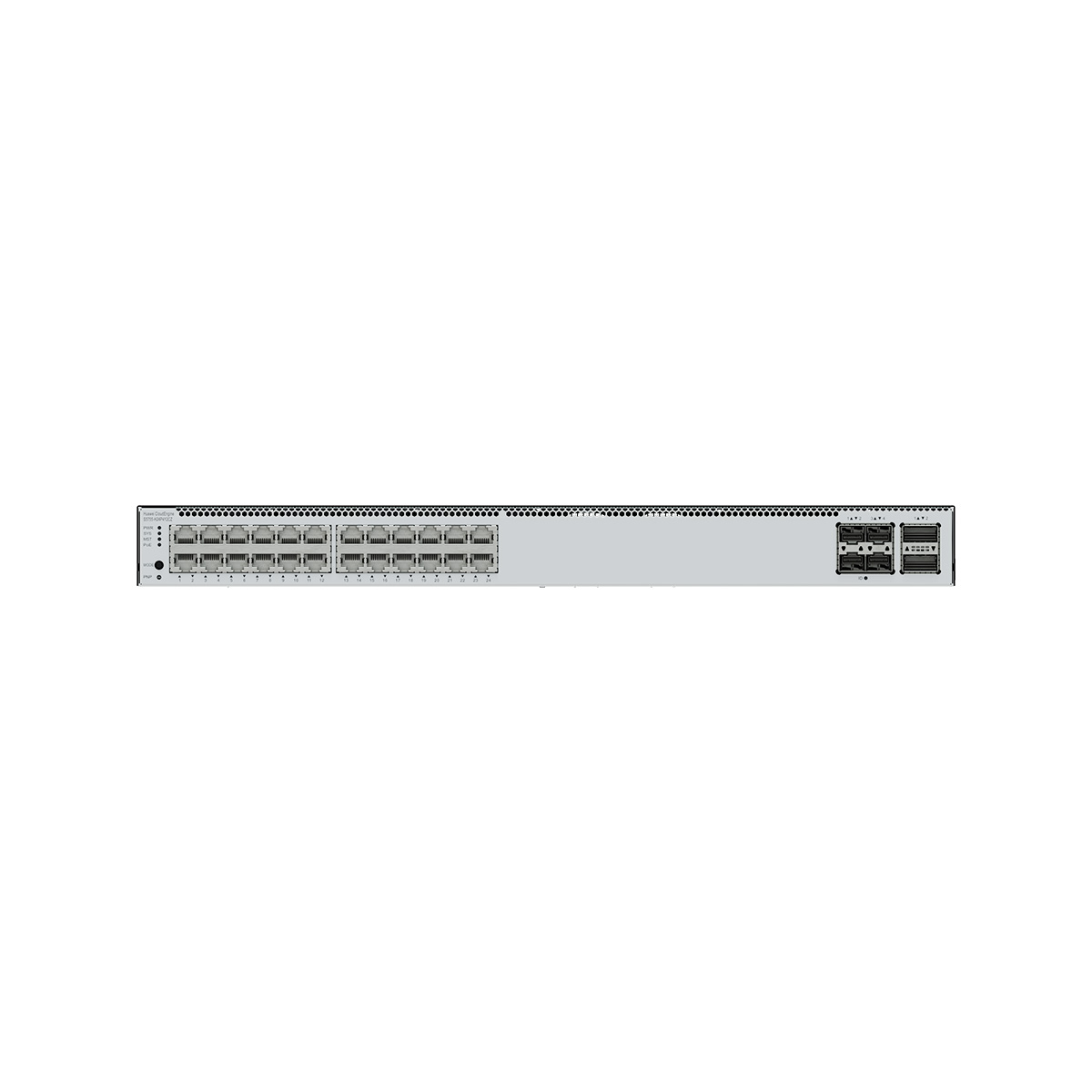

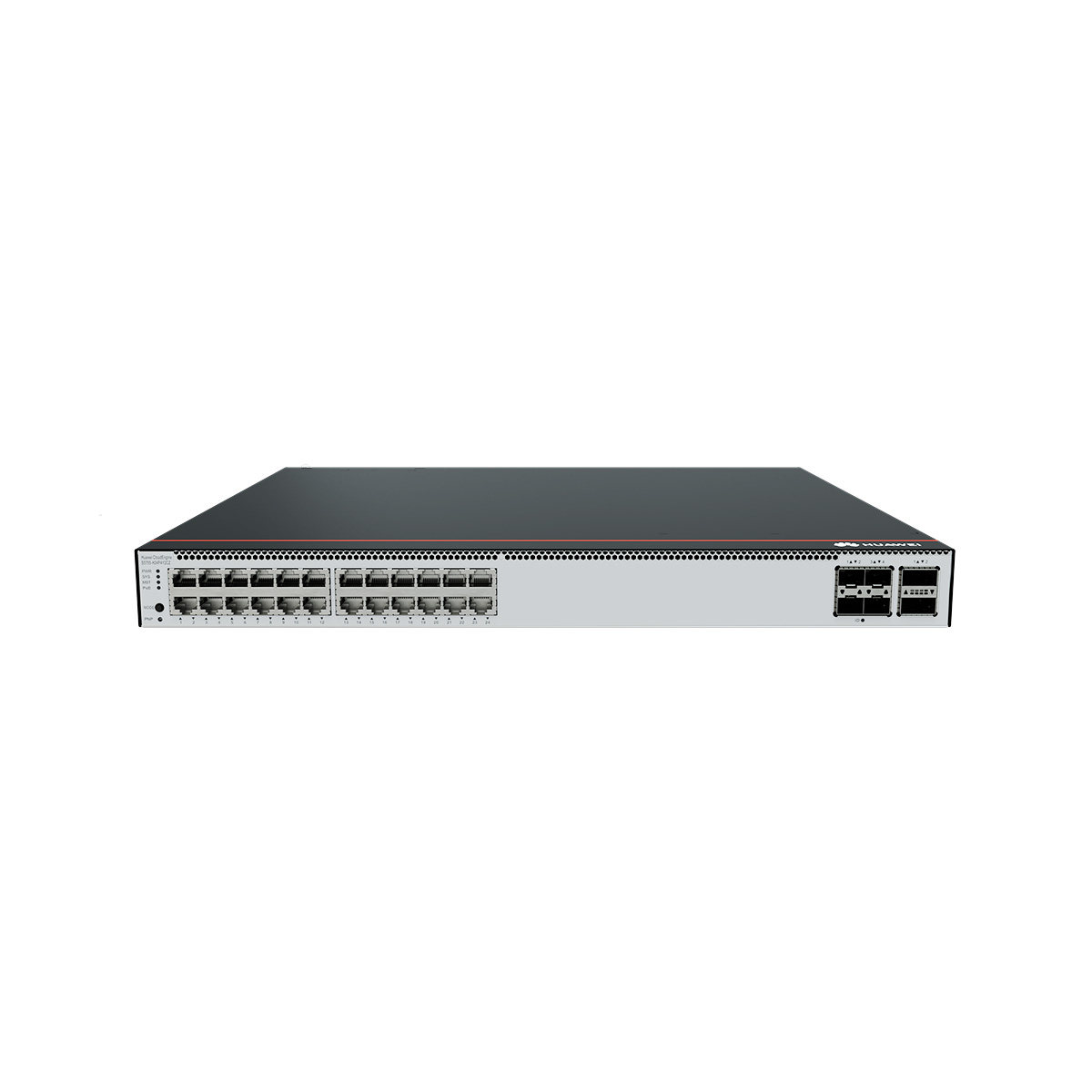

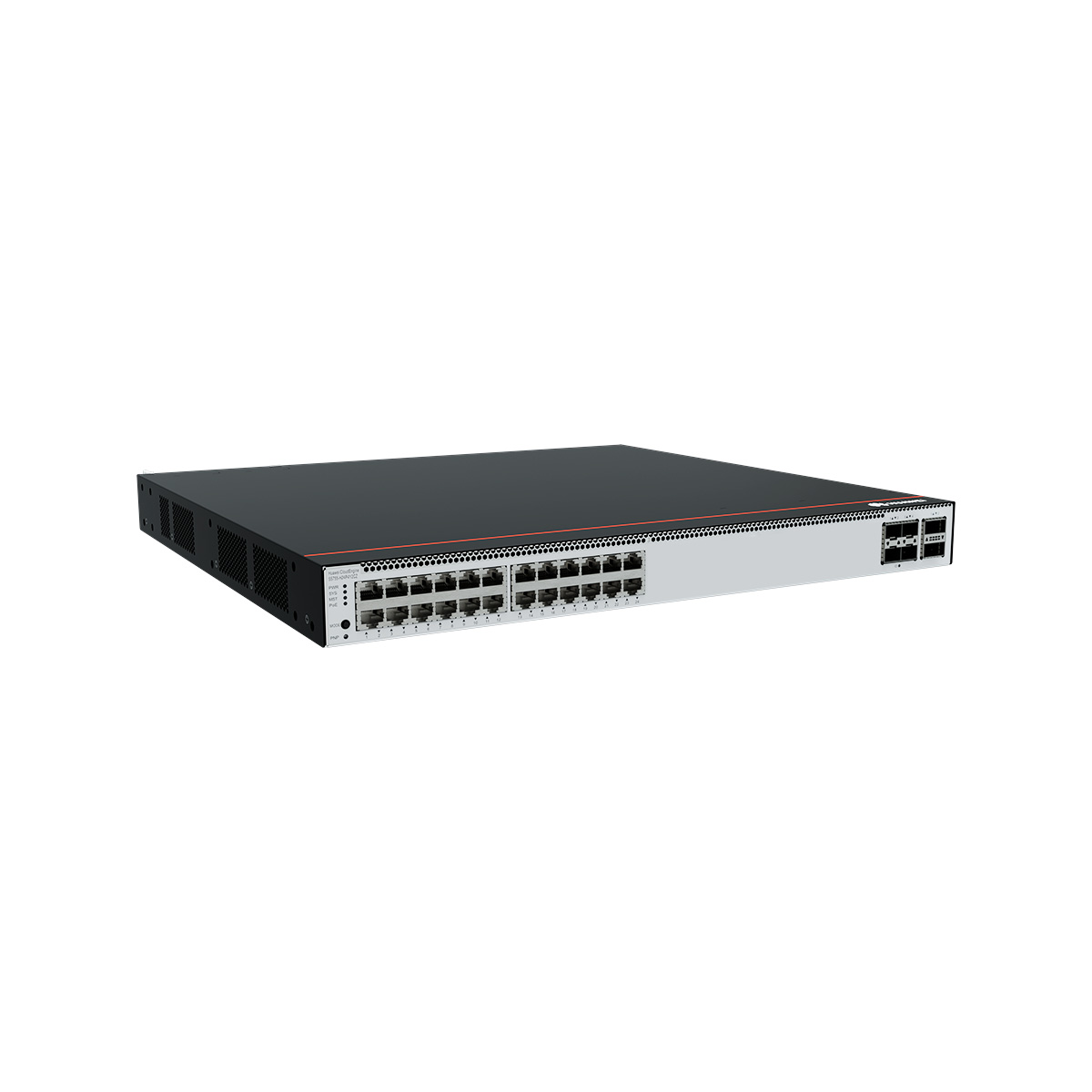

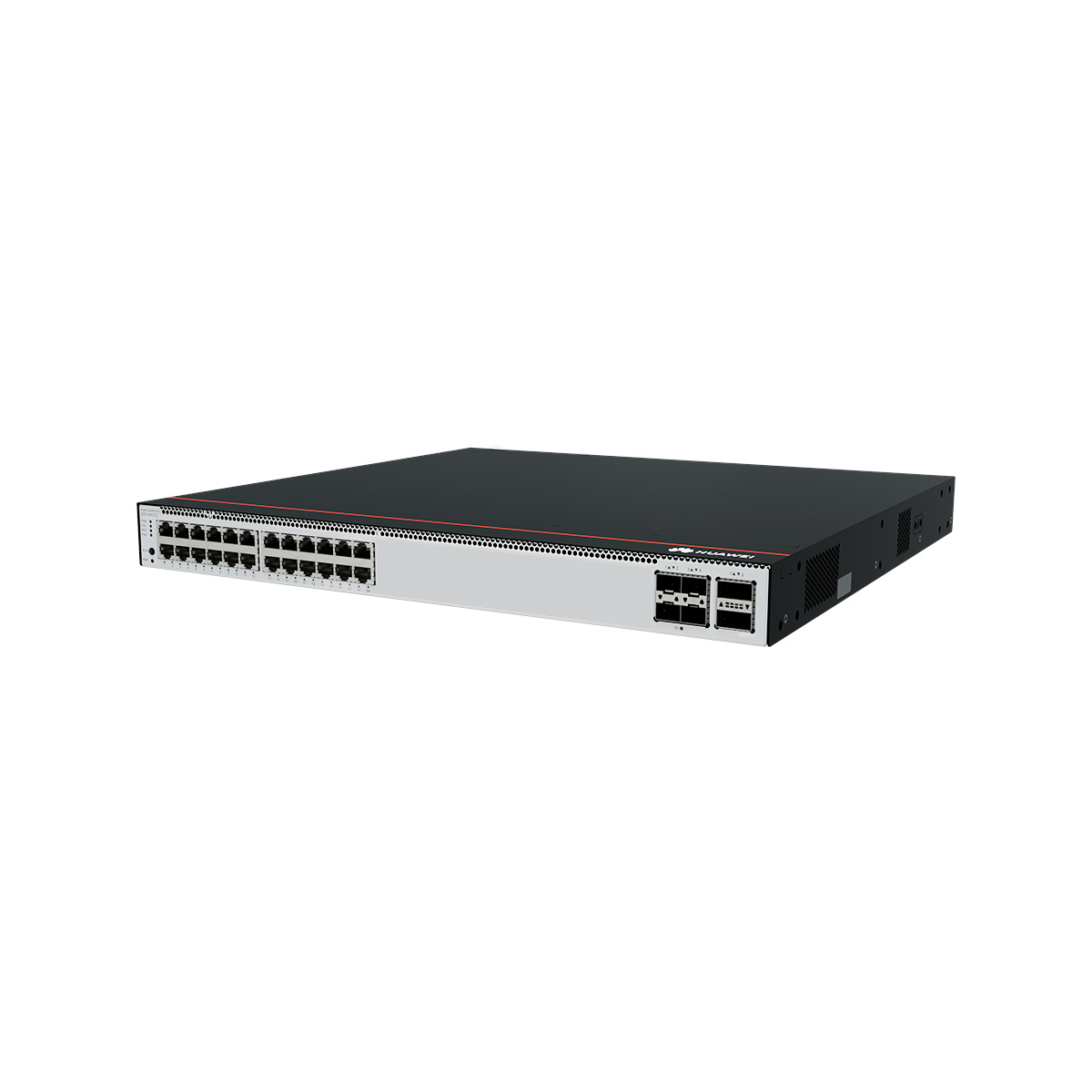

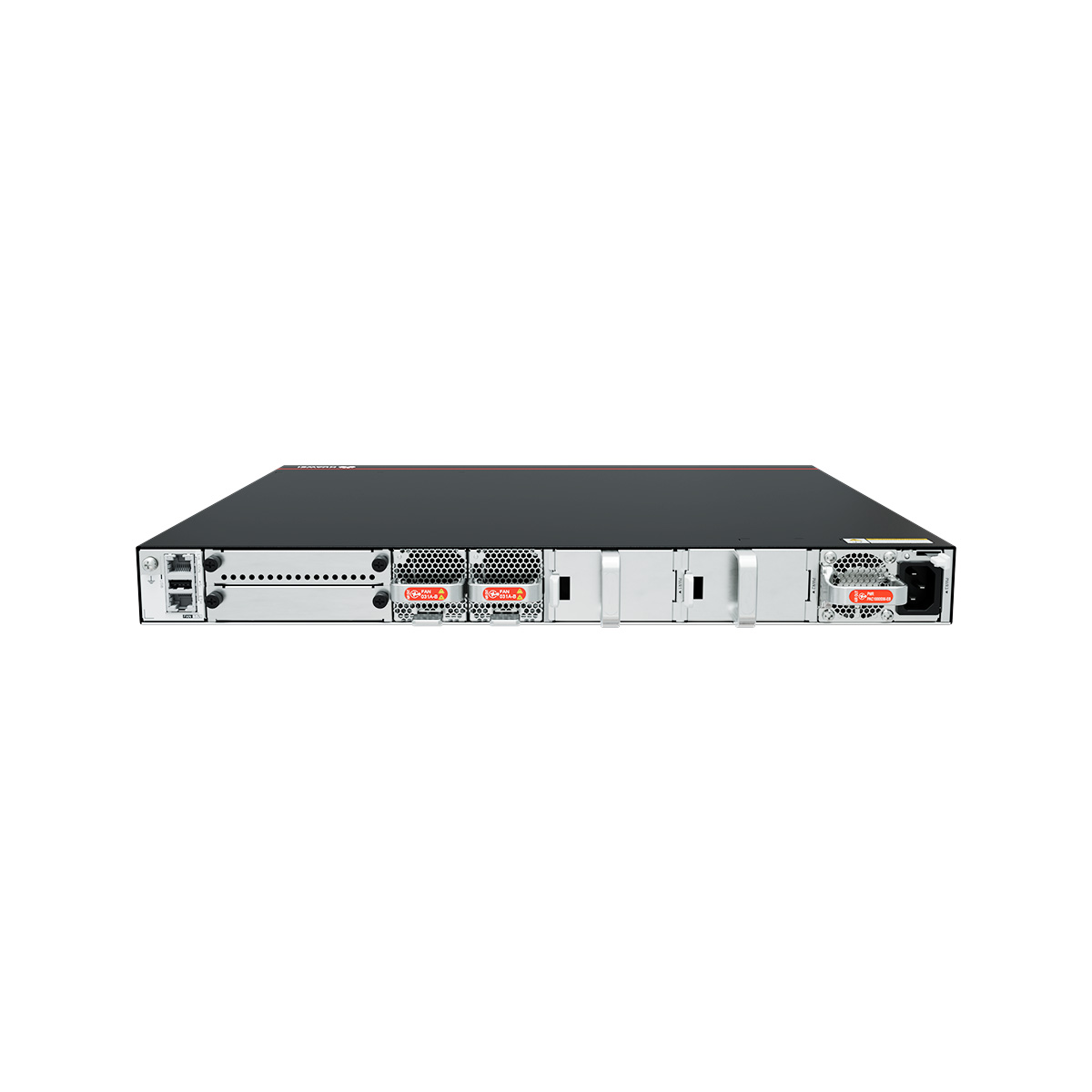

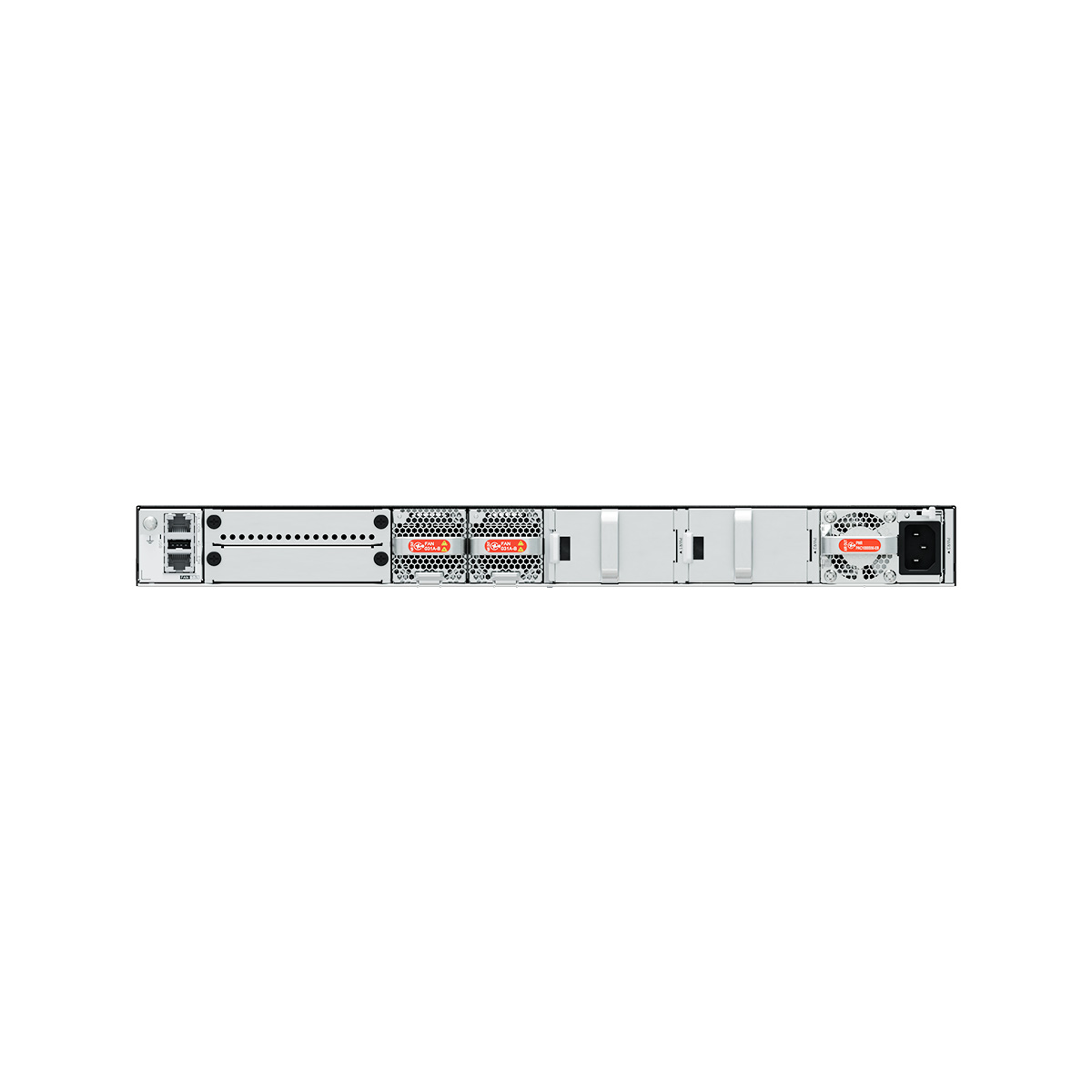

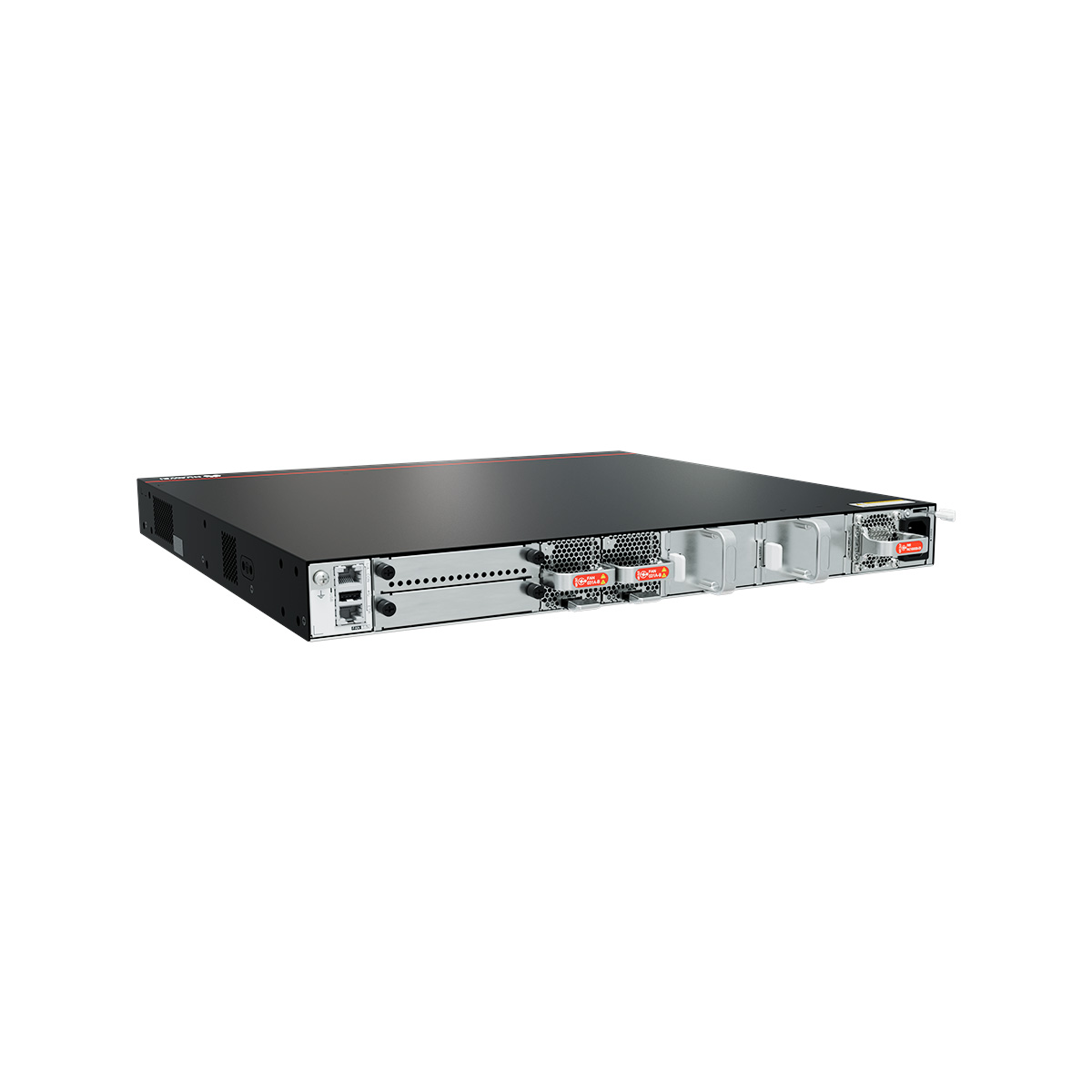

S5755-H24P4Y2CZ appearance and structure

1	One PNP button NOTICE: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.	2	One MODE button
3	Twenty-four 10/100/1000BASE-T PoE+ ports	4	Four 1GE/10GE/25GE SFP28 optical ports
5	Two 40GE/100GE QSFP28 optical ports	6	Ground screw NOTE: It is used with a ground cable.
7	One console port	8	One USB port
9	One ETH management port	10	Card slot NOTE: In versions earlier than V600R024C00, this card slot is reserved.
11	Fan module slot 1 NOTE: Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))	12	Fan module slot 2 NOTE: Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))
13	Power module slot 1 NOTE: Applicable power modules: PAC600S56-EB PAC1000S56-EB PDC1000S56-EB	14	Power module slot 2 NOTE: Applicable power modules: PAC600S56-EB PAC1000S56-EB PDC1000S56-EB
15	Power module slot 3 NOTE: Applicable power modules: PAC600S56-EB PAC1000S56-EB PDC1000S56-EB	–	–

Item	S5755-H24P4Y2CZ
Typical power consumption [W]	30% traffic under the ATIS standard, dual power supplies: 88 W (all ports used) 77 W (2 x 100GE ports not used)
Typical heat dissipation [BTU/hour]	30% traffic under the ATIS standard, dual power supplies: 300.26 (all ports used) 262.73 (2 x 100GE ports not used)
Maximum power consumption [W]	100% traffic under the ATIS standard, dual power modules, and without PoE: 100 W (all ports used) 88 W (2 x 100GE ports not used) Full PoE load, three 1000 W power modules: 976 W (PoE: 840 W)
Maximum heat dissipation [BTU/hour]	100% traffic under the ATIS standard, dual power modules, and without PoE: 341.21 (all ports used) 300.26 (2 x 100GE ports not used) Full PoE load, three 1000 W power modules: 3330.21
Static power consumption [W]	62 W
MTBF [years]	77.84 years
MTTR [hours]	1.54 hours
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	30% PoE load: 52.70 dBA
Noise at normal temperature (acoustic pressure) [dB(A)]	30% PoE load: 40.7 dBA
Number of card slots	1
Number of power slots	3
Number of fans modules	2
Redundant power supply	1+1+1 Pluggable AC and DC power modules can be used together in the same switch.
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met: The operating temperature exceeds 45°C (113°F) for no more than 96 consecutive hours in a year. The total time in which the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours. The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year. If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur. The device cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km. When the QSFP-100G-ER4 or QSFP-100G-LR1 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Memory	4 GB
Flash memory	Physical space: 2 GB
Console port	RJ45
Eth Management port	RJ45
USB	Supported
RTC	Supported
RPS input	Not supported
Power supply surge protection [kV]	Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Pluggable
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from left, front, and right and air exhaust from rear
PoE	Supported
Certification	EMC certification Safety certification Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 454.0 mm (1.72 in. x 17.4 in. x 17.87 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	145.0 mm x 650.0 mm x 550.0 mm (5.71 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Chassis material	Metal
Weight without packaging [kg(lb)]	6.13 kg (13.51 lb)
Weight with packaging [kg(lb)]	8.01 kg (17.66 lb)

Item	S5755-H24P4Y2CZ
Typical power consumption [W]	30% traffic under the ATIS standard, dual power supplies: 88 W (all ports used) 77 W (2 x 100GE ports not used)
Typical heat dissipation [BTU/hour]	30% traffic under the ATIS standard, dual power supplies: 300.26 (all ports used) 262.73 (2 x 100GE ports not used)
Maximum power consumption [W]	100% traffic under the ATIS standard, dual power modules, and without PoE: 100 W (all ports used) 88 W (2 x 100GE ports not used) Full PoE load, three 1000 W power modules: 976 W (PoE: 840 W)
Maximum heat dissipation [BTU/hour]	100% traffic under the ATIS standard, dual power modules, and without PoE: 341.21 (all ports used) 300.26 (2 x 100GE ports not used) Full PoE load, three 1000 W power modules: 3330.21
Static power consumption [W]	62 W
MTBF [years]	77.84 years
MTTR [hours]	1.54 hours
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	30% PoE load: 52.70 dBA
Noise at normal temperature (acoustic pressure) [dB(A)]	30% PoE load: 40.7 dBA
Number of card slots	1
Number of power slots	3
Number of fans modules	2
Redundant power supply	1+1+1 Pluggable AC and DC power modules can be used together in the same switch.
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met: The operating temperature exceeds 45°C (113°F) for no more than 96 consecutive hours in a year. The total time in which the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours. The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year. If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur. The device cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km. When the QSFP-100G-ER4 or QSFP-100G-LR1 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Memory	4 GB
Flash memory	Physical space: 2 GB
Console port	RJ45
Eth Management port	RJ45
USB	Supported
RTC	Supported
RPS input	Not supported
Power supply surge protection [kV]	Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Pluggable
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from left, front, and right and air exhaust from rear
PoE	Supported
Certification	EMC certification Safety certification Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 454.0 mm (1.72 in. x 17.4 in. x 17.87 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	145.0 mm x 650.0 mm x 550.0 mm (5.71 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Chassis material	Metal
Weight without packaging [kg(lb)]	6.13 kg (13.51 lb)
Weight with packaging [kg(lb)]	8.01 kg (17.66 lb)
