S5755-H24N4Y-A

0 Reviews Write a review

PN02355NEC

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

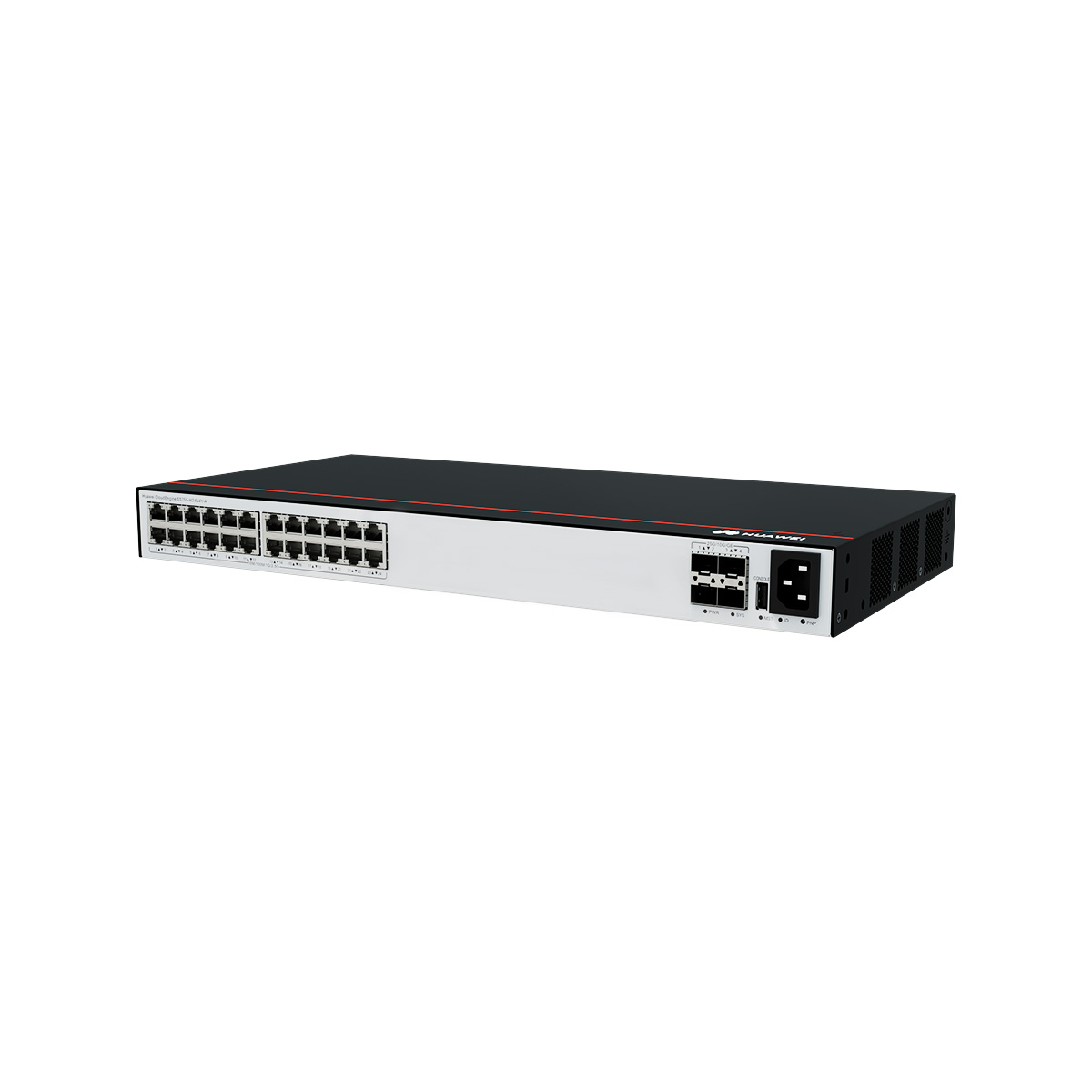

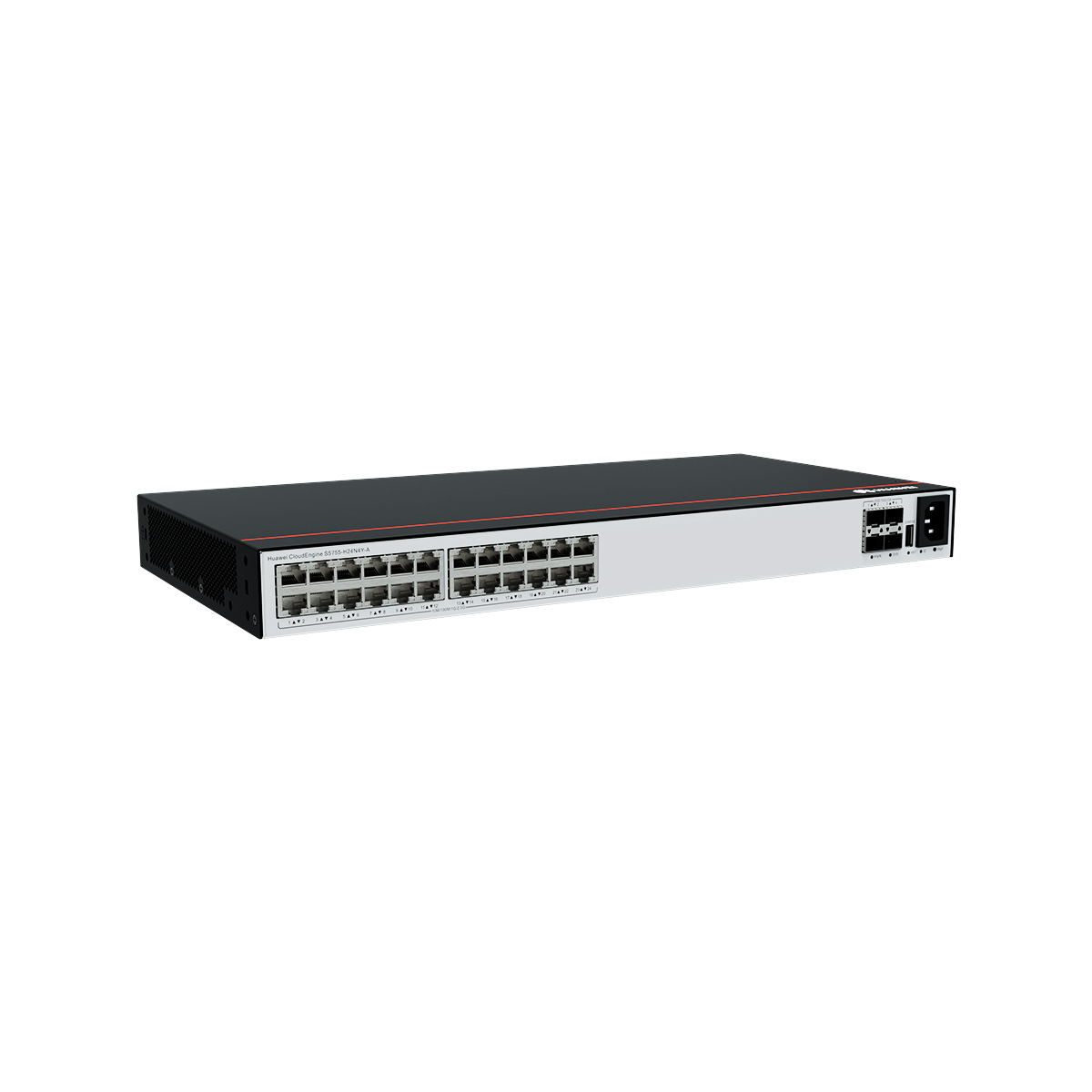

Huawei S5755-H24N4Y-A switch supports twenty-four 10M/100M/1000M/2.5GE BASE-T ports (multi-GE ports), four 1GE/10GE/25GE SFP28 optical ports, with AC power

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5755-H24N4Y-A overview

Item	Details
Description	S5755-H24N4Y-A (2410/100/1000/2.5GBASE-T ports, 425GE SFP28 ports, built-in AC power, front access)
Part Number	02355NEC
Model	S5755-H24N4Y-A
First supported version	V600R023C00

S5755-H24N4Y-A quick spec

Twenty-four 10M/100M/1000M/2.5GE BASE-T ports (multi-GE ports)
Four 1GE/10GE/25GE SFP28 optical ports

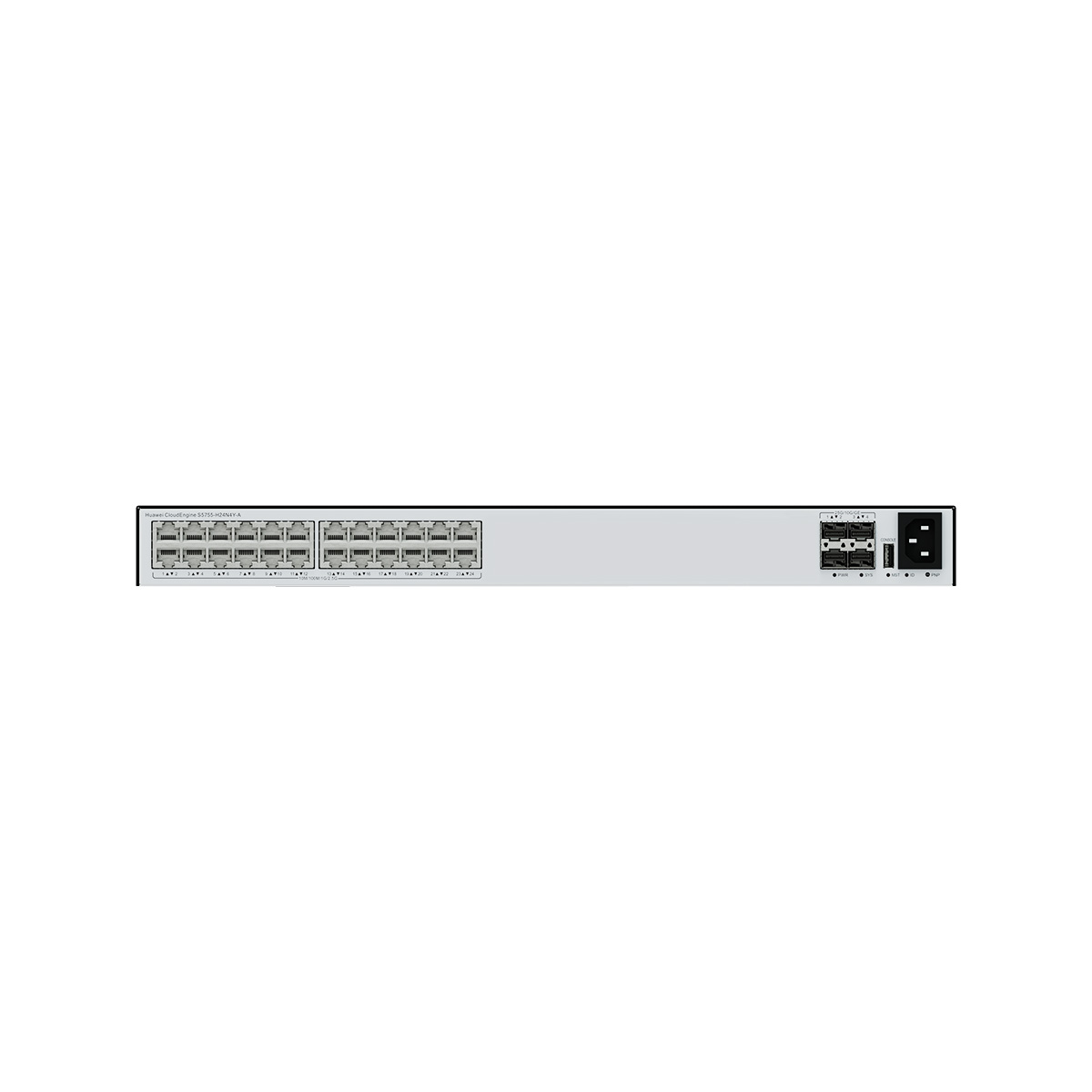

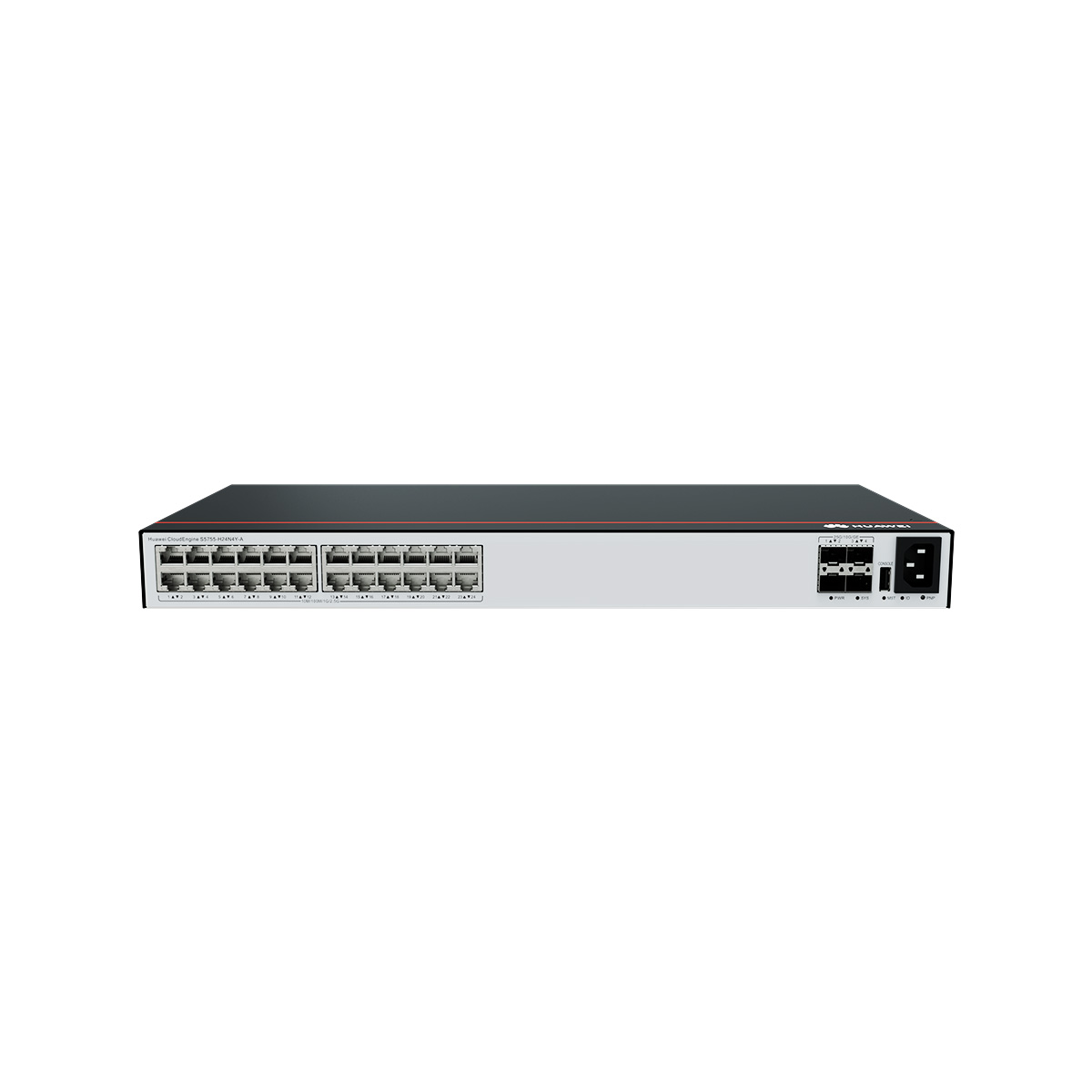

S5755-H24N4Y-A appearance and structure

1	Twenty-four 10M/100M/1000M/2.5GE BASE-T ports (multi-GE ports) NOTE: Multi-GE ports do not support 10 Mbit/s in V600R023C00 version.	2	Four 1GE/10GE/25GE SFP28 optical ports
3	One USB console port	4	AC socket
5	One PNP button NOTICE: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.	6	Ground screw

Item	S5755-H24N4Y-A
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 236.0 mm (1.72 in. x 17.4 in. x 9.29 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]	1 U
Chassis material	Metal
Weight without packaging [kg(lb)]	3.83 kg (8.44 lb)
Weight with packaging [kg(lb)]	4.45 kg (9.81 lb)
Typical power consumption [W]	30% traffic under the ATIS standard: 65 W
Typical heat dissipation [BTU/hour]	30% traffic under the ATIS standard: 221.79
Maximum power consumption [W]	100% traffic under the ATIS standard: 69 W
Maximum heat dissipation [BTU/hour]	100% traffic under the ATIS standard: 235.43
Static power consumption [W]	45 W
MTBF [years]	51.06 years
MTTR [hours]	2.35 hours
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	47.2 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	35.2 dB(A)
Number of card slots	0
Number of power slots	0
Number of fans modules	2
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met: The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year. The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours. The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year. If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur. Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100–240 V AC; 50/60 Hz
Input voltage range [V]	AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum input current [A]	3 A
Memory	4 GB
Flash memory	Physical space: 2 GB
Console port	USB
Eth Management port	RJ45
USB	Not supported
RTC	Supported
RPS input	Not supported
Power supply surge protection [kV]	Differential mode: ±6 kV; common mode: ±6 kV
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Built-in
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from left and air exhaust from right
PoE	Not supported
Certification	EMC certification Safety certification Manufacturing certification

Item	S5755-H24N4Y-A
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 236.0 mm (1.72 in. x 17.4 in. x 9.29 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]	1 U
Chassis material	Metal
Weight without packaging [kg(lb)]	3.83 kg (8.44 lb)
Weight with packaging [kg(lb)]	4.45 kg (9.81 lb)
Typical power consumption [W]	30% traffic under the ATIS standard: 65 W
Typical heat dissipation [BTU/hour]	30% traffic under the ATIS standard: 221.79
Maximum power consumption [W]	100% traffic under the ATIS standard: 69 W
Maximum heat dissipation [BTU/hour]	100% traffic under the ATIS standard: 235.43
Static power consumption [W]	45 W
MTBF [years]	51.06 years
MTTR [hours]	2.35 hours
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	47.2 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	35.2 dB(A)
Number of card slots	0
Number of power slots	0
Number of fans modules	2
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met: The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year. The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours. The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year. If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur. Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100–240 V AC; 50/60 Hz
Input voltage range [V]	AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum input current [A]	3 A
Memory	4 GB
Flash memory	Physical space: 2 GB
Console port	USB
Eth Management port	RJ45
USB	Not supported
RTC	Supported
RPS input	Not supported
Power supply surge protection [kV]	Differential mode: ±6 kV; common mode: ±6 kV
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Built-in
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from left and air exhaust from right
PoE	Not supported
Certification	EMC certification Safety certification Manufacturing certification
