Huawei S5736-S48S4X-D switch supports 48* 1000BASE-X, 4* 10GE SFP+, 1* DC power fixed

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5736-S48S4X-D Overview

Huawei S5736-S48S4X-D switch with 48* 1000BASE-X, 4* 10GE SFP+, 1* DC power fixed, is one of the CloudEngine Huawei S5736-S series switches.

Huawei CloudEngine S5736-S series switches are next-generation standard all-optical GE access switches that provide 24-port and 48-port models and provide four 10GE ports and one extended slot(optional)

Huawei CloudEngine S5736-S series all-optical GE access switches are developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP), support enhanced Layer 3 features simplified operations and maintenance (O&M), flexible Ethernet networking, and mature IPv6 features. CloudEngine S5736-S switches can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.



S5736-S48S4X-D fast spec

48 x GE SFP ports

4 x 10 GE SFP+ ports

Built-in DC power

Forwarding performance: 480 Mpps

Switching capacity: 1.04 Tbps/2.72 Tbps



S5736-S48S4X-D basic information
Item Details
Description 48*GE SFP ports, optional RTU upgrade to 10G, 4*10GE SFP+ ports, DC power supply, front access
Part Number 98011607
First supported version V200R020C30

Note: All ports support GE by default. You can purchase right-to-use (RTU)  licenses to upgrade the port rate from GE to 10GE.

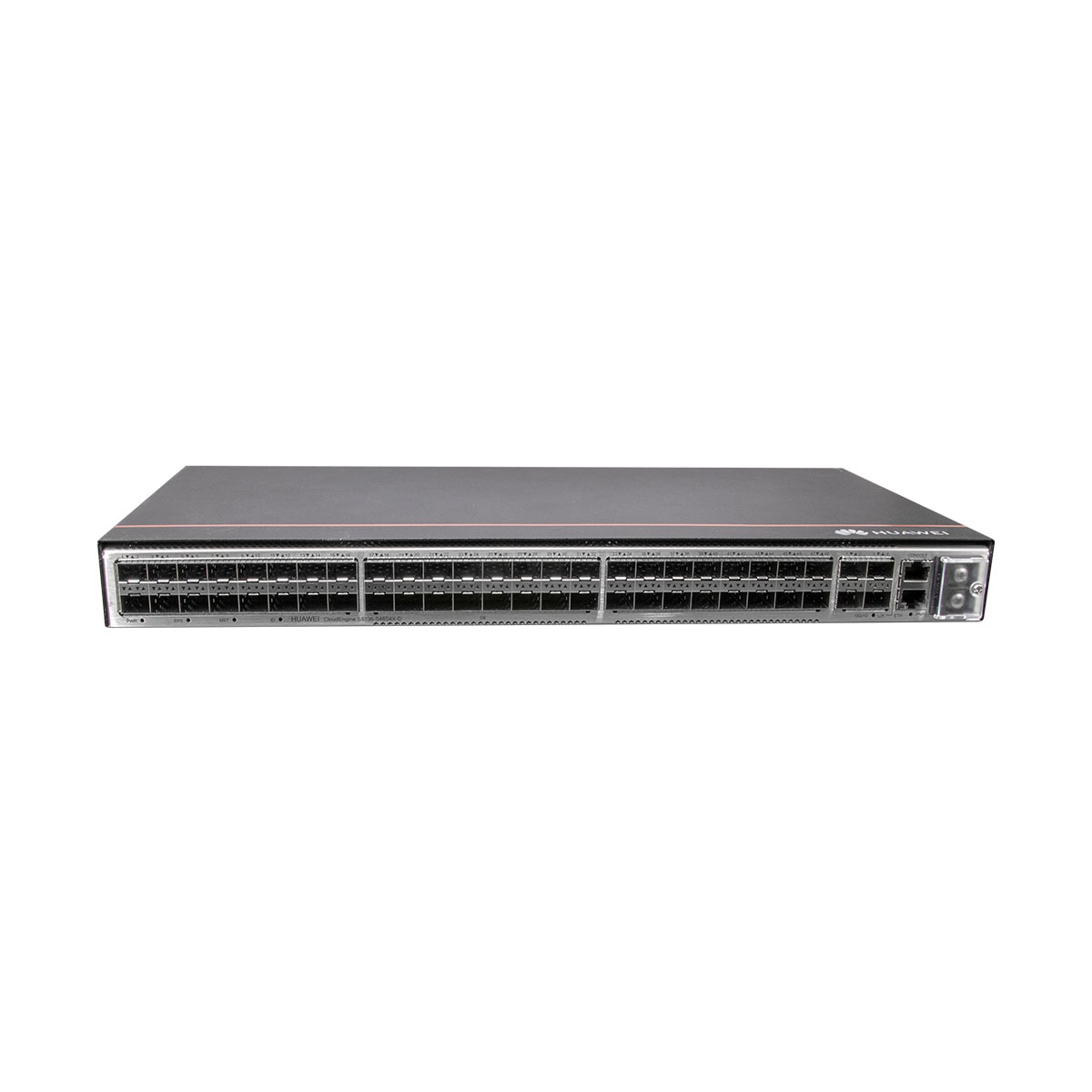

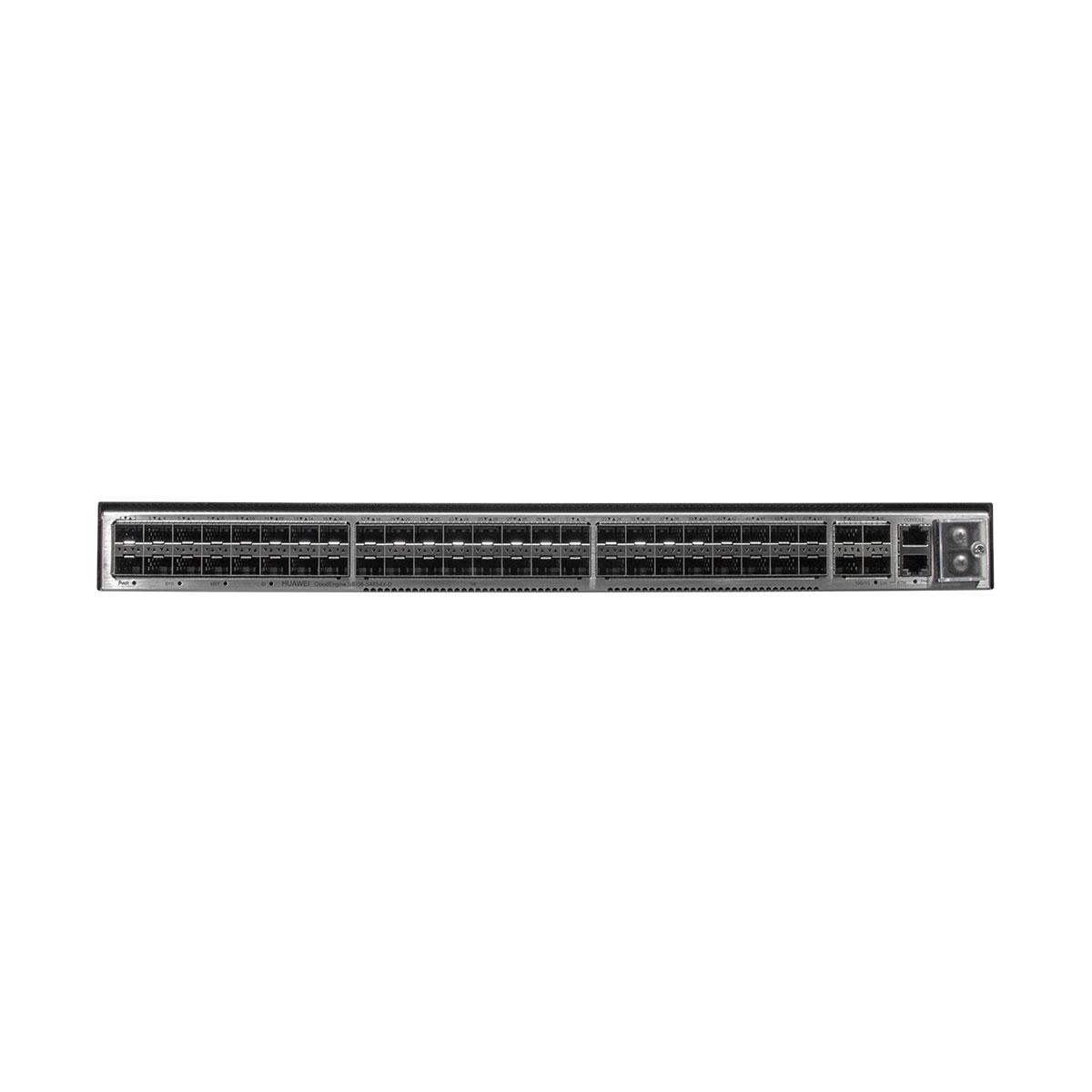

S5736-S48S4X-D appearance

S5736-S48S4X-D

1 Forty-eight 1000BASE-X ports 2 Four 10GE SFP+ optical ports
3 One console port 4 One ETH management port
5 One PNP button 6 DC power terminal
7 Ground screw – –





Huawei S5736-S48S4X-D Switch Datasheet

Item S5736-S48S4X-D
Memory 2 GB
Flash memory 1 GB in total. To view the available flash memory size, run the display version command.
Console port RJ45
Eth Management port RJ45
USB Not supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] -
Power supply surge protection [kV] ±2 kV in differential mode, ±4 kV in common mode
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air flows in from the left side and front panel, and exhausts from the right side.
PoE Not supported
Certification EMC certification
Safety certification
Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 235.8 mm (1.72 in. x 17.4 in. x 9.3 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90 mm × 555 mm × 345 mm (3.54 in. x 21.85 in. x 13.58 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 3.2 kg (7.1 lb)
Weight with packaging [kg(lb)] 4.3 kg (9.48 lb)
Typical power consumption [W] 87 W
Typical heat dissipation [BTU/hour] 296.85 BTU/hour
Maximum power consumption [W] 108 W
Maximum heat dissipation [BTU/hour] 368.51 BTU/hour
MTBF [year] 41.97 year
MTtr [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 56.8 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 3
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
The equipment operates at a temperature of over 45°C (113°F) consecutively for at most 96 hours in one year.
The equipment operates at a temperature of over 45°C (113°F) for a total of no more than 360 hours in one year.
The equipment operates at a temperature of over 45°C (113°F) for no more in 15 times in one year.
The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.
The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode DC built-in
Rated input voltage [V] -48 V DC to -60 V DC
Input voltage range [V] -38.4 V DC to -72 V DC
Maximum input current [A] 6.0 A

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Campus Switch

Huawei S5736-S48S4X-D Switch Datasheet

Item S5736-S48S4X-D
Memory 2 GB
Flash memory 1 GB in total. To view the available flash memory size, run the display version command.
Console port RJ45
Eth Management port RJ45
USB Not supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] -
Power supply surge protection [kV] ±2 kV in differential mode, ±4 kV in common mode
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air flows in from the left side and front panel, and exhausts from the right side.
PoE Not supported
Certification EMC certification
Safety certification
Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 235.8 mm (1.72 in. x 17.4 in. x 9.3 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90 mm × 555 mm × 345 mm (3.54 in. x 21.85 in. x 13.58 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 3.2 kg (7.1 lb)
Weight with packaging [kg(lb)] 4.3 kg (9.48 lb)
Typical power consumption [W] 87 W
Typical heat dissipation [BTU/hour] 296.85 BTU/hour
Maximum power consumption [W] 108 W
Maximum heat dissipation [BTU/hour] 368.51 BTU/hour
MTBF [year] 41.97 year
MTtr [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 56.8 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 3
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
The equipment operates at a temperature of over 45°C (113°F) consecutively for at most 96 hours in one year.
The equipment operates at a temperature of over 45°C (113°F) for a total of no more than 360 hours in one year.
The equipment operates at a temperature of over 45°C (113°F) for no more in 15 times in one year.
The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.
The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode DC built-in
Rated input voltage [V] -48 V DC to -60 V DC
Input voltage range [V] -38.4 V DC to -72 V DC
Maximum input current [A] 6.0 A
