Huawei S5736-S24UM4XC switch supports 24 100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ ports, 4 10GE SFP+ ports, 2 power module slots, 1 extended slot

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5736-S24UM4XC overview

S5736-S24UM4XC supports 24 100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ ports, 4 10GE SFP+ ports, 2 power module slots, 1 extended slot, which is one of the Huawei S5736-S series switches.

CloudEngine S5736-S Series Switches are standard multi-GE access switches for the Wi-Fi 6 era, featuring 24 downlink ports, four 10 GE SFP+ uplink ports, and one extended slot.

Powered by Huawei’s unified Versatile Routing Platform (VRP), the switches offer a range of capabilities, including Intent-Driven Network (IDN) features and flexible Ethernet, as well as enhanced Layer 3 and mature Internet Protocol version 6 (IPv6) networking. Combined with simplified Operations and Maintenance (O&M) and robust Power over Ethernet (PoE) capabilities, the series is designed to work with Wireless Local Area Network (WLAN) Access Points (APs) in campus networks.

CloudEngine S5736-S can be used as an access or aggregation switch on a campus network or as an access switch on a Metropolitan Area Network (MAN).



S5736-S24UM4XC basic information
Description 24*100M/1G Ethernet ports, optional RTU upgrade to 2.5/5/10G, 4*10GE SFP+ ports, 1*expansion slot, PoE++, without power module
Part Number 98011020
First supported version V200R020C00
Other part numbers 98011020-001:  2.5&10G bundle (12*100M/1G/2.5G Ethernet ports, 12*100M/1G/2.5G/5G/10G Ethernet ports, optional RTU upgrade to 5/10G, 4*10GE SFP+ ports, 1*expansion slot, PoE++, 1*1000W AC power)

98011020-004: 10G bundle (24*100M/1G/2.5G/5G/10G Ethernet ports, 4*10GE SFP+ ports, 1*expansion slot, PoE++, 1*1000W AC power)

There are several S5736-S24UM4XC bundles, which consist of different power supplies and ports, as listed below:

Part Number Description Remarks
98011020 24*100M/1G Ethernet ports, Optional RTU upgrade to 2.5/5/10G, 4*10GE SFP+ ports, 1*expansion slot, PoE++, without power module By default, no power supply is configured. By default, multi-GE ports support 100 Mbit/s and 1000 Mbit/s. You can purchase an RTU license to increase the port rate to 2.5 Gbit/s, 5 Gbit/s, or 10 Gbit/s. There is a label on the rear side of the device, which contains the default rate “24*GE” supported by the multi-GE ports.
98011020-001 2.5&10G Bundle(12*100M/1G/2.5G Ethernet ports, 12*100M/1G/2.5G/5G/10G Ethernet ports, Optional RTU upgrade to 5/10G, 4*10GE SFP+ ports, 1*expansion slot, PoE++, 1*1000W AC power By default, one 1000 W AC power module is configured. By default, the first 12 multi-GE ports support 100 Mbit/s, 1000 Mbit/s, and 2.5 Gbit/s. You can purchase an RTU license to increase the port rate to 5 Gbit/s or 10 Gbit/s. By default, the last 12 multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s. There is a label on the rear side of the device, which contains the default rate “12*2.5GE+12*10GE” supported by the multi-GE ports.
98011020-004 10G Bundle(24*100M/1G/2.5G/5G/10G Ethernet ports, 4*10GE SFP+ ports, 1*expansion slot, PoE++, 1*1000W AC power) By default, one 1000 W AC power module is configured. By default, multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s. There is a label on the rear side of the device, which contains the default rate “24*10GE” supported by the multi-GE ports.



S5736-S24UM4XC quick specs

24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports

4 x 10 GE SFP+

PoE++, up to 90 W PoE++ per port

One extended slot, supporting 2 x 25 GE SFP28 or 8 x 10 GE SFP+, 4 x 40 GE QSFP+ cards

Forwarding performance is 480Mpps

Switching capacity is 880 Gbit/s/2.72 Tbit/s

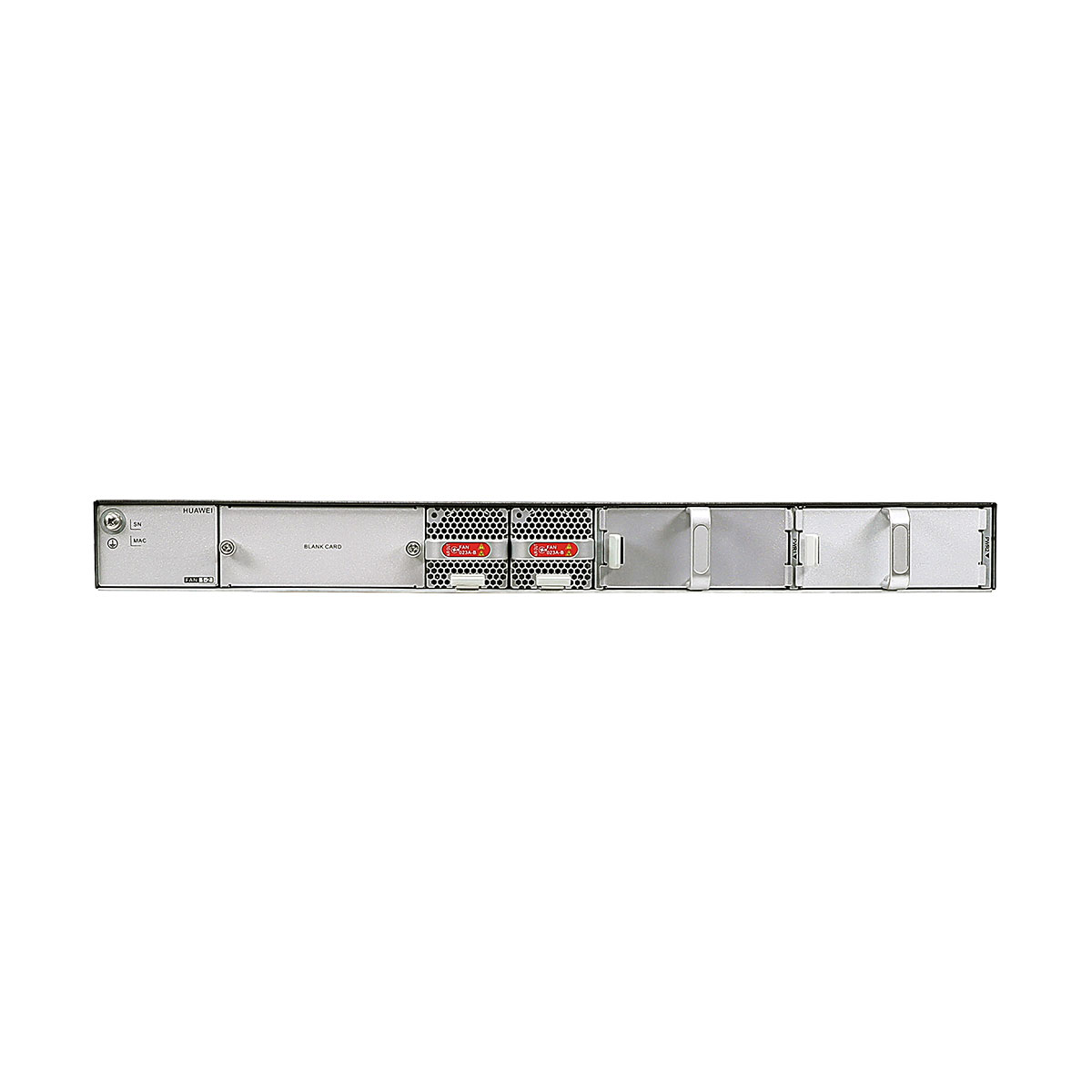

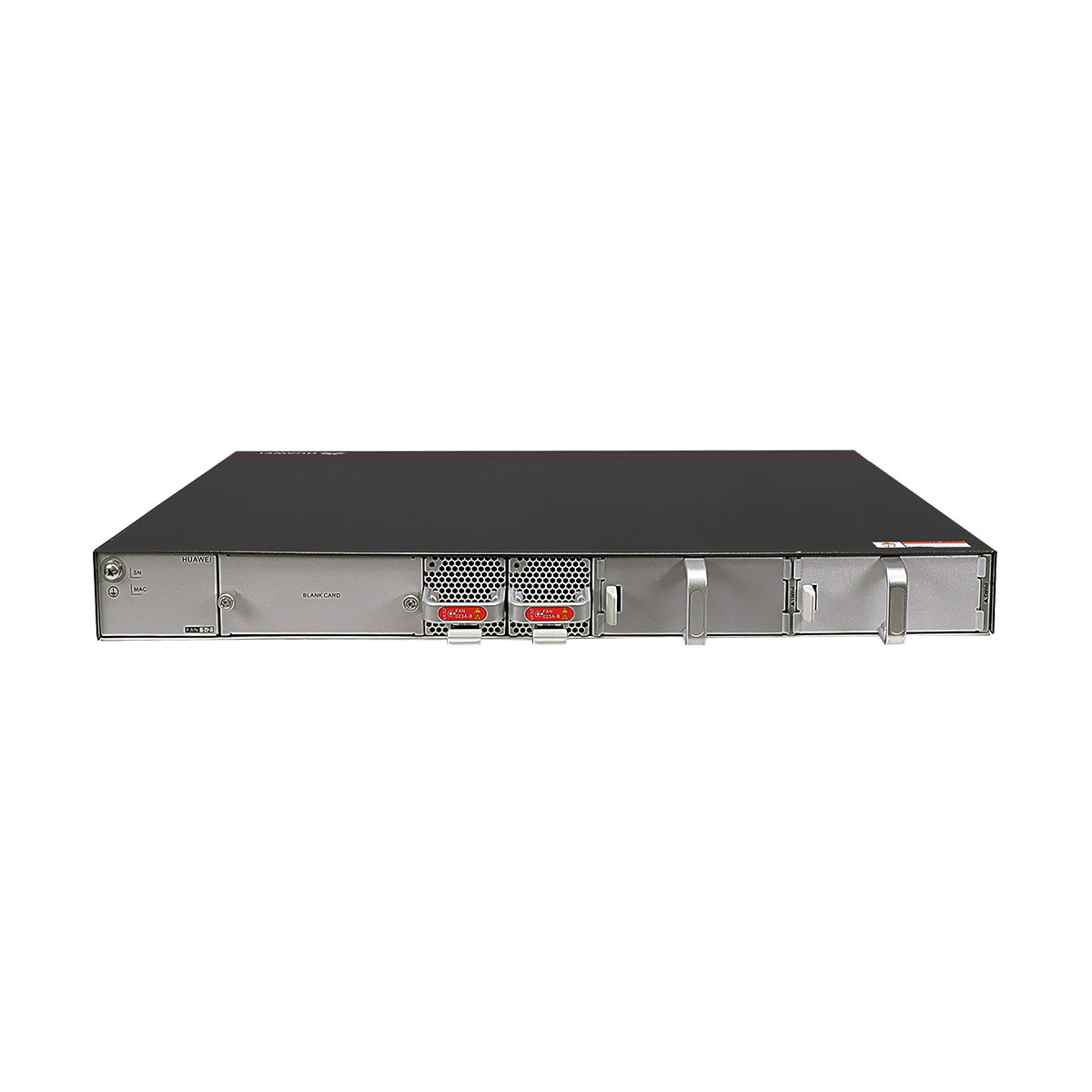

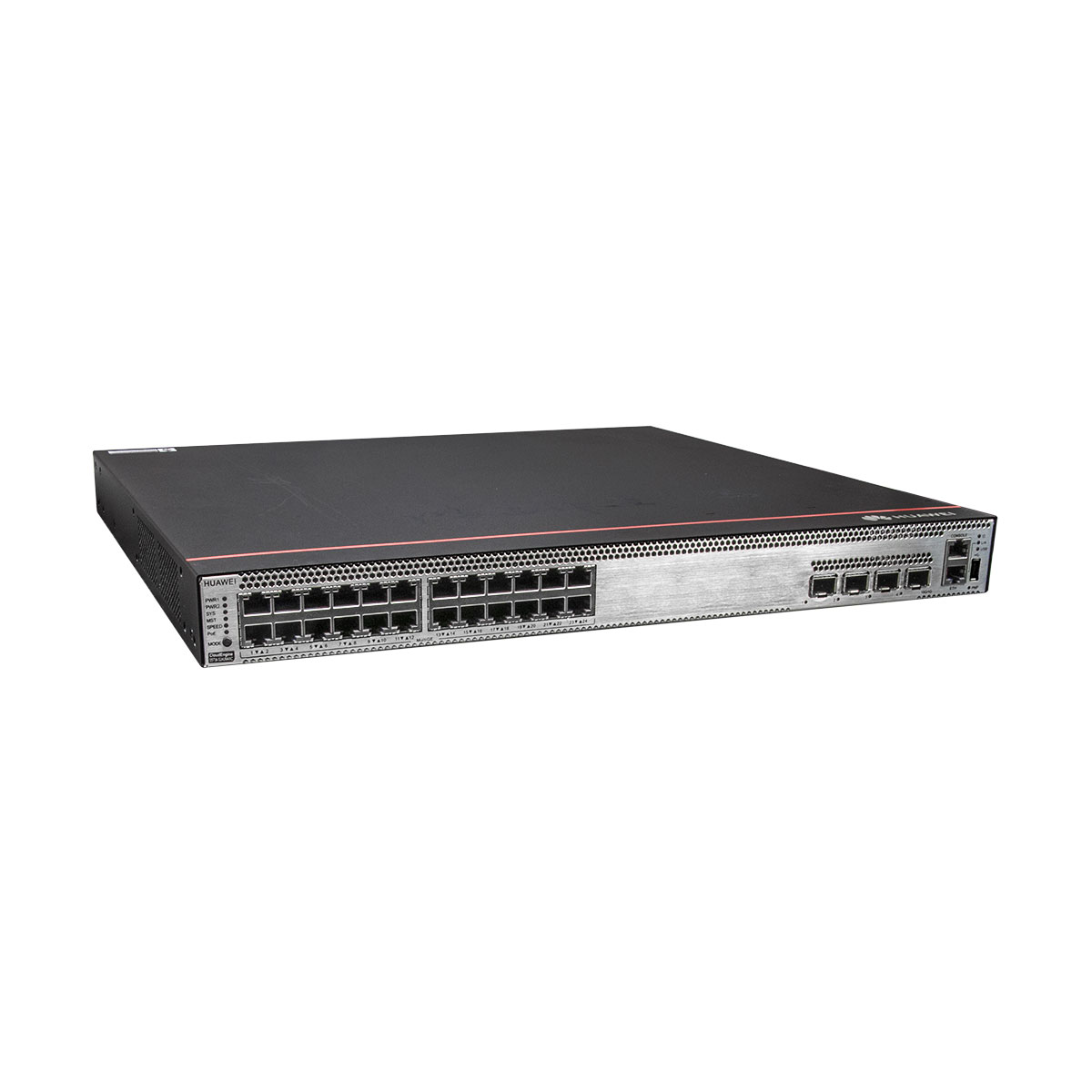

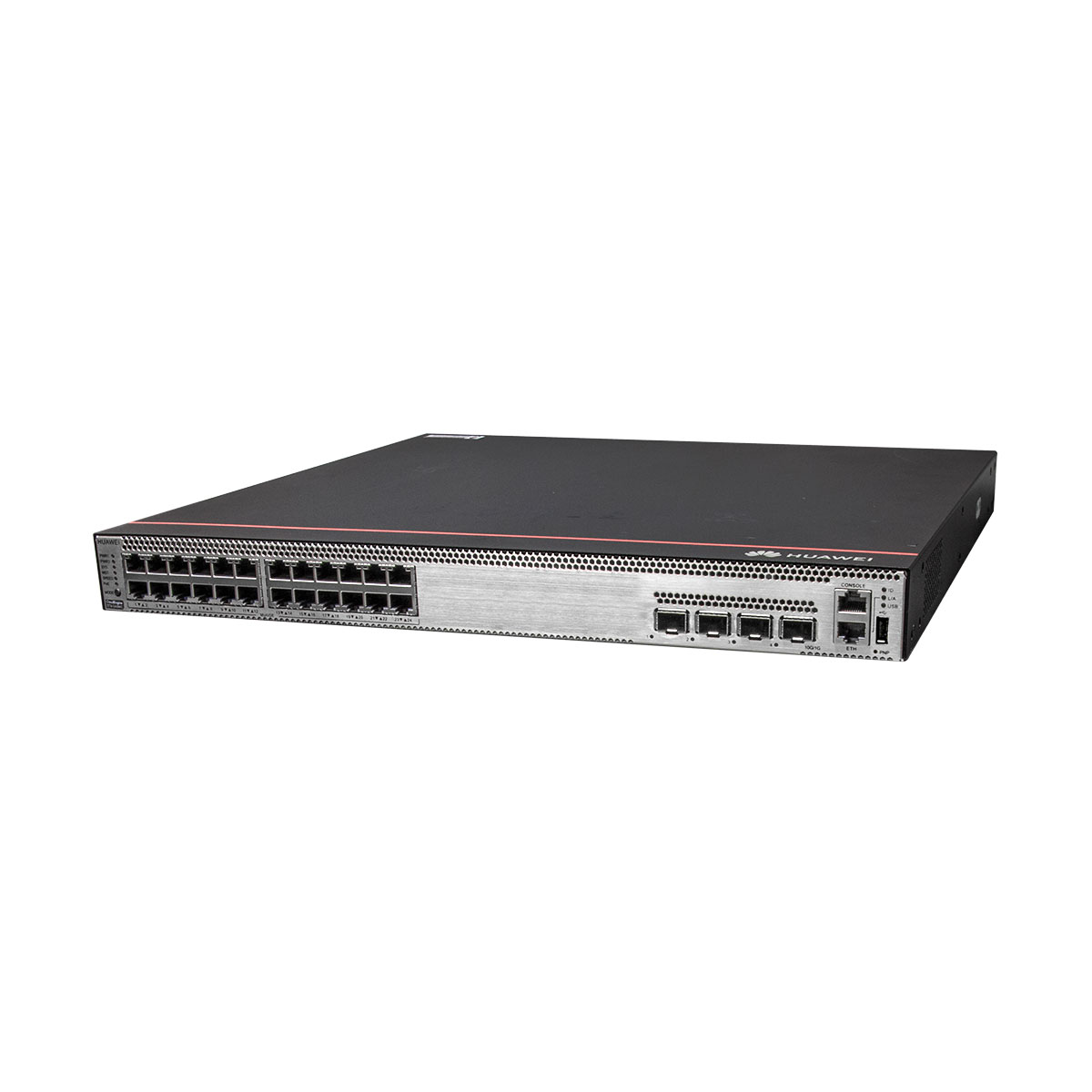

S5736-S24UM4XC appearance and structure

S5736-S24UM4XC

1 Twenty-four 100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ ports (multi-GE ports) 7 Ground screw
2 Four 10GE SFP+ optical ports 8 Rear card slot
3 One console port 9 Fan module slot 1
4 One ETH management port 10 Fan module slot 2
5 One USB port 11 Power module slot 1
6 One PNP button 12 Power module slot 2
Item S5736-S24UM4XC
Specification 24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports 4 x 10 GE SFP+ PoE++, up to 90 W PoE++ per port One extended slot, supporting 2 x 25 GE SFP28 or 8 x 10 GE SFP+, 4 x 40 GE QSFP+ cards Forwarding performance is 480Mpps Switching capacity is 880 Gbit/s/2.72 Tbit/s
Memory 2 GB
Flash memory 1 GB in total. To view the available flash memory size, run the display version command.
Console port RJ45
Eth Management port RJ45
USB Supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±6 kV
Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode
Types of fans Pluggable
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left,front and right, air exhaustion from behind
PoE Supported
Certification EMC certification
Safety certification
Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 444.0 mm (1.72 in. x 17.4 in. x 17.5 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 150mm × 710mm × 560mm (5.90 in. x 27.95 in. x 22.05 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 6.7 kg (14.77 lb)
Weight with packaging [kg(lb)] 9.7 kg (21.39 lb)
Typical power consumption [W] 117 W
Typical heat dissipation [BTU/hour] 399.22 BTU/hour
Maximum power consumption [W] Not providing the PoE function: 176 W (without card)
100% PoE loads: 1967 W (PoE: 1791 W, without card)
Maximum heat dissipation [BTU/hour]
Not providing the PoE function: 600.53 (without card)
100% PoE loads: 6711.60 (without card)
MTBF [year] 59.44 year
MTtr [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 70.1 dB(A)
Number of card slots 1
Number of power slots 2
Number of fans modules 2
Redundant power supply 1+1
Long-term operating temperature [°C(°F)] -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
The equipment operates at a temperature of over 45°C (113°F) consecutively for at most 96 hours in one year.
The equipment operates at a temperature of over 45°C (113°F) for a total of no more than 360 hours in one year.
The equipment operates at a temperature of over 45°C (113°F) for no more in 15 times in one year.
The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.
The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode Pluggable power supply
Rated input voltage [V] AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
Maximum input current [A] AC 1000 W:
110 V: 12 A
220 V: 8 A
240 V: 8 A
