S5736-S24T4XC

0 Reviews Write a review

PN98011022

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5720-SI

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

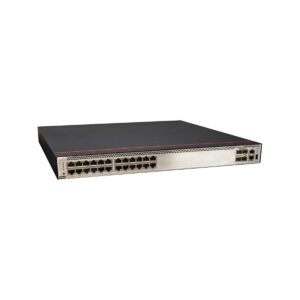

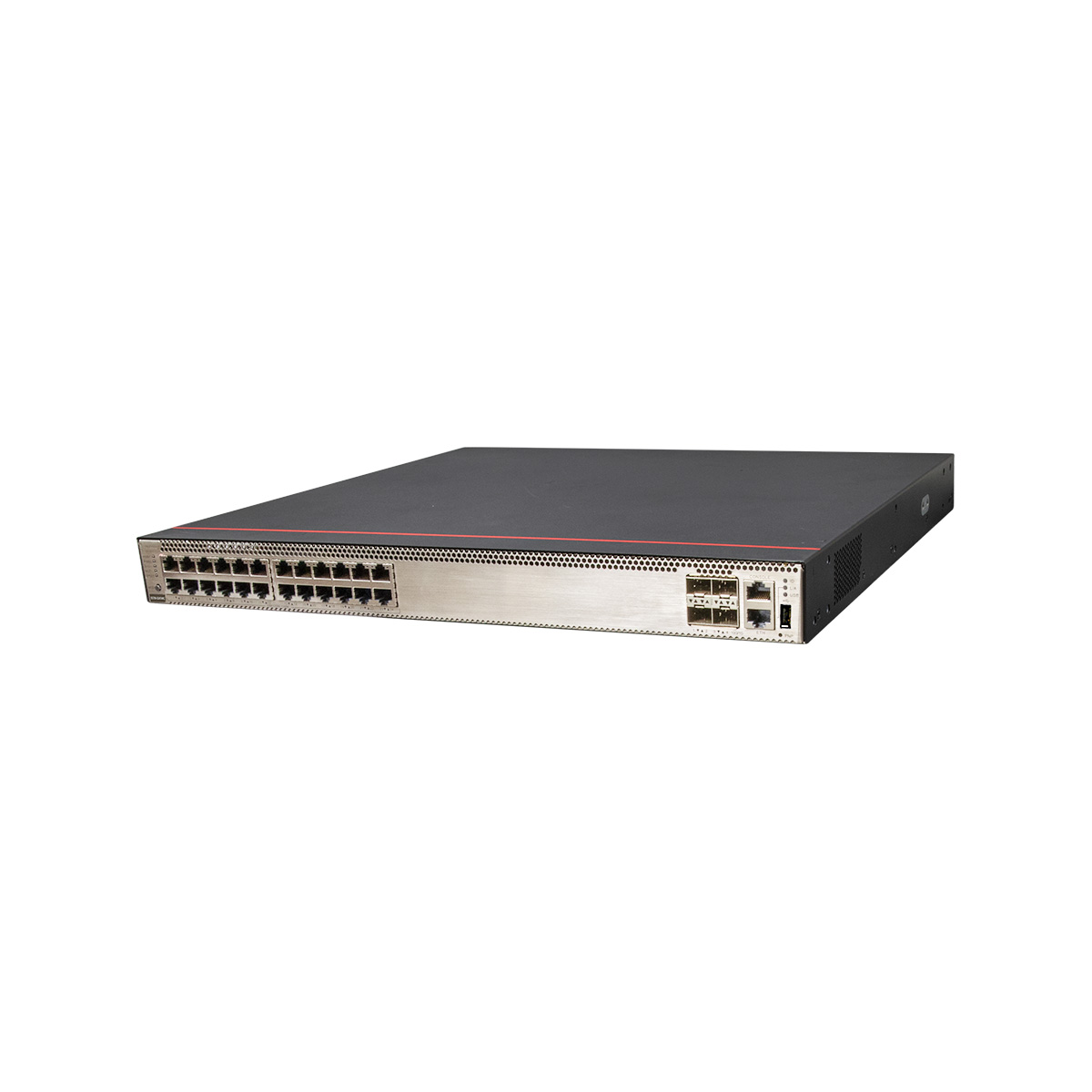

Huawei S5736-S24T4XC support 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 1*expansion slot, without power module

24 Ports Switch Electrical Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5736-S24T4XC overview

The S5700 series Ethernet switches are a new generation of green, energy-efficient, full-Gigabit high-performance Ethernet switches launched by Huawei to meet the demands of high-bandwidth access and Ethernet multi-service aggregation. Based on next-generation high-performance hardware and Huawei’s unified platform, the S5700 series features large capacity, high reliability (dual power slots and hardware-level Ethernet OAM), and high-density Gigabit ports, with support for 10-Gigabit uplinks. It also supports EEE (Energy Efficient Ethernet) and iStack intelligent stacking, fully meeting the needs of enterprise campus network access, aggregation, IDC Gigabit access, and Gigabit-to-the-desktop applications.

Item	Details
Description	S5736-S24T4XC (2410/100/1000BASE-T ports, 410GE SFP+ ports, 1*expansion slot, without power module)
Part Number	98011022
Model	S5736-S24T4XC

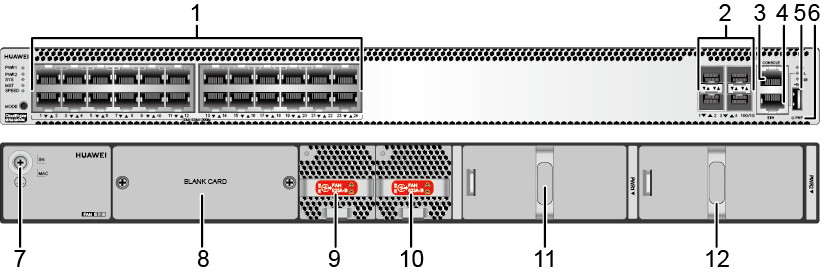

S5736-S24T4XC Appearance

1	Twenty-four 10/100/1000BASE-T ports	2	Four 10GE SFP+ optical ports
3	One console port	4	One ETH management port
5	One USB port	6	One PNP button NOTICE: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.
7	Ground screw NOTE: It is used with a ground cable.	8	Rear card slot NOTE: Applicable card: S7X08000 (02312URW) (applicable in V200R020C10 and later versions) S7X08000 (02312URW-002) (applicable in V200R021C10SPC600 and later versions) ES5D21Q02Q00 ES5D21Q04Q01 S7Q02001 (02313UBW) (applicable in V200R021C01 and later versions) S7Q02001 (02313UBW-002) (applicable in V200R021C10SPC600 and later versions)
9	Fan module slot 1 NOTE: Applicable fan module: FAN-023A-B (Fan Box (B, Fan Panel Side Exhaust))	10	Fan module slot 2 NOTE: Applicable fan module: FAN-023A-B (Fan Box (B, Fan Panel Side Exhaust))
11	Power module slot 1 NOTE: Applicable power modules: PAC150S12-R (150 W AC Power Module) PDC180S12-CR (180 W DC Power Module)	12	Power module slot 2 NOTE: Applicable power modules: PAC150S12-R (150 W AC Power Module) PDC180S12-CR (180 W DC Power Module)

Item	S5736-S24T4XC
MTBF [years]	83.79 years
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	47.4 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	35.4 dB(A)
Number of card slots	1
Number of power slots	2
Number of fans modules	2
Redundant power supply	1+1 Pluggable AC and DC power modules can be used together in the same switch.
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met: The operating temperature exceeds 45°C (113°F) for a maximum of 96 consecutive hours in a year. The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours. The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year. If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur. Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 240 V AC; 50/60 Hz DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90–290 V AC; 45–65 Hz DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Eth Management port	RJ45
USB	Supported
RTC	Supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±6 kV
Power supply surge protection [kV]	AC power module configured: ±6 kV in differential mode, ±6 kV in common mode DC power module configured: ±2 kV in differential mode, ±4 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Pluggable
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from left,front and right, air exhaustion from behind
PoE	Not supported
Certification	EMC certification Safety certification Manufacturing certification
Dimensions with packaging (H x W x D) [mm(in.)]	150.0 mm x 710.0 mm x 560.0 mm (5.91 in. x 27.95 in. x 22.05 in.)
Chassis height [U]	1 U
Chassis material	Metal
Weight without packaging [kg(lb)]	5 kg (11.02 lb)
Weight with packaging [kg(lb)]	8 kg (17.64 lb)
Typical power consumption [W]	39 W
Typical heat dissipation [BTU/hour]	133.07 BTU/hour
Maximum power consumption [W]	55 W
Maximum heat dissipation [BTU/hour]	187.67 BTU/hour
Static power consumption [W]	30 W
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 444.0 mm (1.72 in. x 17.40 in. x 17.48 in.)

Item	S5736-S24T4XC
MTBF [years]	83.79 years
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	47.4 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	35.4 dB(A)
Number of card slots	1
Number of power slots	2
Number of fans modules	2
Redundant power supply	1+1 Pluggable AC and DC power modules can be used together in the same switch.
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met: The operating temperature exceeds 45°C (113°F) for a maximum of 96 consecutive hours in a year. The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours. The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year. If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur. Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 240 V AC; 50/60 Hz DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90–290 V AC; 45–65 Hz DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Eth Management port	RJ45
USB	Supported
RTC	Supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±6 kV
Power supply surge protection [kV]	AC power module configured: ±6 kV in differential mode, ±6 kV in common mode DC power module configured: ±2 kV in differential mode, ±4 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Pluggable
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from left,front and right, air exhaustion from behind
PoE	Not supported
Certification	EMC certification Safety certification Manufacturing certification
Dimensions with packaging (H x W x D) [mm(in.)]	150.0 mm x 710.0 mm x 560.0 mm (5.91 in. x 27.95 in. x 22.05 in.)
Chassis height [U]	1 U
Chassis material	Metal
Weight without packaging [kg(lb)]	5 kg (11.02 lb)
Weight with packaging [kg(lb)]	8 kg (17.64 lb)
Typical power consumption [W]	39 W
Typical heat dissipation [BTU/hour]	133.07 BTU/hour
Maximum power consumption [W]	55 W
Maximum heat dissipation [BTU/hour]	187.67 BTU/hour
Static power consumption [W]	30 W
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 444.0 mm (1.72 in. x 17.40 in. x 17.48 in.)

Weight	14.0000 kg
Dimensions	71.0000 × 55.0000 × 17.5000 cm
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
Campus Switch	S5720-SI
