Description
S5735S-S48T4S-A overview
Huawei S5735S-S48T4S-A switch supports 48 10/100/1000BASE-T ports, 4 GE SFP ports, 1 60W AC power module equipped
Huawei CloudEngine S5735S-S is a series of standard gigabit access switches that provide 24–48 flexible all-GE downlink ports and four fixed 10 GE uplink ports. They are designed for enterprise campus network access and aggregation and data center access. Built on next-generation, high-performance hardware and with the Huawei Versatile Routing Platform (VRP), CloudEngine S5735S-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.
S5735S-S48T4S-A quick specs
48 10/100/1000BASE-T ports, 4 GE SFP+ ports
Forwarding performance is 132/166Mpps
The switching capacity is 432Gbps/4.32Tbps
The S5735S-S48T4S-A has a 60W built-in AC power module and supports pluggable power modules.

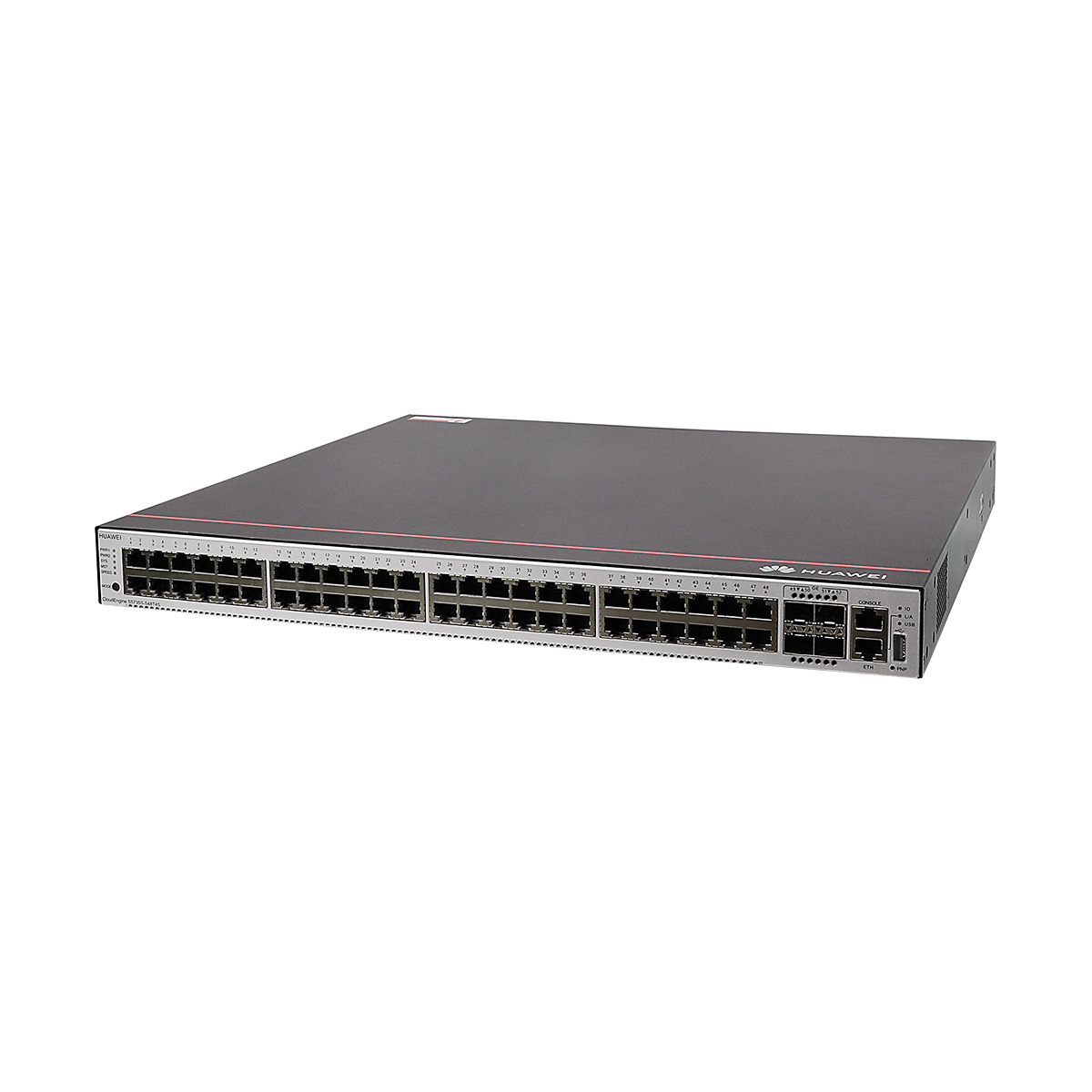

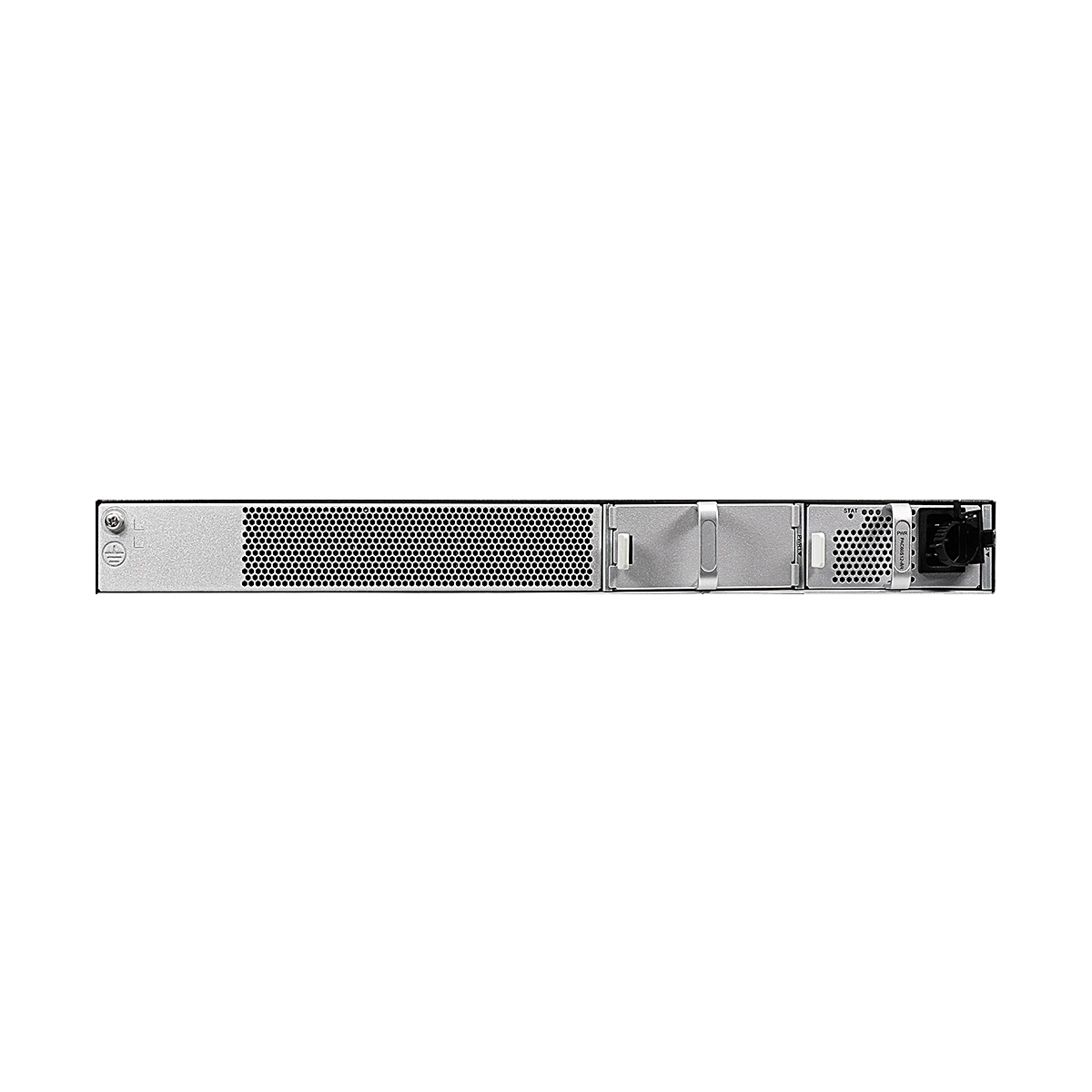

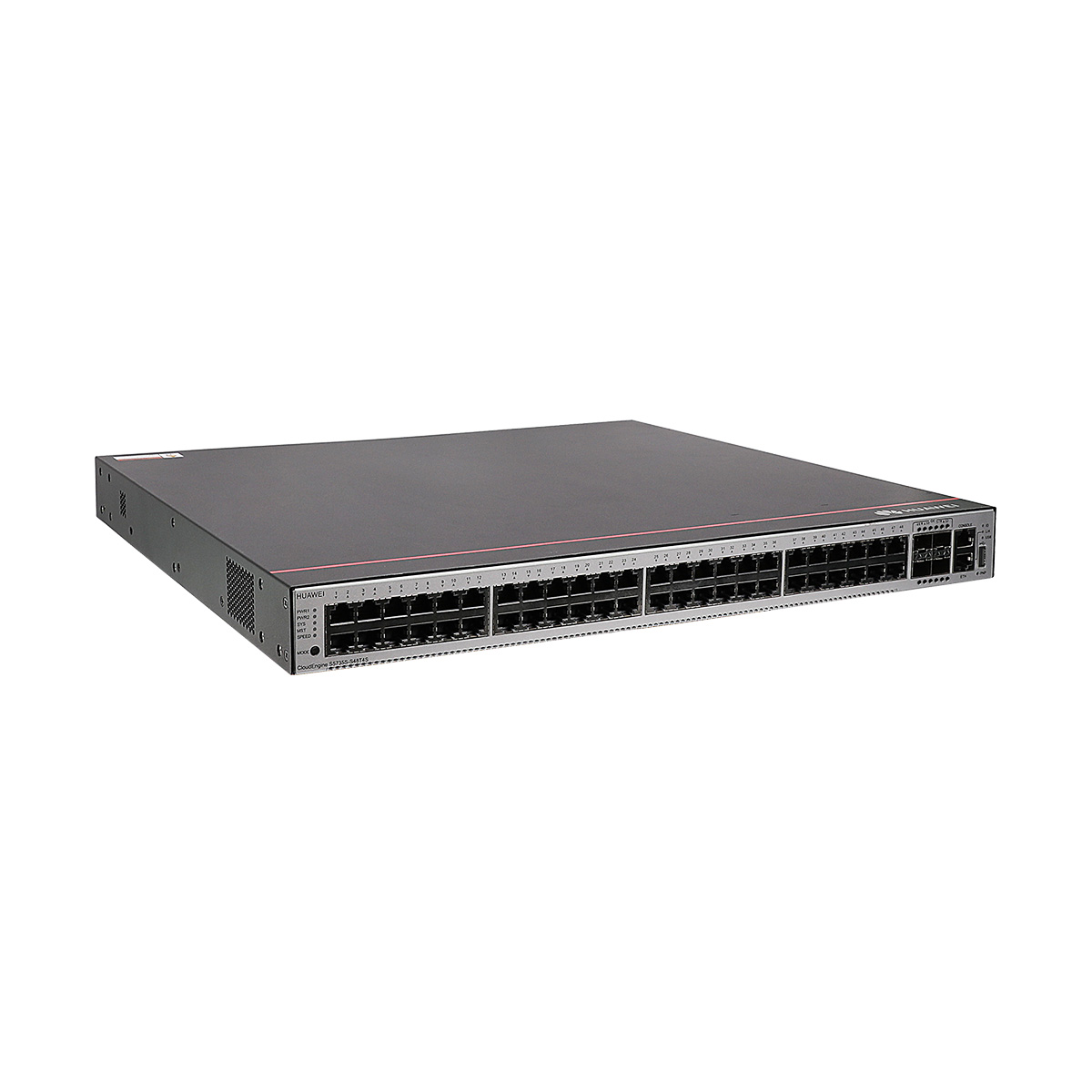

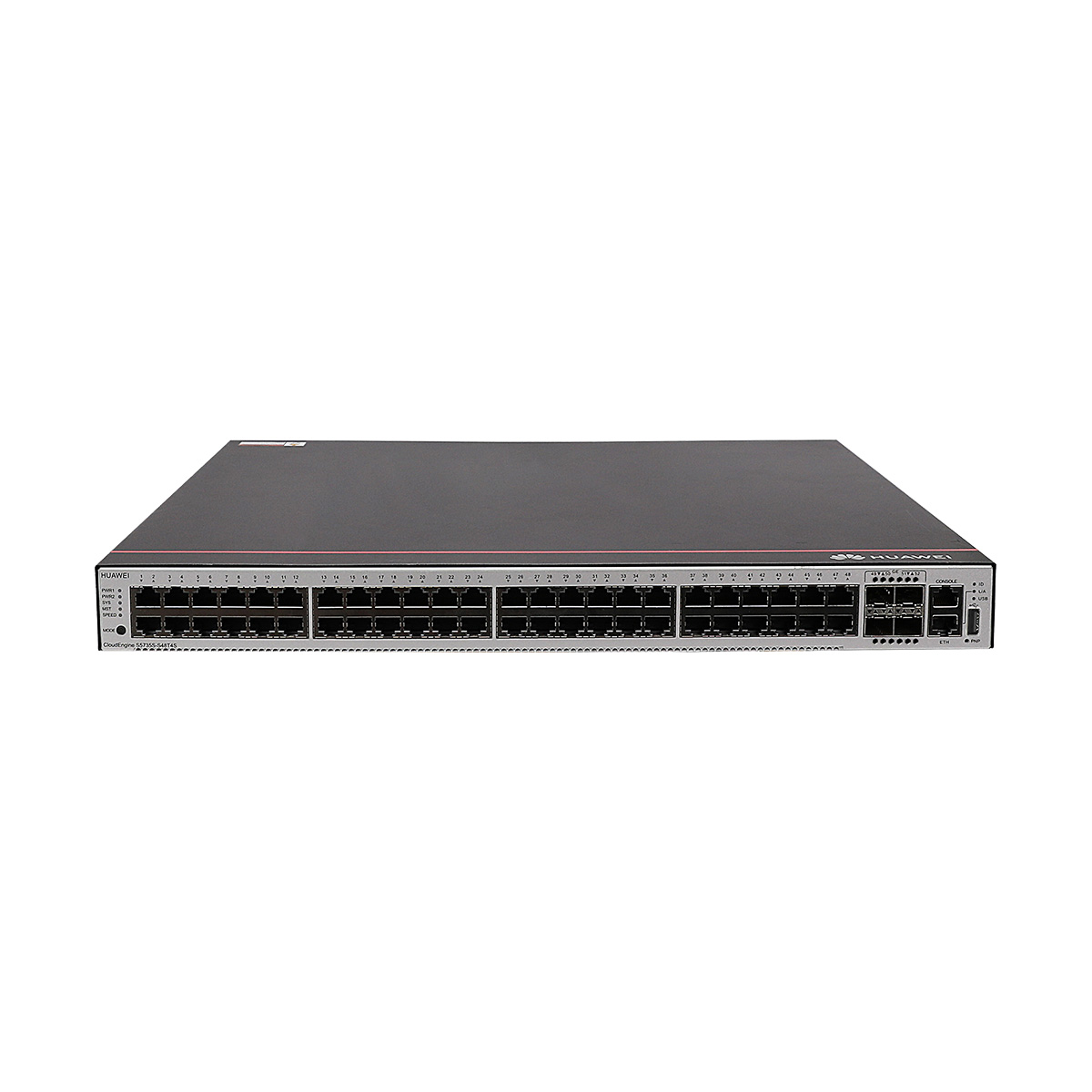

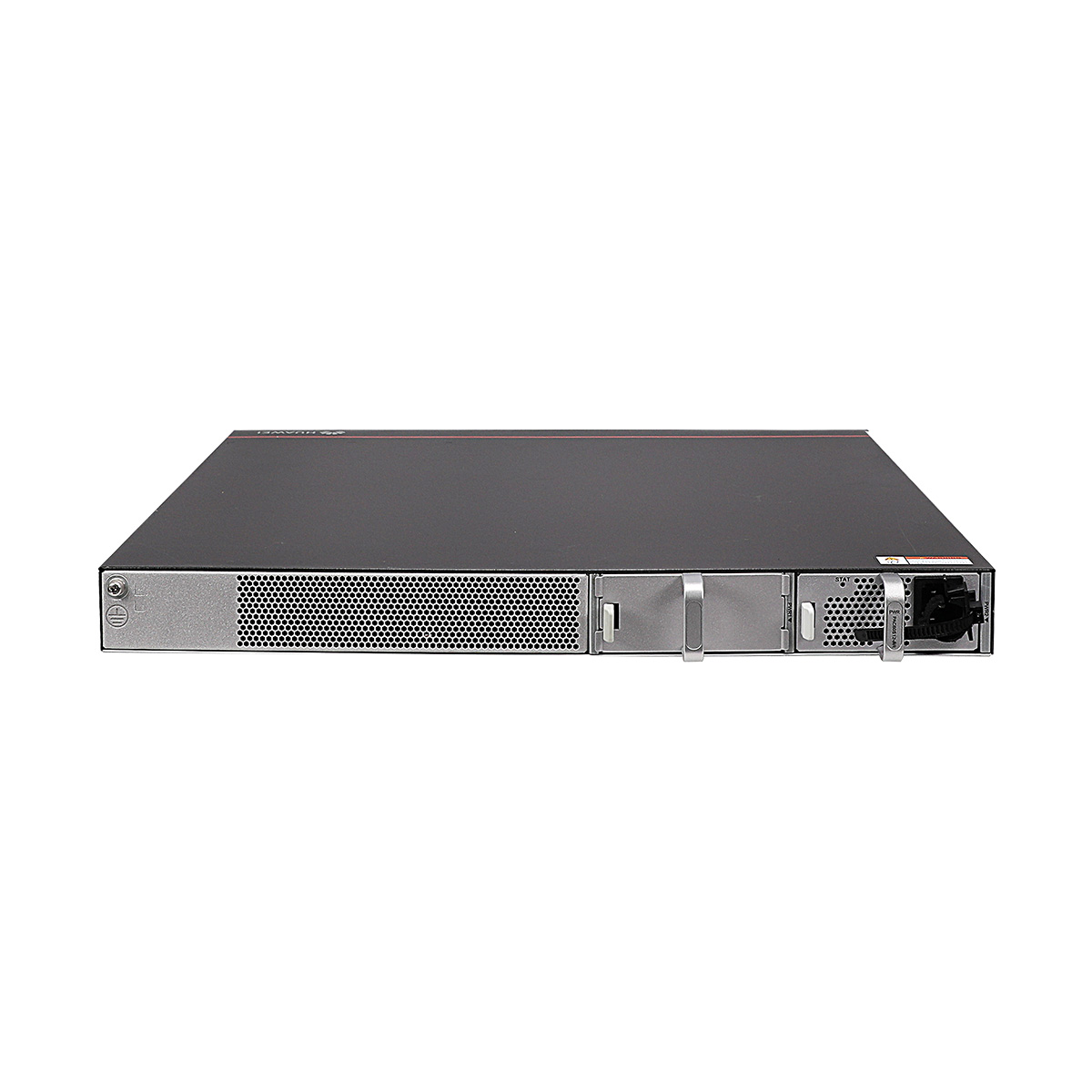

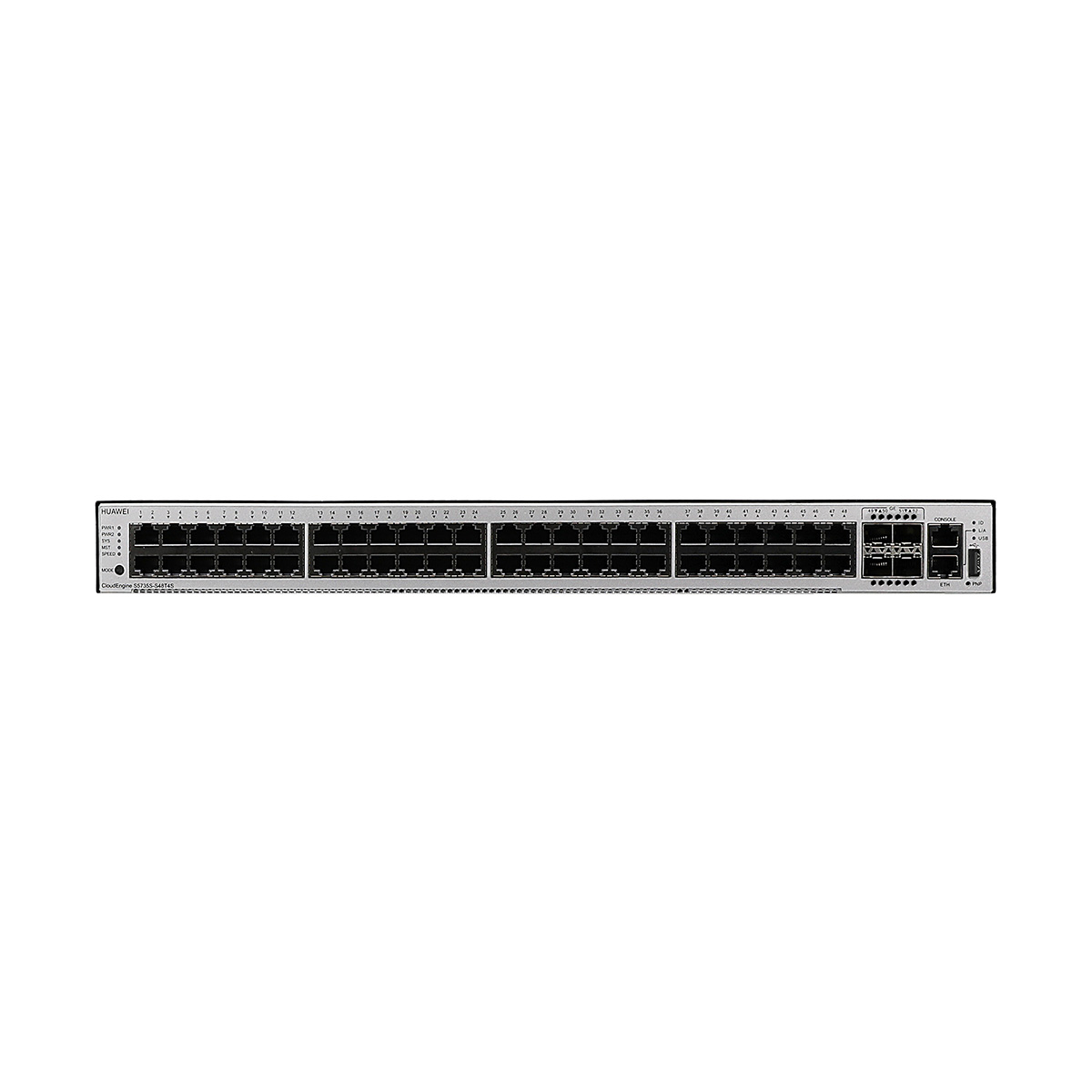

S5735S-S48T4S-A appearance and structure
| 1 | Forty-eight 10/100/1000BASE-T ports | 6 | One PNP button |
| 2 | Four GE SFP ports | 7 | Ground screw |
| 3 | One console port | 8 | Power module slot 1 |
| 4 | One ETH management port | 9 | Power module slot 2 |
| 5 | One USB port |
