S5735S-L48T4S-MA

0 Reviews Write a review

PN98010971

AvailabilityIn Stock

Campus Switch S5735S-L

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5735S-L48T4S-MA switch supports 48* 10/100/1000BASE-T ports, 4* GE SFP ports, 1* AC power fixed

48 Ports Switch Electrical Module Fixed AC Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5735S-L48T4S-MA Overview

Huawei S5735S-L48T4S-MA switch supports 48* 10/100/1000BASE-T ports, 4* GE SFP ports, 1* AC power fixed

The Huawei S5735S-L48T4S-MA switch has a built-in AC power module and does not support pluggable power modules.

The Huawei S5735S-L48T4S-MA switch has one built-in fan for forced air cooling. Air flows in from the left side and front panel and exhausts from the right side.

S5735S-L48T4S-MA basic information

Item	Details
Description	S5735S-L48T4S-MA (2410/100/1000BASE-T ports, 4GE SFP ports, AC power)
Part Number	98010971
Model	S5735S-L48T4S-MA

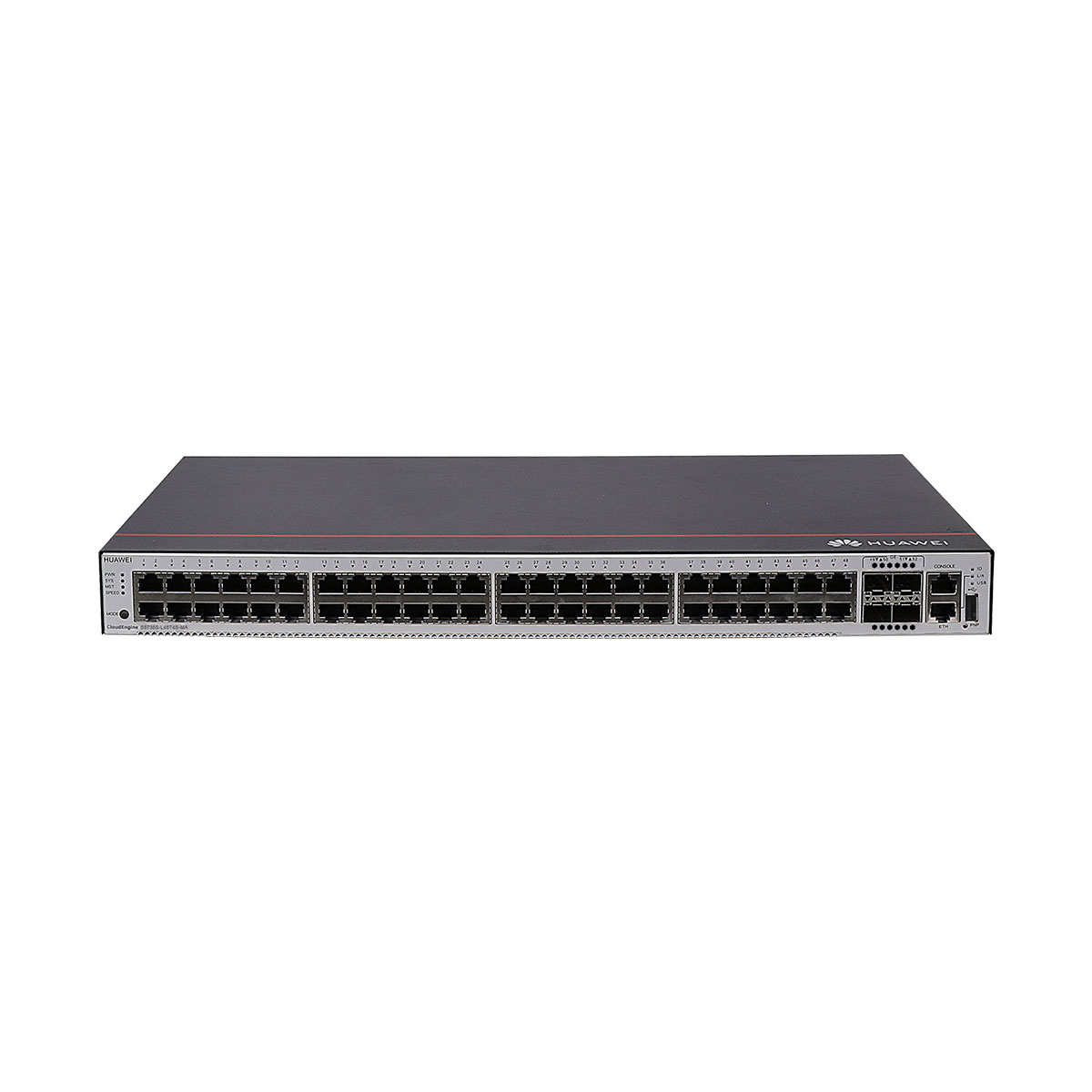

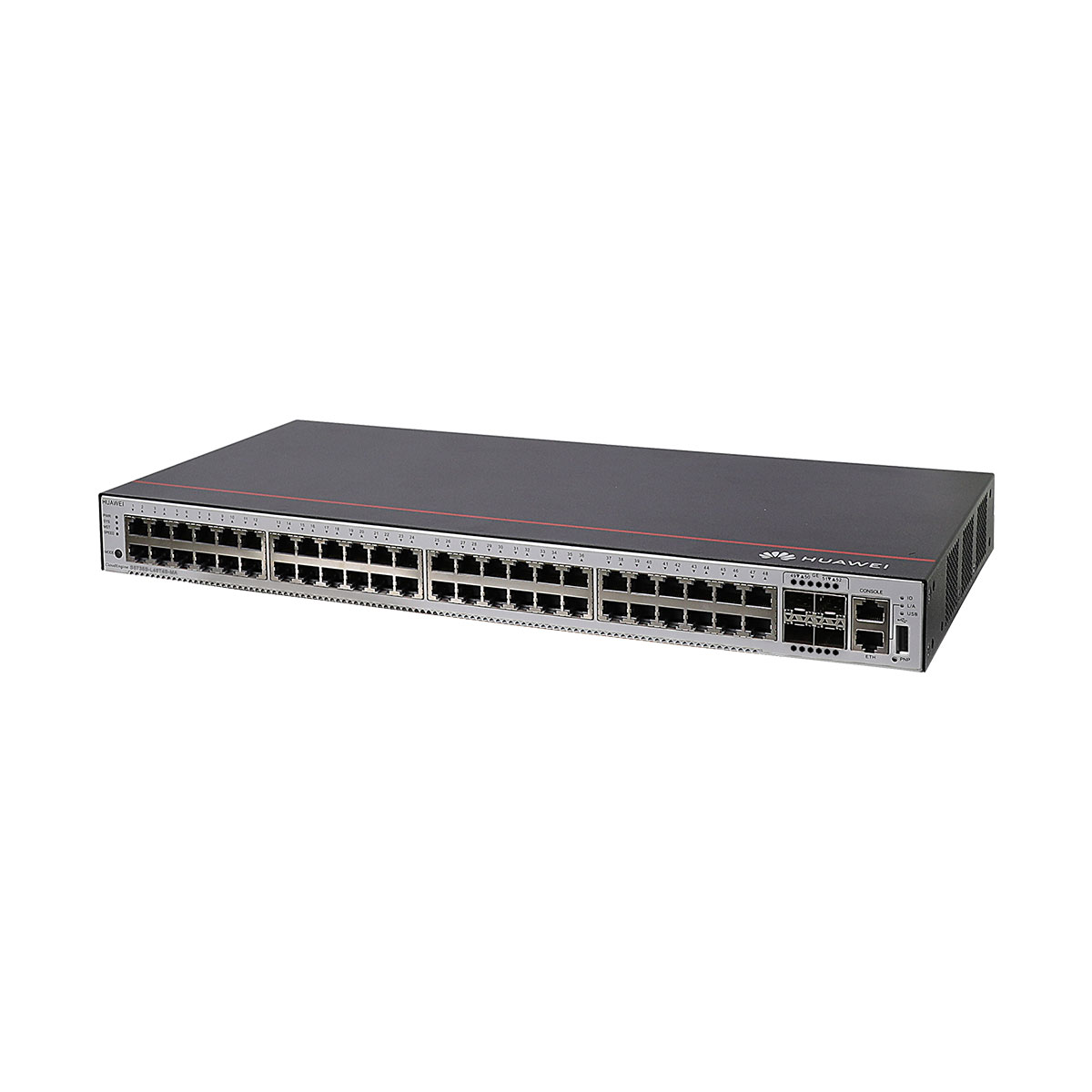

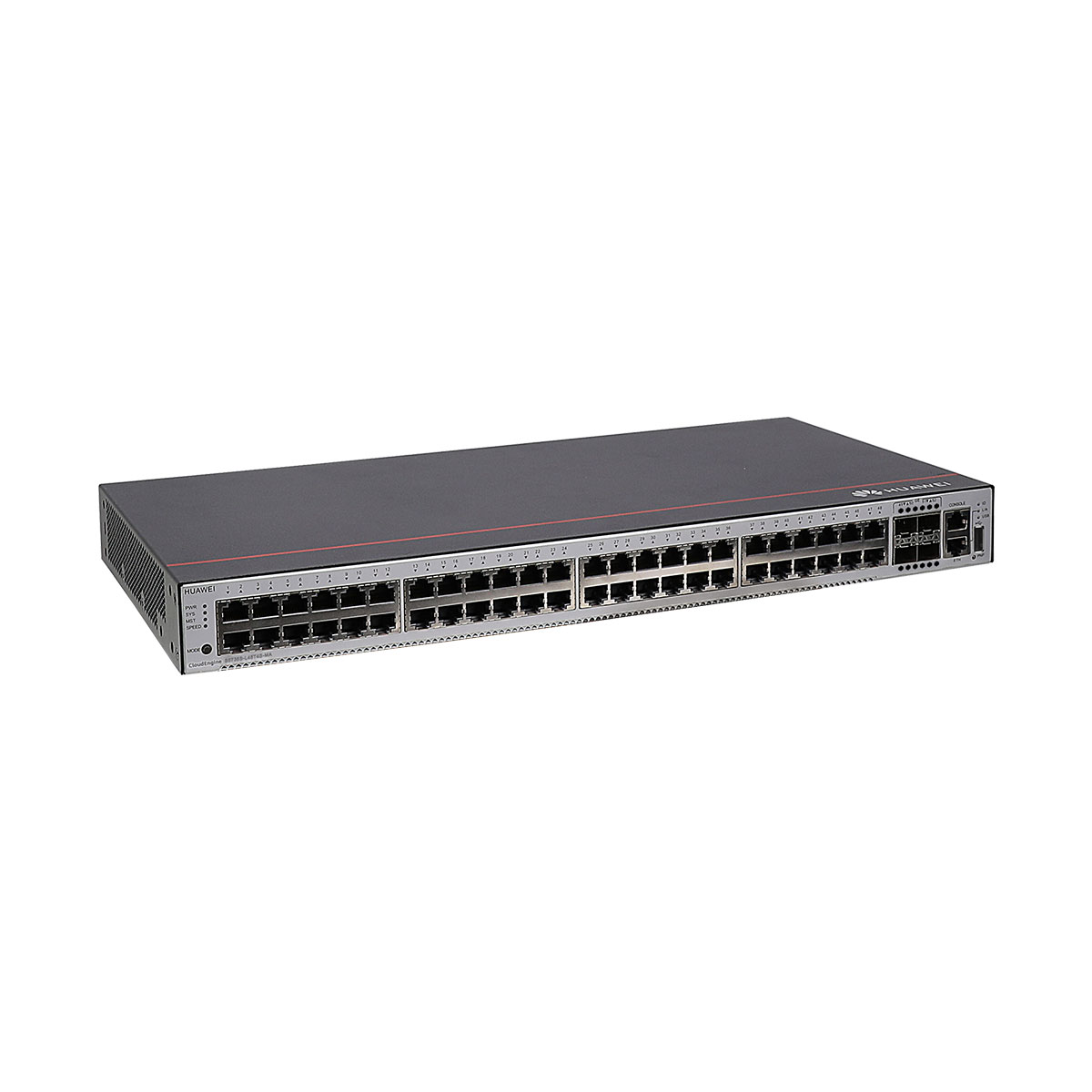

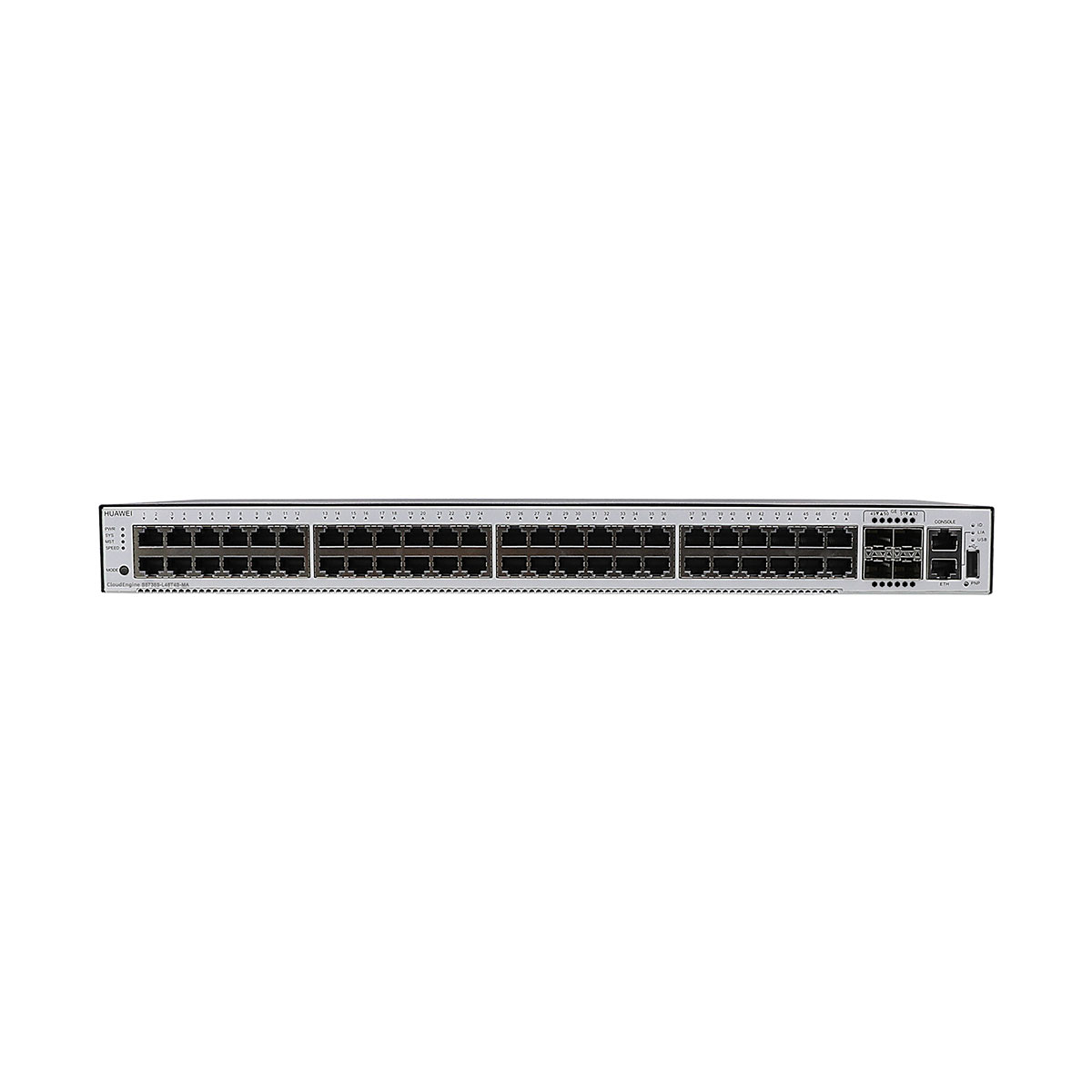

S5735S-L48T4S-MA appearance

1	48* 10/100/1000BASE-T ports	2	4* 1000BASE-X GE SFP ports eSFP-GE-SX-MM850 eSFP-GE-ZX100-SM1550 LE2MGSC40DE0
3	One console port	4	One ETH management port
5	One USB port	6	One PNP button

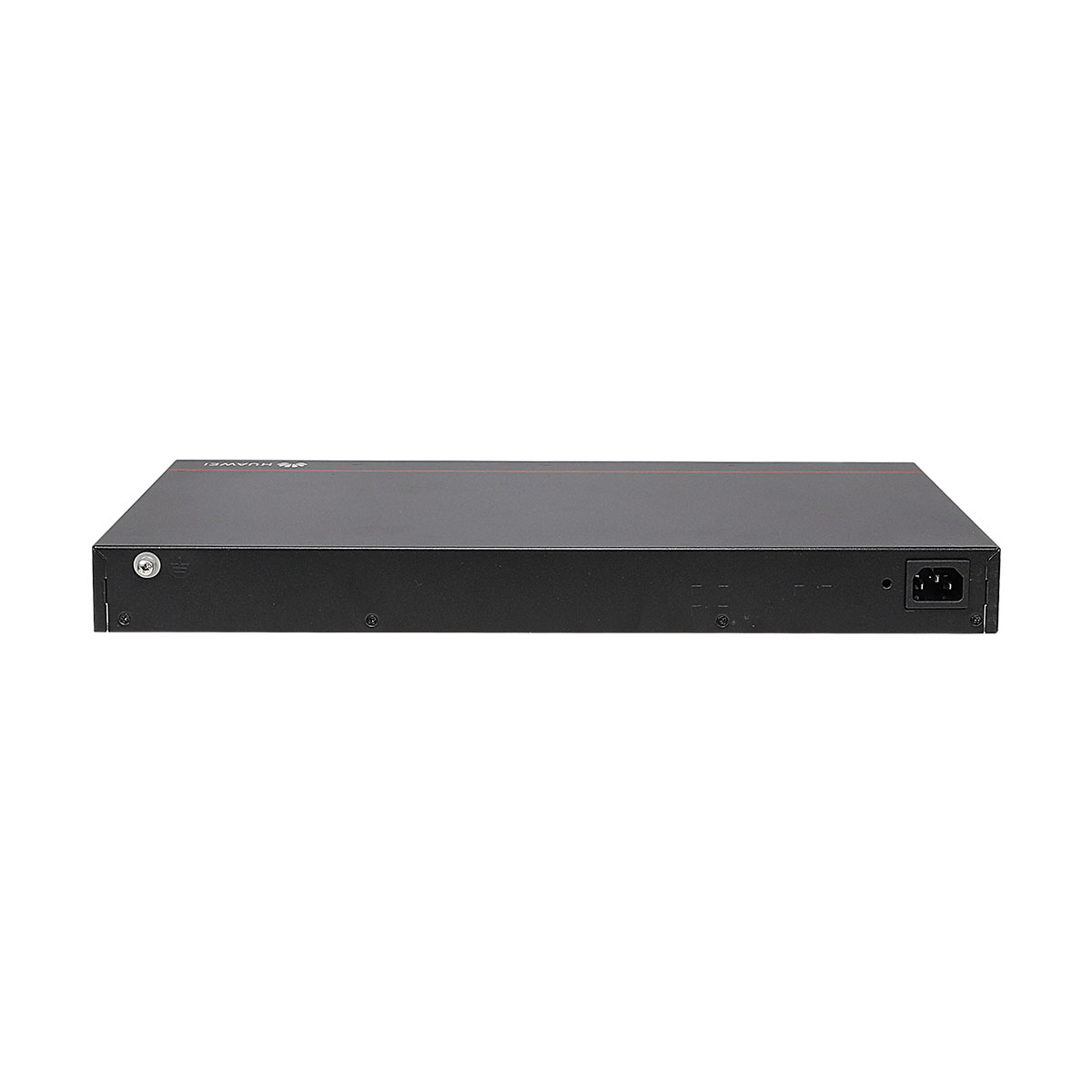

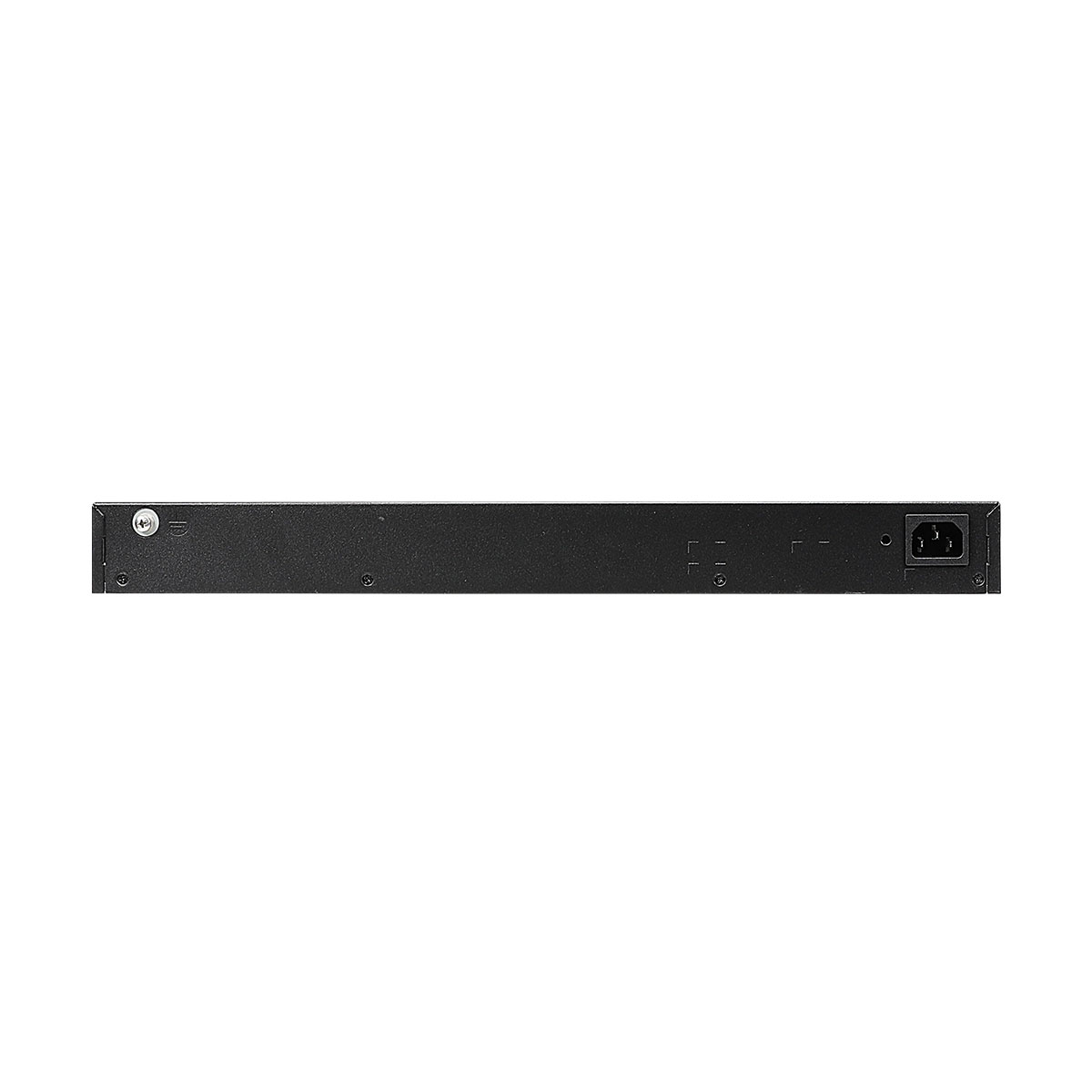

7	Ground screw	8	Jack for AC power cable locking strap
9	AC socket	–	–

Item	S5735S-L48T4S-MA
Memory (RAM)	1 GB
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	46.36 years
Mean time to repair (MTtr)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±7 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Dimensions (H x W x D)	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Weight (with packaging)	4.42 kg (9.75 lb)
Stack ports	Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable in V200R019C10 and later versions)
RTC	Not supported
RPS	Not supported
PoE	Not supported
Rated voltage range	AC input: 100 V AC to 240 V AC, 50/60 Hz
Rated voltage range	High-Voltage DC input: 240 V DC
Maximum voltage range	AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum voltage range	High-Voltage DC input: 190 V DC to 290 V DC
Maximum power consumption (100% throughput, full speed of fans)	53 W
Typical power consumption (30% of traffic load)	37 W
Tested according to ATIS standard
EEE enabled
No PoE power consumption
Operating temperature	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature	-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 53.3 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification
	Safety certification
	Manufacturing certification
Part number	98010971

Weight	5 kg
Dimensions	55 × 36 × 15 cm
Campus Switch	S5735S-L

Item	S5735S-L48T4S-MA
Memory (RAM)	1 GB
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	46.36 years
Mean time to repair (MTtr)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±7 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Dimensions (H x W x D)	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Weight (with packaging)	4.42 kg (9.75 lb)
Stack ports	Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable in V200R019C10 and later versions)
RTC	Not supported
RPS	Not supported
PoE	Not supported
Rated voltage range	AC input: 100 V AC to 240 V AC, 50/60 Hz
Rated voltage range	High-Voltage DC input: 240 V DC
Maximum voltage range	AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum voltage range	High-Voltage DC input: 190 V DC to 290 V DC
Maximum power consumption (100% throughput, full speed of fans)	53 W
Typical power consumption (30% of traffic load)	37 W
Tested according to ATIS standard
EEE enabled
No PoE power consumption
Operating temperature	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature	-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 53.3 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification
	Safety certification
	Manufacturing certification
Part number	98010971
