S5735S-L48T4S-A1

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN98011335

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5735S-L

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5735S-L48T4S-A1 switch supports 48 10/100/1000BASE-T ports, 4 GE SFP ports, 1 AC power

48 Ports Switch Electrical Switch Fixed AC Switch Lan Access Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5735S-L48T4S-A1 Overview

Huawei S5735S-L48T4S-A1 switch supports 48 10/100/1000BASE-T ports, 4 GE SFP ports, 1 AC power

Huawei S5735S-L48T4S-A1 switch has a built-in AC power module and does not support pluggable power modules.

Huawei S5735S-L48T4S-A1 switch has a built-in fan for forced air cooling. Air flows in from the left side and front panel and exhausts from the right side.

S5735S-L48T4S-A1 Basic information

Item	Details
Description	S5735S-L48T4S-A1 (4810/100/1000BASE-T ports, 4GE SFP ports, AC power)
Part Number	98011335
Model	S5735S-L48T4S-A1
First supported version	V200R020C10

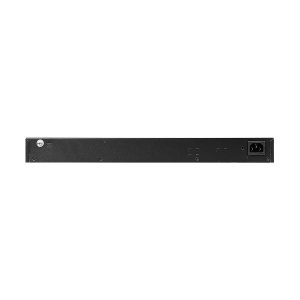

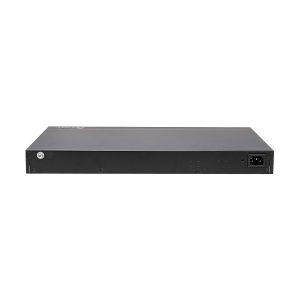

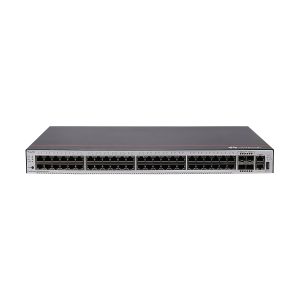

S5735S-L48T4S-A1 Appearance

1	48* 100/1000BASE-T ports	2	4* GE SFP ports eSFP-GE-SX-MM850 eSFP-GE-ZX100-SM1550 LE2MGSC40DE0
3	One console port	4	One PNP button
5	Ground screw	6	Jack for AC power cable locking strap
7	AC socket	–	–

Item	S5735S-L48T4S-A1
Memory	512 MB
Flash memory	512 MB
Console port	RJ45
Eth Management port	Not supported
USB	Not supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	±6 kV in differential mode, ±6 kV in common mode
Types of fans	Built-in
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from left and front, air exhaustion from right
PoE	Not supported
Certification	EMC certification
	Safety certification
	Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Dimensions without packaging (H x W x D) [mm(in.)]	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	2.76 kg (6.09 lb)
Weight with packaging [kg(lb)]	3.74 kg (8.25 lb)
Typical power consumption [W]	43.3 W
Typical heat dissipation [BTU/hour]	147.74 BTU/hour
Maximum power consumption [W]	50.4 W
Maximum heat dissipation [BTU/hour]	171.97 BTU/hour
MTBF [year]	56.7 year
MTtr [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	48 dB(A)
Number of card slots	0
Number of power slots	0
Number of fans modules	1
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	The operating temperature ranges from -5°C to +45°C (23°F to 113°F) when optical modules with transmission distances greater than or equal to 70 km are used.
	The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
	The equipment operates at a temperature of over 50°C (122°F) consecutively for at most 96 hours in one year.
	The equipment operates at a temperature of over 50°C (122°F) for a total of no more than 360 hours in one year.
	The equipment operates at a temperature of over 50°C (122°F) for no more in 15 times in one year.
	The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.
	The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V]	AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum input current [A]	2 A

Item	S5735S-L48T4S-A1
Memory	512 MB
Flash memory	512 MB
Console port	RJ45
Eth Management port	Not supported
USB	Not supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	±6 kV in differential mode, ±6 kV in common mode
Types of fans	Built-in
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from left and front, air exhaustion from right
PoE	Not supported
Certification	EMC certification
	Safety certification
	Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Dimensions without packaging (H x W x D) [mm(in.)]	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	2.76 kg (6.09 lb)
Weight with packaging [kg(lb)]	3.74 kg (8.25 lb)
Typical power consumption [W]	43.3 W
Typical heat dissipation [BTU/hour]	147.74 BTU/hour
Maximum power consumption [W]	50.4 W
Maximum heat dissipation [BTU/hour]	171.97 BTU/hour
MTBF [year]	56.7 year
MTtr [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	48 dB(A)
Number of card slots	0
Number of power slots	0
Number of fans modules	1
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	The operating temperature ranges from -5°C to +45°C (23°F to 113°F) when optical modules with transmission distances greater than or equal to 70 km are used.
	The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
	The equipment operates at a temperature of over 50°C (122°F) consecutively for at most 96 hours in one year.
	The equipment operates at a temperature of over 50°C (122°F) for a total of no more than 360 hours in one year.
	The equipment operates at a temperature of over 50°C (122°F) for no more in 15 times in one year.
	The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.
	The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V]	AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum input current [A]	2 A

Campus Switch	S5735S-L
Brand	Huawei
Ship From	Shenzhen Warehouse
Lead Time	3-5 days
