Huawei S5735S-L48P4X-A switch supports 48 1000BASE-T ports, 4 10GE SFP+ ports, with 1 AC power module equipped, PoE+

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5735S-L48P4X-A overview

Huawei S5735S-L48P4X-A switch supports 48 1000BASE-T ports, 4 10GE SFP+ ports, with 1 AC power module equipped, PoE+

Huawei CloudEngine S5735S-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735S-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.



S5735S-L48P4X-A quick specs

48 10/100/1000BASE-T ports, 4 GE SFP+ ports

Forwarding performance is 144/166Mpps

The switching capacity is 432Gbps/4.32Tbps

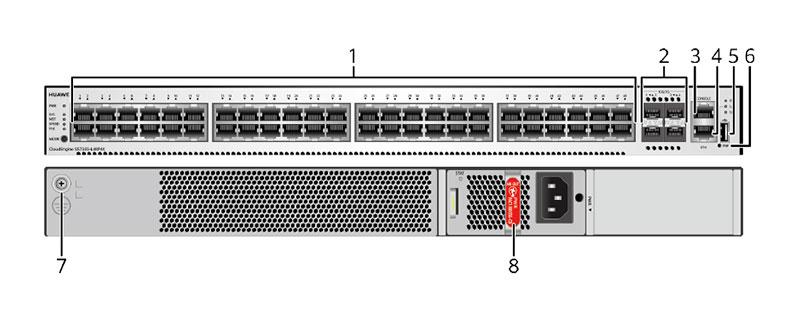

S5735S-L48P4X-A appearance and structure

S5735S-L48P4X-A appearance and structure

1 Forty-eight 10/100/1000BASE-T ports 5 One PNP button
2 Four GE SFP+ ports

eSFP-GE-SX-MM850 eSFP-GE-ZX100-SM1550 LE2MGSC40DE0

 6 Ground screw
3 One console port 7 One USB port
4 One ETH management port 8 Power module slot
Item
S5735S-L48P4X-A
Fixed port Forty-eight 10/100/1000BASE-T ports, Four 10GE SFP+ 4-ports
Memory(RAM) 1 GB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures(MTBF) 61.7 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Service port surge protection Common mode: ±7 kV
Stack ports Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable in V200R019C10 and later versions)
Rated voltage range AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC
Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC
Maximum power consumption (100% throughput, full speed of fans) Not providing the PoE function: 75 W 100% PoE loads: 911 W (PoE: 874 W)
Typical power consumption (30% of traffic load) 59 W
Certification EMC certification; Safety certification; Manufacturing certification
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm
Weight (with packaging) 8.7 kg

Additional information

Weight 8.7000 kg
Dimensions 43.6000 × 44.2000 × 42.0000 cm
Campus Switch

Brand

Huawei
Ship From

Shenzhen Warehouse
Lead Time

3-5 days
Item
S5735S-L48P4X-A
Fixed port Forty-eight 10/100/1000BASE-T ports, Four 10GE SFP+ 4-ports
Memory(RAM) 1 GB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures(MTBF) 61.7 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Service port surge protection Common mode: ±7 kV
Stack ports Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable in V200R019C10 and later versions)
Rated voltage range AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC
Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC
Maximum power consumption (100% throughput, full speed of fans) Not providing the PoE function: 75 W 100% PoE loads: 911 W (PoE: 874 W)
Typical power consumption (30% of traffic load) 59 W
Certification EMC certification; Safety certification; Manufacturing certification
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm
Weight (with packaging) 8.7 kg
