S5735S-L48P4S-A1

1 Review Write a review

PN98011346

BrandsHuawei

AvailabilityIn Stock

Campus Switch S5735-L

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

Huawei S5735S-L48P4S-A1 switch supports 48 10/100/1000BASE-T PoE+ ports, 4 1000BASE-X ports, 1 AC power.

48 Ports Switch Electrical Switch Fixed AC Switch Lan Access Switch PoE Switch

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

S5735S-L48P4S-A1 overview

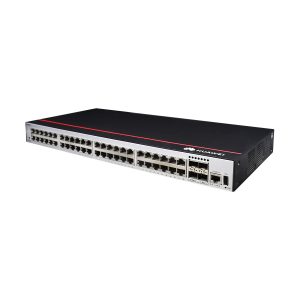

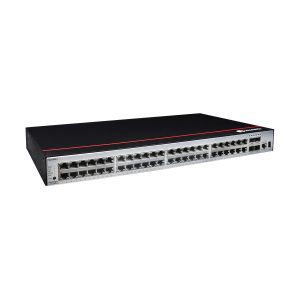

This Huawei S5735S-L48P4S-A1 switch comes with 48 10/100/1000BASE-T PoE+ ports, 4 1000BASE-X ports, and AC power fixed, which is one of the S5735 series switches.

Huawei CloudEngine S5735-L series are simplified Gigabit Ethernet switches that provide allGE downlink ports and GE or 10GE uplink ports.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com

S5735S-L48P4S-A1 quick spec

48 10/100/1000BASE-T PoE+ ports

4 1000BASE-X ports

AC Power

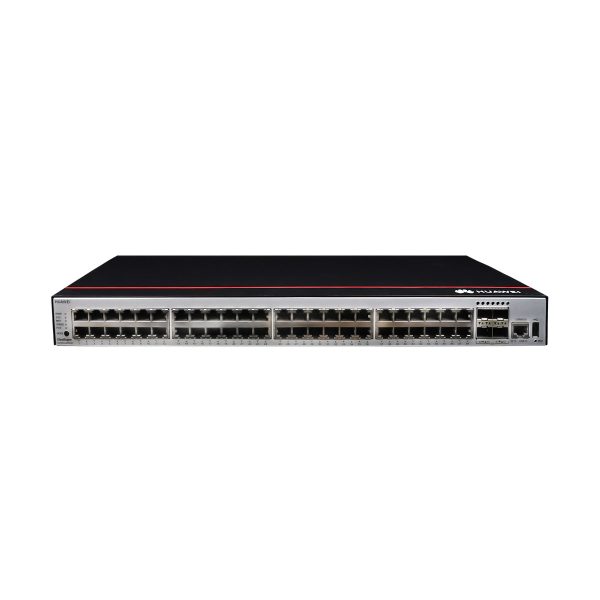

S5735S-L48P4S-A1 appearance and structure

1	48 10/100/1000BASE-T PoE+ ports
2	4 1000BASE-X ports eSFP-GE-SX-MM850 eSFP-GE-ZX100-SM1550 LE2MGSC40DE0
3	One console port
4	One USB port
5	One PNP button
6	Ground screw
7	Jack for AC power cable locking strap
8	AC socket

Item	S5735S-L48P4S-A1
Memory	512 MB
Flash memory	512 MB
Console port	RJ45
Eth Management port	Not supported
USB	Supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	±6 kV in differential mode, ±6 kV in common mode
Types of fans	Built-in
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from left and front, air exhaustion from right
PoE	Supported
Certification	EMC certification
	Safety certification
	Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Dimensions without packaging (H x W x D) [mm(in.)]	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	3.23 kg (7.12 lb)
Weight with packaging [kg(lb)]	4.28 kg (9.44 lb)
Typical power consumption [W]	58.7 W
Typical heat dissipation [BTU/hour]	200.29 BTU/hour
Maximum power consumption [W]	Not providing the PoE function: 76.1 W
Maximum power consumption [W]	100% PoE loads: 456.1 W (PoE: 380 W)
Maximum heat dissipation [BTU/hour]	Not providing the PoE function: 259.66
Maximum heat dissipation [BTU/hour]	100% PoE loads: 1556.26
MTBF [year]	44.9 year
MTtr [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	50 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	38.2 dB(A)
Number of card slots	0
Number of power slots	0
Number of fans modules	2
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz
Rated input voltage [V]	High-Voltage DC input: 240 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Input voltage range [V]	High-Voltage DC input: 190 V DC to 290 V DC
Maximum input current [A]	6 A

Item	S5735S-L48P4S-A1
Memory	512 MB
Flash memory	512 MB
Console port	RJ45
Eth Management port	Not supported
USB	Supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	±6 kV in differential mode, ±6 kV in common mode
Types of fans	Built-in
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from left and front, air exhaustion from right
PoE	Supported
Certification	EMC certification
	Safety certification
	Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Dimensions without packaging (H x W x D) [mm(in.)]	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	3.23 kg (7.12 lb)
Weight with packaging [kg(lb)]	4.28 kg (9.44 lb)
Typical power consumption [W]	58.7 W
Typical heat dissipation [BTU/hour]	200.29 BTU/hour
Maximum power consumption [W]	Not providing the PoE function: 76.1 W
Maximum power consumption [W]	100% PoE loads: 456.1 W (PoE: 380 W)
Maximum heat dissipation [BTU/hour]	Not providing the PoE function: 259.66
Maximum heat dissipation [BTU/hour]	100% PoE loads: 1556.26
MTBF [year]	44.9 year
MTtr [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	50 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	38.2 dB(A)
Number of card slots	0
Number of power slots	0
Number of fans modules	2
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz
Rated input voltage [V]	High-Voltage DC input: 240 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Input voltage range [V]	High-Voltage DC input: 190 V DC to 290 V DC
Maximum input current [A]	6 A

Brand	Huawei
Campus Switch	S5735-L
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
