S5735S-L32ST4X-A

2 Reviews Write a review
PN98010930
Brands
AvailabilityIn Stock
Campus Switch S5735S-L
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei S5735S-L32ST4X-A switch supports 24 GE SFP ports, 8 10/100/1000BASE-T ports, 4 10 GE SFP+ ports, 1 AC power unit fixed

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5735S-L32ST4X-A overview

This Huawei switch comes with 24 GE SFP ports, 8 10/100/1000BASE-T ports, and 4 10 GE SFP+ ports. Huawei CloudEngine S5735S-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735S-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com



S5735S-L32ST4X-A quick specs

24 GE SFP ports

8 10/100/1000BASE-T ports

4 10 GE SFP+ ports

Forwarding performance is 120/138Mpps

Switching capacity is 432Gbps/4.32Tbps

The S5735S-L32ST4X-A has a built-in AC power module and does not support pluggable power modules.

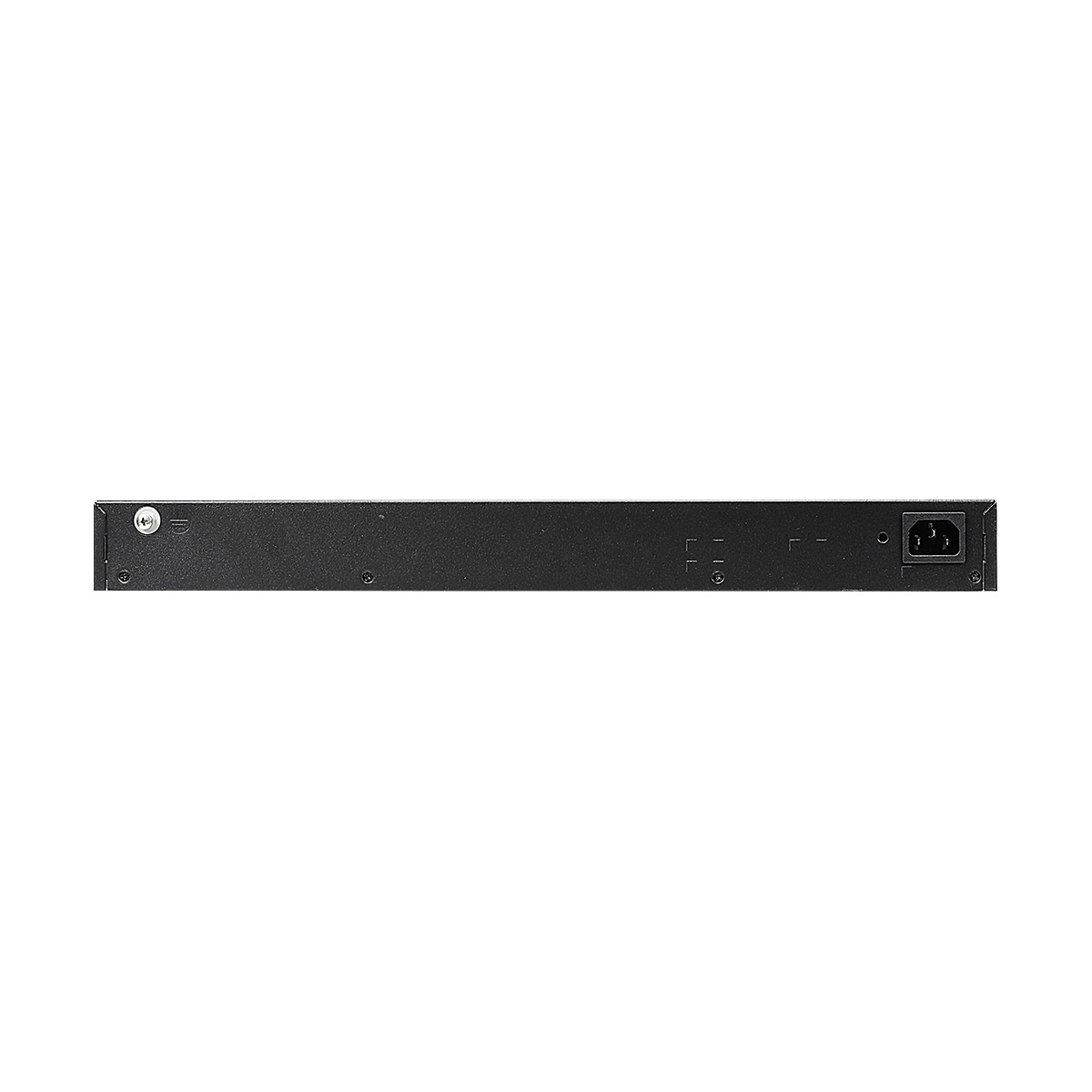

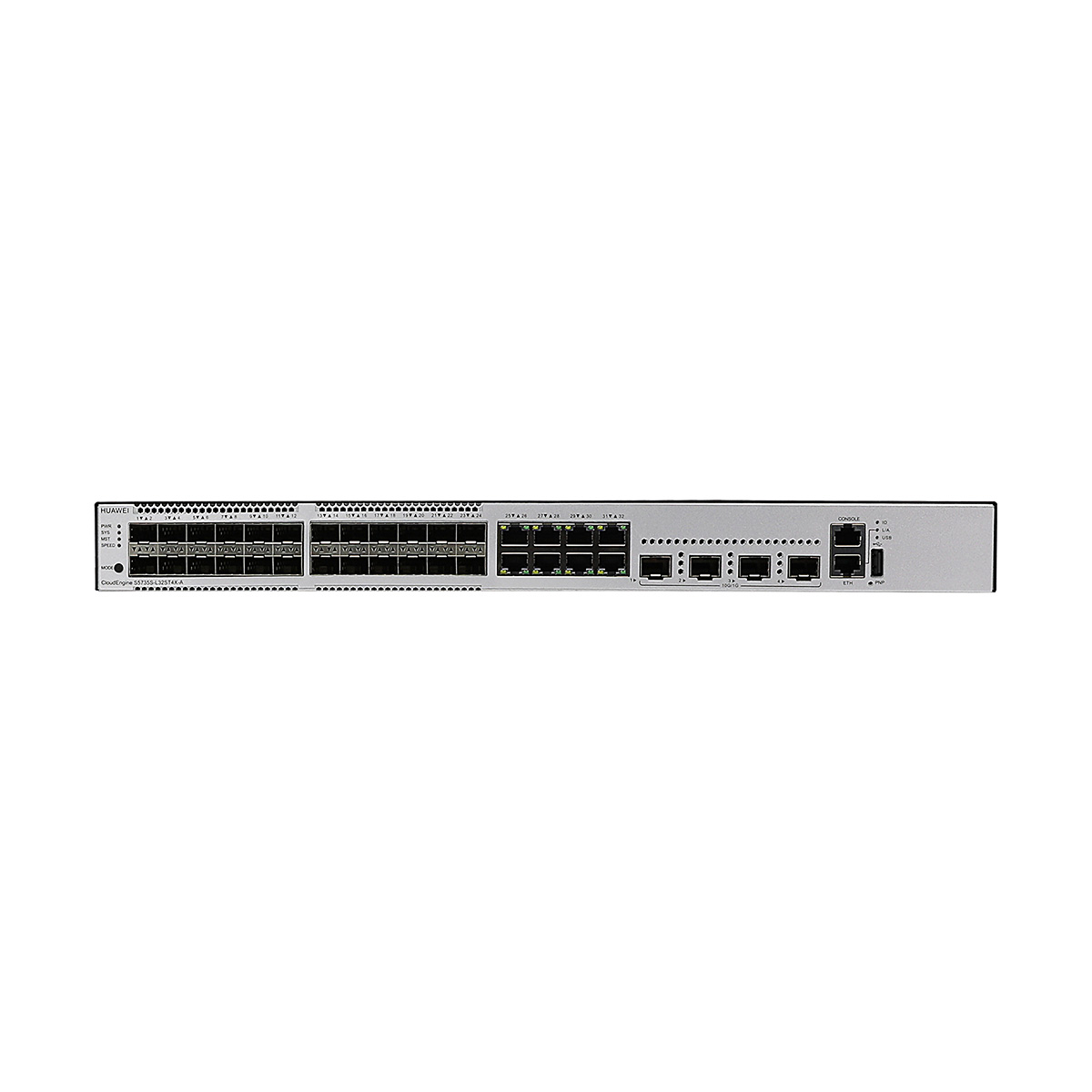

S5735S-L32ST4X-A appearance and structure

S5735S-L32ST4X-A appearance and structure

1 Twenty-four 10/100/1000BASE-X ports

eSFP-GE-SX-MM850 eSFP-GE-ZX100-SM1550 LE2MGSC40DE0

 6 One USB port
2 Eight 10/100/1000BASE-T ports 7 One PNP button
3 Four 10GE SFP+ ports

OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR

 8 Ground screw
4 One console port  9  Jack for AC power cable locking strap
5 One ETH management port 10 AC socket
Item S5735S-L32ST4X-A
Forwarding Performance 120/138Mpps
Switching Capacity 432Gbps/4.32Tbps
Fixed Ports 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+ Not supported
Memory (RAM) 1 GB
Mean time between failures (MTBF) 85.87 years
RTC Not supported
RPS Not supported
Rated voltage range
  • AC input: 100 V AC to 240 V AC, 50/60 Hz
  • High-Voltage DC input: 240 V DC
Maximum voltage range
  • AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
  • High-Voltage DC input: 190 V DC to 290 V DC
Maximum power consumption (100% throughput, full speed of fans) 65 W
Typical power consumption (30% of traffic load)
  • Tested according to ATIS standard
  • EEE enabled
  • No PoE power consumption
  46 W
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 53.3 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Dimensions (H x W x D)
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Weight (with packaging) 4.31 kg (9.5 lb)

Additional information

Weight 6.0000 kg
Dimensions 22.7000 × 44.2000 × 4.3600 cm
Campus Switch

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item S5735S-L32ST4X-A
Forwarding Performance 120/138Mpps
Switching Capacity 432Gbps/4.32Tbps
Fixed Ports 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+ Not supported
Memory (RAM) 1 GB
Mean time between failures (MTBF) 85.87 years
RTC Not supported
RPS Not supported
Rated voltage range
  • AC input: 100 V AC to 240 V AC, 50/60 Hz
  • High-Voltage DC input: 240 V DC
Maximum voltage range
  • AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
  • High-Voltage DC input: 190 V DC to 290 V DC
Maximum power consumption (100% throughput, full speed of fans) 65 W
Typical power consumption (30% of traffic load)
  • Tested according to ATIS standard
  • EEE enabled
  • No PoE power consumption
  46 W
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 53.3 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Dimensions (H x W x D)
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Weight (with packaging) 4.31 kg (9.5 lb)

Reviews

  1. Labatt –

    Test good, new model S5735S-L32ST4X-A to instead of old one S5720S-28X-LI-24S-AC.

  2. Alfonso Jordi –

    La serie S5700 que usé antes, pero no esperaba que se descontinuara ahora. S5735 es un reemplazo nuevo.
