Description
S5735S-L12T4S-A overview
Huawei S5735S-L12T4S-A switch comes with 12 1000BASE-T ports, 4 1000BASE-X ports, 1 AC power fixed
Huawei CloudEngine S5735S-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735S-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
S5735S-L12T4S-A quick specs
12 10/100/1000BASE-T ports
4 GE SFP+ ports
Forwarding performance is 33/108Mpps
Switching capacity is 336Gbps/3.36Tbps

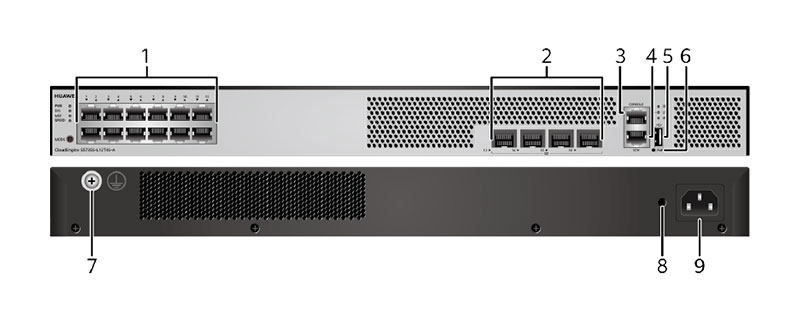

S5735S-L12T4S-A appearance and structure
| 1 | Twelve 10/100/1000BASE-T ports SFP-1000Base-T | 6 | One PNP button |
| 2 | Four GE SFP ports | 7 | Ground screw |
| 3 | One console port | 8 | Jack for AC power cable locking strap |
| 4 | One ETH management port | 9 | AC socket |
| 5 | One USB port |
