S5735S-H24S4XC-A

1 Review Write a review
PN98011041
Brands
AvailabilityIn Stock
Campus Switch S5735S-H
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei S5735S-H24S4XC-A switch supports 24 100/1000BASE-X ports, 4 10GE SFP+ optical ports,  2 hot-swappable AC/DC power supplies, without power model equipped

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5735S-H24S4XC-A overview

This Huawei S5735S-H24S4XC-A switch comes with 24 100/1000BASE-X ports, 4 10GE SFP+ optical ports, 2 hot-swappable AC/DC power supplies, without power model equipped, which is one of the S5735S-H series switches.



The Huawei S5735S-H series fixed Ethernet switches integrate the access and transmission functions to provide reliable access/aggregation and high-quality transmission of services on enterprise networks. The switches are built on an integrated hardware platform, and the hardware system consists of the chassis, power module, fan module, extended cards, and Switch Control Unit (SCU).



There are various S5735 series fixed Ethernet switch models for you to choose from according to your network requirements. If you don’t know which switch suits your network, you can contact csd@telecomate.com to get your exclusive technical sales manager for professional pre-sales consultation and technical services.



S5735S-H24S4XC-A version mapping



Item Details
Description S5735S-H24S4XC bundle (24*GE SFP ports, 4*10GE SFP+ ports, 1*expansion slot, 1*AC power module)
Part Number 98011041
Model S5735S-H24S4XC-A
First supported version V200R021C01



S5735S-H24S4XC-A quick spec

24 100/1000BASE-X ports

4 10GE SFP+ optical ports

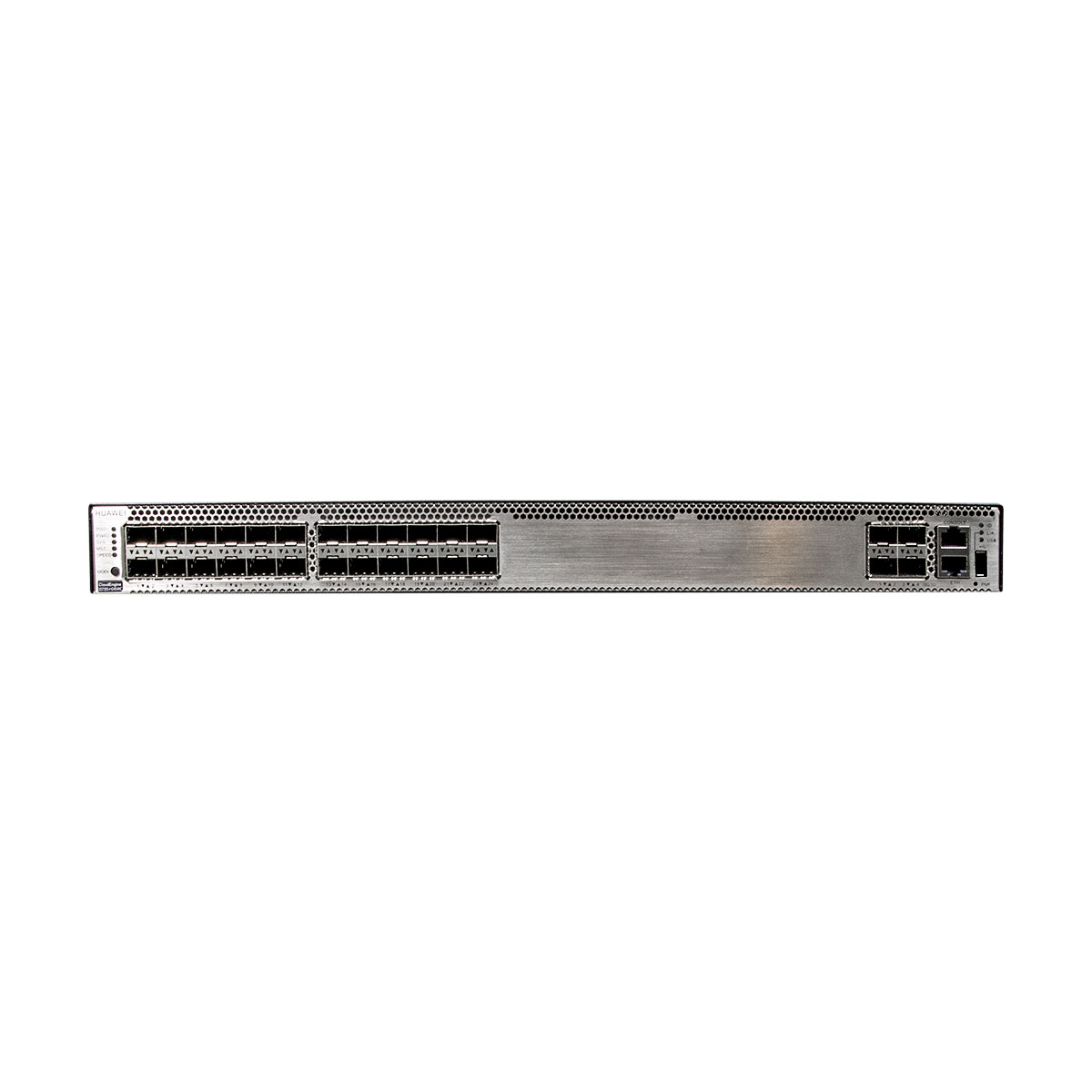

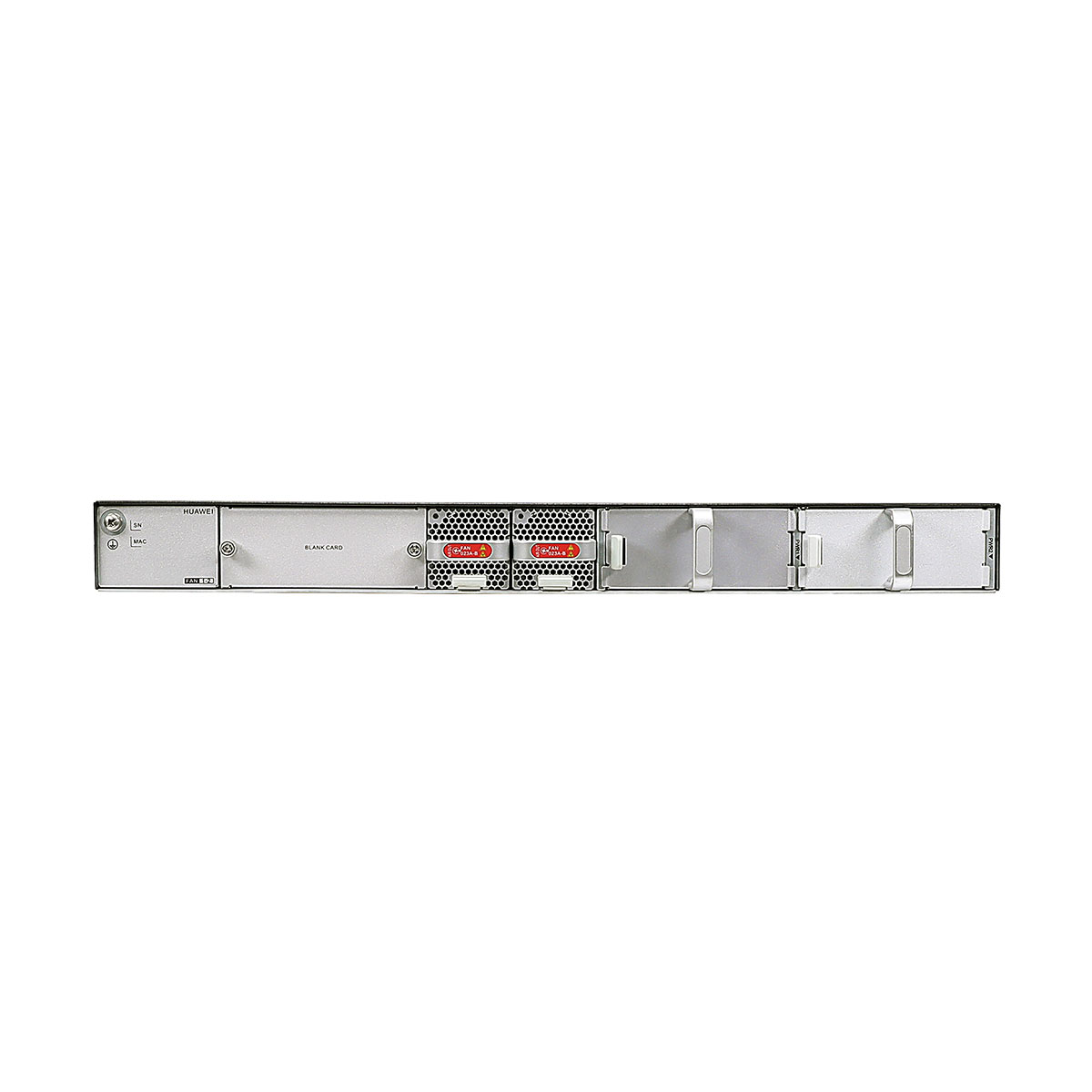

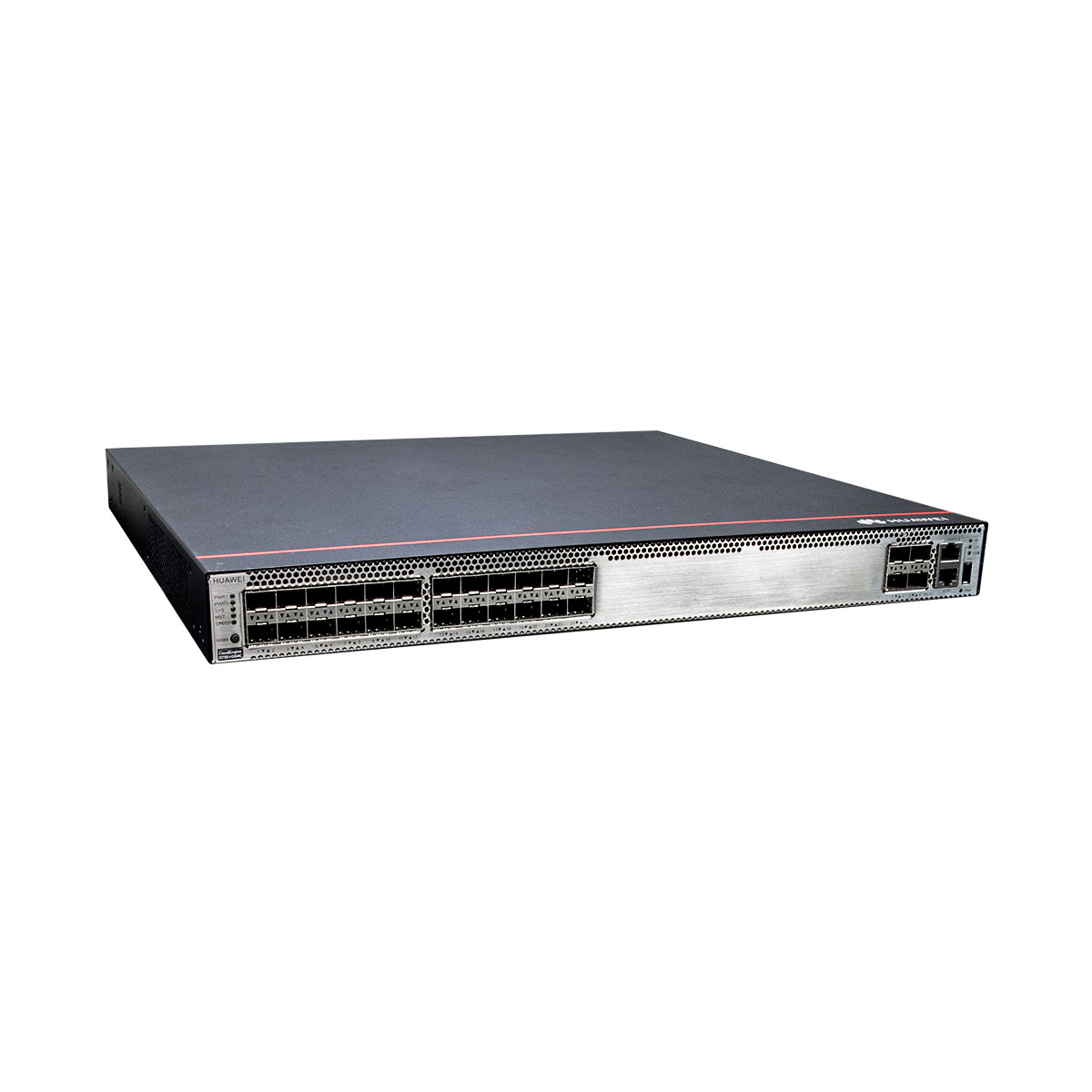

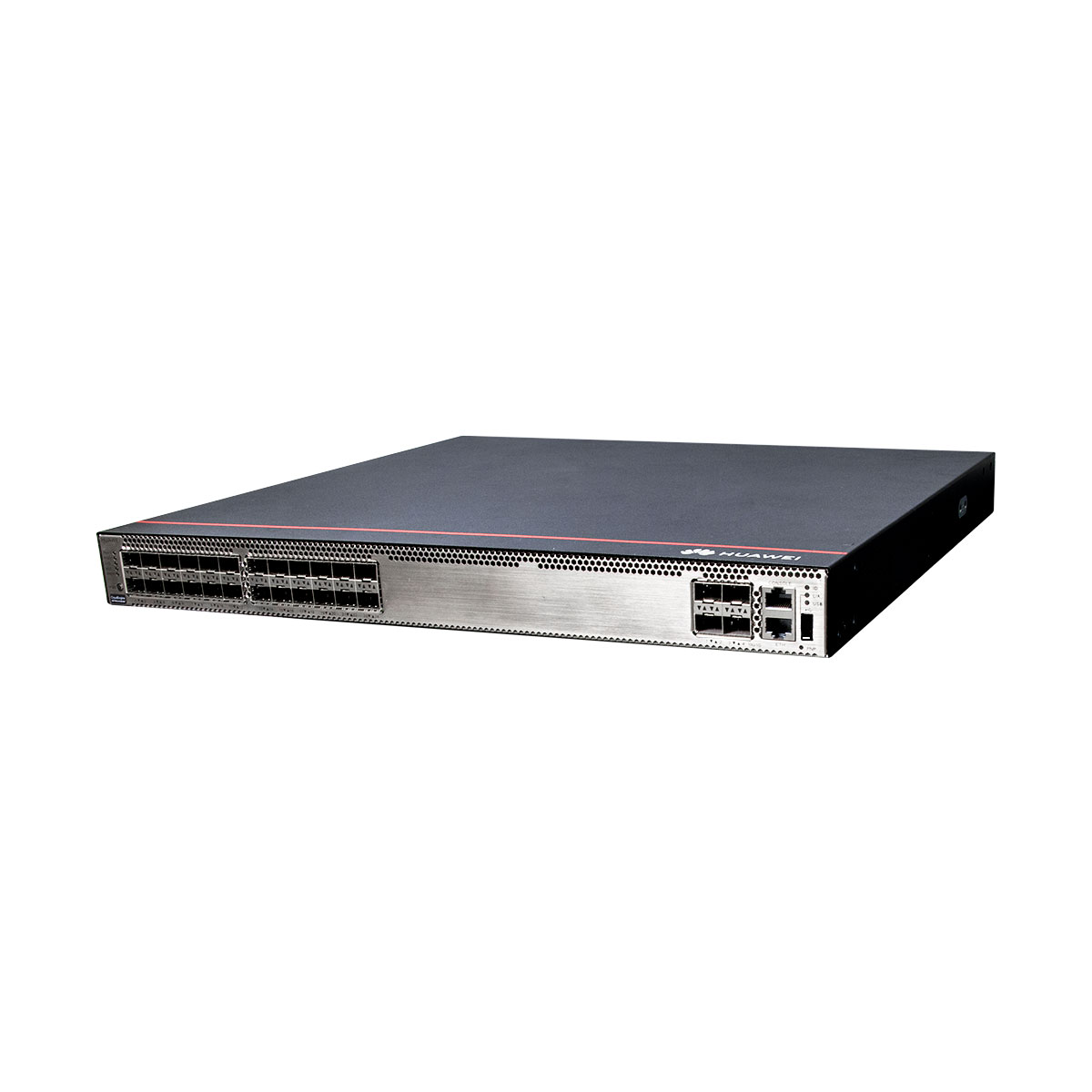

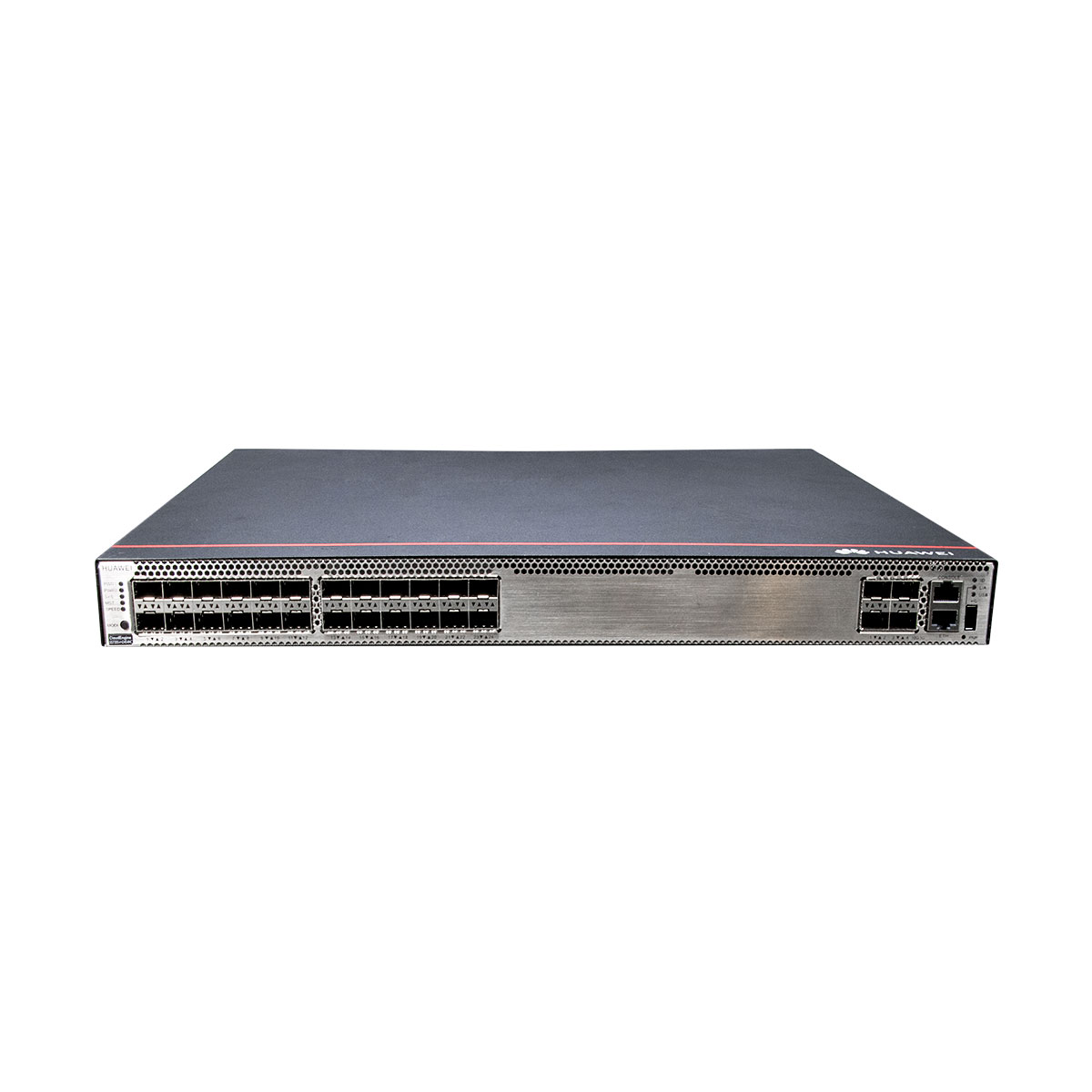

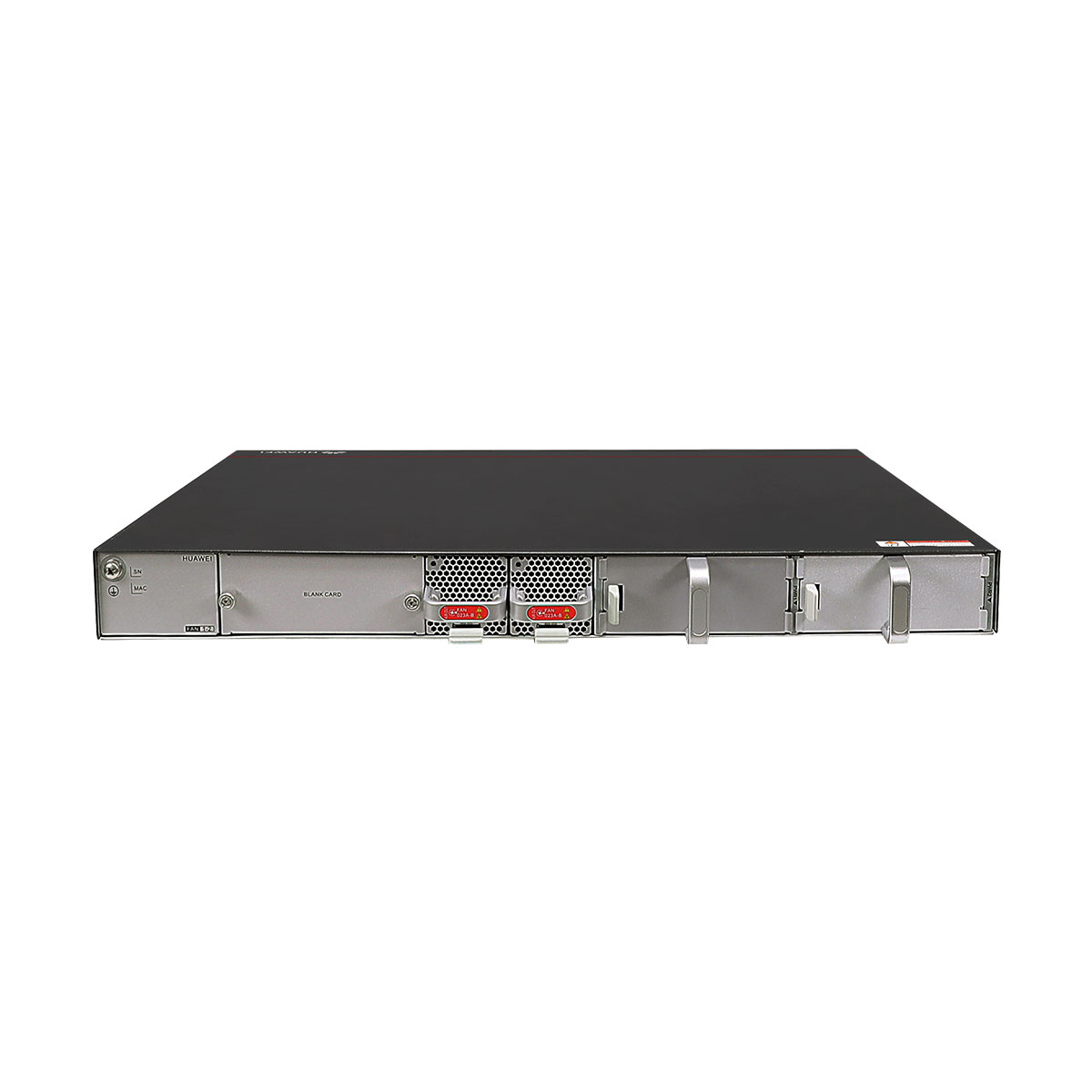

S5735S-H24S4XC-A appearance and structure



1 Twenty-four 100/1000BASE-X ports 2 Four 10GE SFP+ optical ports
3 One console port 4 One ETH management port
5 One USB port 6 One PNP button
NOTICE:
To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.
To reset the switch, press the button.
Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.
7 Ground screw 8 Rear card slot
NOTE: NOTE:
It is used with a ground cable. Applicable card:
S7X08000 (02312URW)
S7X08000 (02312URW-002) (applicable in V200R021C10SPC600 and later versions)
ES5D21Q02Q00
ES5D21Q04Q01
S7Q02001 (02313UBW)
S7Q02001 (02313UBW-002) (applicable in V200R021C10SPC600 and later versions)
9 Fan module slot 1 10 Fan module slot 2
NOTE: NOTE:
Applicable fan module: FAN-023A-B (Fan box(B,FAN panel side exhaust)) Applicable fan module: FAN-023A-B (Fan box(B,FAN panel side exhaust))
11 Power module slot 1 12 Power module slot 2
NOTE: NOTE:
Applicable power module: Applicable power module:
PAC600S12-CB (600 W AC&240 V DC Power Module) PAC600S12-CB (600 W AC&240 V DC Power Module)
PAC600S12-EB (600 W AC&240 V DC Power Module) PAC600S12-EB (600 W AC&240 V DC Power Module)
PAC600S12-DB (600 W AC&240 V DC Power Module) PAC600S12-DB (600 W AC&240 V DC Power Module)
PDC1000S12-DB (1000 W DC Power Module) PDC1000S12-DB (1000 W DC Power Module)
PAC150S12-R (150 W AC Power Module) PAC150S12-R (150 W AC Power Module)
PDC180S12-CR (180 W DC Power Module) PDC180S12-CR (180 W DC Power Module)



1 Twenty-four 100/1000BASE-X ports 2 Four 10GE SFP+ optical ports
3 One console port 4 One ETH management port
5 One USB port 6 One PNP button
NOTICE:
To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.
To reset the switch, press the button.
Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.
7 Ground screw 8 Rear card slot
NOTE: NOTE:
It is used with a ground cable. Applicable card:
S7X08000 (02312URW)
S7X08000 (02312URW-002) (applicable in V200R021C10SPC600 and later versions)
ES5D21Q02Q00
ES5D21Q04Q01
S7Q02001 (02313UBW)
S7Q02001 (02313UBW-002) (applicable in V200R021C10SPC600 and later versions)
9 Fan module slot 1 10 Fan module slot 2
NOTE: NOTE:
Applicable fan module: FAN-023A-B (Fan box(B,FAN panel side exhaust)) Applicable fan module: FAN-023A-B (Fan box(B,FAN panel side exhaust))
11 Power module slot 1 12 Power module slot 2
NOTE: NOTE:
Applicable power module: Applicable power module:
PAC600S12-CB (600 W AC&240 V DC Power Module) PAC600S12-CB (600 W AC&240 V DC Power Module)
PAC600S12-EB (600 W AC&240 V DC Power Module) PAC600S12-EB (600 W AC&240 V DC Power Module)
PAC600S12-DB (600 W AC&240 V DC Power Module) PAC600S12-DB (600 W AC&240 V DC Power Module)
PDC1000S12-DB (1000 W DC Power Module) PDC1000S12-DB (1000 W DC Power Module)
PAC150S12-R (150 W AC Power Module) PAC150S12-R (150 W AC Power Module)
PDC180S12-CR (180 W DC Power Module) PDC180S12-CR (180 W DC Power Module)



Ports on the S5731S-H48HB4XZ-A

Port Connector Type Description Available Components
100/1000BASE-X port SFP A 100/1000BASE-X port can send and receive data at 100 Mbit/s or 1000 Mbit/s. FE SFP/eSFP optical modules
GE eSFP optical modules
GE SFP copper module
10GE SFP+ optical port SFP+ A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s. GE eSFP optical modules
GE-CWDM eSFP optical modules
GE-DWDM eSFP optical modules
GE SFP copper module
10GE SFP+ optical modules (OSXD22N00 not supported)
10GE-CWDM SFP+ optical modules
10GE-DWDM SFP+ optical modules
1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables
3 m and 10 m SFP+ AOC cables
0.5 m and 1.5 m SFP+ dedicated stack cables (only for zero-configuration stacking)
Console port RJ45 The console port is connected to a console for on-site configuration. Console cable
ETH management port RJ45 You can connect a switch to a configuration terminal or network management workstation through the ETH management port to configure the switch locally or remotely. Ethernet cable
You can choose to download the software package through the ETH management port in the BootLoad menu. File transfer through the ETH management port is faster than transfer through the console port.
USB port USB 2.0 Type A The USB port can have a USB flash drive connected to upgrade the switch, or transfer configuration files or other files. The USB port can only connect to a USB flash drive that complies with USB 2.0. USB flash drive
USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor. Switches support a maximum of 128 GB USB flash drives.



Item S5735S-H24S4XC-A
Memory 2 GB
Flash memory 1 GB in total. To view the available flash memory size, run the display version command.
Console port RJ45
Eth Management port RJ45
USB Supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] -
Power supply surge protection [kV] Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Types of fans Pluggable
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left,front and right, air exhaustion from behind
PoE Not supported
Certification EMC certification
Safety certification
Manufacturing certification
imensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 444.0 mm (1.72 in. x 17.40 in. x 17.48 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 150mm × 710mm × 560mm (5.90 in. x 27.95 in. x 22.05 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 6 kg (13.23 lb)
Weight with packaging [kg(lb)] 9 kg (19.84 lb)
Typical power consumption [W] 63 W
Typical heat dissipation [BTU/hour] 214.96 BTU/hour
Maximum power consumption [W] 74 W
Maximum heat dissipation [BTU/hour] 252.5 BTU/hour
MTBF [year] 65.79 year
MTtr [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 49.9 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 37.8 dB(A)
Number of card slots 1
Number of power slots 2
Number of fans modules 2
Redundant power supply 1+1
Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.
Long-term operating temperature [°C(°F)] -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode Pluggable power supply
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
DC input: –48 V DC to –60 V DC
Input voltage range [V] AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz
High-voltage DC input: 190 V DC to 290 V DC
DC input: –38.4 V DC to –72 V DC
Maximum input current [A] The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.

Additional information

Campus Switch

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item S5735S-H24S4XC-A
Memory 2 GB
Flash memory 1 GB in total. To view the available flash memory size, run the display version command.
Console port RJ45
Eth Management port RJ45
USB Supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] -
Power supply surge protection [kV] Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Types of fans Pluggable
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left,front and right, air exhaustion from behind
PoE Not supported
Certification EMC certification
Safety certification
Manufacturing certification
imensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 444.0 mm (1.72 in. x 17.40 in. x 17.48 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 150mm × 710mm × 560mm (5.90 in. x 27.95 in. x 22.05 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 6 kg (13.23 lb)
Weight with packaging [kg(lb)] 9 kg (19.84 lb)
Typical power consumption [W] 63 W
Typical heat dissipation [BTU/hour] 214.96 BTU/hour
Maximum power consumption [W] 74 W
Maximum heat dissipation [BTU/hour] 252.5 BTU/hour
MTBF [year] 65.79 year
MTtr [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 49.9 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 37.8 dB(A)
Number of card slots 1
Number of power slots 2
Number of fans modules 2
Redundant power supply 1+1
Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.
Long-term operating temperature [°C(°F)] -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode Pluggable power supply
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
DC input: –48 V DC to –60 V DC
Input voltage range [V] AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz
High-voltage DC input: 190 V DC to 290 V DC
DC input: –38.4 V DC to –72 V DC
Maximum input current [A] The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.
